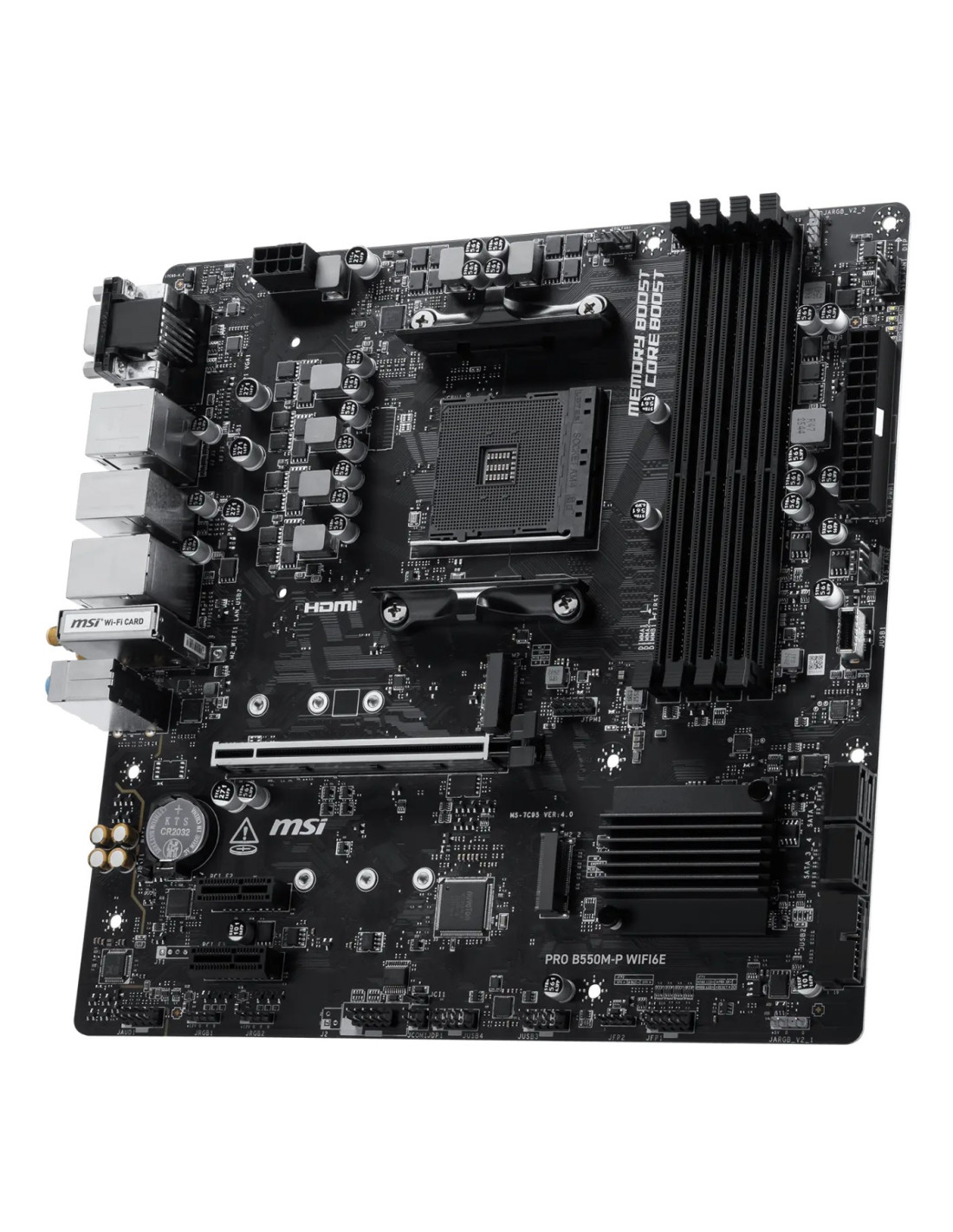

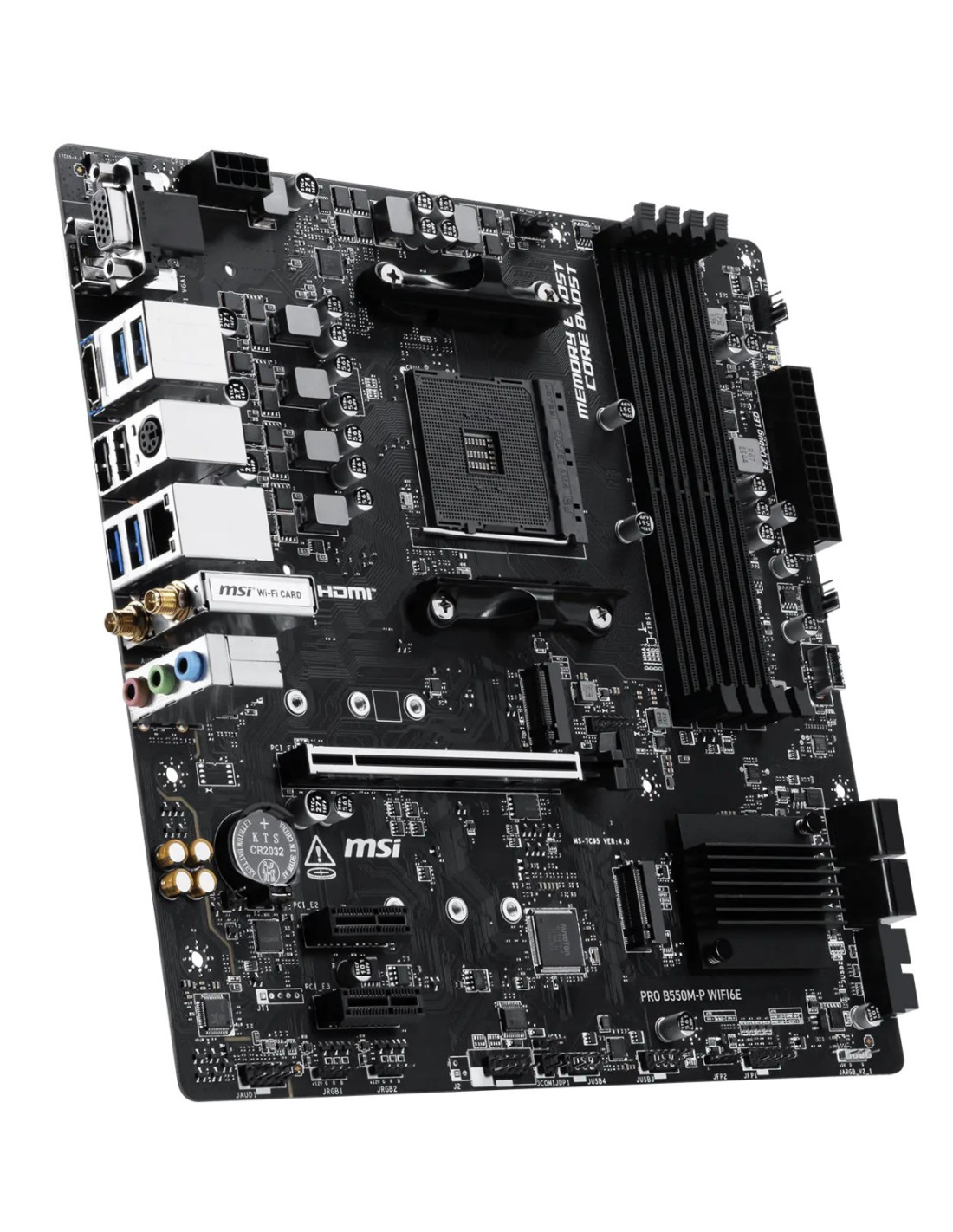

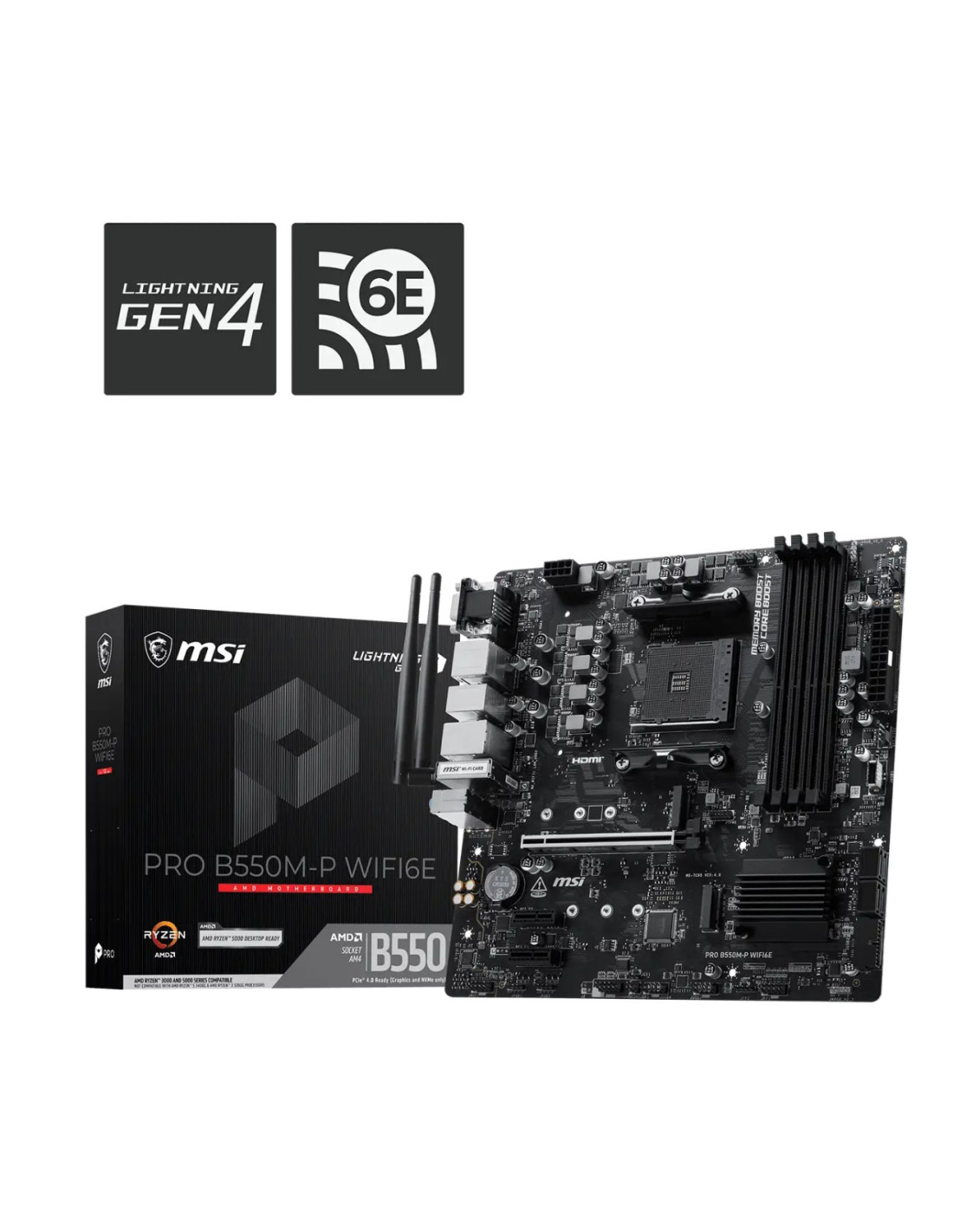

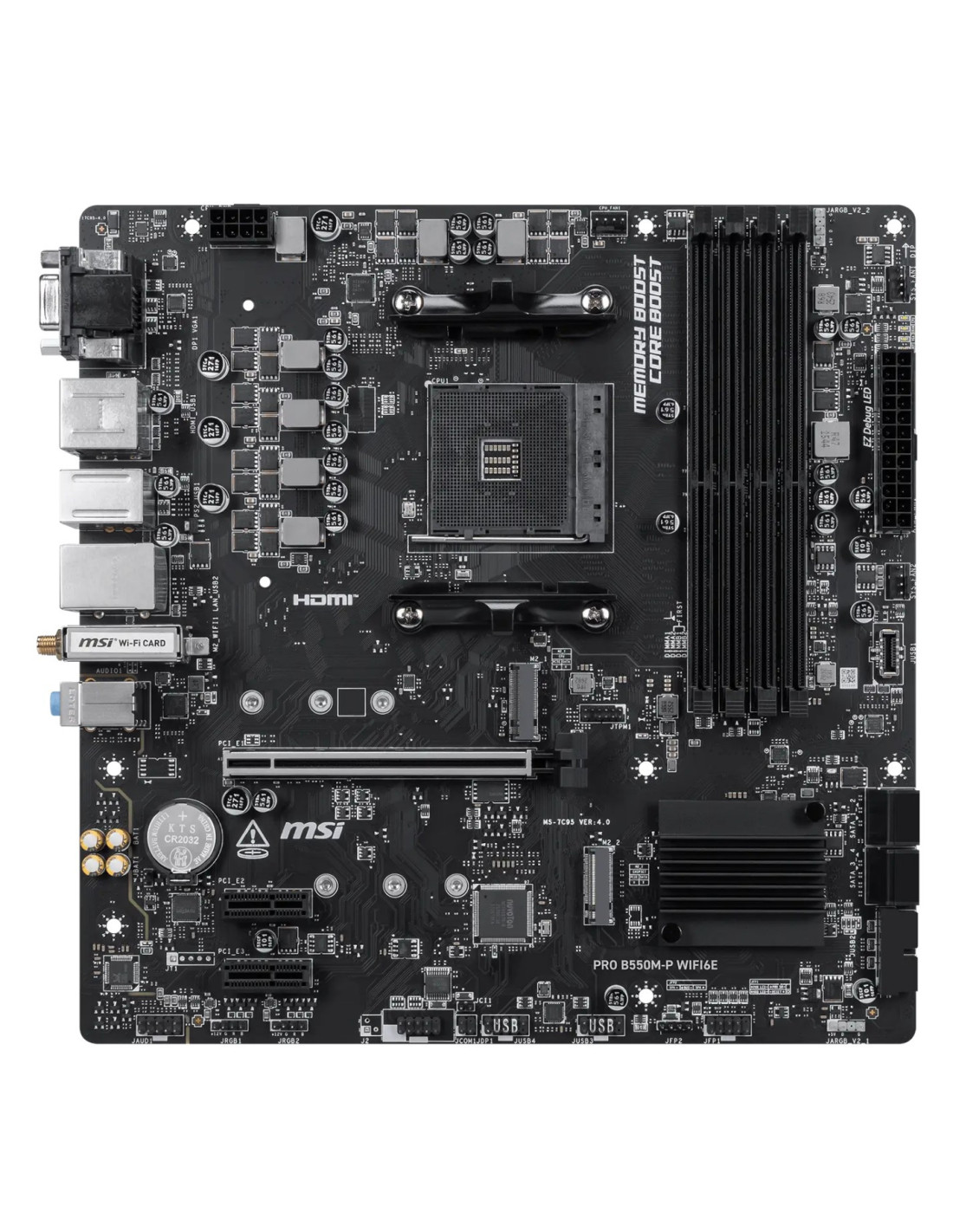

MSI PRO B550M-P WIFI6E AM4 mATX

MSI PRE B550M-P WIFI6E

Chipset: AMD B550

Rozmerový formát: mATX 243.84mmx243.84mm

Podpora pre procesory: AMD Ryzen 5000 & 3000 Series desktop processors (not compatible s AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) a AMD Ryzen™ 4000 G-Series desktop processors

Pätica procesora: AM4

Pamäť:

• 4x DDR4, Maximum Memory Capacity 128GB
• Memory Support DDR4 2667/2800/2933/3000/3066/3200/3466/3600/3733/3866/4000/4133/4266/4400+MHz
• Max. overclocking:
• 1DPC 1R Max speed up to 4400+ MT/s
• 1DPC 2R Max speed up to 3733+ MT/s
• 2DPC 1R Max speed up to 3866+ MT/s
• 2DPC 2R Max speed up to 3466+ MT/s
• Supports JEDEC Speed
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Memory Overclocking by A-XMP OC mode

Grafické porty:

1x HDMI

• Support HDMITM 2.1, maximum resolution of 4K 60Hz

1x DisplayPort

• Supports DP 1.4, maximum resolution of 4K 60Hz

1x VGA

• Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz

Zvuková karta:

• Realtek® ALC897 Codec
• 7.1-Channel High Definition Audio

Ethernet: Realtek RTL8111H 1Gbps LAN

WLAN + Bluetooth: Wi-Fi 6E

• The Wireless module je preinštalovaný v M.2 (Key-E) slot
• Dual-band 1T1R mode
• Supports MU-MIMO RX
• Supports 2.4GHz/ 5GHz/ 6GHz* frequency band
• Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Bluetooth® 5.3

Rozširujúce sloty:

1x PCI-E x16 slot

2x PCI-E x1 slot

• PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
• PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
• PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)

RAID radič: RAID 0, RAID 1, RAID 10

Úložný priestor:

2x M.2

• M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
• M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices

4x SATA 6G

USB:

Zadné USB

• 2x USB 2.0
• 4x USB 5Gbps Type A

Predné USB

• 4x USB 2.0
• 2x USB 5Gbps Type A
• 1x USB 5Gbps Type C

Interné porty:

Napájanie

• 1× Power Connector (ATX_PWR)
• 1× Power Connector (CPU_PWR)
• 1× CPU Fan
• 2× System Fan

USB

• 4× USB 2.0 ports
• 2× USB 5Gbps Type-A ports
• 1× USB 5Gbps Type-C port

Ostatné

• 2× Front Panel (JFP)
• 1× Chassis Intrusion (JCI)
• 1× Front Audio (JAUD)
• 1× COM Port (JCOM)
• 2× Addressable V2 RGB LED konektory (JARGB_V2)
• 2× RGB LED konektory (JRGB)
• 1× TPM pin header (TPM 2.0)

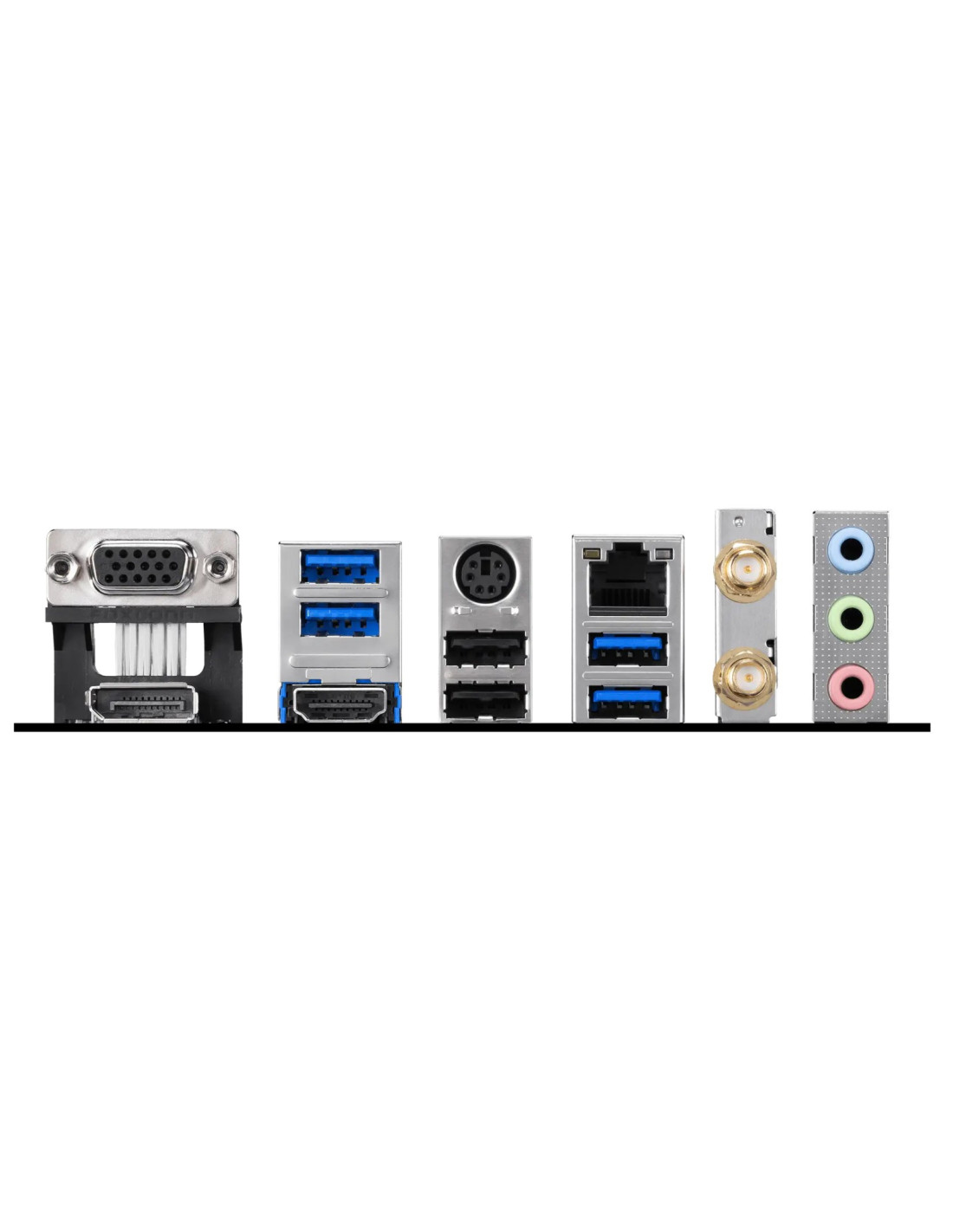

Porty na zadnom paneli:

• USB 5Gbps Type-A
• Keyboard / Mouse
• LAN Port
• Wi-Fi / Bluetooth
• Audio connectors
• DisplayPort
• HDMI™
• USB 2.0
• USB 5Gbps Type-A

OS: Windows 11 64-bit, Windows 10 64-bit
