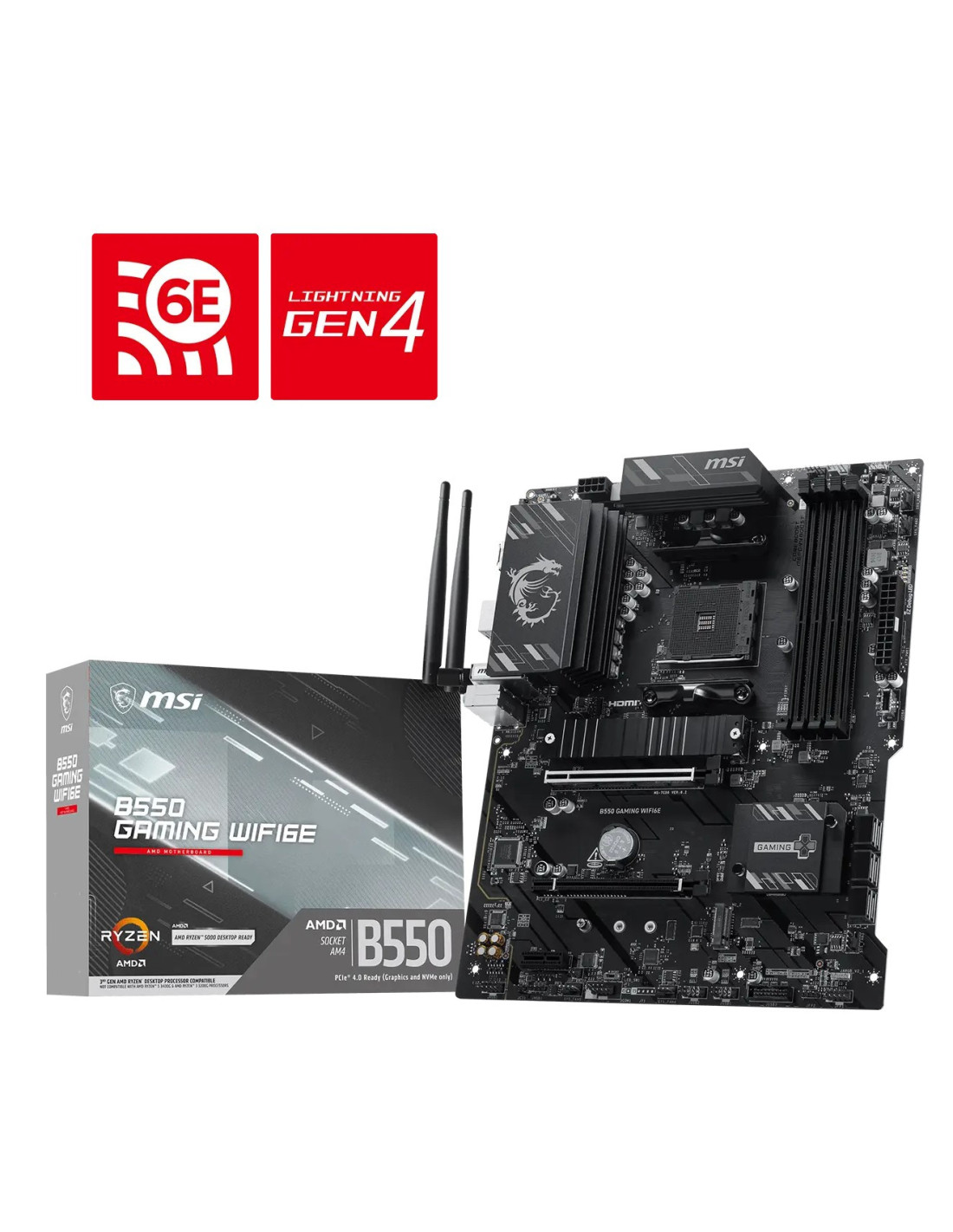

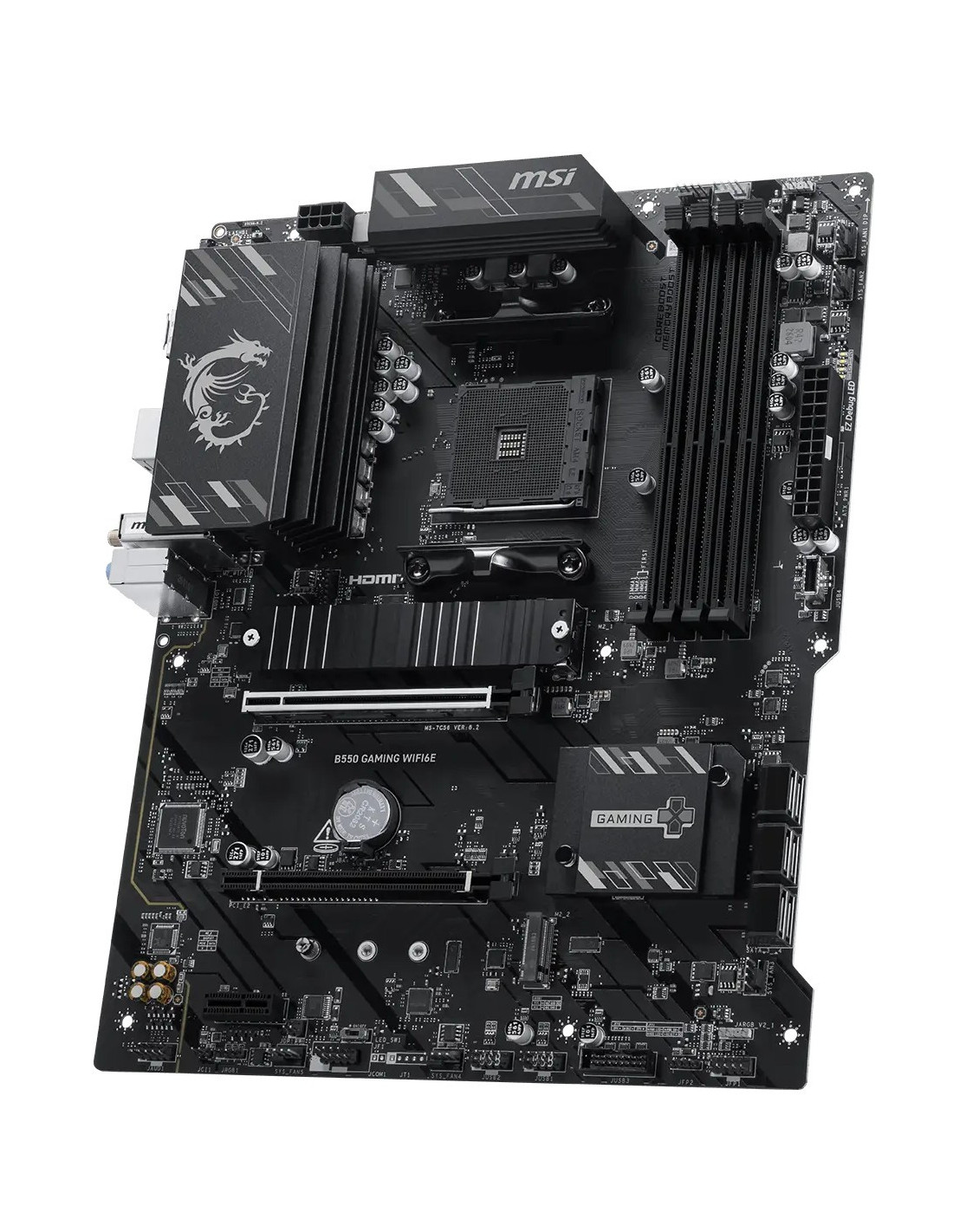

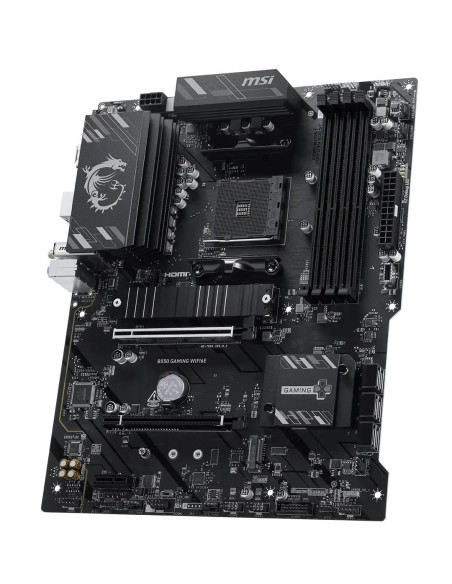

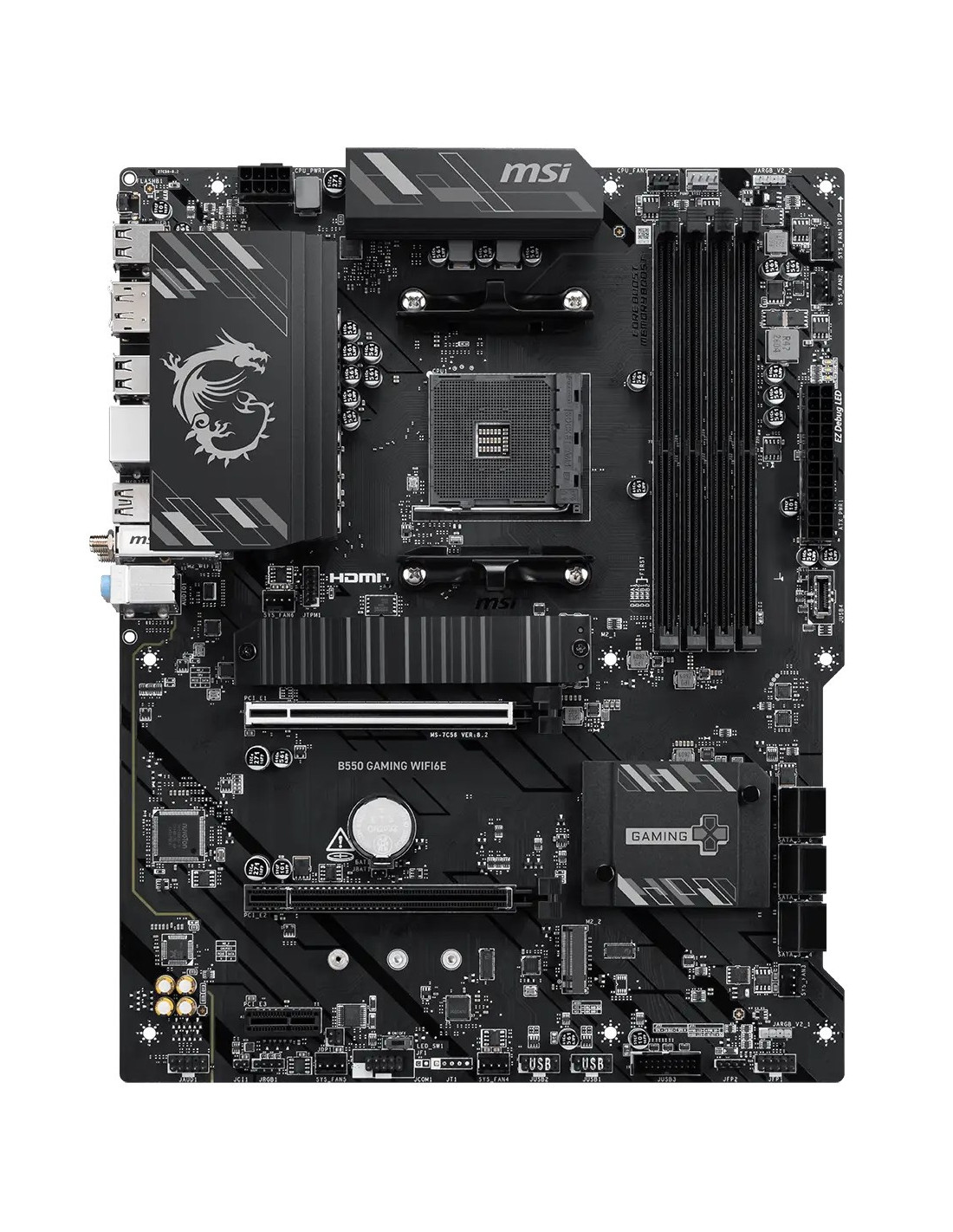

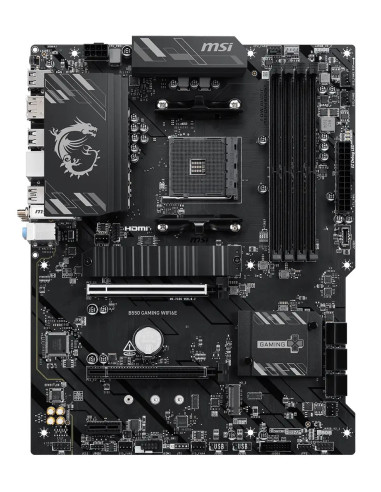

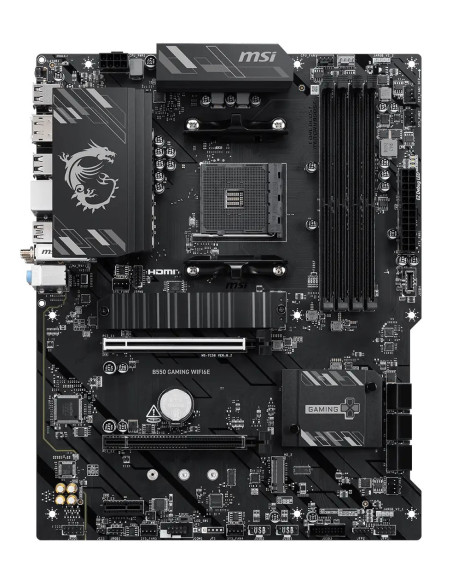

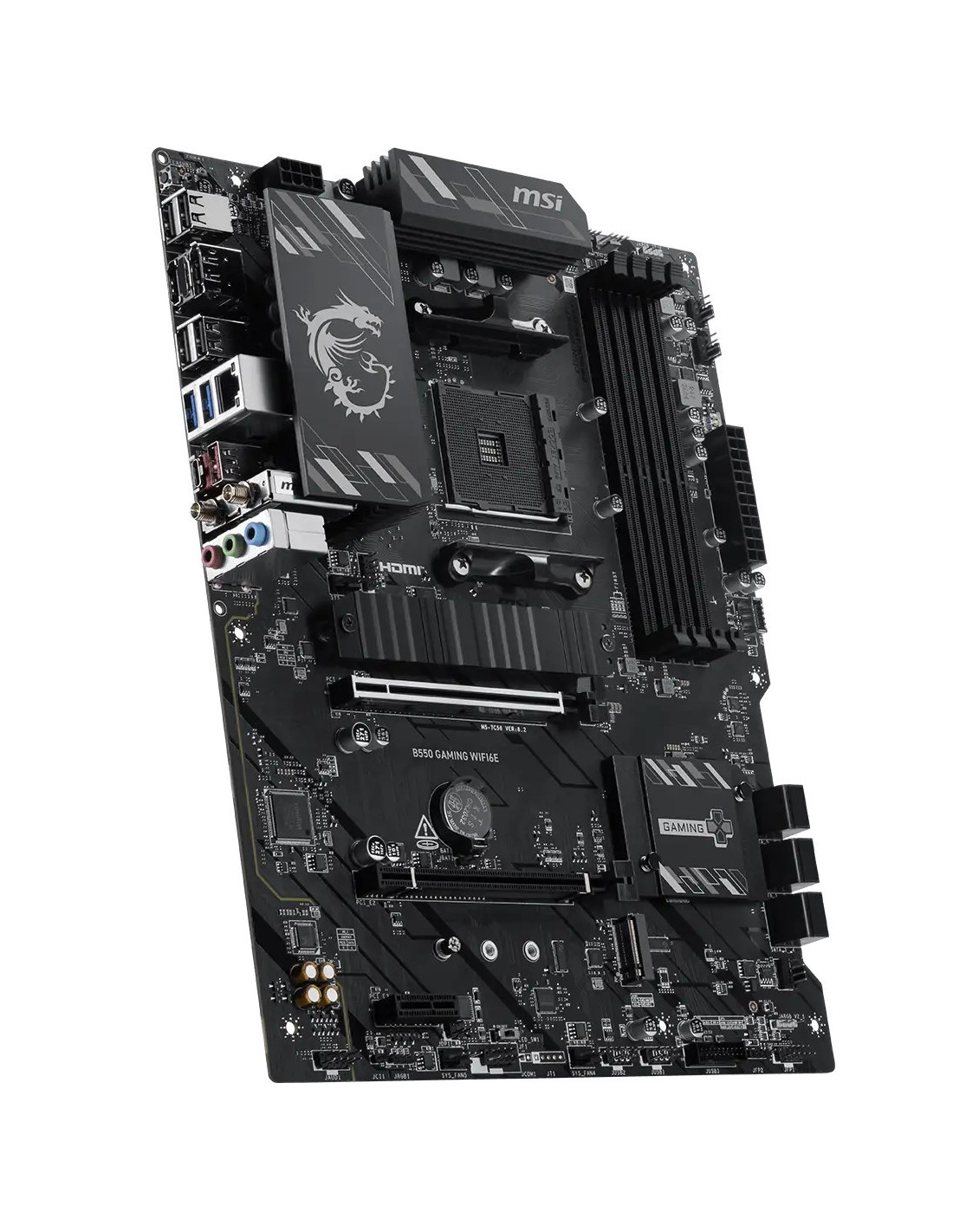

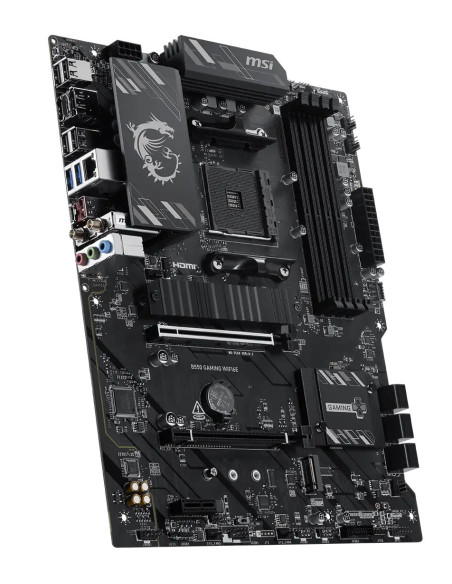

MSI B550 GAMING WIFI6E AM4 ATX

MSI B550 GAMING WIFI6E

Chipset:  AMD B550

Rozmerový formát: ATX 243.84mmx304.8mm

Podpora pre procesory: AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible s AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) a AMD Ryzen™ 4000 G-Series desktop processors

Pätica procesora: AM4

Pamäť:

• 4x DDR4, Maximum Memory Capacity 128GB
• Memory Support DDR4 2667/2800/2933/3000/3066/3200/3466/3600/3733/3866/4000/4133/4266/4400/43 4800/ 4866+ MHz by A-XMP OC MODE
• Max. overclocking frequency:
• 1DPC 1R Max speed up to 4800+ MHz
• 1DPC 2R Max speed up to 3866+ MHz
• 2DPC 1R Max speed up to 4000+ MHz
• 2DPC 2R Max speed up to 3600+ MHz
• Dual channel memory architecture
• Supports non-ECC UDIMM memory
• Supports ECC UDIMM memory (non-ECC mode)
• Supports un-buffered memory

Grafické porty:

1x HDMI

• Support HDMI™ 1.4, maximum resolution of 4K 30Hz

1x DisplayPort

• Support DisplayPort 1.2, maximum resolution of 4K 60Hz

Zvuková karta:

• Realtek® ALC897
• 7.1-Channel High Definition Audio

Ethernet: Realtek® 8111H 1G LAN

WLAN + Bluetooth: Wi-Fi 6E Solution

• The Wireless module je preinštalovaný v M.2 (Key-E) slot
• Dual-band 1T1R mode
• Supports MU-MIMO RX
• Supports 2.4GHz/ 5GHz/ 6GHz* frequency band
• Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Bluetooth® 5.3

Rozširujúce sloty:

2x PCI-E x16 slot

1x PCI-E x1 slot

• PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
• PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)
• PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)

Úložný priestor:

2x M.2

• M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260/2242 devices
• M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices

6x SATA 6G

USB:

Zadné USB

• 4x USB 2.0
• 2x USB 5Gbps Type A
• 1x USB 10Gbps Type A
• 1x USB 10Gbps Type C

Predné USB

• 4x USB 2.0
• 2x USB 5Gbps Type A
• 1x USB 5Gbps Type C

Interné porty:

Napájanie

• 1× Power Connector (ATX_PWR)
• 1× Power Connector (CPU_PWR)
• 1× CPU Fan
• 1× Combo Fan (Pump_Sys Fan)
• 6× System Fan

USB

• 4× USB 2.0 ports
• 2× USB 5Gbps Type-A ports
• 1× USB 5Gbps Type-C port

Ostatné

• 2× Front Panel (JFP)
• 1× Chassis Intrusion (JCI)
• 1× Front Audio (JAUD)
• 1× COM Port (JCOM)
• 2× Addressable V2 RGB LED konektory (JARGB_V2)
• 1× RGB LED connector (JRGB)
• 1× TPM pin header (TPM 2.0)

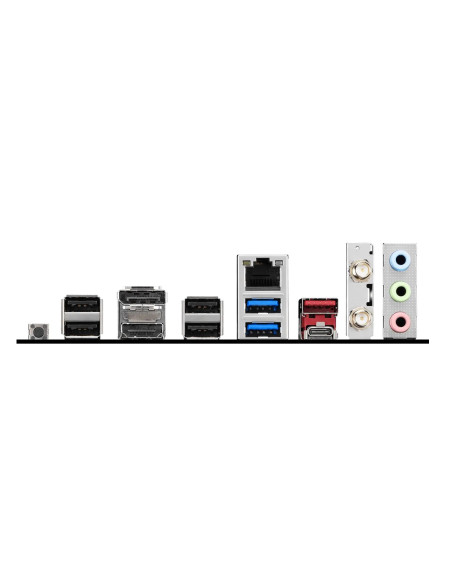

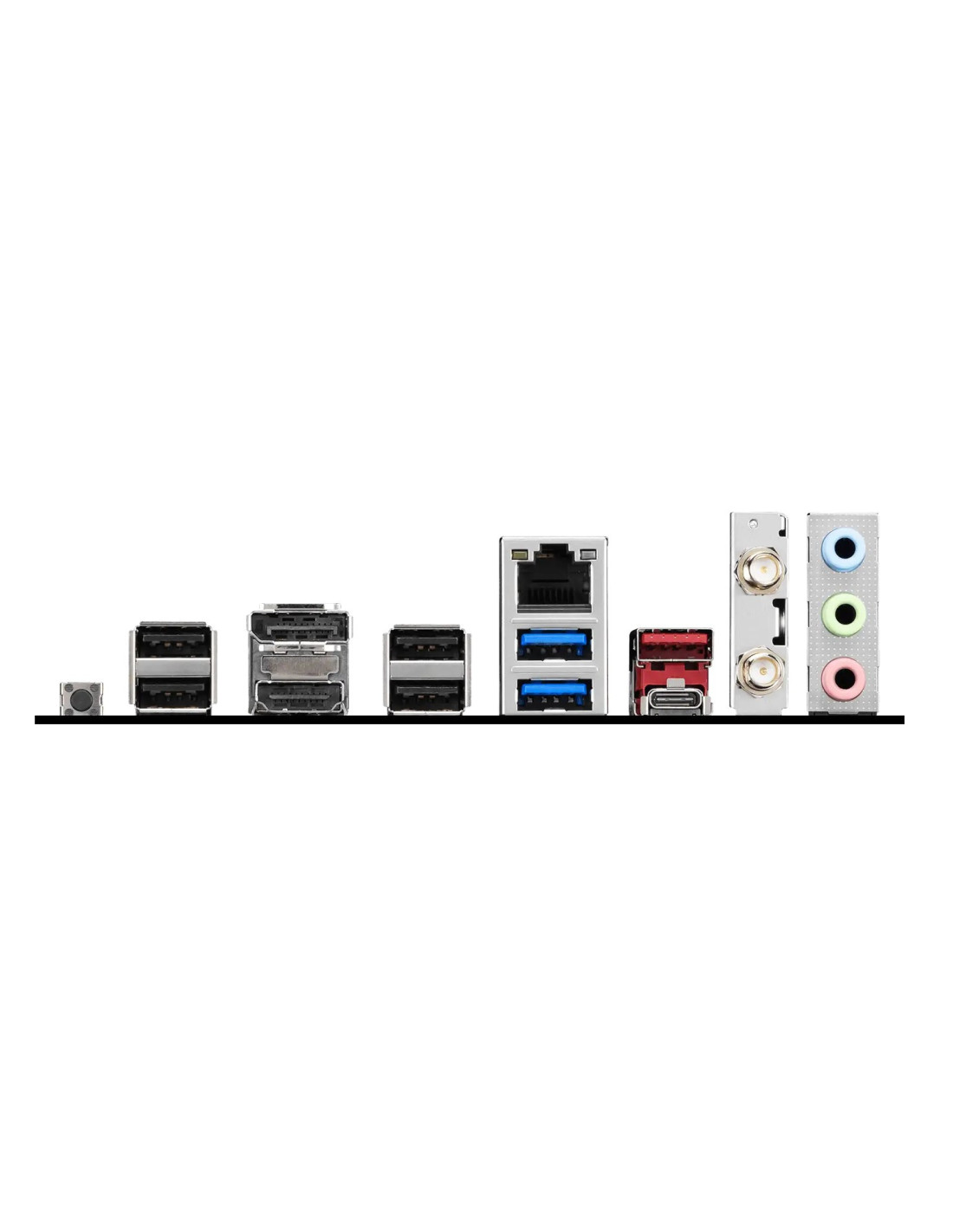

Porty na zadnom paneli:

• USB 2.0
• DisplayPort 1.2
• 1G LAN
• USB 10Gbps (Type-A)
• Wi-Fi / Bluetooth
• Audio Connectors
• Flash BIOS Button
• HDMI™
• USB 2.0
• USB 5Gbps (Type-A)
• USB 10Gbps (Type-C)

OS: Windows 11 64-bit
