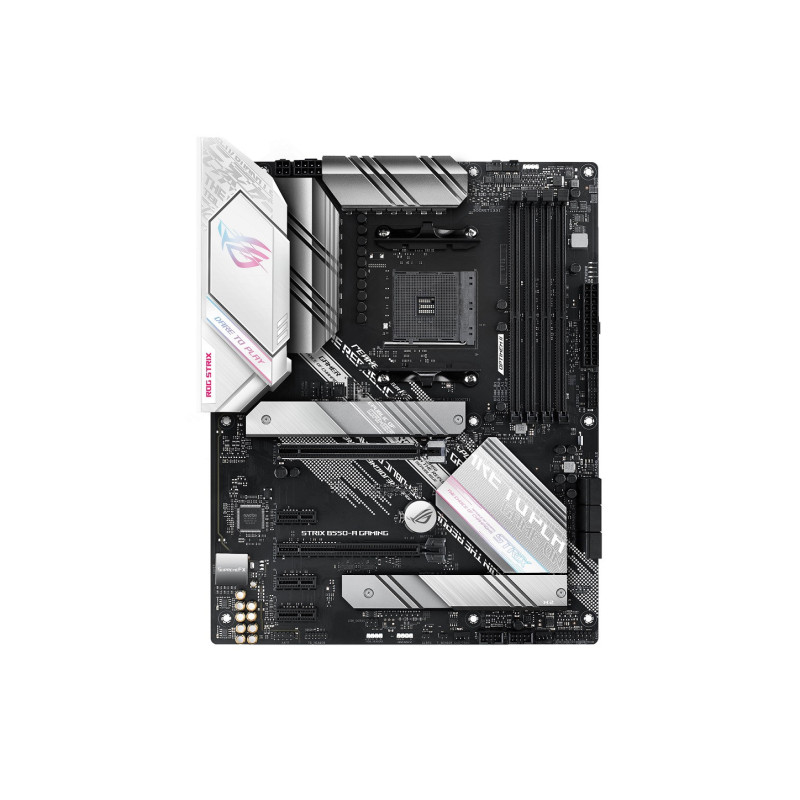

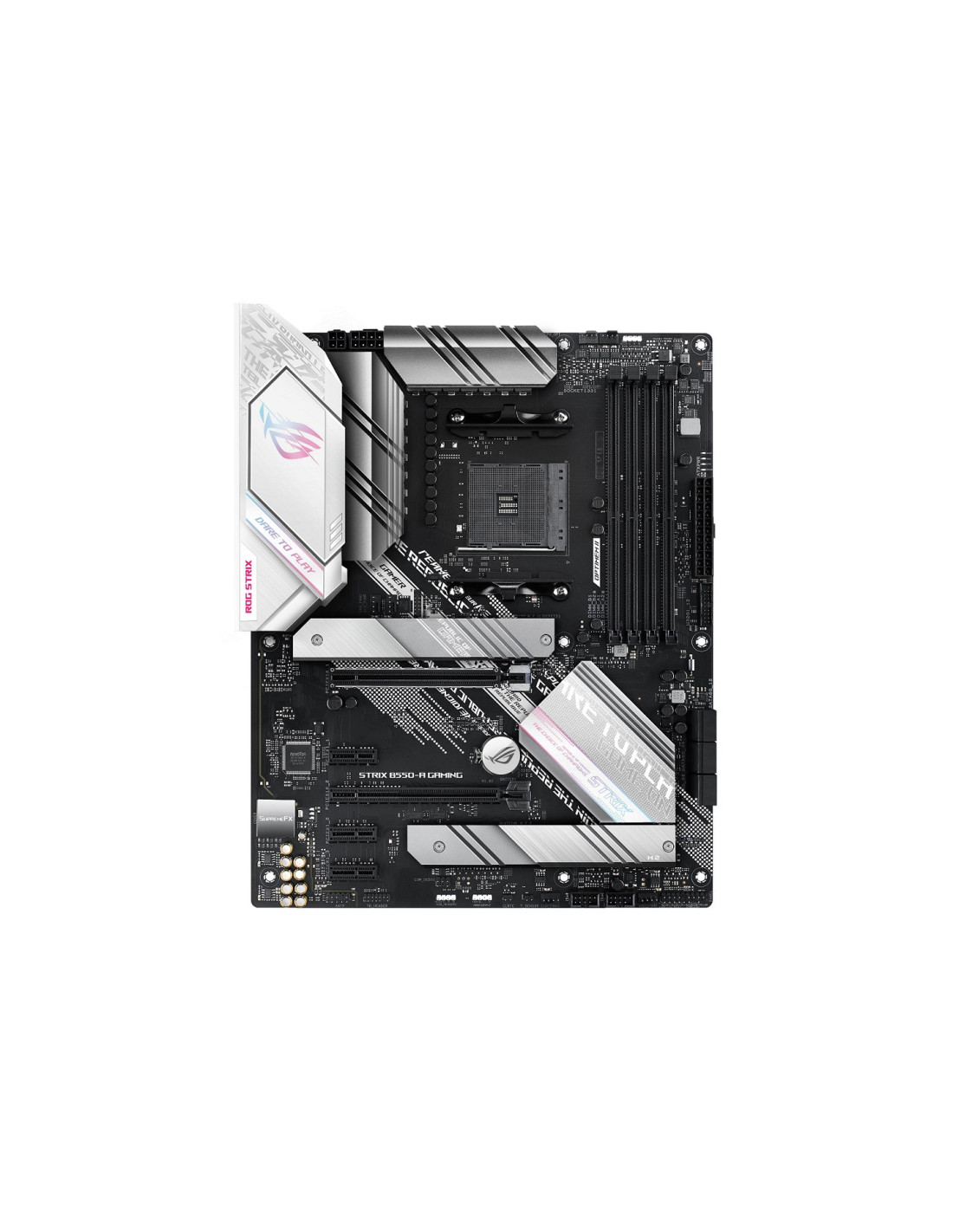

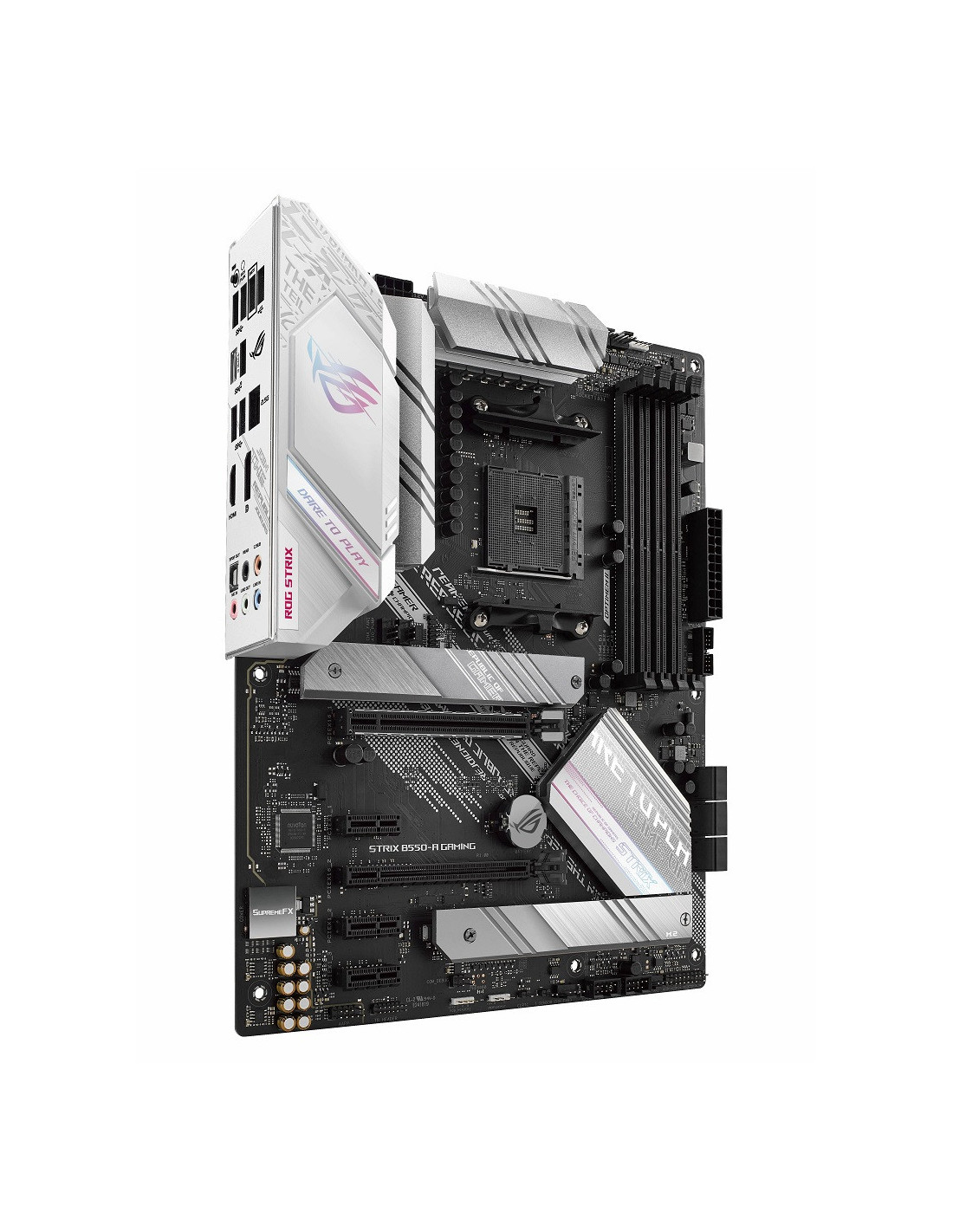

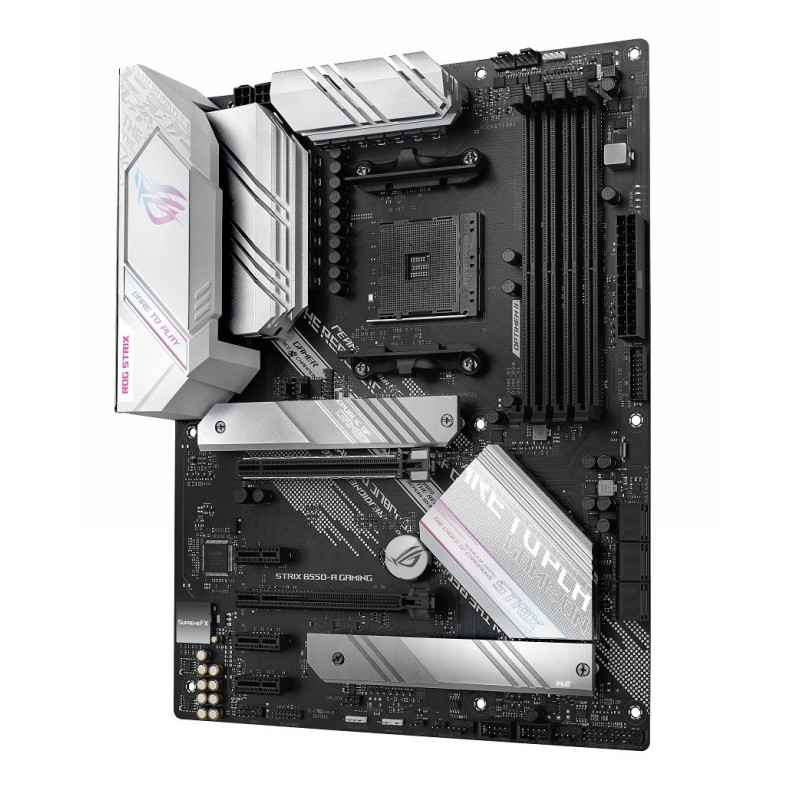

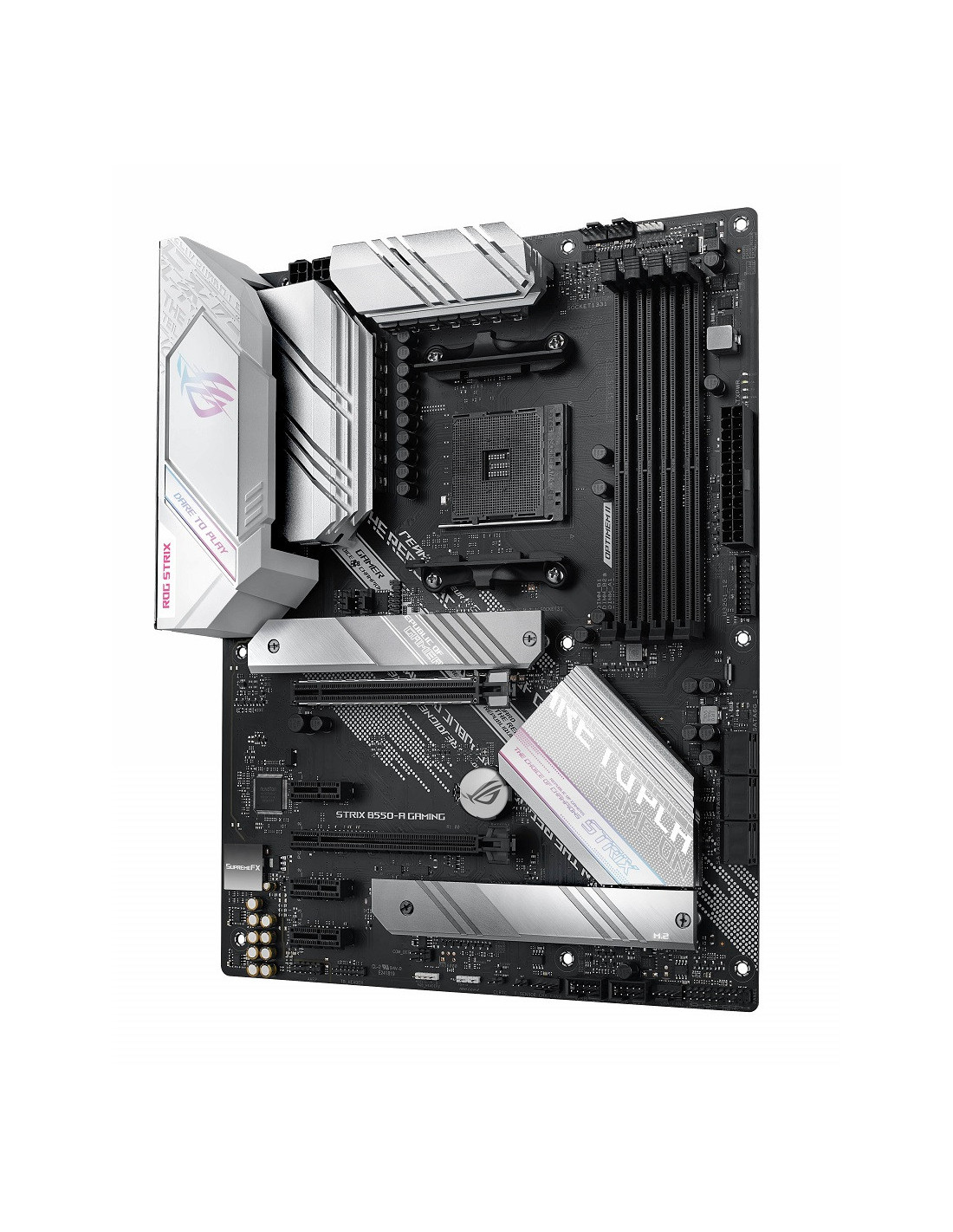

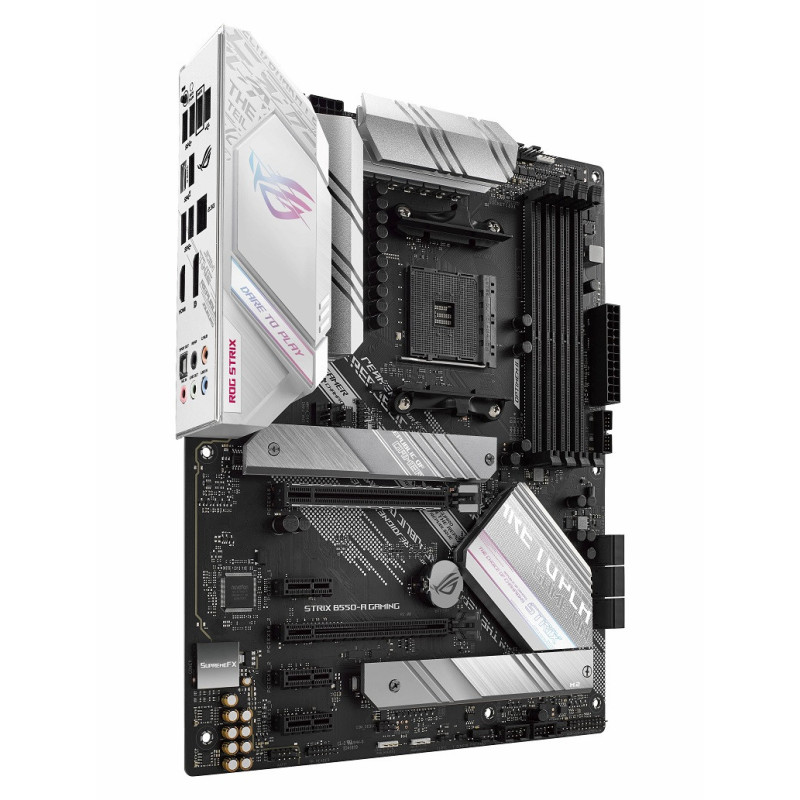

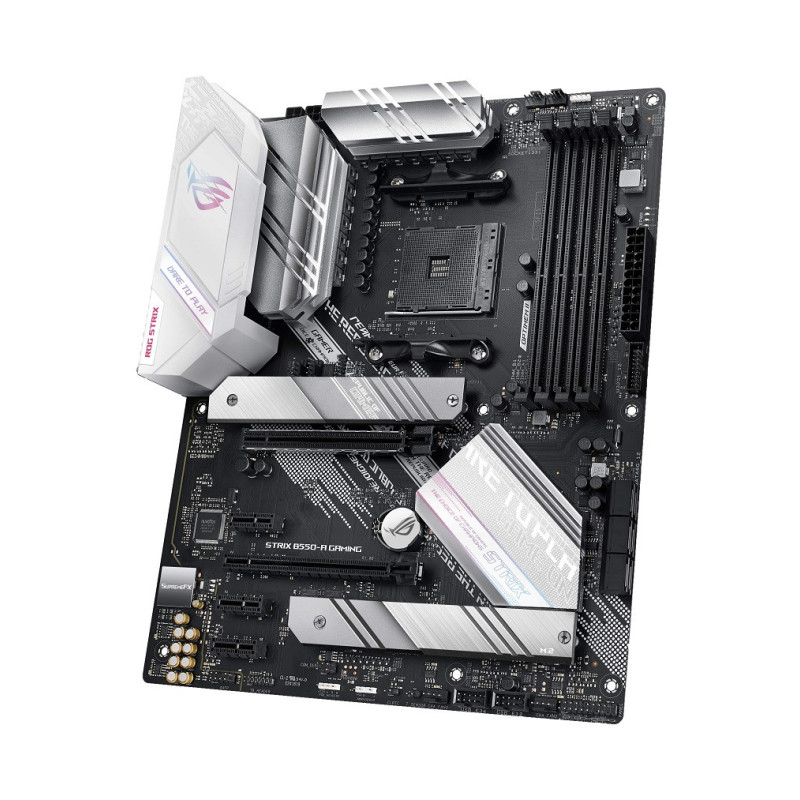

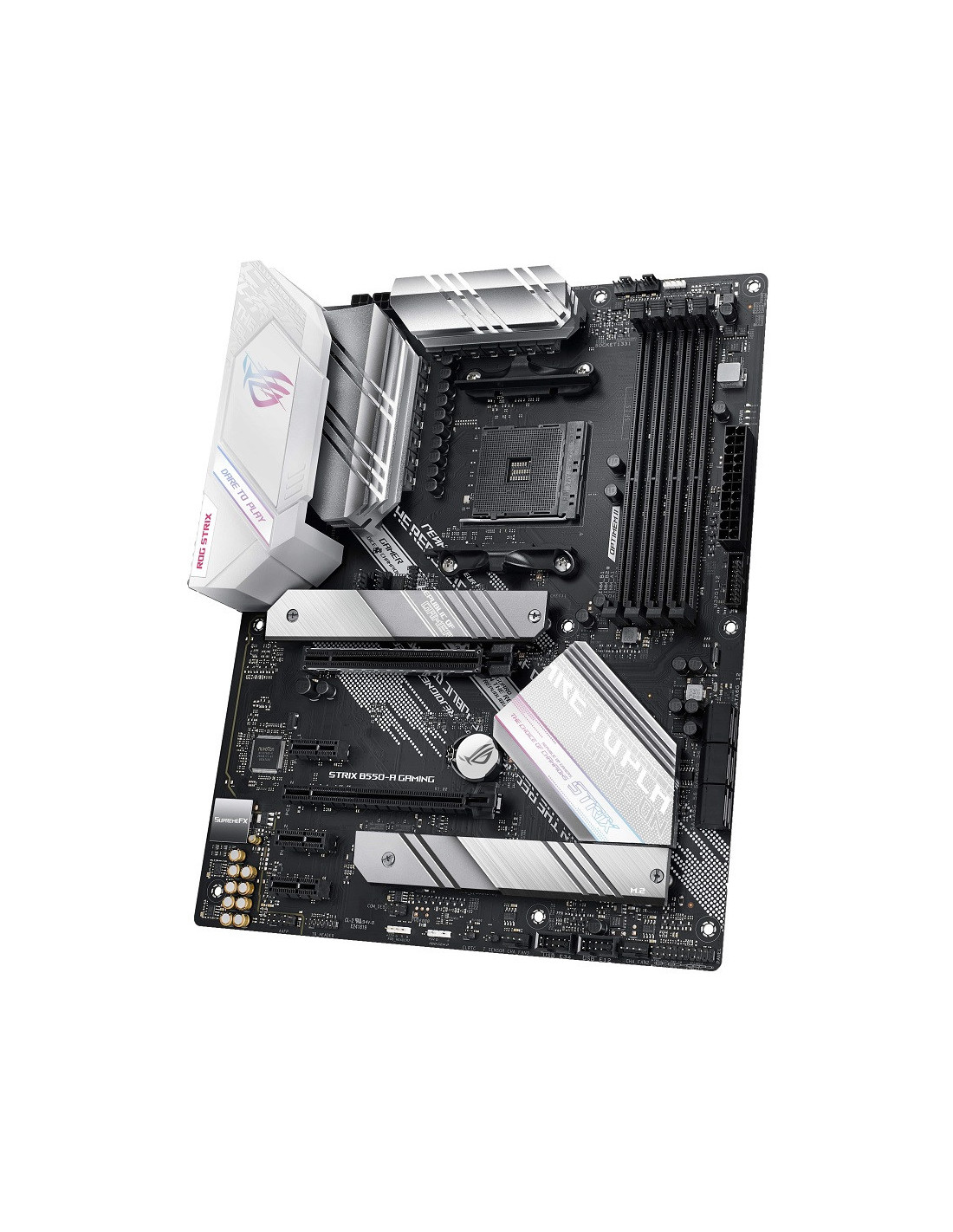

ASUS ROG STRIX B550-A GAMING AM4 ATX

Chipset: AMD B550

Rozměrový formát: ATX Form Factor (305 mm x 244 mm)

Podpora pro procesory: AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors

Patice procesoru: AM4

Pozice na paměti: 4x DDR4 DIMM

Podpora pro paměti:

• 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
• 4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory

Max.velikost operační paměti: 128 GB

Podpora pro paměti typu: DDR4

• Dual Channel Memory Architecture
• ECC Memory (ECC mode) support varies by CPU.

Grafické výstupy:

• Integrated Graphics Processor (na základě procesoru)

Multi GPU: AMD 2-Way CrossFireX Technology

Zvuková karta:

• ROG SupremeFX8-Channel High Definition Audio CODEC S1220A

Síťová karta:

• Intel® I225-V 2.5Gb Ethernet (ASUS LANGuard)

Rozšiřující sloty:

• 3x PCIe 3.0 x1
• 1x PCIe 4.0 x16 (x16 mode)
• 1x PCIe 3.0 x16 (x16 mode)

RAID řadič: 0, 1, 10

SATA:

• 6x SATA 6Gb/s

M.2:

• 1x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
• 1x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

USB:

• zadní USB porty ( celkem 8 )
• 2x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®)
• 4x USB 3.2 Gen 1
• 2x USB 2.0
• přední USB porty ( celkem 6 )
• 2x USB 3.2 Gen 1 port(s)
• 4x USB 2.0 port(s)

Interní porty:

• 1x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
• 1x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
• 1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
• 1x Thunderbolt header(s)
• 1x CPU Fan connector(s)
• 1x CPU OPT Fan connector(s)
• 3x Chassis Fan connector(s)
• 1x AIO_PUMP connector
• 1x AAFP connector
• 2x Aura RGB Strip Header(s)
• 1x Addressable Gen 2 header(s)
• 2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 6x SATA 6Gb/s connector(s)
• 1x 24-pin EATX Power connector(s)
• 1x 8-pin ATX 12V Power connector(s)
• 1x 4-pin ATX 12V Power connector(s)
• 1x System panel(s)
• 1x Thermal sensor connector(s)
• 1x Clear CMOS jumper(s)

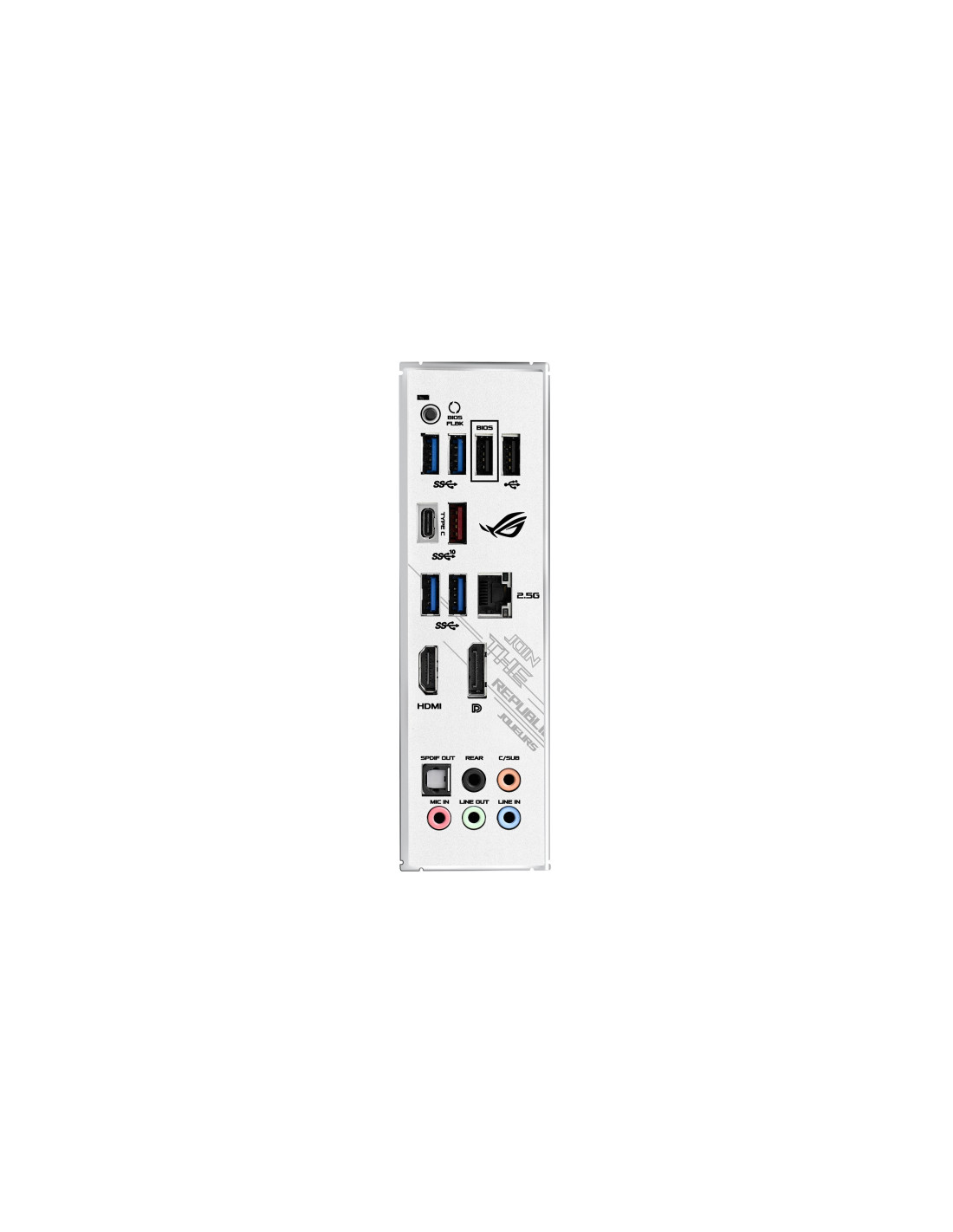

Externí porty:

• 1x BIOS FlashBack™ Button(s)
• 2x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®)
• 1x Intel® I225-V 2.5Gb Ethernet
• 4x USB 3.2 Gen 1
• 1x DisplayPort
• 1x HDMI
• 2x USB 2.0
• 1x Optical S/PDIF out
• 5x Gold-plated audio jacks

Obsah balení:

• 1 x M.2 SSD screw package(s)
• 1x M.2 Rubber Package(s)
• User´s manual
• 4x SATA 6Gb/s cable(s)
• 1x Supporting DVD
• 1x ROG Strix stickers
• 1x Cable ties pack(s)
• 1x Extension cable for Addressable LED
• 1x ROG Thank you card

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
