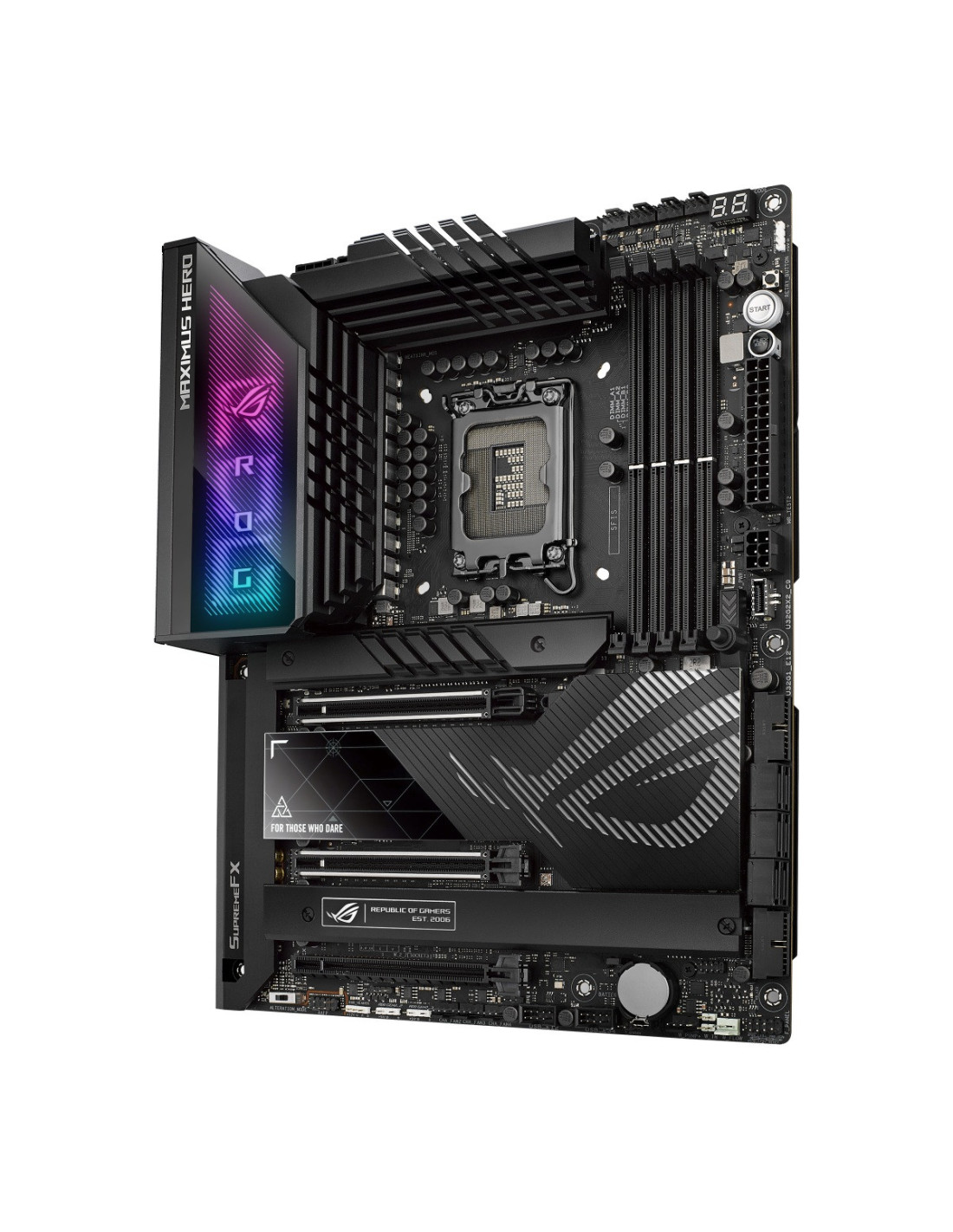

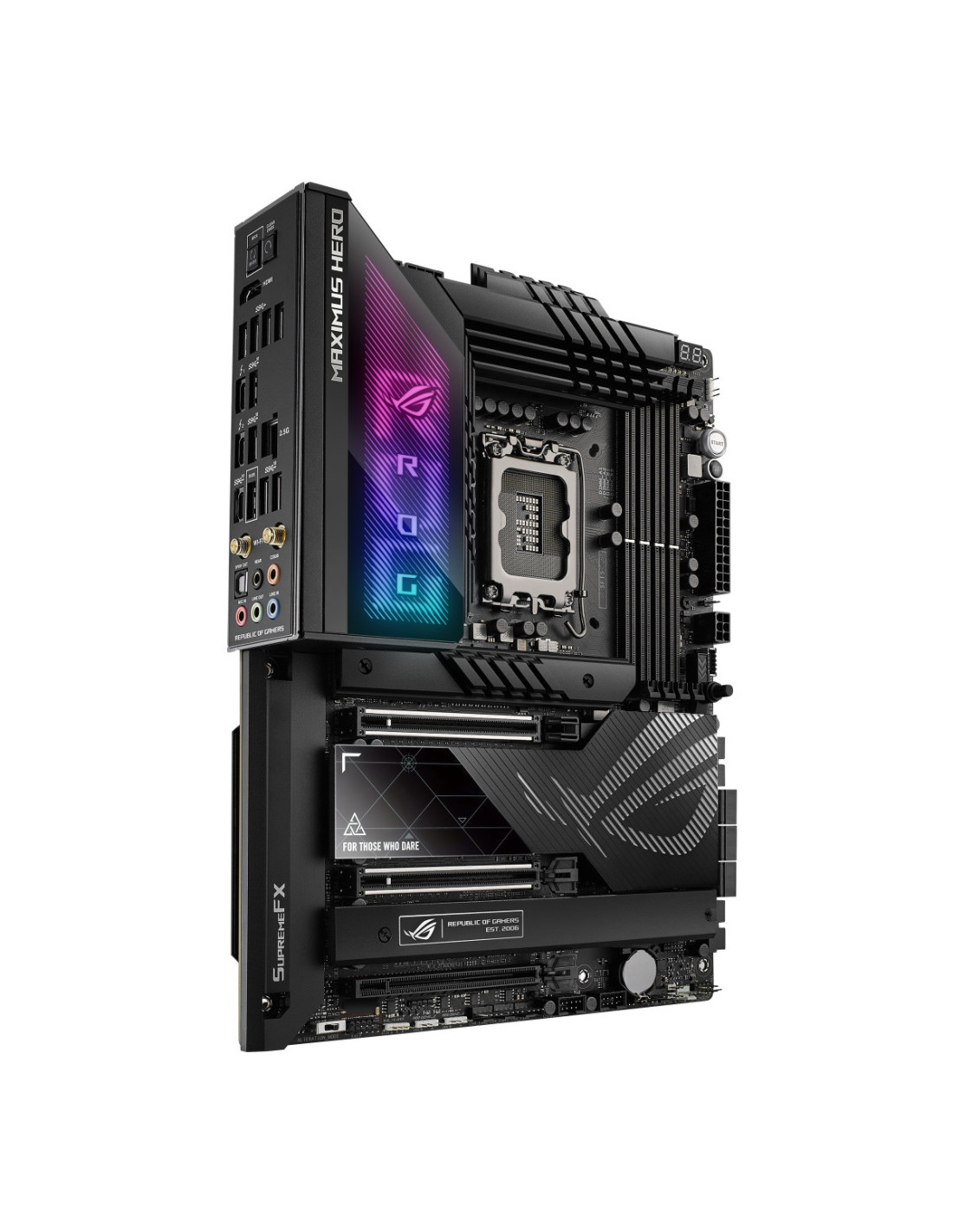

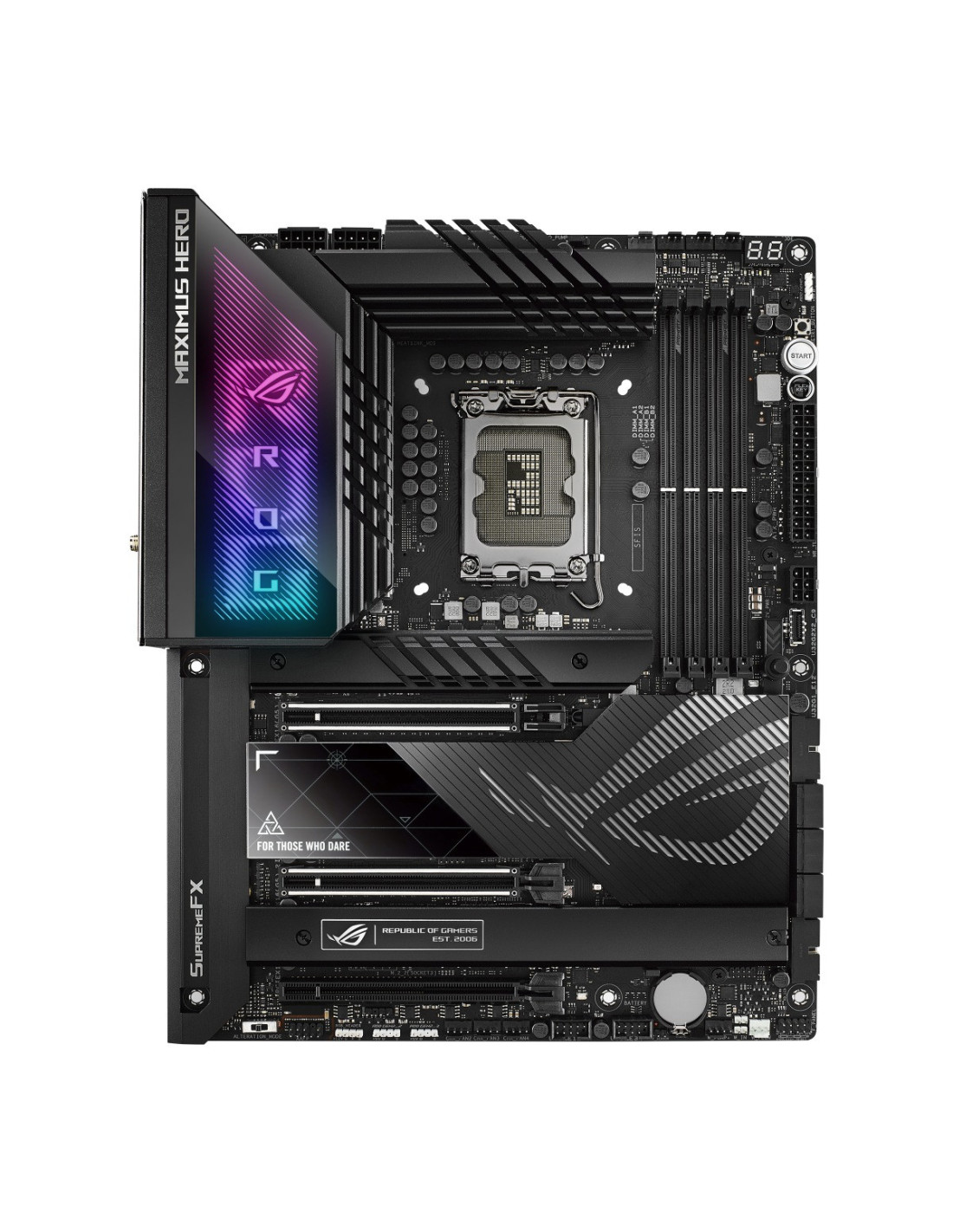

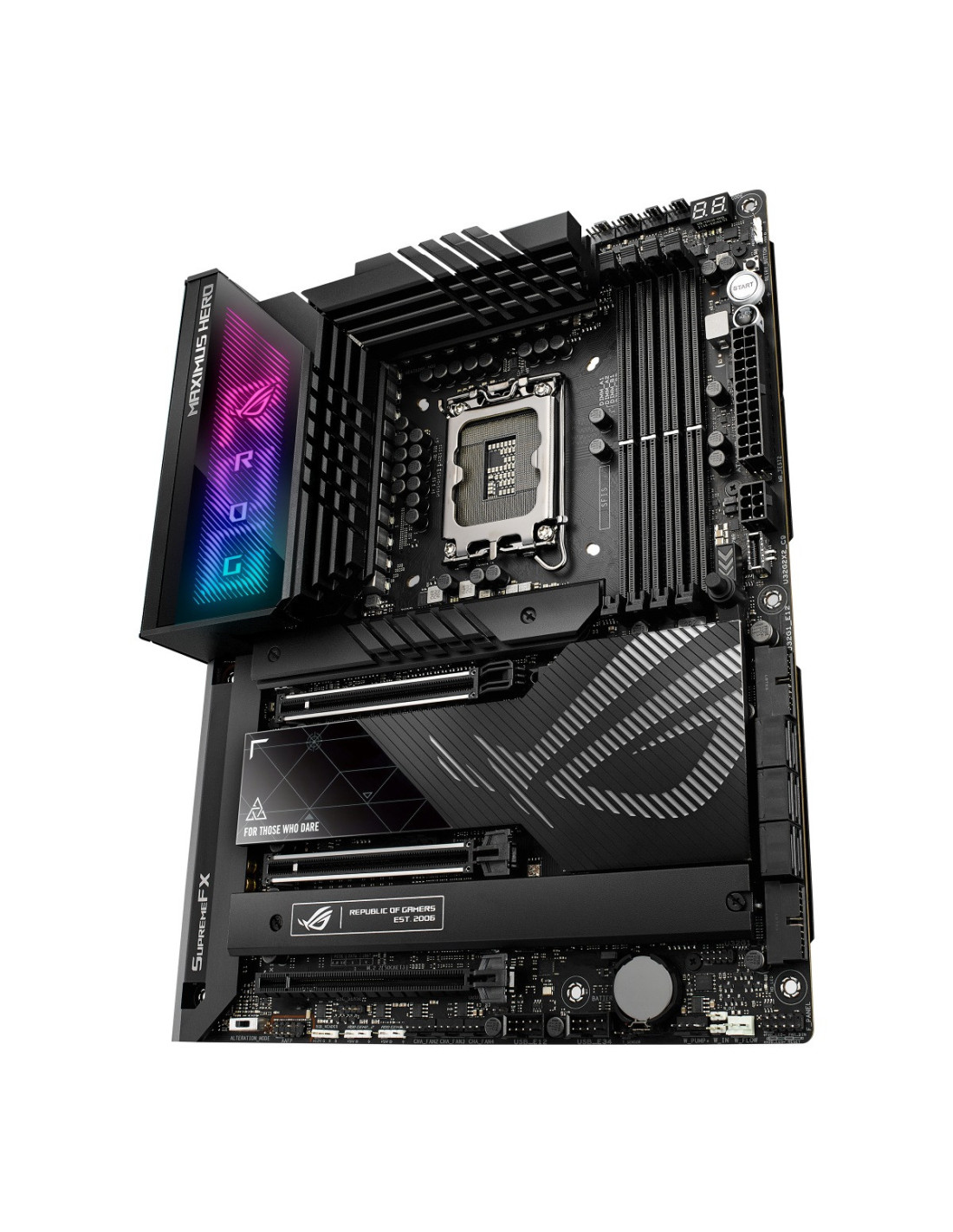

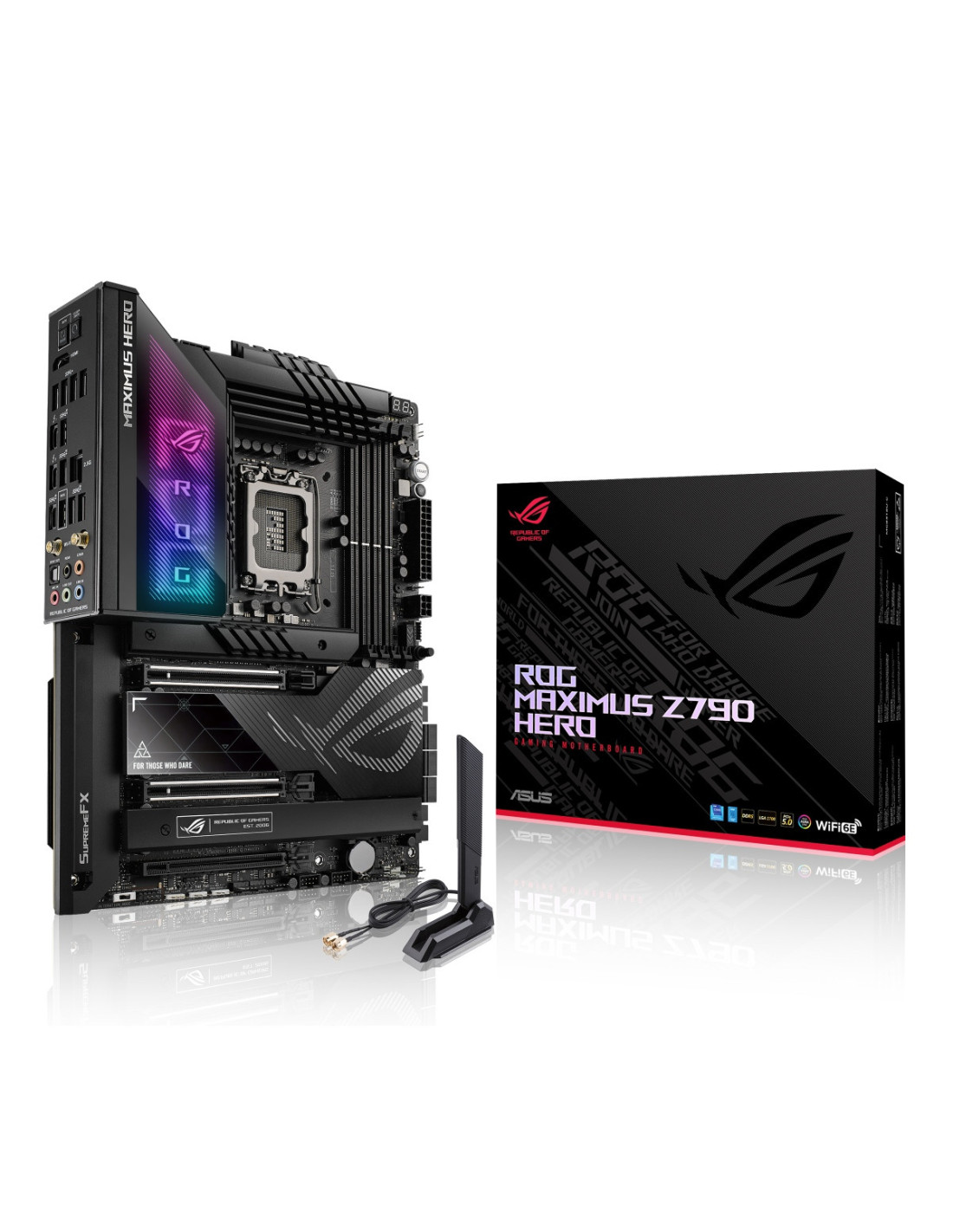

ASUS ROG MAXIMUS Z790 HERO LGA 1700 ATX

Chipset: Intel Z790

Rozmerový formát: ATX

Podpora pre procesory: 13. Gen Intel Core Processors & 12. Gen Intel Core, Pentium Gold and Celeron Processors

Pozícia na pamäti: 4 x DIMM

Podpora pre pamäte:

• 4 x DIMM
• Max. 128GB
• DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000( OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory
• Dual Channel Memory Architecture
• Supports Intel Extreme Memory Profile (XMP)

Max. veľkosť operačnej pamäte: 128 GB

Grafické výstupy: nie (1 x HDMI port + 2 x Intel Thunderbolt 4 porty (USB Type-C) support DisplayPort 1.4 a Thunderbolt video outputs)

Zvuková karta:

• ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082

Sieťová karta:

• 1 x Intel 2.5Gb Ethernet
• Wi-Fi 6E
• 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5/6GHz frequency band
• Bluetooth v5.3

Rozširujúce sloty:

Intel 13th & 12th Gen Processors

• 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)

Intel Z790 Chipset

• 1 x PCIe 4.0 x16 slot (supports x4, x4/x4 modes)

RAID radič: PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10

SATA:

• 6 x SATA 6Gb/s ports

M.2:

Intel 13th & 12th Gen Processors

• M.2_1 slot (Key M), typ 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode.)
• Hyper M.2_1 slot (Key M) cez ROG Hyper M.2 karty, typ 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode.)

Intel Z790 Chipset

• M.2_2 slot (Key M), typ 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• M.2_3 slot (Key M), typ 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
• Hyper M.2_1 slot (Key M) cez ROG Hyper M.2 card, typ 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode)
• Hyper M.2_2 slot (Key M) cez ROG Hyper M.2 card, typ 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode)

USB: zadné USB - celkom 12, predné USB - celkom 9

ZADNÝ

• 2 x Thunderbolt 4 porty (2 x USB Type-C)
• 6 x USB 3.2 Gen 2 ports (5 x Type-A + 1 x USB Type-C)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)

PREDNÝ

• 1 x USB 3.2 Gen 2x2 konektor (supports Type-C USB s 60W PD/QC4+)
• 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Interné porty:

Fan and Cooling related

• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 4 x 4-pin Chassis Fan headers
• 1 x W_PUMP+ header
• 1 x 2-pin Water In header
• 1 x 2-pin Water Out header
• 1 x 3-pin Water Flow header

Power related

• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V Power connector
• 1 x 6-pin PCIe Power connector

Storage related

• 3 x M.2 slots (Key M)
• 6 x SATA 6Gb/s ports

USB

• 1 x USB 3.2 Gen 2x2 konektor (supports USB Type-C® )
• 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

• 3 x Addressable Gen 2 headers
• 1 x AURA RGB header
• 1 x FlexKey button
• 1 x Front Panel Audio header (AAFP)
• 1 x Štart button
• 1 x ReTry button
• 1 x 10-1 pin System Panel header
• 1 x Thermal Sensor header
• 1 x CPU Over Voltage jumper
• 1 x Alternative PCIe Mode switch

Externé porty:

• 2 x Thunderbolt 4 USB Type-C ports
• 6 x USB 3.2 Gen 2 ports (5 x Type-A + 1 x USB Type-C)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 1 x HDMI port
• 1 x Wi-Fi Module
• 1 x Intel 2.5Gb Ethernet port
• 5 x Gold-plated audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack button
• 1 x Clear CMOS button

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

Stránka výrobcu: https://rog.asus.com/motherboards/rog-maximus/rog-maximus-z790-hero-model/
