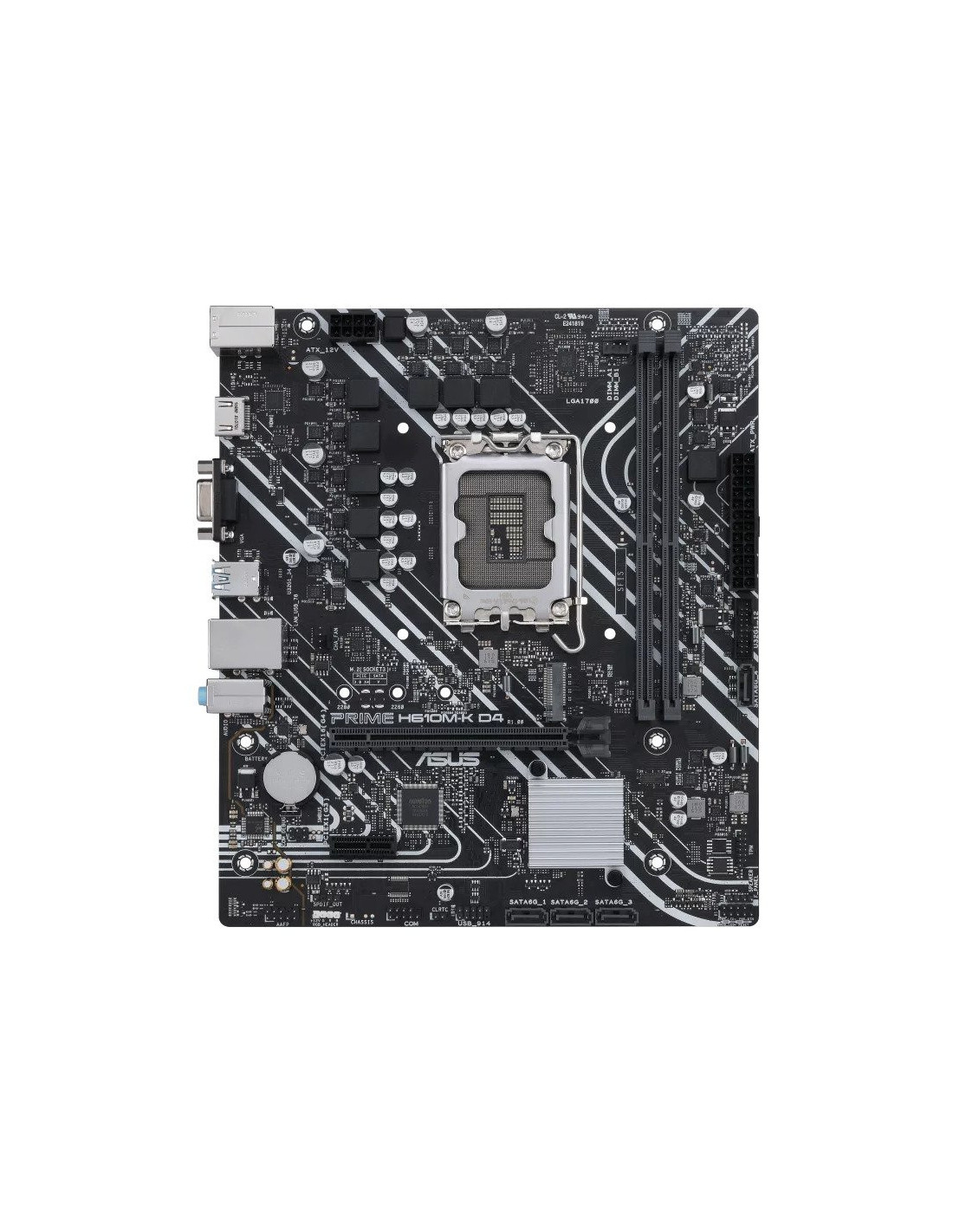

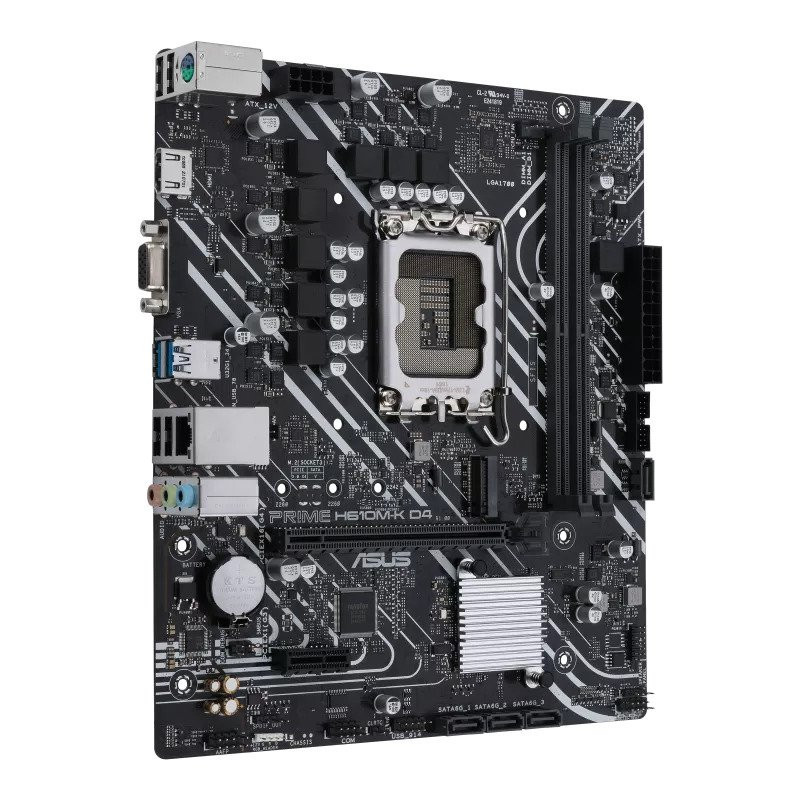

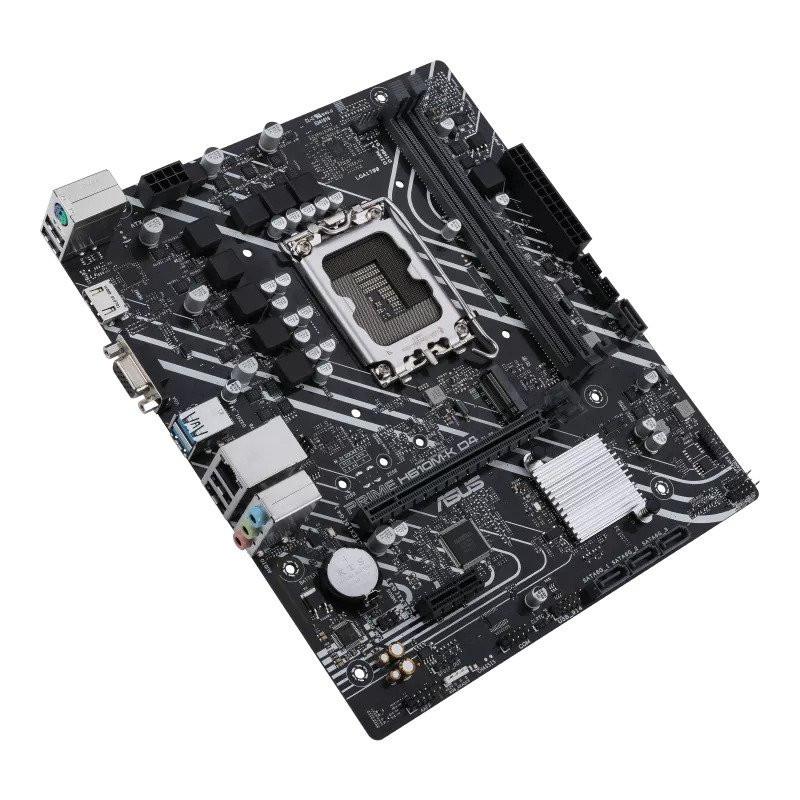

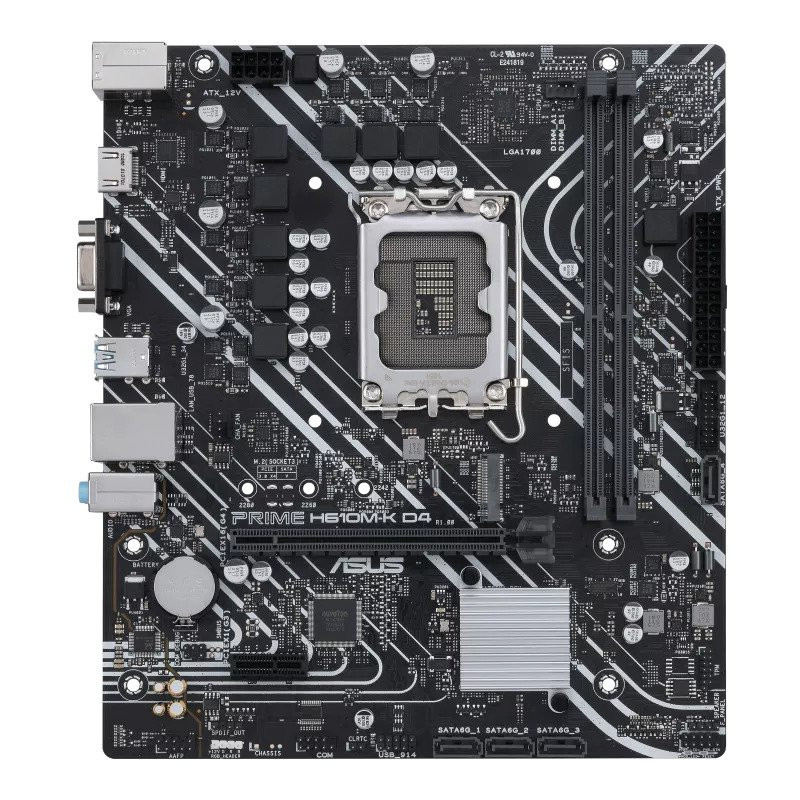

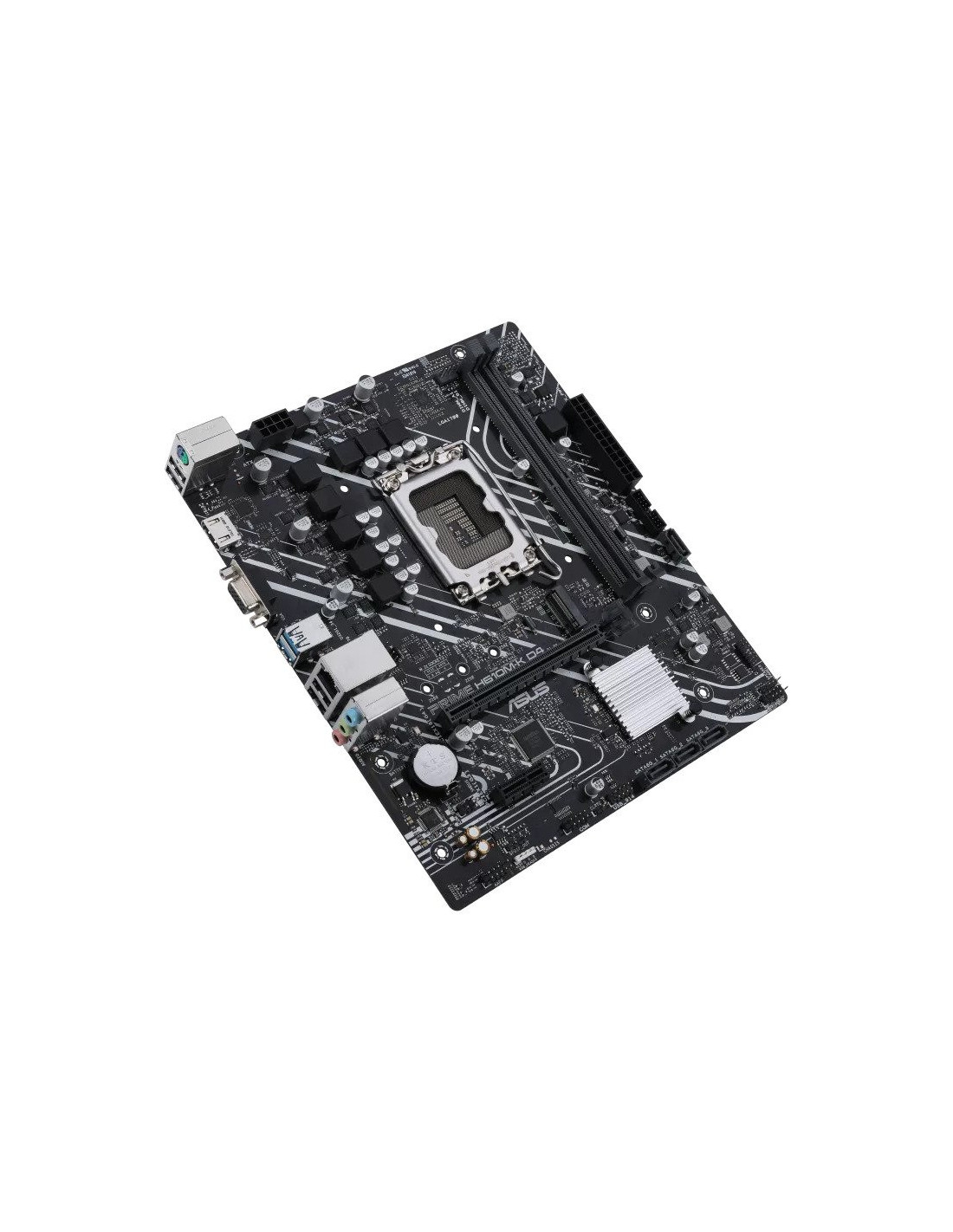

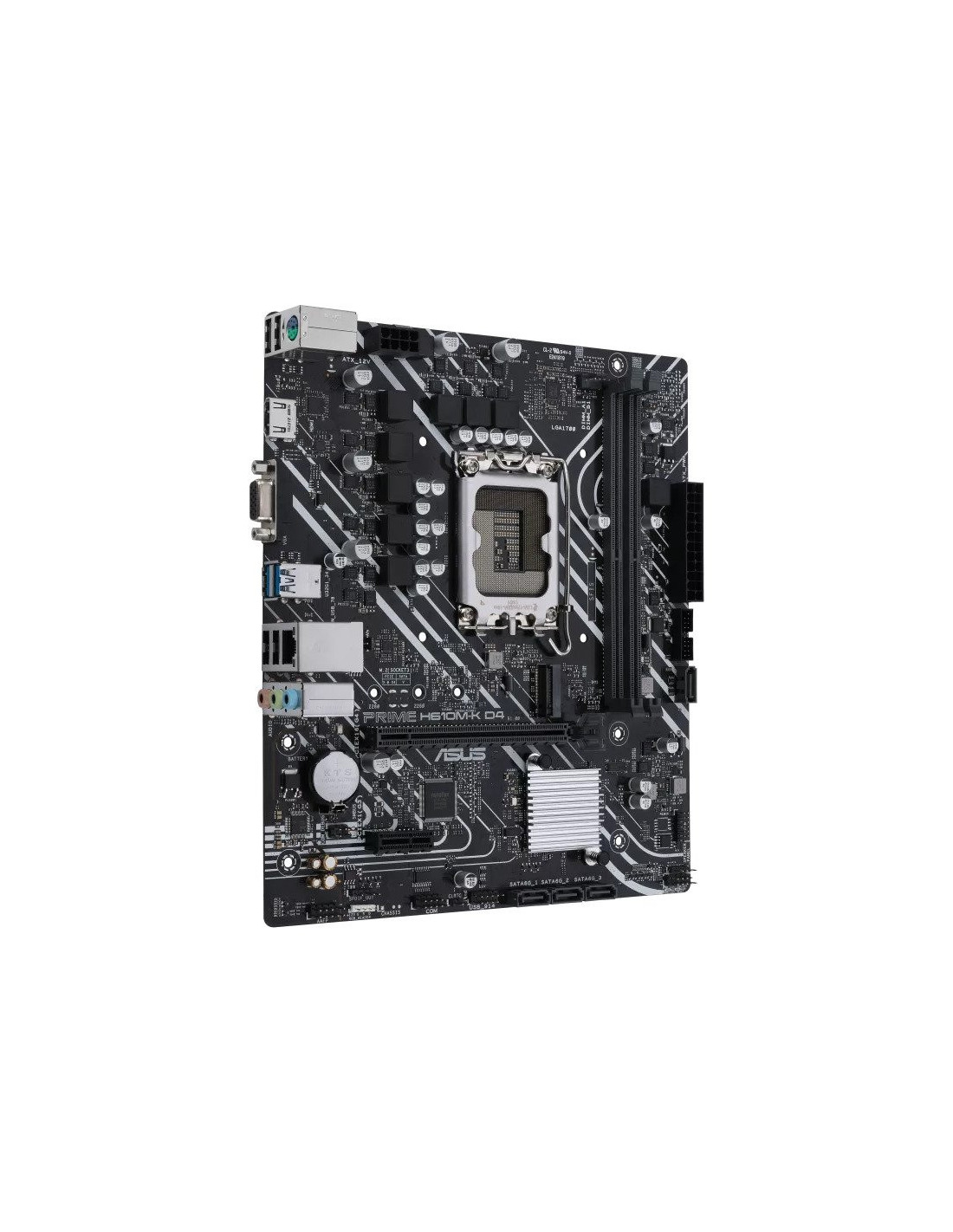

ASUS PRIME H610M-K D4 LGA 1700 mATX

Chipset: Intel H610 Chipset

Rozměrový formát: mATX ( 23.4 cm x 20.3 cm )

Podpora pro procesory: 12th Gen Intel Core, Pentium Gold and Celeron Processors

Patice procesoru: LGA1700

Pozice na paměti: 2 x DIMM, Dual Channel Memory Architecture

Podpora pro paměti: DDR4 3200/3000/2933/2800/2666/2400/2133 MHz

Max.velikost operační paměti: 64 GB

Podpora pro paměti typu: XMP

Grafické výstupy: (na základě procesoru)

• 1 x D-Sub port
• 1 x HDMI port

Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC

Síťová karta: 1 x Realtek 1Gb Ethernet

Rozšiřující sloty:

• 1 x PCIe 4.0 x16 slot
• 1 x PCIe 3.0 x1 slot

SATA: 4 x SATA 6Gb/s ports

M.2: 1 x M.2 slot

USB:

• Interní:
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 1 x USB 2.0 header supports additional 2 USB 2.0 ports
• Externí:
• 2 x USB 3.2 Gen 1 ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)

Interní porty:

• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin Chassis Fan header
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• Storage related
• 1 x M.2 slot (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 1 x USB 2.0 header supports additional 2 USB 2.0 ports
• Miscellaneous
• 1 x RGB header
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x S/PDIF Out header
• 1 x Speaker header
• 1 x SPI TPM header (14-1pin)
• 1 x 10-1 pin System Panel header

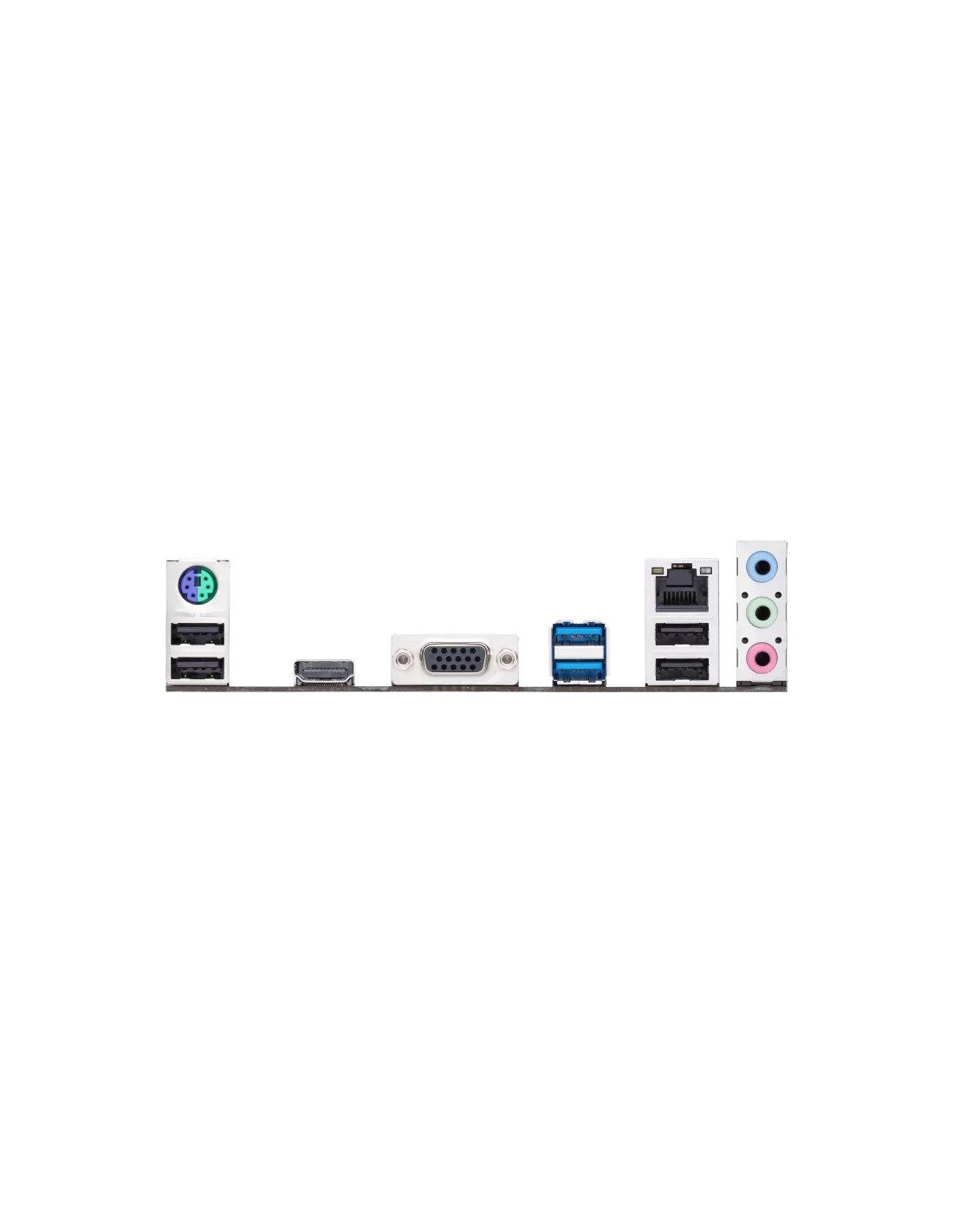

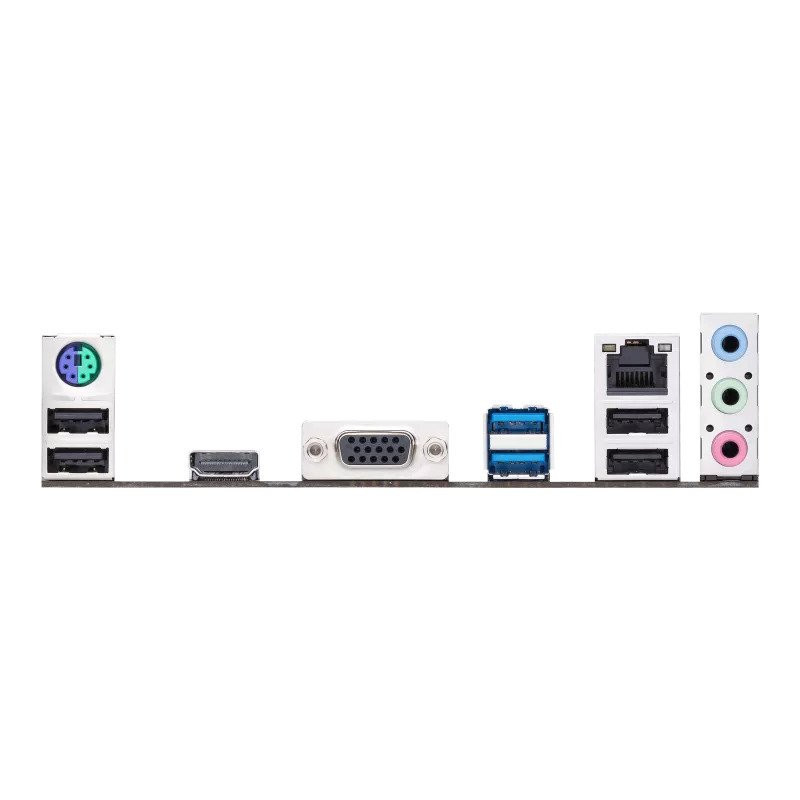

Externí porty:

• 2 x USB 3.2 Gen 1 ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x D-Sub port
• 1 x HDMI port
• 1 x Realtek 1Gb Ethernet port
• 3 x Audio jacks
• 1 x PS/2 Keyboard/Mouse combo port

BIOS: UEFI AMI BIOS, 128 Mb Flash ROM
