MSI Z890 GAMING PLUS WIFI6E LGA 1851 ATX

MSI Z890 GAMING PLUS WIFI6E

Chipset: INTEL Z890

Rozmerový formát: ATX 243.84mmx304.8mm

Podpora pre procesory: Intel® Core™ Ultra Processors (Series 2)

Pätica procesora: LGA 1851

Pamäť:

• 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
• Memory Support DDR5 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
• Max. overclocking frequency:
• 1DPC 1R Max speed up to 9200+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 5600+ MT/s
• Supports Intel® POR Speed ??and JEDEC Speed
• Supports Memory Overclocking and Intel® XMP 3.0
• Supports Dual-Controller Dual-Channel mode
• Supports Non-ECC, Un-buffered memory
• Supports CUDIMM

Grafické porty:

1x HDMI

• Support HDMI™ 2.1, maximum resolution of 4K 60Hz

1x DisplayPort

• Support DisplayPort 1.4, maximum resolution of 4K 60Hz

Zvuková karta:

• Realtek® ALC897 Codec
• 7.1-Channel High Definition Audio

Ethernet: Intel Killer E5000 5Gbps LAN

WLAN + Bluetooth: Wi-Fi 6E module

• The Wireless module je preinštalovaný v M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) až 2.4Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Bluetooth® 5.3**, FIPS, FISMA

Rozširujúce sloty:

3x PCI-E x16 slot

1x PCI-E x1 slot

• PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
• PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
• PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
• PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)

RAID radič: RAID 0, RAID 1, RAID 5, RAID 10

Úložný priestor:

4x M.2

• M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
• M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
• M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
• M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

4x SATA 6G

USB:

Zadné USB

• 4x USB 2.0
• 2x USB 5Gbps Type A
• 1x USB 10Gbps Type A
• 1x USB 10Gbps Type C

Predné USB

• 4x USB 2.0
• 4x USB 5Gbps Type A
• 1x USB 20Gbps Type C

Interné porty:

Napájanie

• 1× Power Connector (ATX_PWR)
• 2× Power Connector (CPU_PWR)
• 1× Power Connector (PCIE_PWR 8pin)
• 1× CPU Fan
• 1× Combo Fan (Pump_Sys Fan)
• 5× System Fan

USB

• 4× USB 2.0 ports
• 4× USB 5Gbps Type-A ports
• 1× USB 20 Gbps Type-C port

Ostatné

• 1× EZ Conn-header (JAF_1)
• 2× Front Panel (JFP)
• 1× Chassis Intrusion (JCI)
• 1× Front Audio (JAUD)
• 1× Tuning Controller connector (JDASH)
• 3× Addressable V2 RGB LED konektory (JARGB_V2)
• 1× RGB LED connector (JRGB)
• 1× TPM pin header (TPM 2.0)

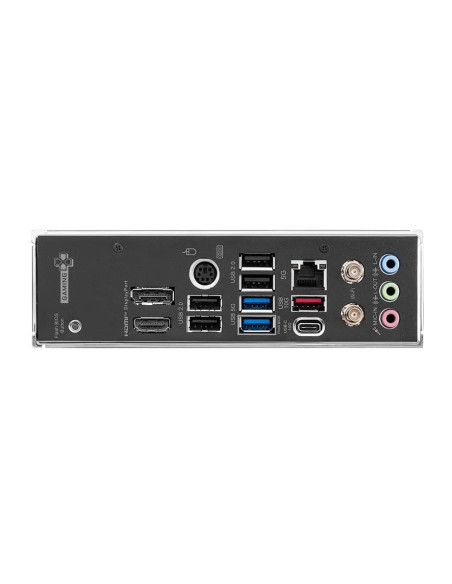

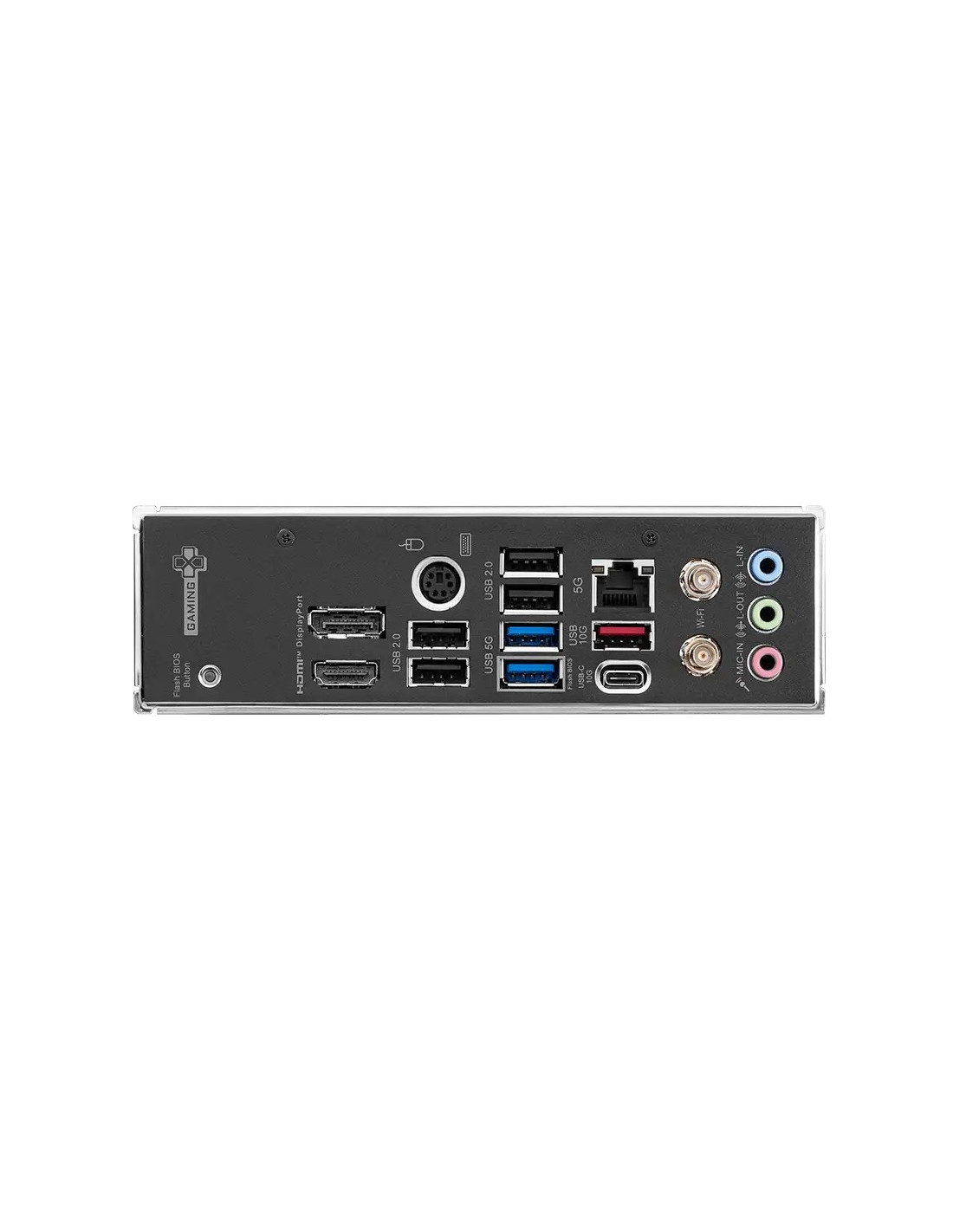

Porty na zadnom paneli:

• DisplayPort
• Keyboard / Mouse
• USB 2.0
• 5G LAN
• Wi-Fi / Bluetooth
• Flash BIOS Button
• HDMI™
• USB 2.0
• USB 5Gbps Type A ports
• USB 10 Gbps Type C ports
• USB 10 Gbps Type A ports
• Audio Connectors

OS: Windows 11 64-bit
