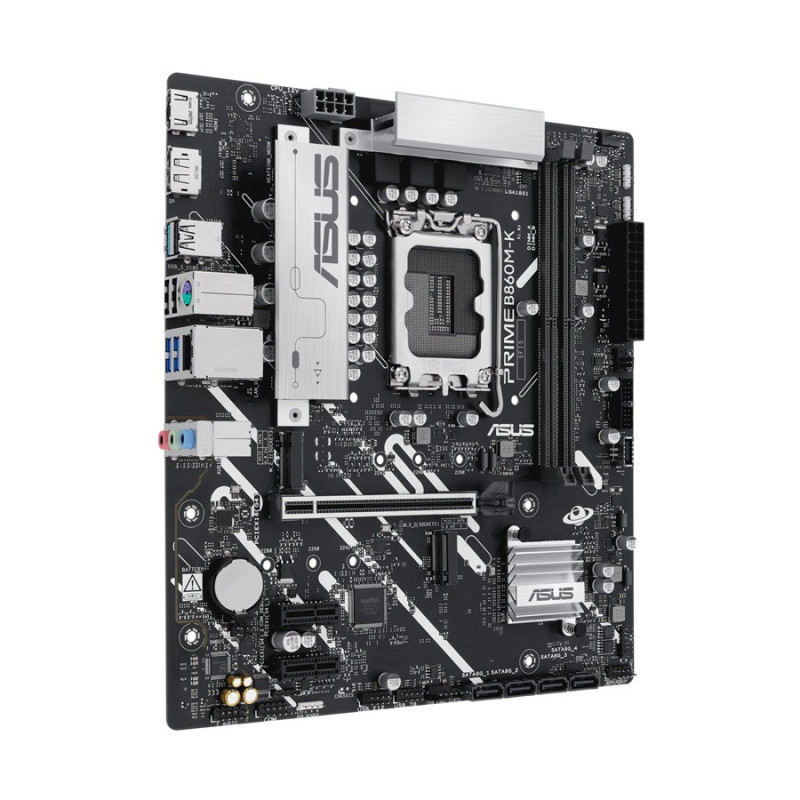

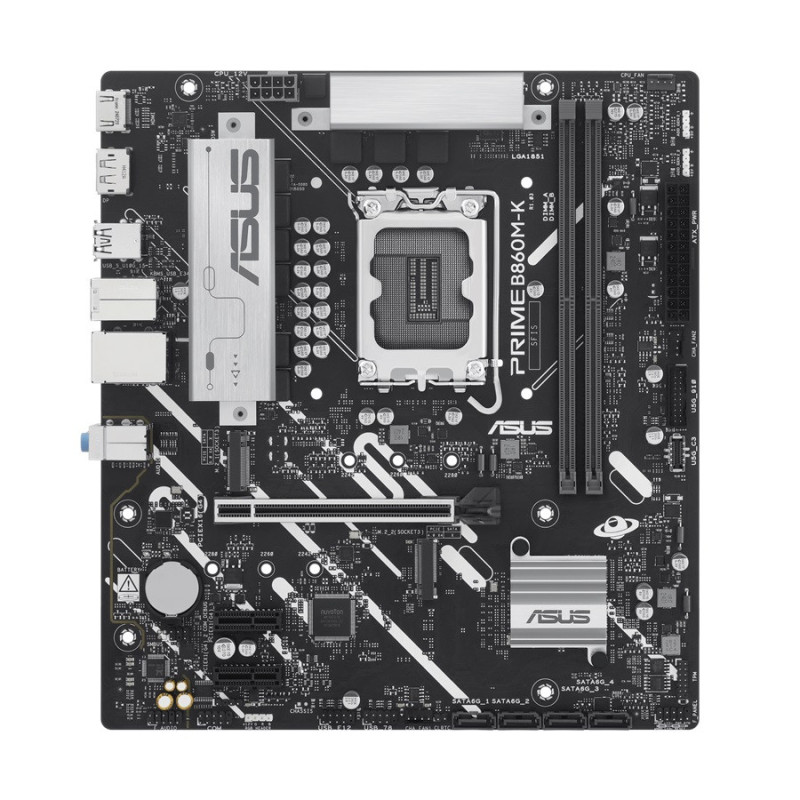

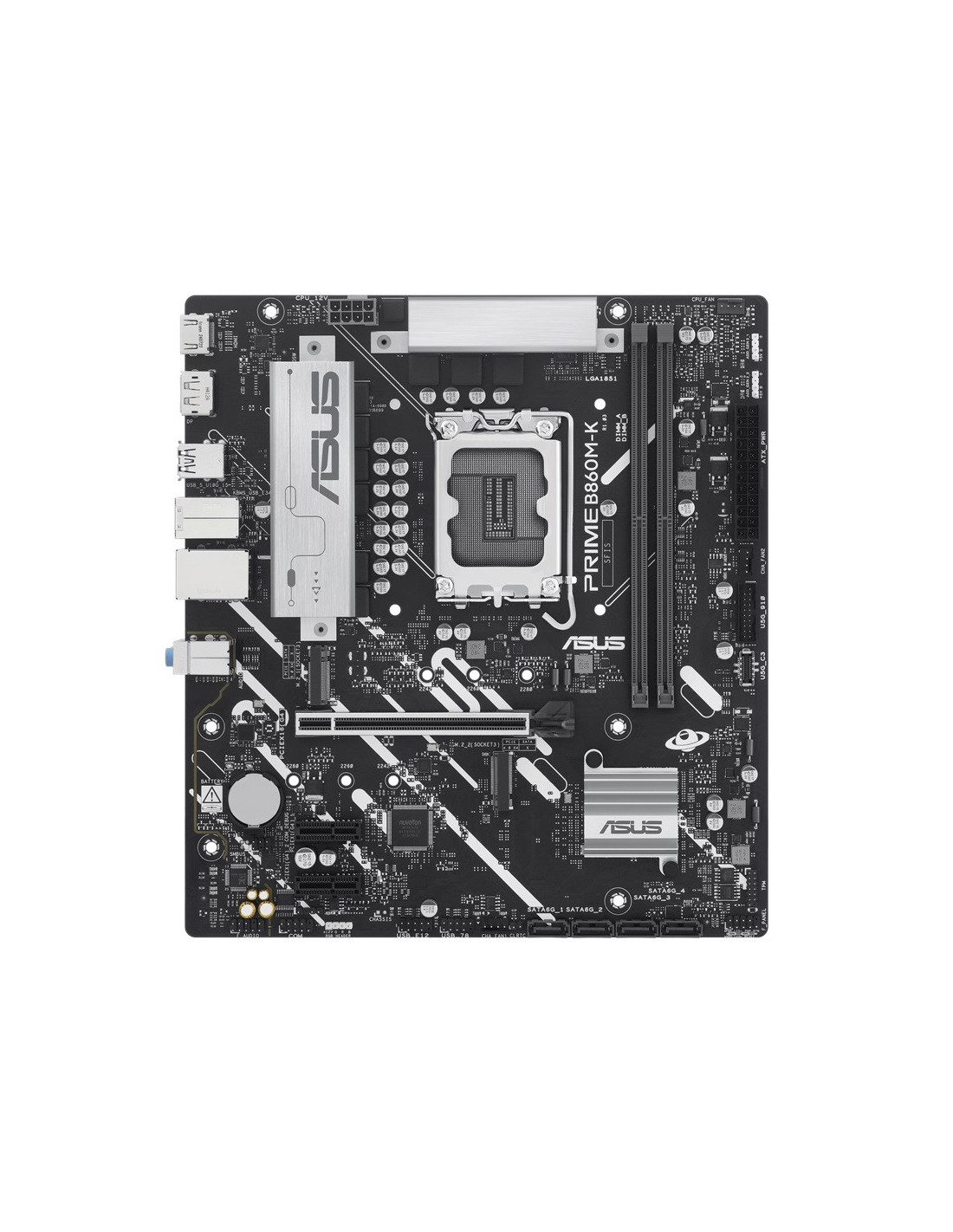

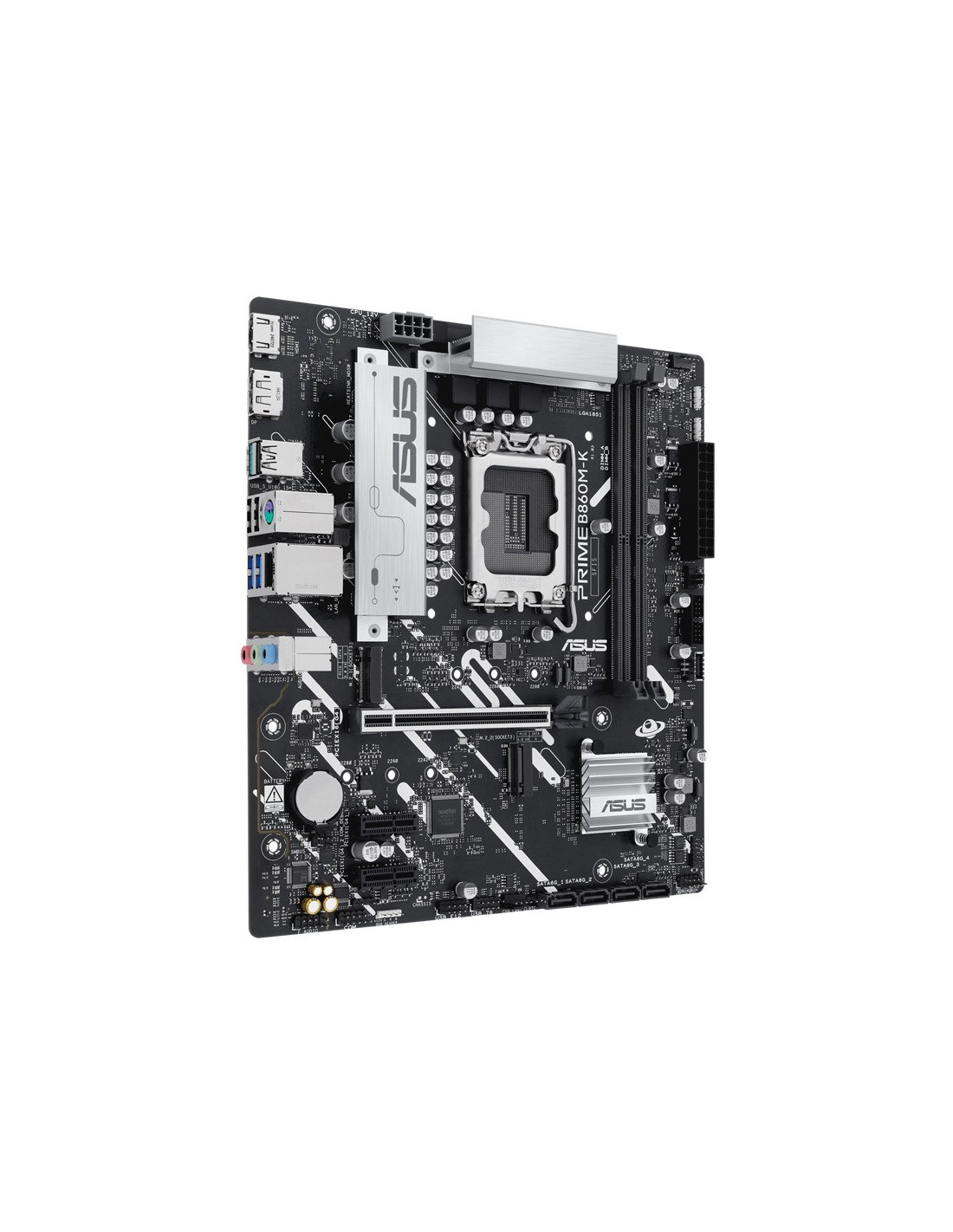

ASUS PRIME B860M

ASUS PRIME B860M-K

• mATX Form Factor

CPU: Support Intel® Core™ Ultra Processors (Series 2) , LGA1851 - Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset: Intel® B860 Chipset

Paměť: 2 x sloty DIMM, max. 96 GB, DDR5 - Podporuje až 8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)

• Dual channel memory architecture
• DIMM Fit
• Supports Intel® Extreme Memory Profile (XMP) memory module
• ASUS Enhanced Memory Profile III(AEMP III)

Grafické porty:

• 1 x DisplayPort
• 1 x HDMI™ port

Rozšiřující sloty:

Intel® Core™ Ultra Processors(Series 2)

• 1 x PCIe 4.0 x16 slot

Intel® B860 Chipset

• 2 x PCIe 4.0 x1 slots

Úložný prostor:

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

Intel® Core™ Ultra Processors(Series 2)

• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

Intel® B860 Chipset

• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports

Ethernet:

• 1 x Realtek 2.5Gb Ethernet
• ASUS LANGuard

USB:

Zadní USB (Total 7 ports)

• 1 x USB 10Gbps port (1 x Type-A)
• 2 x USB 5Gbps ports (2 x Type-A)
• 3 x USB 2.0 ports (3 x Type-A)

Přední USB (Total 7 ports)

• 1 x USB 5Gbps connector (supports USB Type-C®)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio:

Realtek 7.1 Surround Sound High Definition Audio CODEC

• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback

Audio Features

• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers

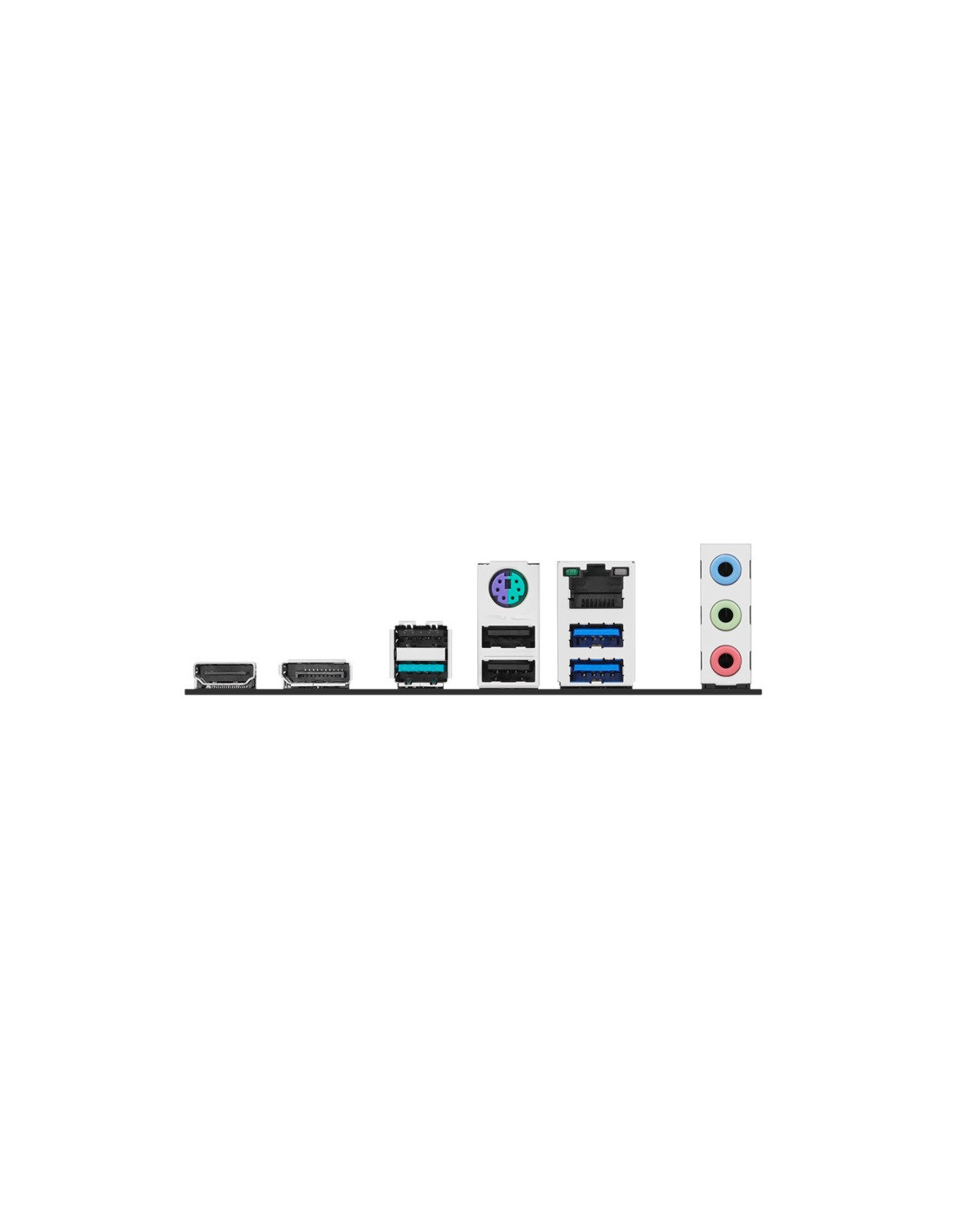

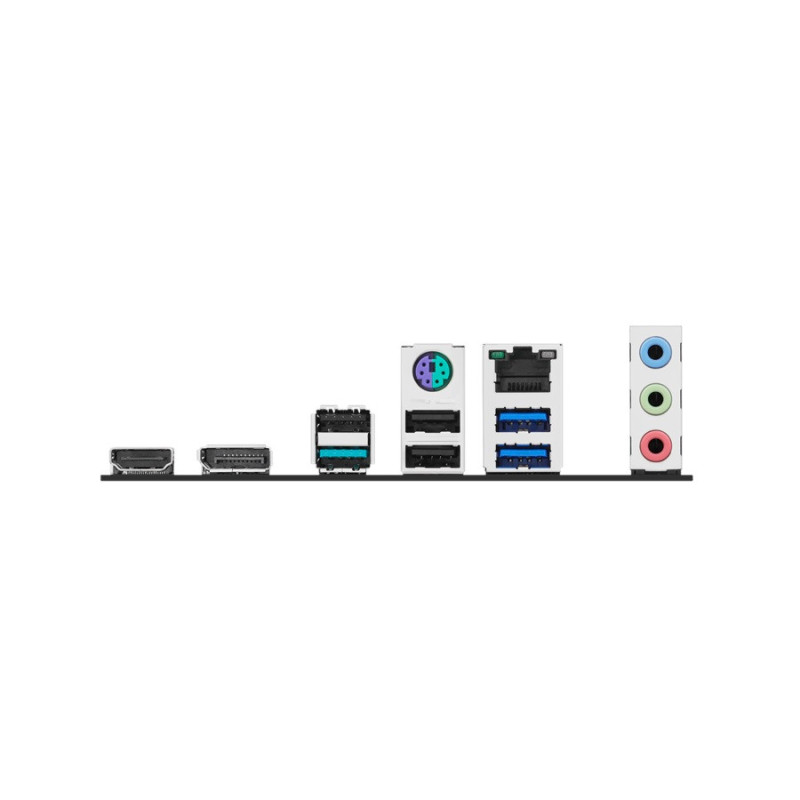

Vstupy/výstupy zadního panelu:

• 1 x USB 10Gbps port (1 x Type-A)
• 2 x USB 5Gbps ports (2 x Type-A)
• 3 x USB 2.0 ports (3 x Type-A)
• 1 x DisplayPort
• 1 x HDMITM port
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks
• 1 x PS/2 Keyboard/Mouse combo port

Interní vstupy/výstupy:

Ventilátory a chlazení:

• 1 x 4-pin CPU Fan header
• 2 x 4-pin Chassis Fan headers

Napájení:

• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V CPU Power connector

Úložiště:

• 2 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports

USB:

• 1 x USB 5Gbps connector (supports USB Type-C® )
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Různé:

• 2 x Addressable Gen2 headers
• 1 x Aura RGB header
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x S/PDIF Out header
• 1 x SPI TPM header (14-1 pin)
• 1 x 10-1 pin Front System Panel header

Příslušenství:

Kabely:

• 2 x SATA 6Gb/s cables

Různé:

• 1 x I/O Shield
• 2 x M.2 anchors

Dokumenty:

• 1 x Quick start guide
