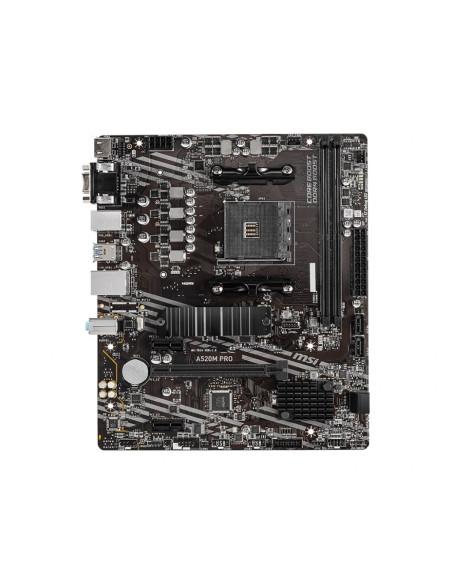

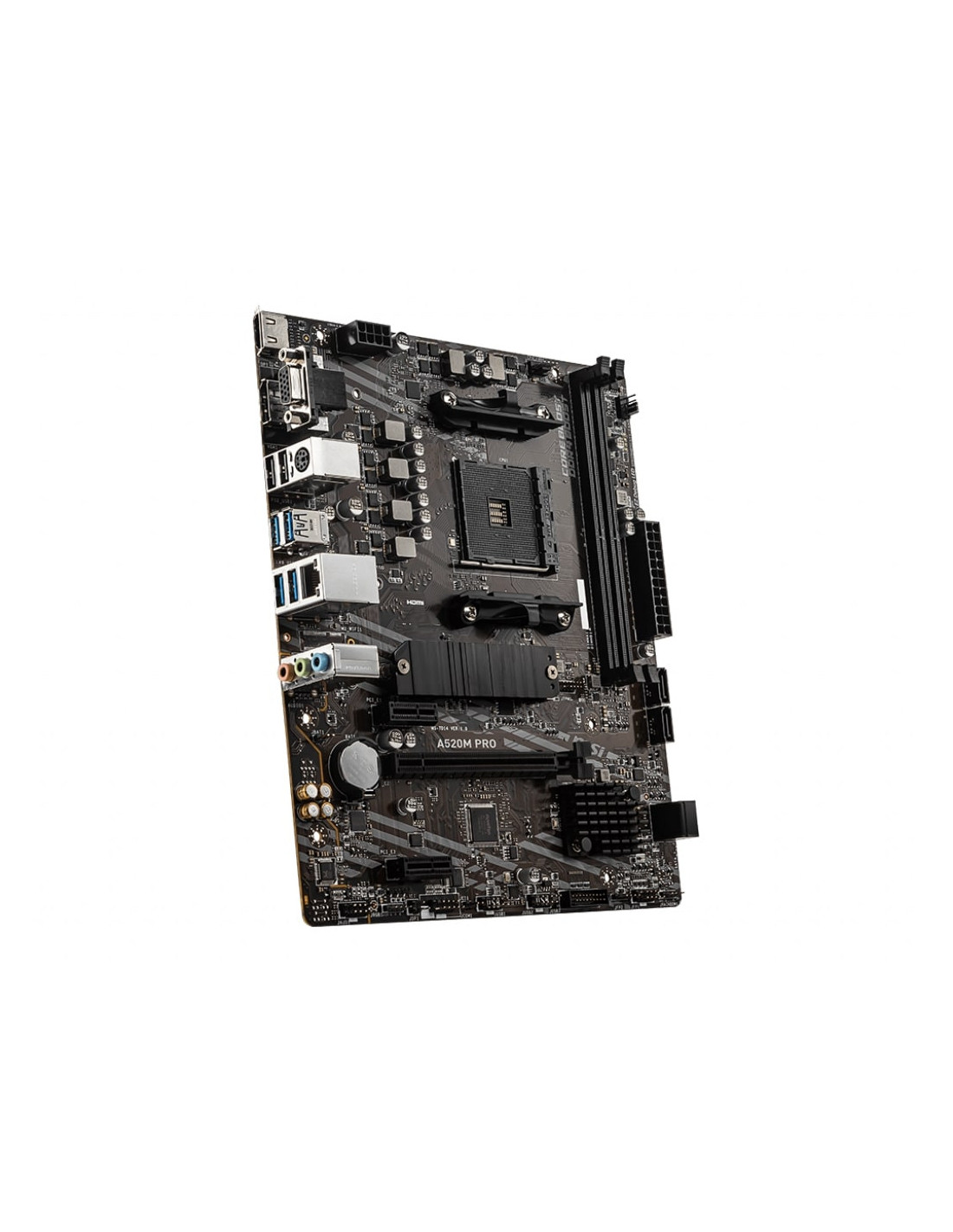

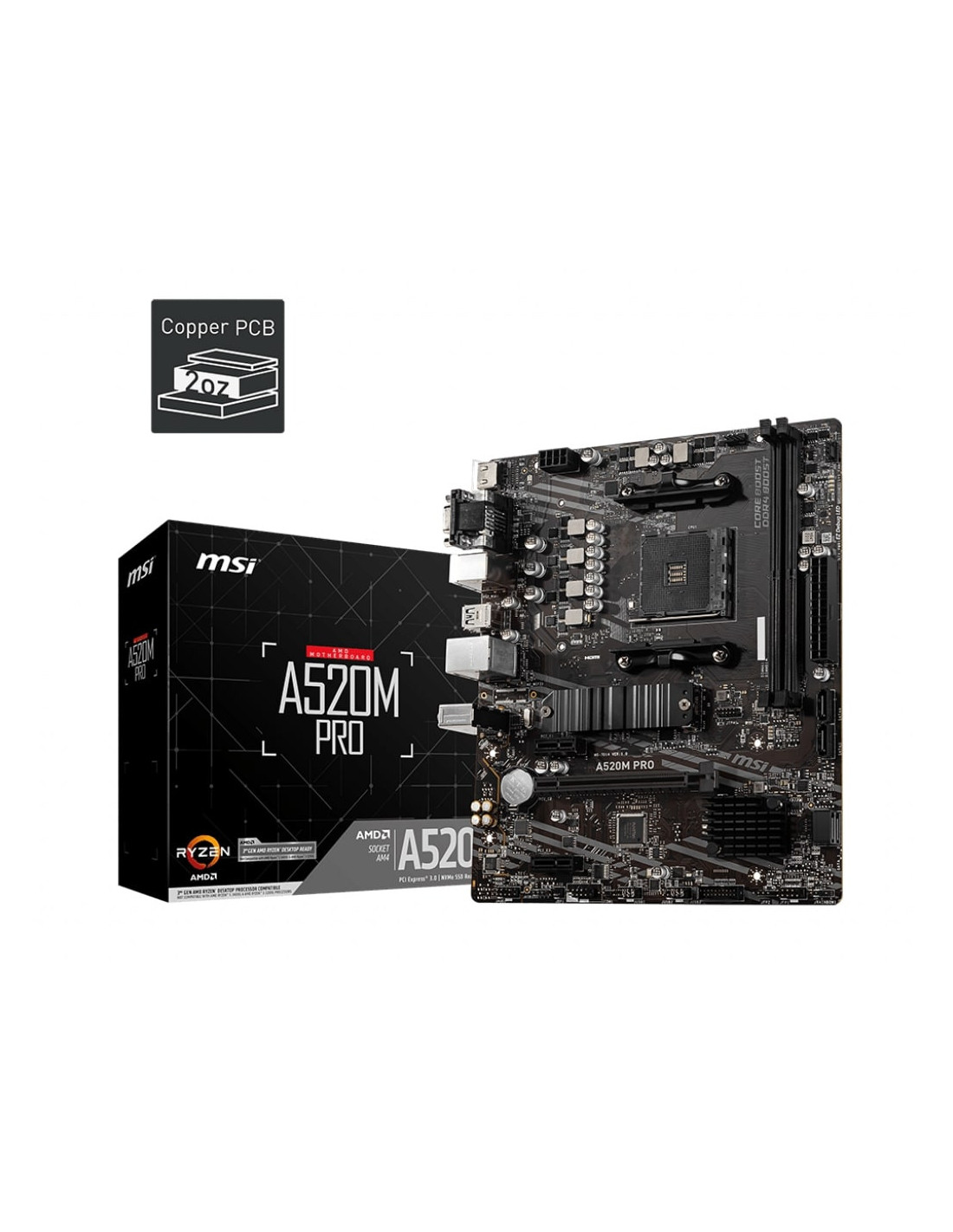

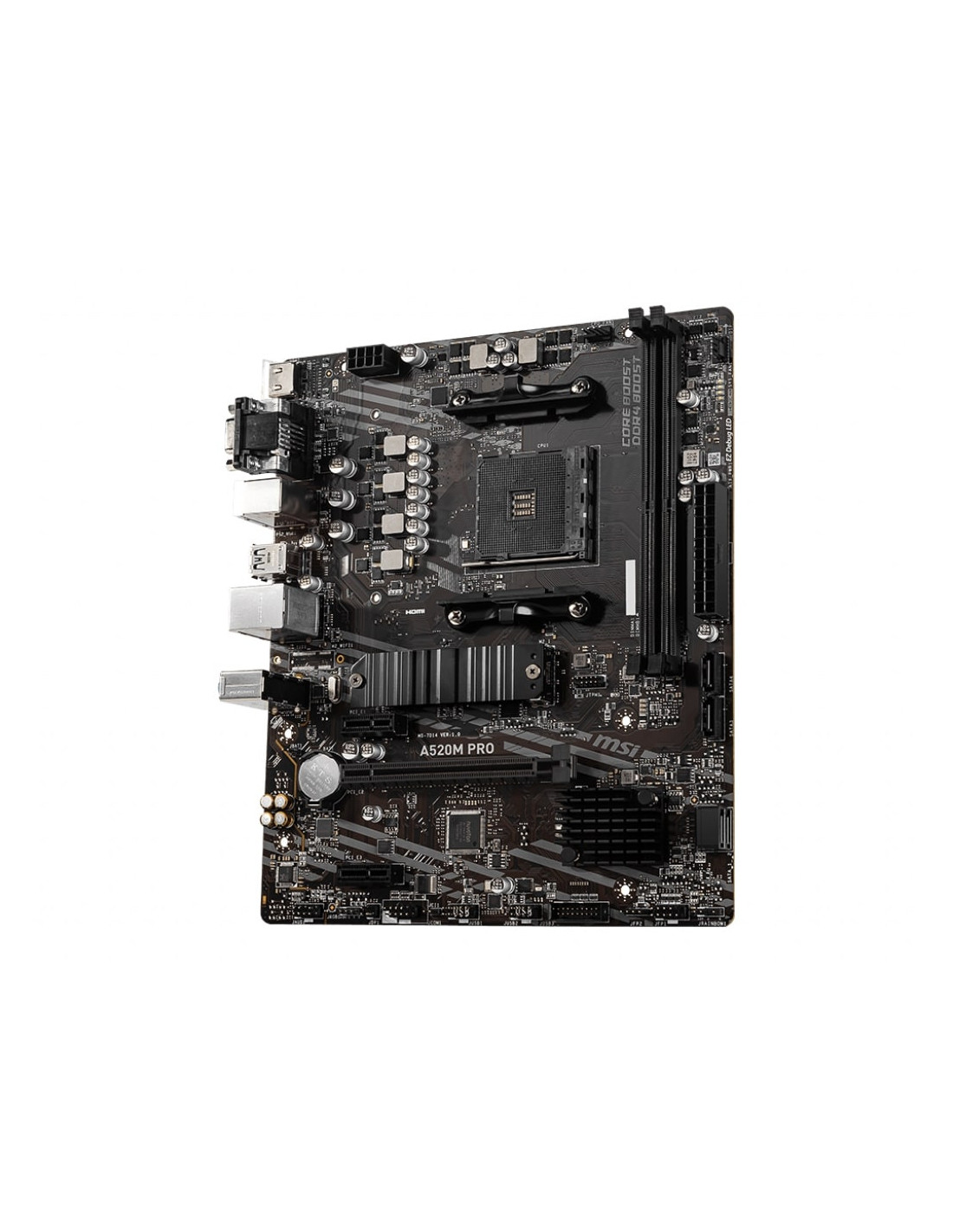

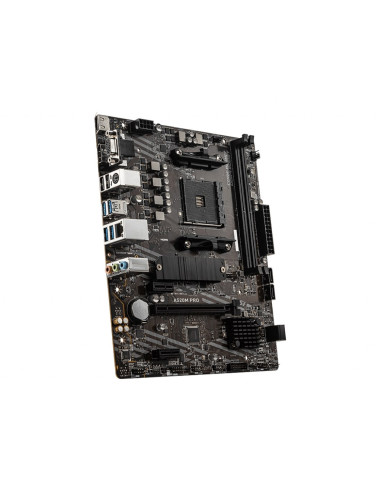

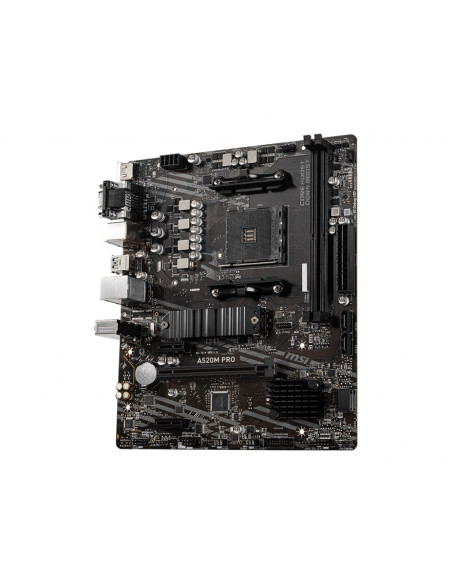

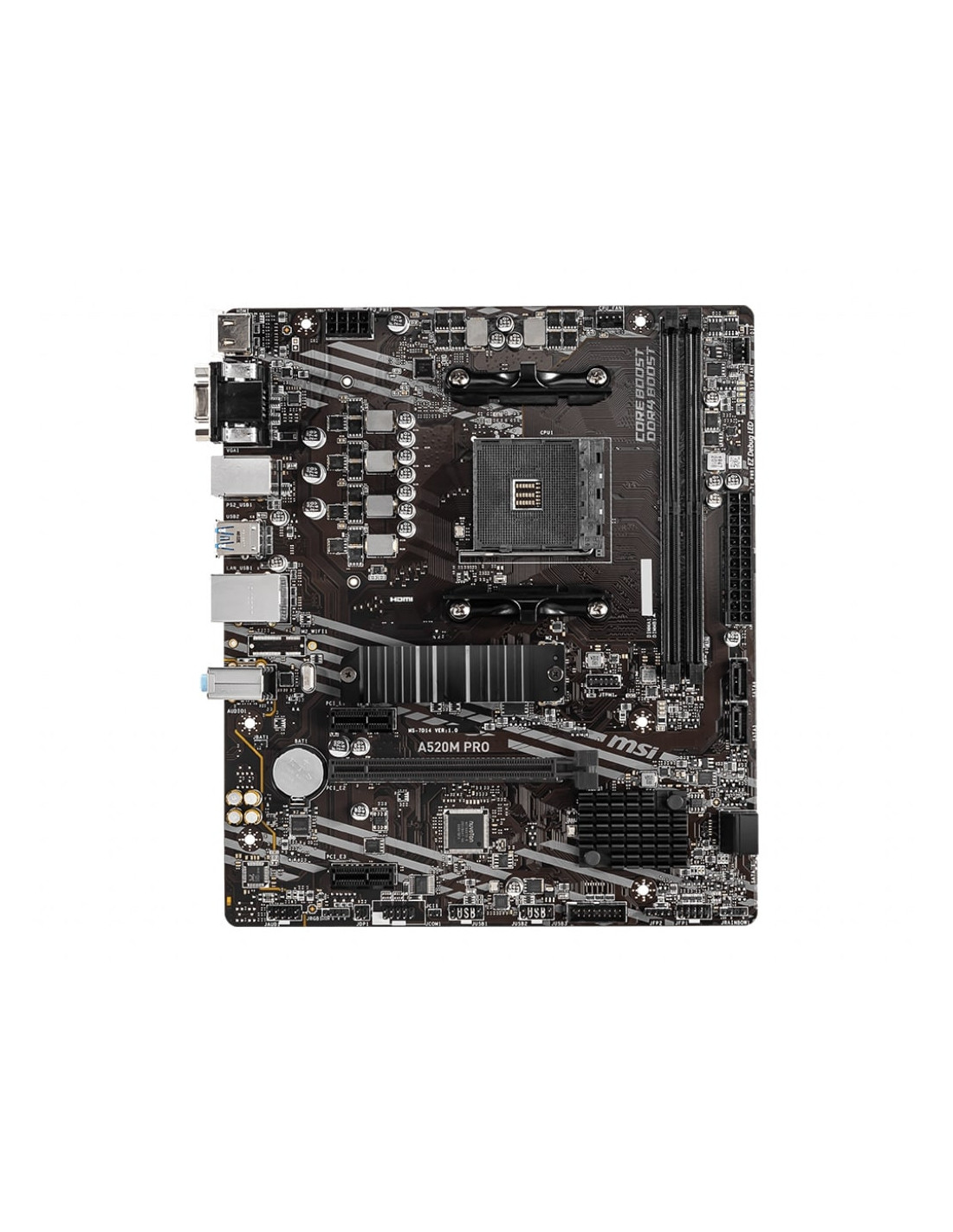

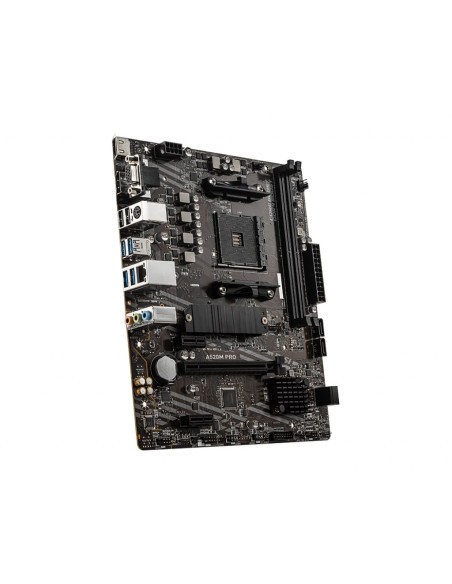

MSI A520M PRO

Chipset: AMD A520

Rozmerový formát: M-ATX Form Factor (244 mm x 210 mm)

Podpora pre procesory: Ryzen Ryzen ™ Ryzen & 3000 Series desktop processors

Pätica procesora: AM4

Pozícia na pamäti: 2x DDR4 DIMM

Podpora pre pamäte:

• 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
• 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE

Max.veľkosť operačnej pamäte: 64 GB

Podpora pre pamäte typu: DDR4

• Dual channel memory architecture
• Supports non-ECC UDIMM memory
• Supports ECC UDIMM memory (non-ECC mode)
• Supports un-buffered memory

Grafická karta: Integrated Graphics Processor (na základe procesora)

Zvuková karta:

• Realtek® ALC892/ALC897 Codec

Sieťová karta:

• Realtek® RTL8111H LAN controller

Rozširujúce sloty:

• 1x PCIe x16 slot (PCI_E2)
• 2x PCIe 3.0 x1 slots

RAID radič: 0, 1, 10

SATA:

• 4x SATA 6Gb/s ports

M.2:

• 1x M.2 slot (Key M) (from AMD Processor)

USB:

• zadné USB porty (celkom 6 )
• 2x USB 2.0 ports
• 4x USB 3.2 Gen 1 5Gbps Type-A ports
• predné USB porty (celkom 6 )
• 2x USB 3.2 Gen 1 5Gbps ports
• 4x USB 2.0 ports

Interné porty:

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 4x SATA 6Gb/s konektory
• 1x Serial port connector
• 1x M.2 slot (M-Key)
• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin system fan connector
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x 4-pin RGB LED connector
• 1x 3-pin RAINBOW LED connector
• 1x TPM module connector
• 1x Clear CMOS jumper

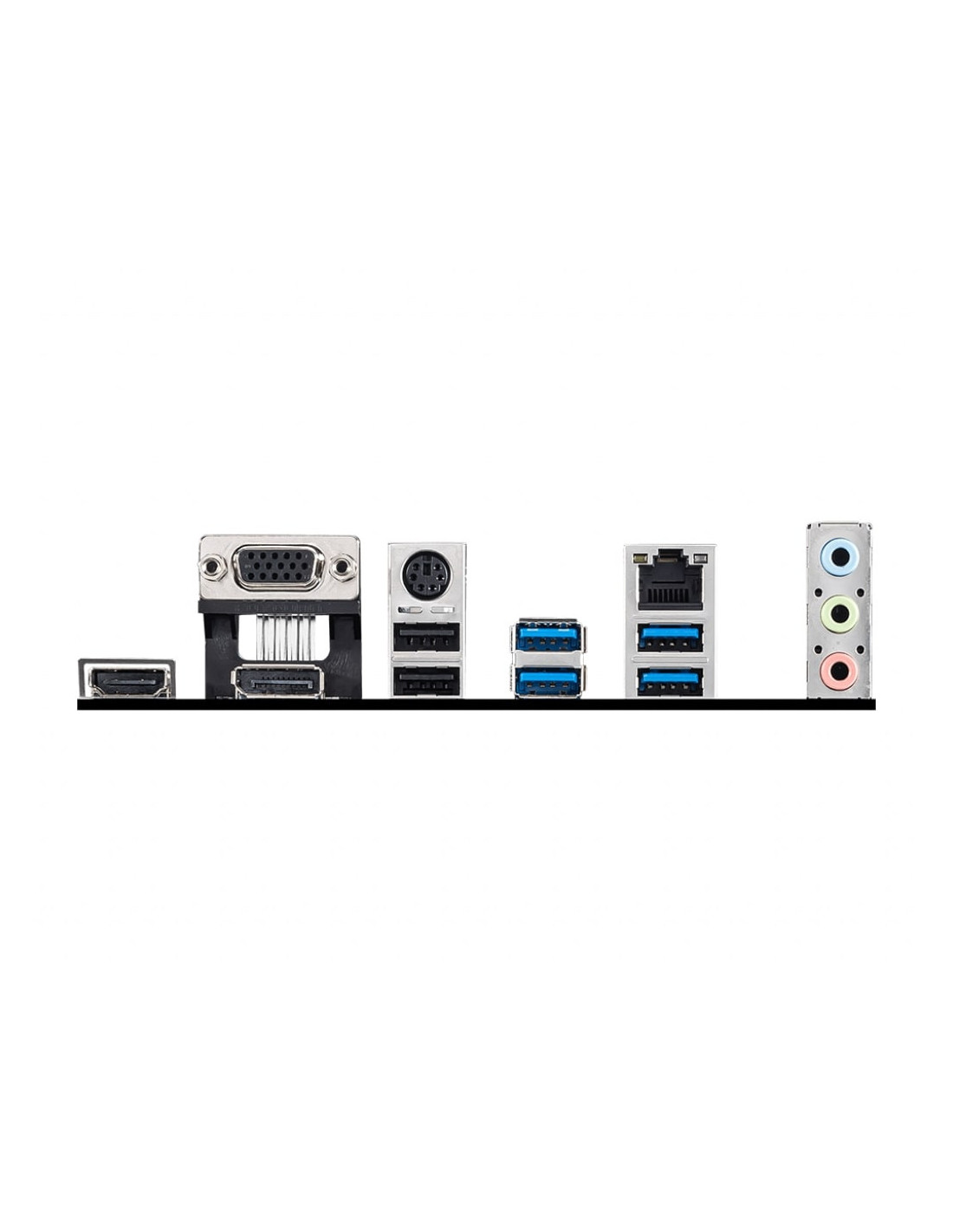

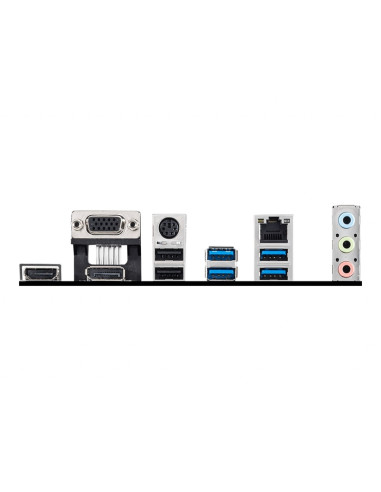

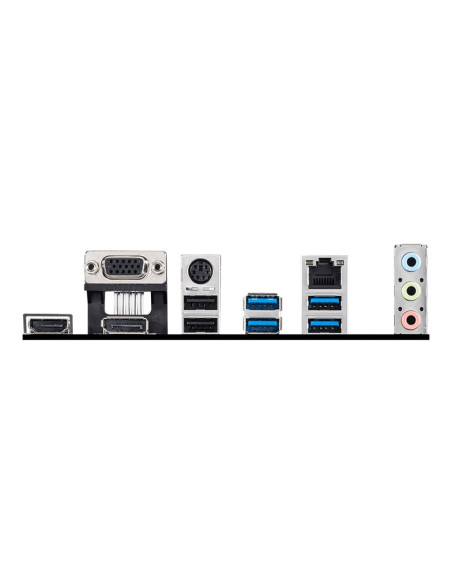

Externé porty:

• VGA
• Keyboard / Mouse
• 1x LAN port
• HDMI
• DisplayPort
• 2x USB 2.0 Ports
• 4x USB 3.2 Gen 1 5Gbps Type-A
• Audio Connectors

Stránka výrobcu: https://www.msi.com/Motherboard/A520M-PRO
