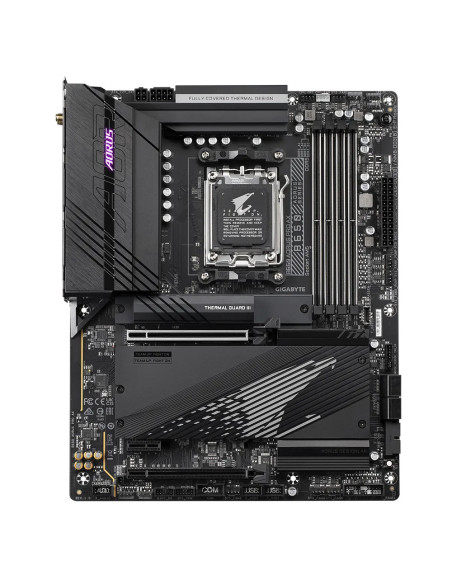

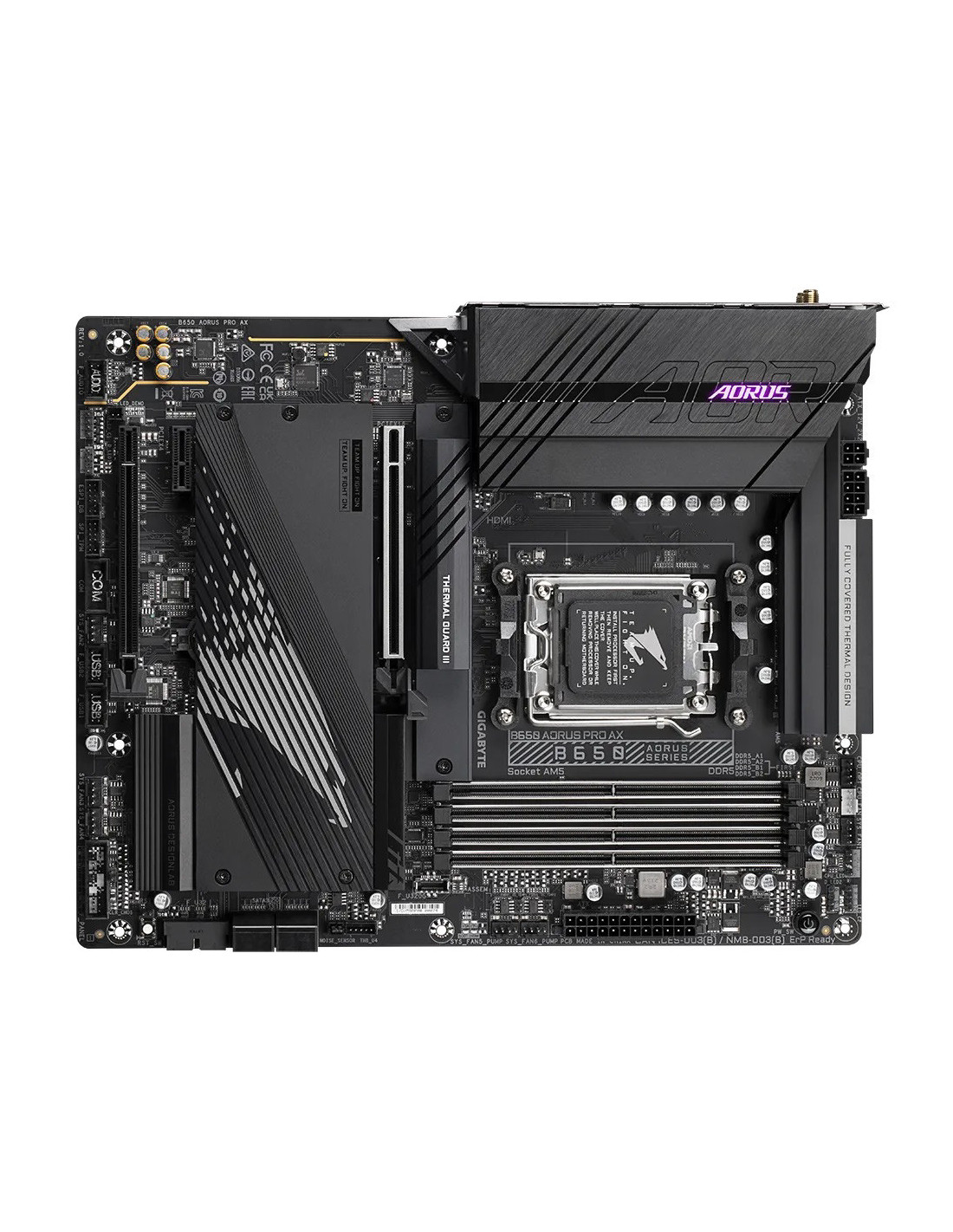

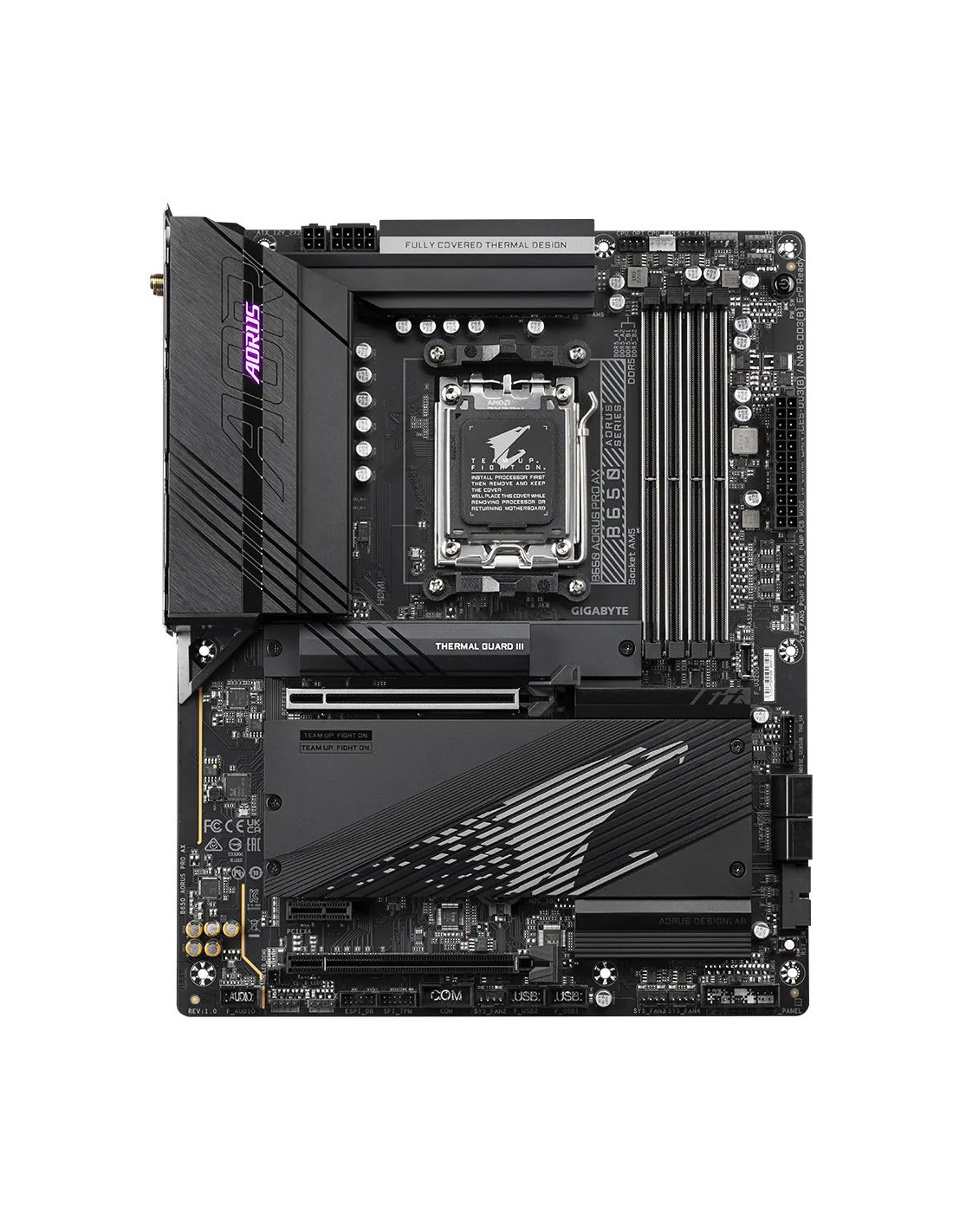

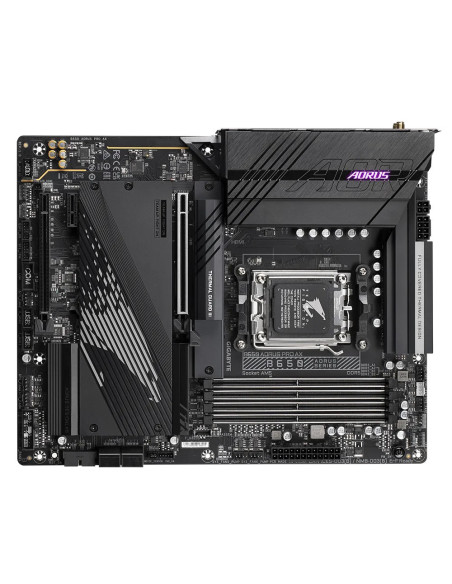

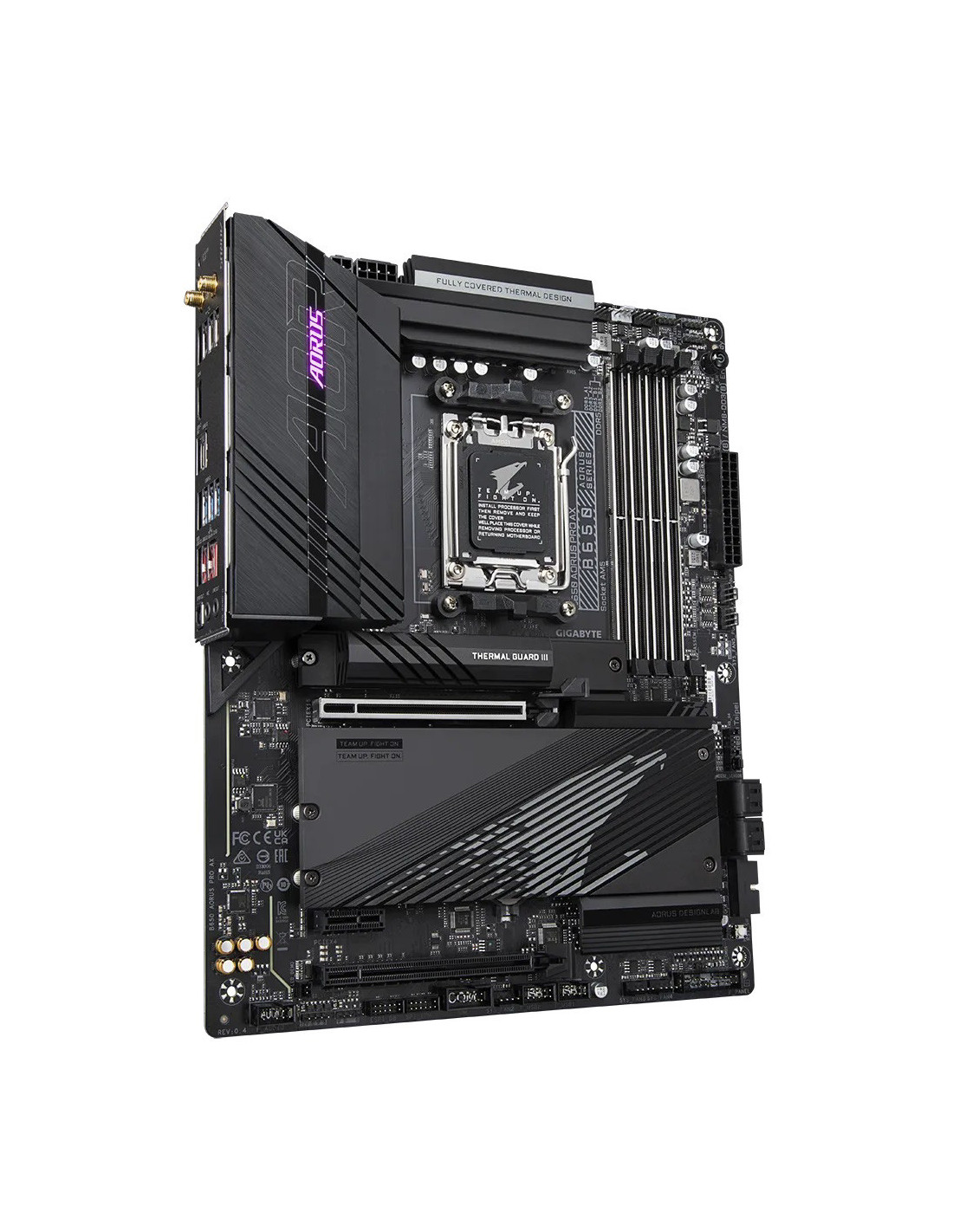

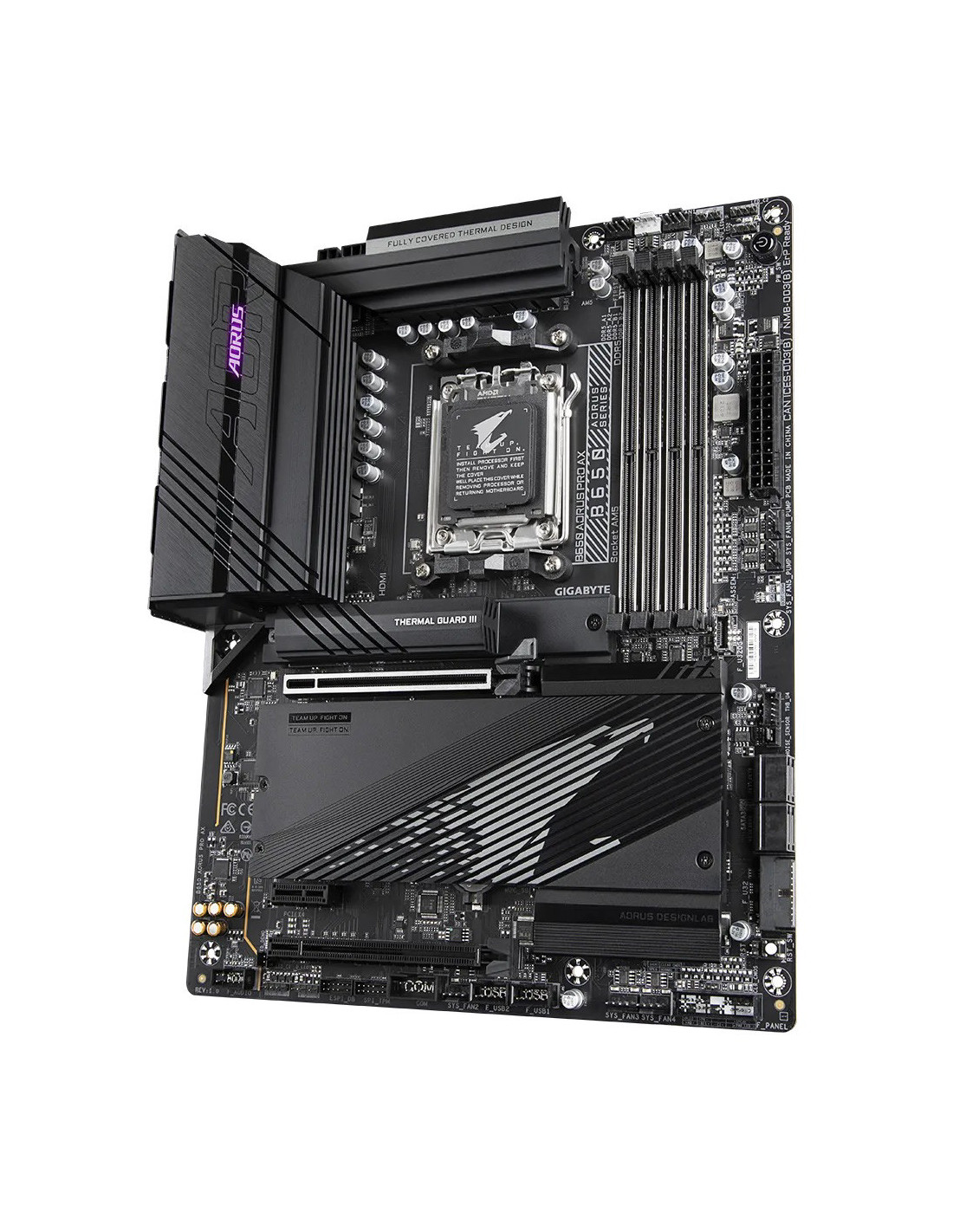

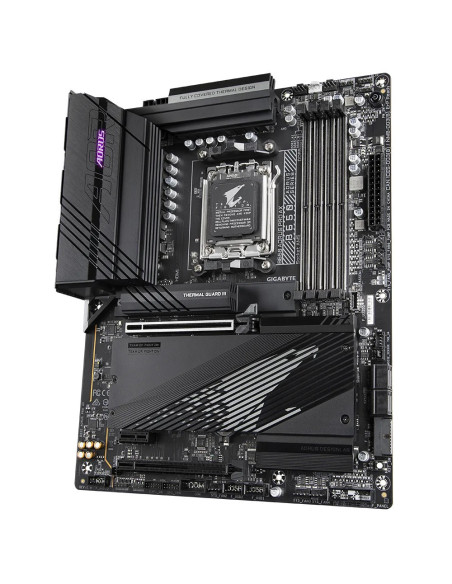

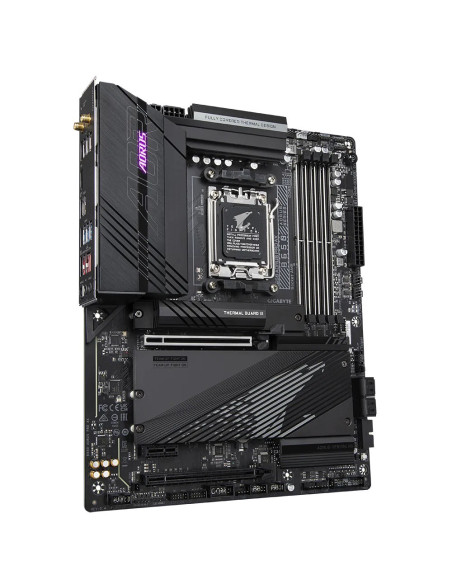

GIGABYTE B650 AORUS PRO AX AM5 ATX

Chipset: AMD B650

Rozmerový formát: ATX Form Factor; (30.5cm x 24.4cm)

Podpora pre procesory: AMD Ryzen 7000 Series Processors

Pätica procesora: AM5

Pozícia na pamäti: 4 x DDR5 DIMM, Dual channel memory architecture

Podpora pre pamäte: DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules

Max.veľkosť operačnej pamäte: 128 GB (32 GB single DIMM capacity)

Podpora pre pamäte typu: non-ECC, XMP

Grafické výstupy: (na základe procesora)

• 1 x HDMI 2.1 port, maximálne rozlíšenie 4096x2160@60 Hz

Zvuková karta: Realtek ALC1220-VB CODEC

• 2/4/5.1/7.1-channel
• Podpora S/PDIF Out

Sieťová karta:

• Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• Wi-Fi 6E RZ616 a, b, g, n, ac, ax
• Bluetooth 5.2

Rozširujúce sloty:

• 1 x PCI Express slot x16, supporting PCIe 4.0 a bežiaci na x16 (PCIEX16)
• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
• 1 x PCI Express slot x1, supporting PCIe 3.0 and running at x1 (PCIEX1)

RAID radič: RAID 0, RAID 1, and RAID 10

SATA: 4 x SATA 6Gb/s konektory

M.2: 3 x M.2 Socket 3 konektory

USB:

• Interné:
• 1 x Type-C header USB s USB 3.2 Gen 2x2 support
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• Externý:
• 4 x USB 2.0/1.1 ports
• 3 x USB 3.2 Gen 2 Type-A ports (red)
• 4 x USB 3.2 Gen 1 ports
• 1 port USB typu C, s USB 3.2 Gen 1 support

Interné porty:

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x 4-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x water cooling CPU fan header
• 4 x system fan headers
• 2 x systém ventilátora/water cooling pump headers
• 2 x addressable LED strip headers
• 2 x RGB LED strip headers
• 1 x CPU cooler LED strip/RGB LED strip header
• 3 x M.2 Socket 3 konektory
• 4 x SATA 6Gb/s konektory
• 1 x front panel header
• 1 x front panel audio header
• 1 x Type-C header USB s USB 3.2 Gen 2x2 support
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x noise detection header
• 1 x THB_U4 add-in card connector
• 1 x Trusted Platform Module pre hlavu (For GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
• 1 x serial port header
• 1 x reset button
• 1 x reset jumper
• 2 x temperature sensor headers
• 1 x Clear CMOS jumper

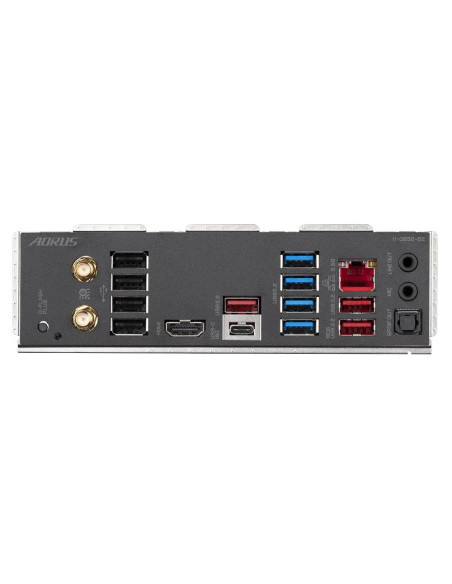

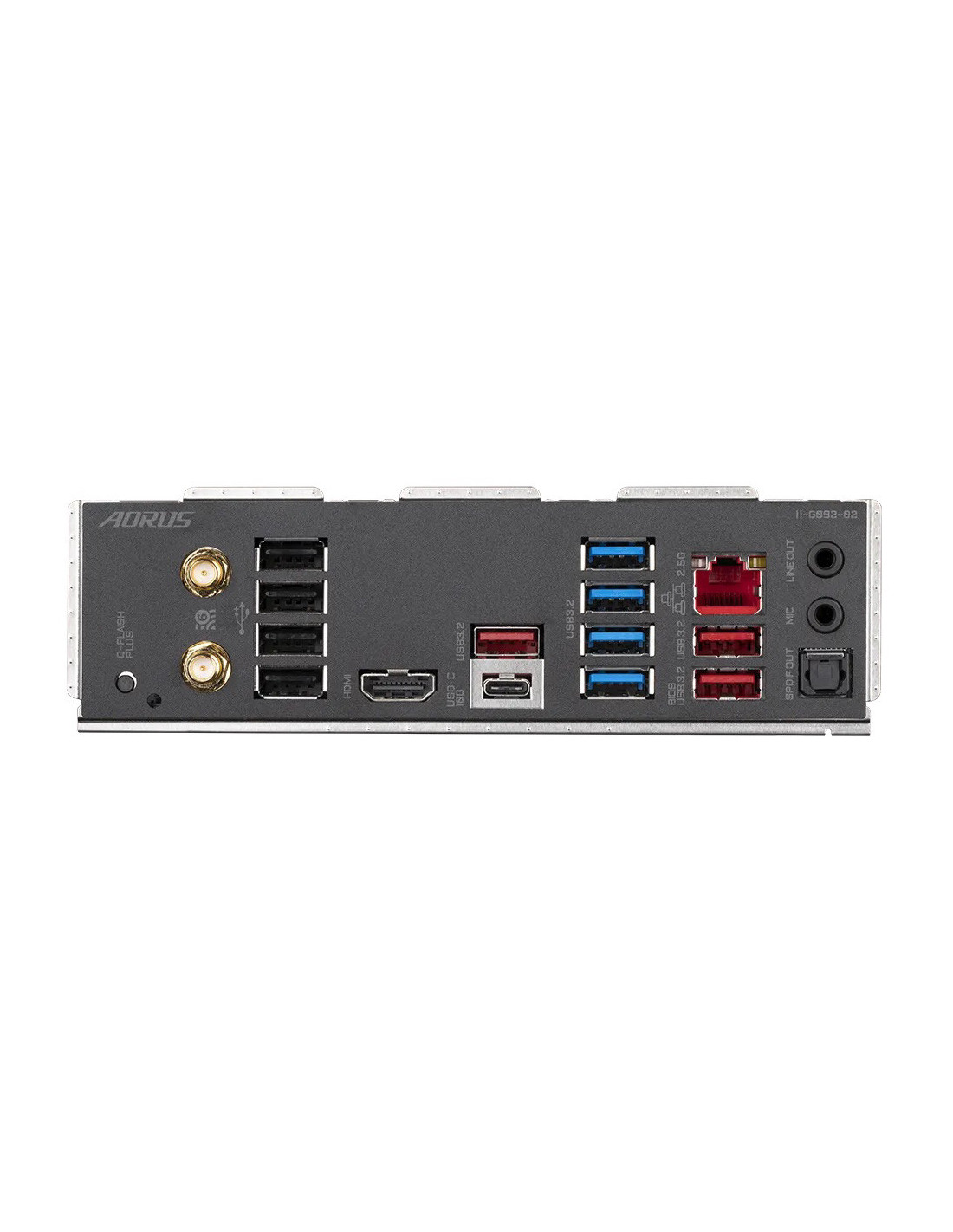

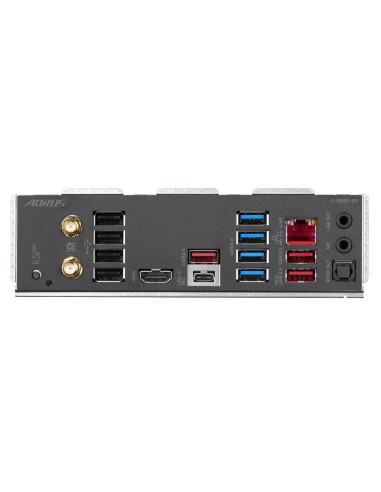

Externé porty:

• 1 x Q-Flash Plus button
• 2 x SMA antenna connectors (2T2R)
• 4 x USB 2.0/1.1 ports
• 1 x HDMI port
• 3 x USB 3.2 Gen 2 Type-A ports (red)
• 1 port USB typu C, s USB 3.2 Gen 1 support
• 4 x USB 3.2 Gen 1 ports
• 1 x RJ-45 port
• 2 x audio jacks
• 1 x optický S/PDIF Out connector

BIOS: AMI UEFI BIOS, 1 x 256 Mbit flash

Stránka výrobcu: http://www.gigabyte.com/Motherboard/B650-AORUS-PRO-AX-rev-1x#kf
