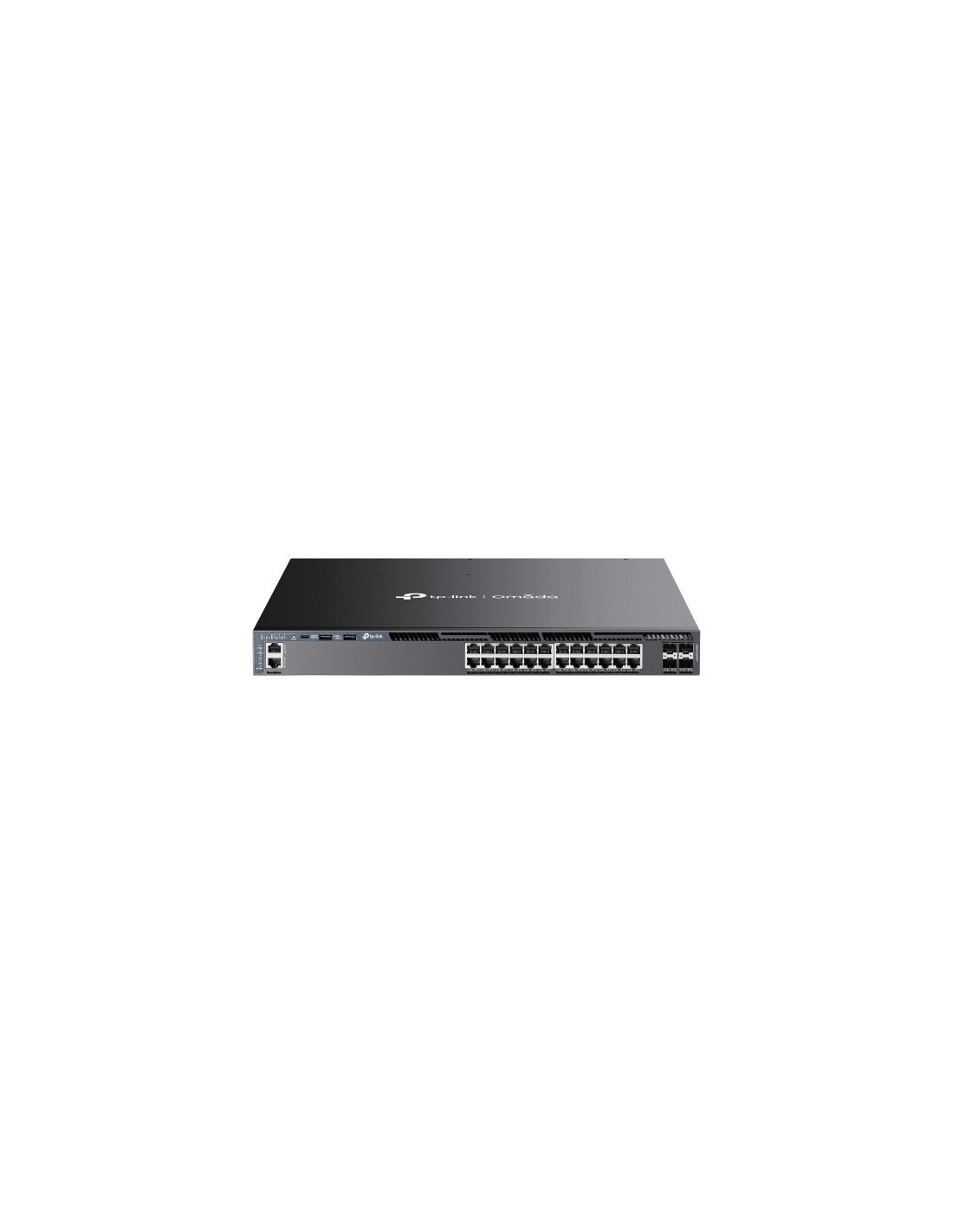

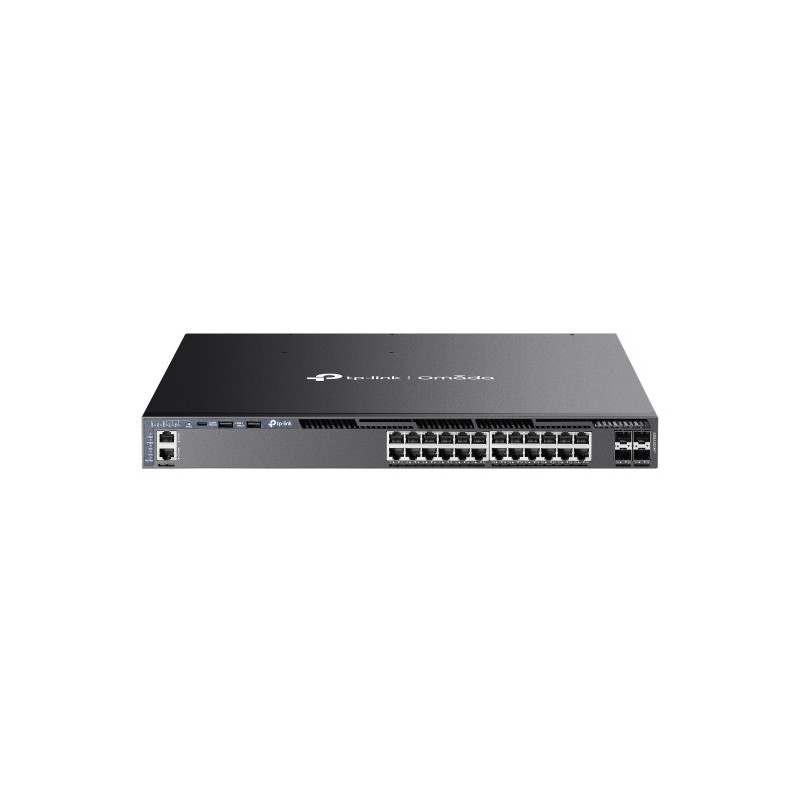

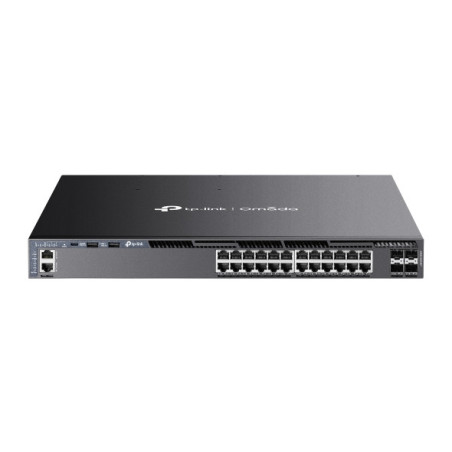

SG6428XHP Omada 24G stack L3 PoE+ 4x10Gb SPF+

SG6428XHP

Omada 24portový gigabitový stohovatelný L3 řízený přepínač PoE+ se 4 sloty 10G

Funkce

• 24× gigabitových portů RJ45 PoE+
• 4× 10 Gb/s SFP+ sloty
• Celkový rozpočet PoE až 720 W*
• Fyzické stohování pro vestavěnou redundanci a výkon
• Funkce L3: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay
• Strategie zabezpečení: ACL, zabezpečení portů, DoS Defend, 802.1X
• Vysoce dostupný díky dvěma napájecím zdrojům vyměnitelným za provozu, VRRP a ERPS
• Centralizovaná správa cloudu prostřednictvím řadičů Omada SDN
• Samostatná správa přes web, CLI, SNMP a RMON

Specifikace

Hardware

Interface

• 24× 10/100/1000 Mbps PoE+ RJ45 Ports
• 4× 10G SFP+ Slots
• 2× USB 2.0 Ports
• 1× RJ45 Console Port
• 1× USB Type-C Console Port
• 1× RJ45 Management Port

Fan Quantity

• Four Field-replaceable and Hot-swappable Fans

Power Supply

• Two Field-replaceable and Hot-swappable Power Supply Modules** (100–240 VAC, 50/60 Hz)

PoE Ports (RJ45)

• Standard: 802.3at/af compliant
• PoE+ Ports: 24 Ports, up to 30 W per port
• PoE Power Budget: up to 720 W

Max. Power Consumption

• 42.9 W (110 V/60 Hz) (With no PD connected)
• 916.6 W (110 V/60 Hz) (With 720 W PD connected and powered by 2× PSM500-AC)

Dimensions ( W x D x H )

• 440 × 420 × 44 mm

Mounting

• Rack Mountable

Max Heat Dissipation

• 146.29 BTU/hr (110 V/60 Hz) (With no PD connected)
• 3,125.61 BTU/hr (110 V/60 Hz) (With 720W PD connected and powered by 2× PSM500-AC)

Výkon

Switching Capacity

• 128 Gbps per Unit

Stacking

• Stacking Number: 8
• Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports)
• Stack Bandwidth: Up to 80 Gbps (4 stack ports)

Packet Forwarding Rate

• 95.2 Mpps

MAC Address Table

• 32 K

Packet Buffer Memory

• 3 MB

Jumbo Frame

• 9 KB

Software

Quality of Service

-Class of Service

• 8 Queues of Priority
• Port Priority
• IEEE 802.1p Priority
• DSCP Priority
• Queue Min-Bandwidth
• Schedule Mode (SP, WRR, SP+WRR)

-Bandwidth Control

• Rate Limit
• Storm Control

-Voice VLAN

-User-Defined OUI

-Smoother Performance

-Action for Flows

• QoS remark (802.1P Remark, DSCP Remark)

L3 Features

-IP Interfaces:

• IPv4: Max 256, IPv6: Max 256

-Static Routing

• Max 1,024, IPv6: Max 512

-Host Route Table: Max 6,100 entries

-RIP: Version v1/v2, Max 8,190

-OSPF: Version v2/v3; v2: Max 8,190, v3: Max 4,097

-VRRP: Version v2/v3, Max 64 groups

-ECMP: 256 entries, max 32 ECMP Nexthops per Destination

-Static ARP: 512 static entries

-Dynamic ARP: 7,680 dynamic entries

-Proxy ARP

-DHCP Server:

• Max 8K IP Pools
• Max 1,000 Manual Binding Entries

-DHCP Relay:

• Relayed Interface
• Relayed VLAN

L2 and L2+ Features

-Link Aggregation

-Spanning Tree Protocol

-Port-based and VLAN-based Loopback Detection

-802.3x Flow Control

-Supports 2,048 IGMP groups

-ERPS

-Mirroring

-RSPAN

-MAC Address Table

-PIM-DM (IPv4)

-Multicast

• IGMP Snooping
• MLD Snooping
• L2 Multicast Table
• Fast Leave
• Multicast VLAN Registration (MVR)
• Static Multicast IP
• Multicast Filtering

Advanced Features

-Automatic Device Discovery

-Batch Configuration

-Batch Firmware Upgrading

-Intelligent Network Monitoring

-Abnormal Event Warnings

-Unified Configuration

-Reboot Schedule

ISP Features

-802.3ah Ethernet Link OAM

-L2PT (Layer 2 Protocol Tunneling)

-Device Link Detect Protocol (DLDP)

-DDM

-sFlow

-PPPoE ID Insertion

VLAN

-Max 4K VLAN Group (802.1q VLAN)

-802.1Q Tagged VLAN

-MAC VLAN Entries: 200

-Multicast VLAN

-Management VLAN

-VLAN VPN (QinQ): Max 256 entries

-GVRP

-Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries

-VLAN VPN

-Voice VLAN

-Private VLAN

Security

-Port Isolation

-CPU-Deffend

-ARP Inspection (Dynamic ARP Inspection)

-DoS Defend

-IP-MAC-Port Binding

• 1,024 Entries
• DHCP Snooping
• ARP Inspection
• IPv4 Source Guard

-IPv6-MAC

• Port Binding
• 1,024 Entries
• DHCPv6 Snooping
• ND Detection
• ND Snooping
• IPv6 Source Guard

-DHCP Filter

-Static/Dynamic Port Security

• Up to 64 MAC addresses per port

-Broadcast/Multicast/Unknown-unicast Storm Control

• kbps/ratio control mode

-802.1X

• Port base authentication
• Mac base authentication
• VLAN Assignment
• MAB
• Guest VLAN
• RADIUS authentication and accountability support

-AAA (including TACACS+)

-Secure web management through HTTPS with SSLv3/TLS 1.2

-Secure Command Line Interface (CLI) management with SSHv2

-IP/Port/MAC-based access control

Management

Management Features

-Web-based GUI

-Command Line Interface (CLI) through console port, telnet

-SNMPv1/v2c/v3

• Trap/Inform
• RMON (1, 2, 3, 9 groups)

-SDM Template

-DHCP/BOOTP Client

-802.1ab LLDP/LLDP-MED

-DHCP Auto Install

-Dual Image, Dual Configuration

-CPU Monitoring

-Cable Diagnostics

-Password Recovery

-SNTP

-System Log

-EEE
