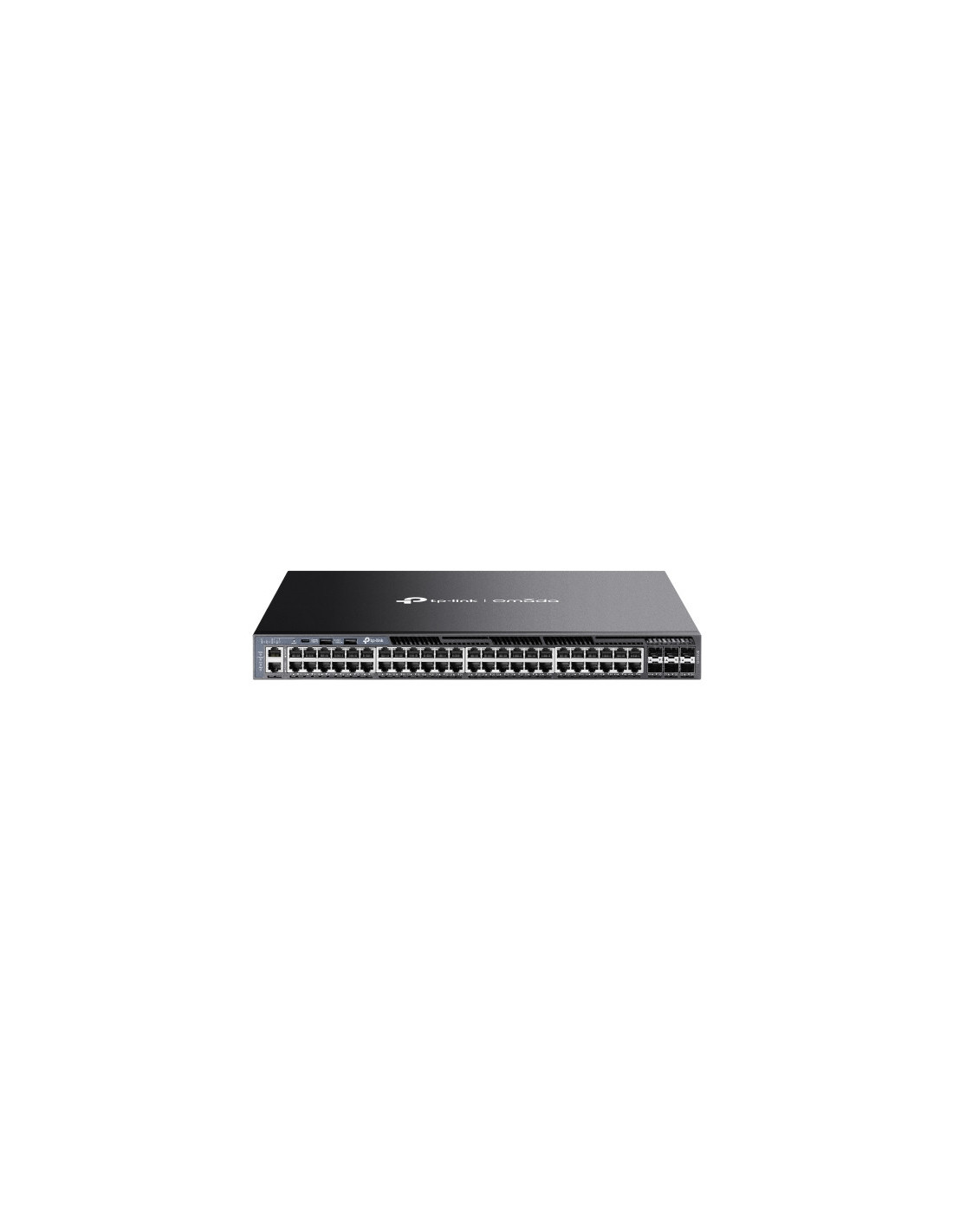

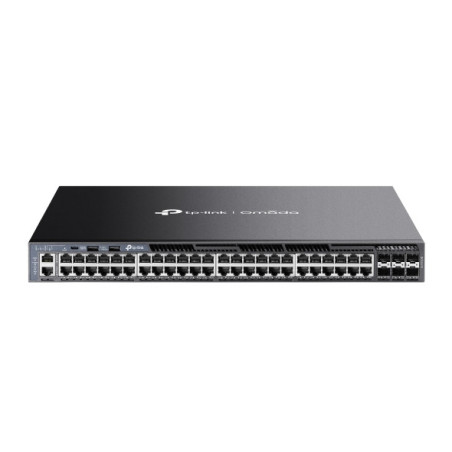

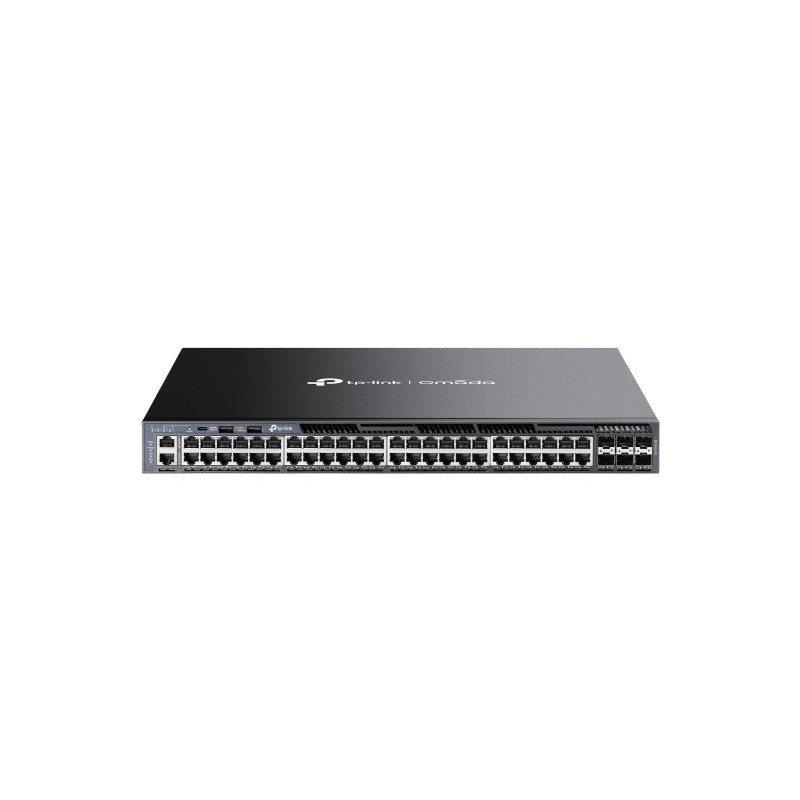

SG6654X Omada 48G stack 6x10G SFP+ switch

SG6654X

Omada 48portový gigabitový stohovatelný managovaný switch L3 se 6 sloty 10G

Funkce

• 48× gigabitových portů RJ45 a 6× 10 Gb/s slotů SFP+
• Přepínací kapacita 216 Gb/s na jednotku
• Fyzické stohování pro vestavěnou redundanci a výkonnost
• Funkce L3: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay
• Strategie zabezpečení: ACL, zabezpečení portů, DoS Defend, 802.1X
• Vysoká dostupnost díky dvěma interním pevným zdrojům napájení, VRRP a ERPS
• Centralizovaná správa cloudu prostřednictvím řadiče Omada SDN
• Samostatná správa přes web, CLI, SNMP a RMON

Specifikace

Hardware

Interface

• 48× 10/100/1000 Mbps RJ45 Ports
• 6× 10G SFP+ Slots
• 2× USB 2.0 Ports
• 1× RJ45 Console Port
• 1× USB Type-C Console Port
• 1× RJ45 Management Port

Fan Quantity

• Four Internal Fixed Fans

Power Supply

• Two Internal Fixed Power Supply Modules (100–240 VAC, 50/60 Hz)

Max. Power Consumption

• 39.8 W (220 V/50 Hz)

Dimensions ( W x D x H )

• 440 × 380 × 44 mm

Mounting

• Rack Mountable

Max Heat Dissipation

• 135.81 BTU/hr (220 V/50 Hz)

Výkon

Switching Capacity

• 216 Gbps per Unit

Stacking

• Stacking Number: 8
• Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports)
• Stack Bandwidth: Up to 120 Gbps (6 stack ports)

Packet Forwarding Rate

• 160.7 Mpps

MAC Address Table

• 32 K

Packet Buffer Memory

• 3 MB

Jumbo Frame

• 9 KB

Software

Quality of Service

-Class of Service

• 8 Queues of Priority
• Port Priority
• IEEE 802.1p Priority
• DSCP Priority
• Queue Min-Bandwidth
• Schedule Mode (SP, WRR, SP+WRR)

-Bandwidth Control

• Rate Limit
• Storm Control

-Voice VLAN

-User-Defined OUI

-Smoother Performance

-Action for Flows

• QoS remark (802.1P Remark, DSCP Remark)

L3 Features

-IP Interfaces:

• IPv4: Max 256, IPv6: Max 256

-Static Routing

• Max 1,024, IPv6: Max 512

-Host Route Table: Max 6,100 entries

-RIP: Version v1/v2, Max 8,190

-OSPF: Version v2/v3; v2: Max 8,190, v3: Max 4,097

-VRRP: Version v2/v3, Max 64 groups

-ECMP: 256 entries, max 32 ECMP Nexthops per Destination

-Static ARP: 512 static entries

-Dynamic ARP: 7,680 dynamic entries

-Proxy ARP

-DHCP Server:

• Max 8K IP Pools
• Max 1,000 Manual Binding Entries

-DHCP Relay:

• Relayed Interface
• Relayed VLAN

L2 and L2+ Features

-Link Aggregation

-Spanning Tree Protocol

-Port-based and VLAN-based Loopback Detection

-802.3x Flow Control

-Supports 2,048 IGMP groups

-ERPS

-Mirroring

-RSPAN

-MAC Address Table

-PIM-DM (IPv4)

-Multicast

• IGMP Snooping
• MLD Snooping
• L2 Multicast Table
• Fast Leave
• Multicast VLAN Registration (MVR)
• Static Multicast IP
• Multicast Filtering

Advanced Features

-Automatic Device Discovery

-Batch Configuration

-Batch Firmware Upgrading

-Intelligent Network Monitoring

-Abnormal Event Warnings

-Unified Configuration

-Reboot Schedule

ISP Features

-802.3ah Ethernet Link OAM

-L2PT (Layer 2 Protocol Tunneling)

-Device Link Detect Protocol (DLDP)

-DDM

-sFlow

-PPPoE ID Insertion

VLAN

-Max 4K VLAN Group (802.1q VLAN)

-802.1Q Tagged VLAN

-MAC VLAN Entries: 200

-Multicast VLAN

-Management VLAN

-VLAN VPN (QinQ): Max 256 entries

-GVRP

-Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries

-VLAN VPN

-Voice VLAN

-Private VLAN

Security

-Port Isolation

-CPU-Deffend

-ARP Inspection (Dynamic ARP Inspection)

-DoS Defend

-IP-MAC-Port Binding

• 1,024 Entries
• DHCP Snooping
• ARP Inspection
• IPv4 Source Guard

-IPv6-MAC

• Port Binding
• 1,024 Entries
• DHCPv6 Snooping
• ND Detection
• ND Snooping
• IPv6 Source Guard

-DHCP Filter

-Static/Dynamic Port Security

• Up to 64 MAC addresses per port

-Broadcast/Multicast/Unknown-unicast Storm Control

• kbps/ratio control mode

-802.1X

• Port base authentication
• Mac base authentication
• VLAN Assignment
• MAB
• Guest VLAN
• RADIUS authentication and accountability support

-AAA (including TACACS+)

-Secure web management through HTTPS with SSLv3/TLS 1.2

-Secure Command Line Interface (CLI) management with SSHv2

-IP/Port/MAC-based access control

Management

Management Features

-Web-based GUI

-Command Line Interface (CLI) through console port, telnet

-SNMPv1/v2c/v3

• Trap/Inform
• RMON (1, 2, 3, 9 groups)

-SDM Template

-DHCP/BOOTP Client

-802.1ab LLDP/LLDP-MED

-DHCP Auto Install

-Dual Image, Dual Configuration

-CPU Monitoring

-Cable Diagnostics

-Password Recovery

-SNTP

-System Log

-EEE
