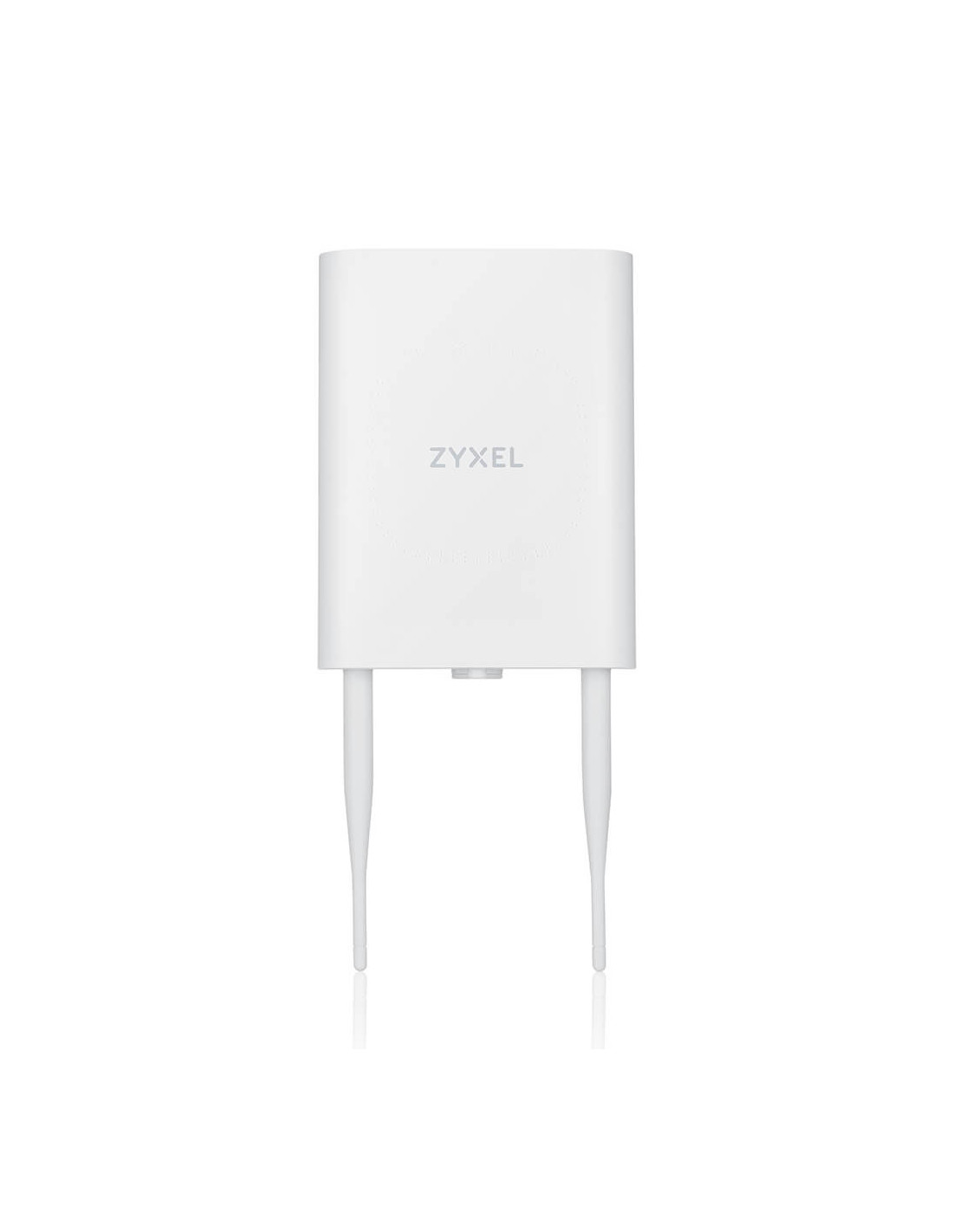

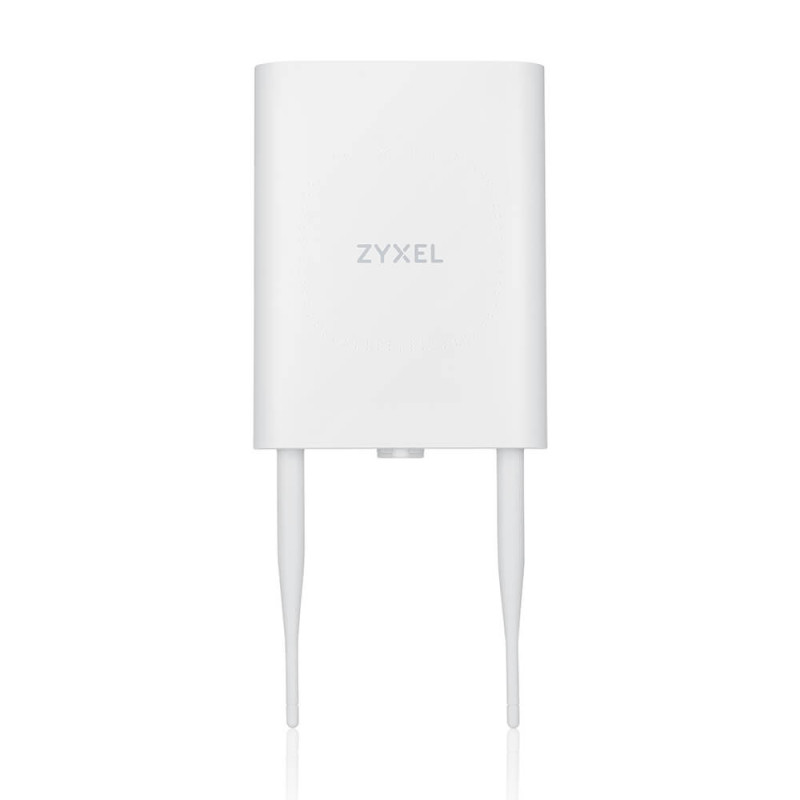

ZYXEL NWA55AXE,Standalone NebulaFlex Outdoor WIFI AP

Product name

Description 802.11ax (WiFi 6) Dual-Radio Outdoor PoE Access Point

Wireless

Standard IEEE802.11 ax/ac/n/g/b/a

MIMO MU-MIMO

Wireless speed 2.4GHz: 575 Mbps

5GHz: 1200 Mbps

Frequency band 2.4 GHz

• USA (FCC): 2.412 to 2.462 GHz

• Europe (ETSI): 2.412 to 2.472 GHz

5 GHz

• USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz

• European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz

Bandwidth 20-, 40- and 80-MHz

Conducted typical transmit output power US (2.4GHz/5GHz): 23/26 dBm

EU (2.4GHz/5GHz): 20/25 dBm

RF Design

Antenna type 2x2 External Antenna

Antenna gain 2.4GHz: 4 dBi

5GHz: 5 dBi

Minimum Receive sensitivity Min. Rx sensitivity up to -99 dBm

WLAN feature

Band Steering Yes

WDS/Mesh Yes

Fast roaming Yes

DCS Yes

Load balancing No

Security

Encryption • WPA Personal

• WPA2 Personal

• WPA3 Personal

Authentication No

Access management • MAC filtering

• Rogue AP detection

Networking

IPv6 Yes

VLANs Yes

WMM Yes

U-APSD Yes

Management

Operating mode • Cloud managed

• Standalone

ZON Utility • Discovery of Zyxel switches, APs and gateways

• Centralized and batch configurations

o IP configuration

o IP renew

o Device factory reset

o Device reboot

o Device locating

o Web GUI access

o Firmware upgrade

o Password configuration

Zyxel Wireless Optimizer WiFi AP planning

Web UI/CLI Yes

SNMP NO

Physical Specifications

Item Dimensions (WxDxH)(mm/in.)

308 x 136.4 x 49.6 /12.13 x 5.37 x 1.95

Weight (g/lb.)

580/1.28

Packing Dimensions (WxDxH)(mm/in.)

221 x 188 x 59 / 8.70 x 7.40 x 2.32

Weight (g/lb.)

887/1.96

Included accessories • PoE injector

• Mounting screws

MTBF (hr) 1,091,186

Physical Interfaces

Ethernet port 1x 10/100/1000M LAN

Power PoE (802.3at): power draw 16 W

Environmental Specifications

Operating Temperature

-20°C to 60°C/ -4°F to 140°F

Humidity

10% to 90% (non-condensing)

Storage Temperature

-40°C to 70°C/-40°F to 158°F

Humidity

10% to 90% (non-condensing)

Certifications

Radio • FCC Part 15C

• FCC Part 15E

• ETSI EN 300 328

• EN 301 893

• LP0002

• EN 60601-1-2

EMC • FCC Part 15B

• EN 301 489-1

• EN 301 489-17

• EN55022

• EN55024

• EN61000-3-2/-3

• BSMI CNS13438

Safety • EN 60950-1

• IEC 60950-1

• BSMI

• CNS14336-1
