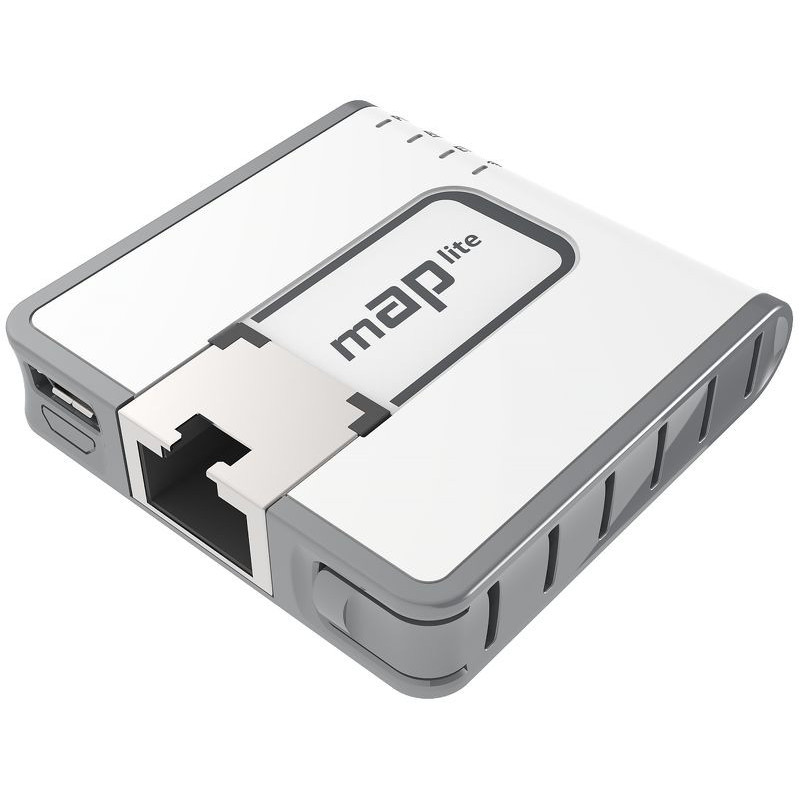

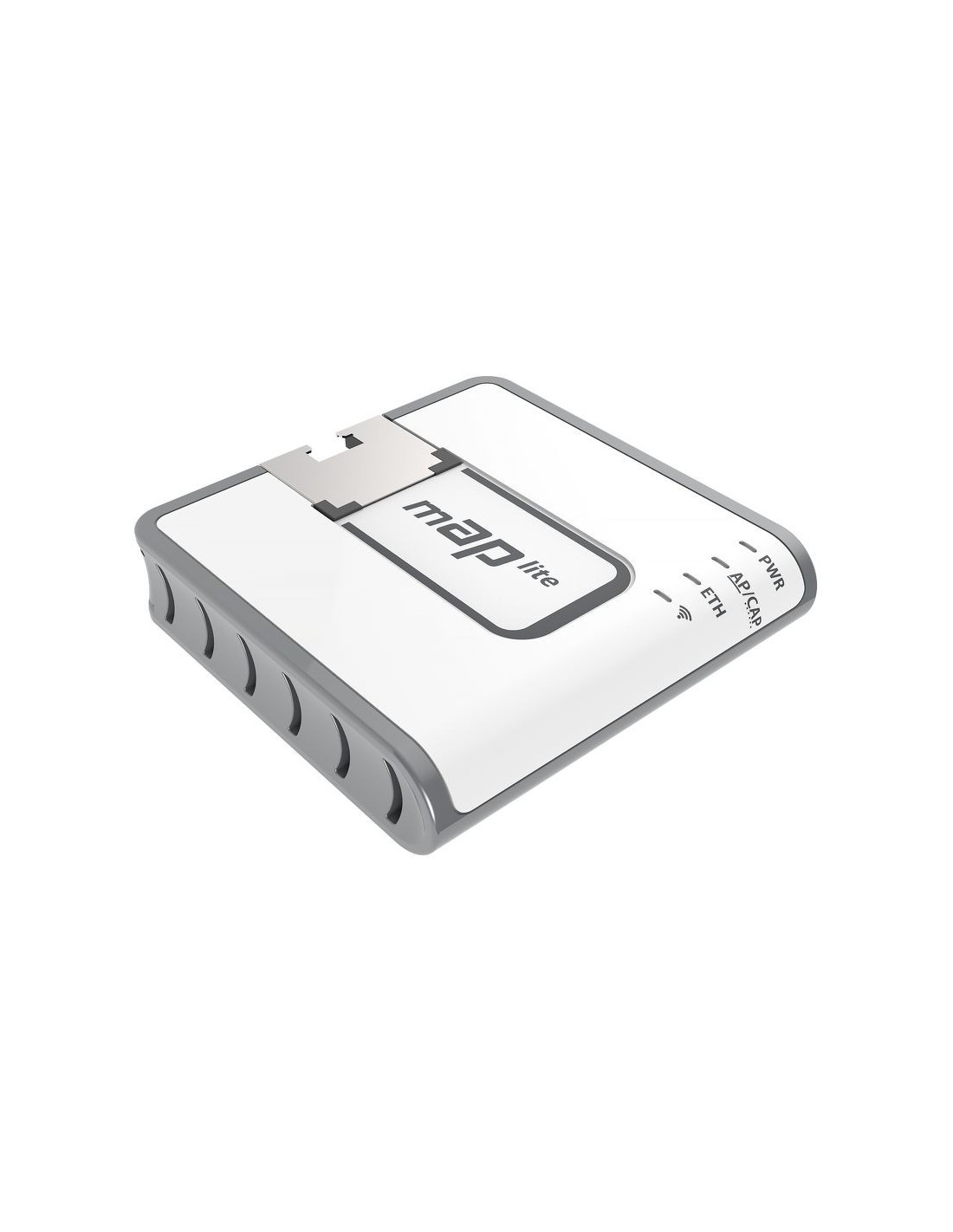

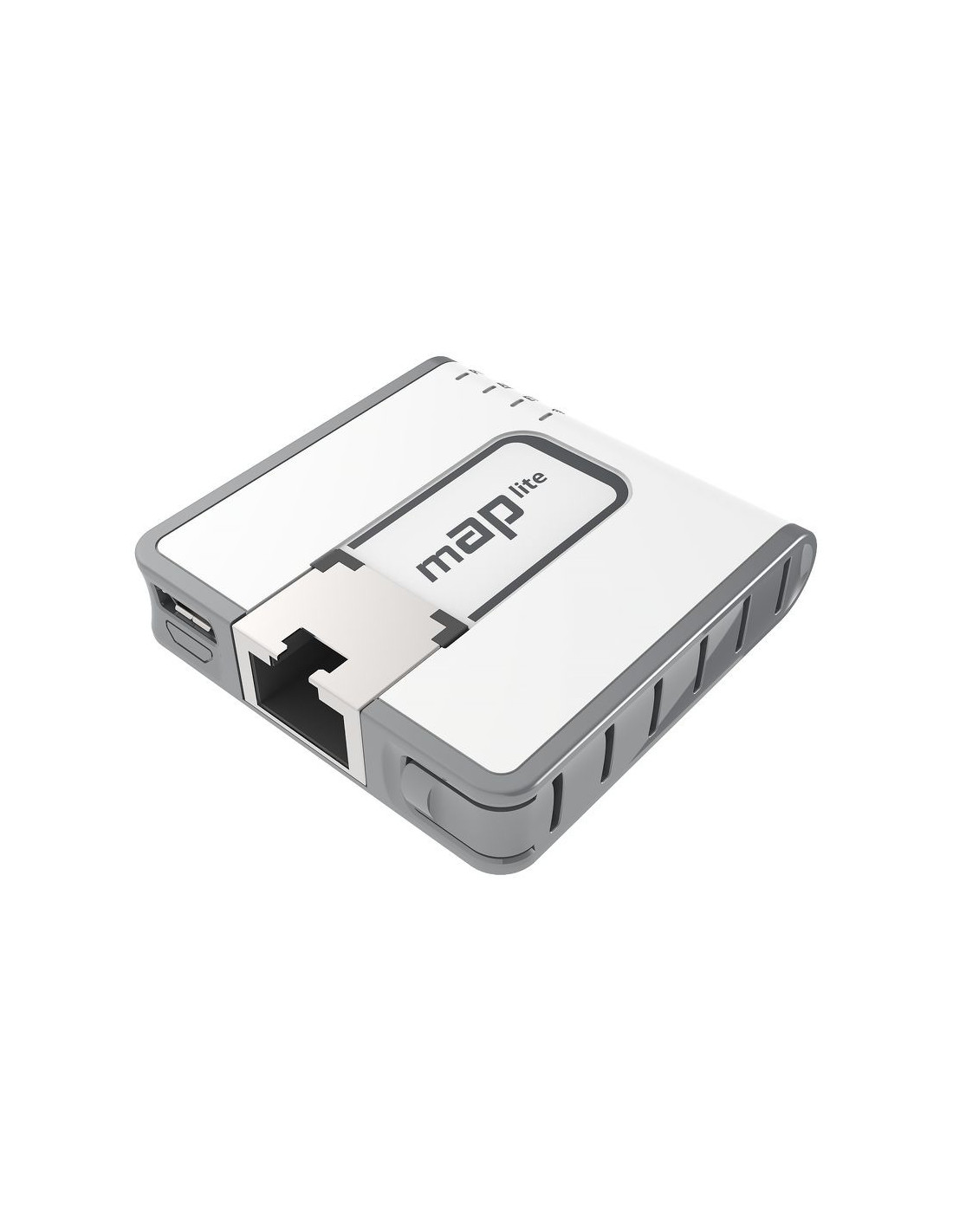

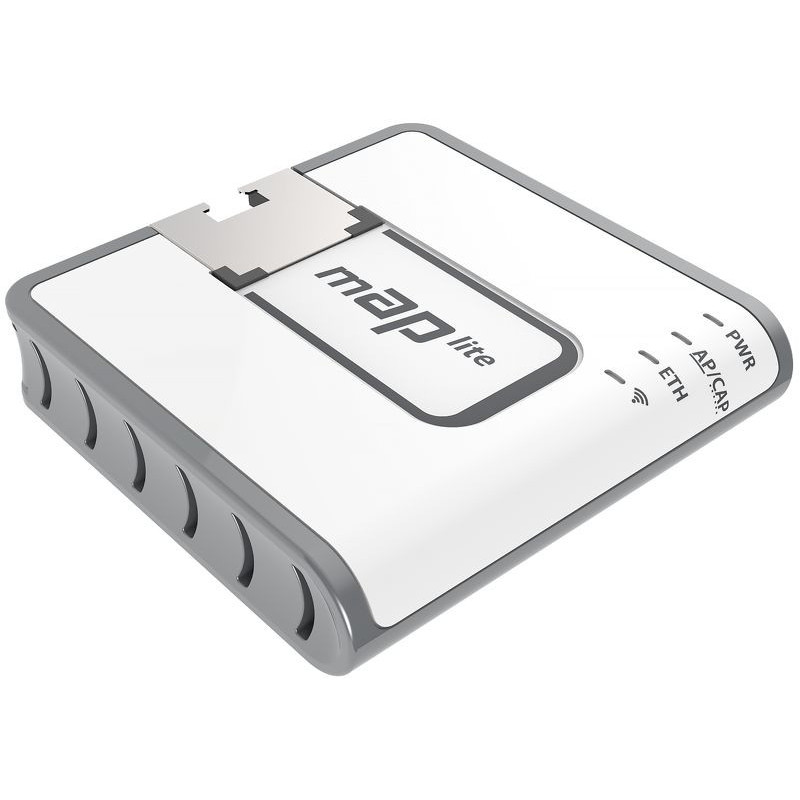

Mikrotik RBmAPL-2nD

PŘEHLED

The mAP lite is our smallest wireless access point. It is barely larger than a matchbox, we even had to use a special Ethernet port to match it’s slim profile.

You can carry it anywhere: use as a travel router to extend that hotel internet to all your devices, or as a client device to improve your laptop signal range, the tiny mAP lite will be always with you.

It can also serve as a simple configuration tool for your servers, if there is no ethernet on your mobile device.

The mAP lite is a dual chain 802.11 b/g/n device and operates in 2GHz.

PRODUCT SPECIFICATION

Product code

• RBmAPL-2nD

CPU nominal frequency

• 650 MHz

CPU core count

• 1

Size of RAM

• 64 MB

10/100/1000 Ethernet ports

• 1

Wireless standards

• 802.11b/g/n

Wireless chip model

• QCA9533

Power Jack

• 1

PoE in

• 802.3af/at (+4,5/-7,8 or +3,6/-1,2)

Supported input voltage

• 5 V - 60 V

Dimensions

• 48x49x11mm

Operating System

• RouterOS

Operating temperature range

• -30C +70C

License level

• 4

Antenna gain DBI

• 1,5

CPU

• QCA9533

Max Power consumption

• 3,5 W

Number of chains

• 2

Storage type

• FLASH

Storage size

• 16 MB

WEB VÝROBCE

http://routerboard.com/RBmAPL-2nD
