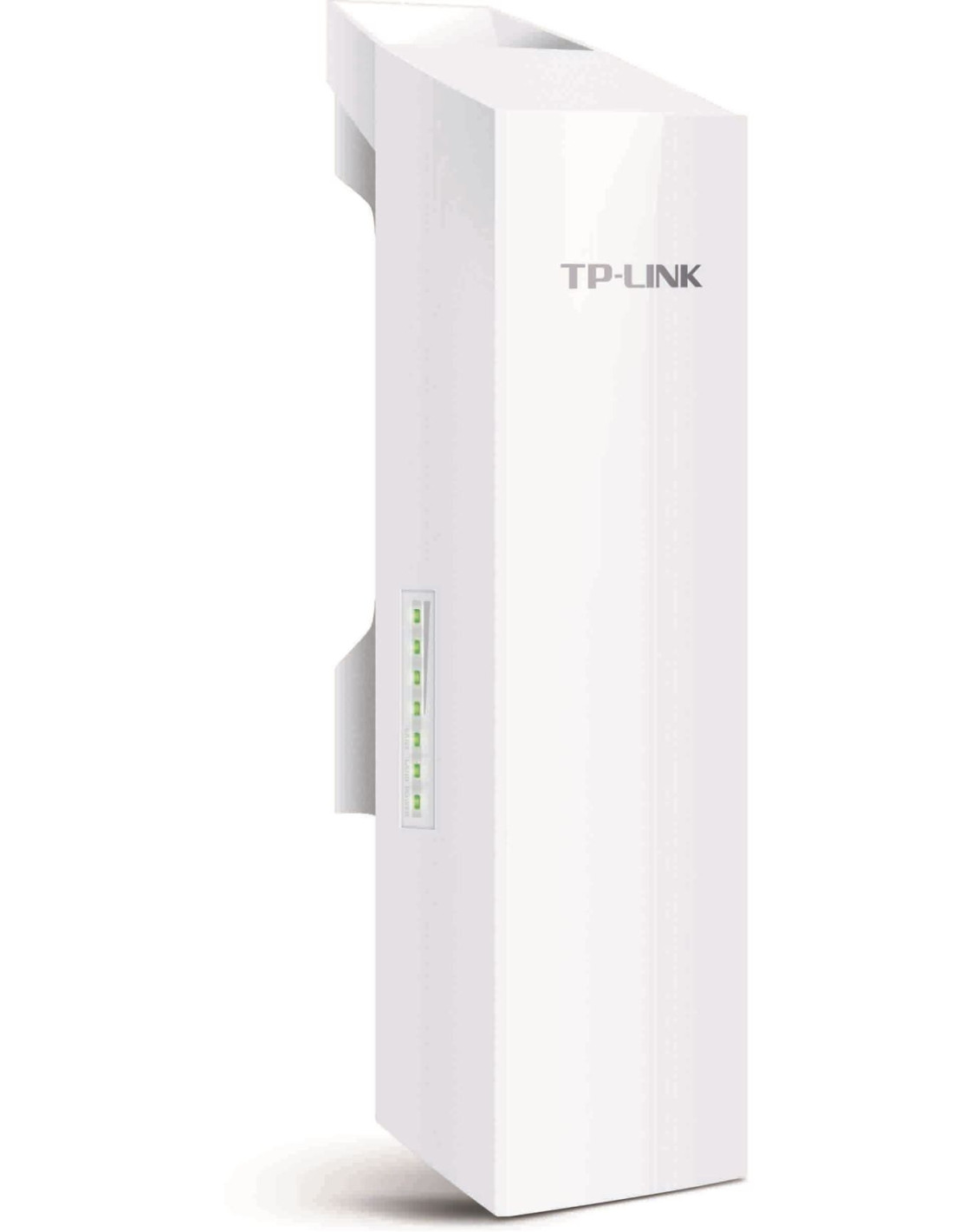

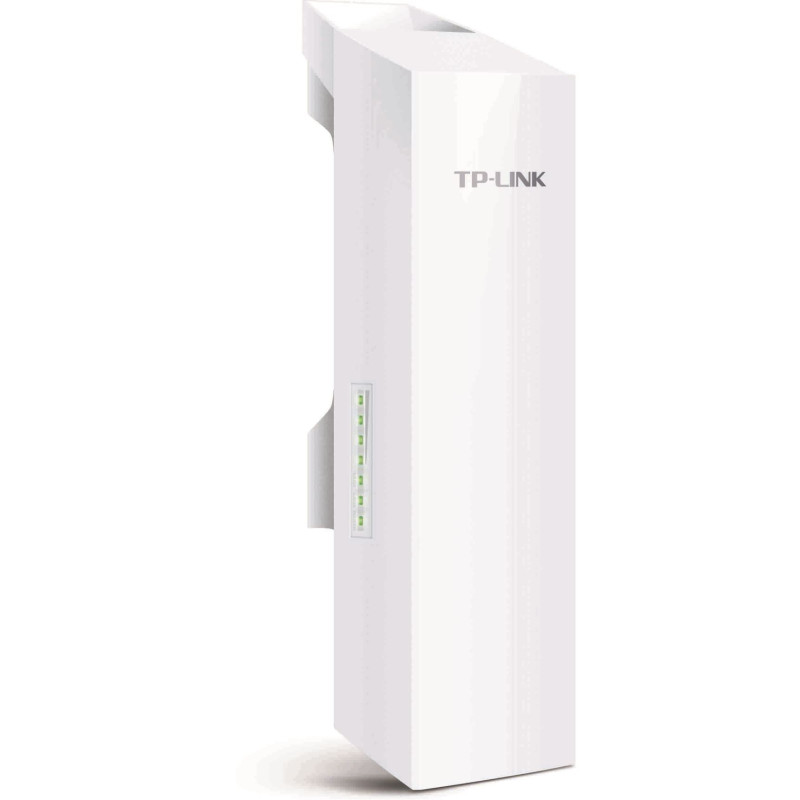

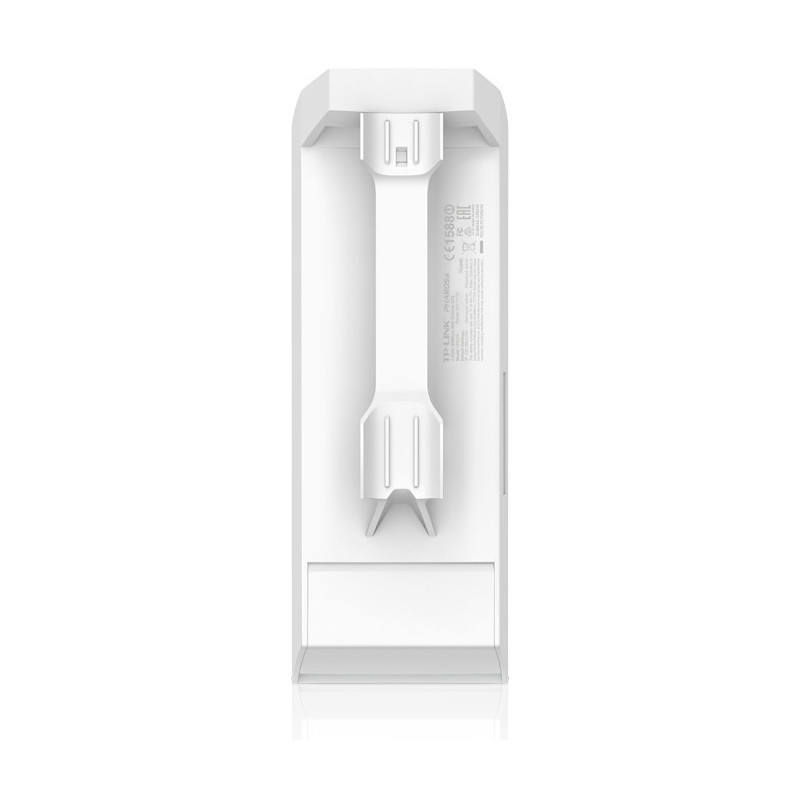

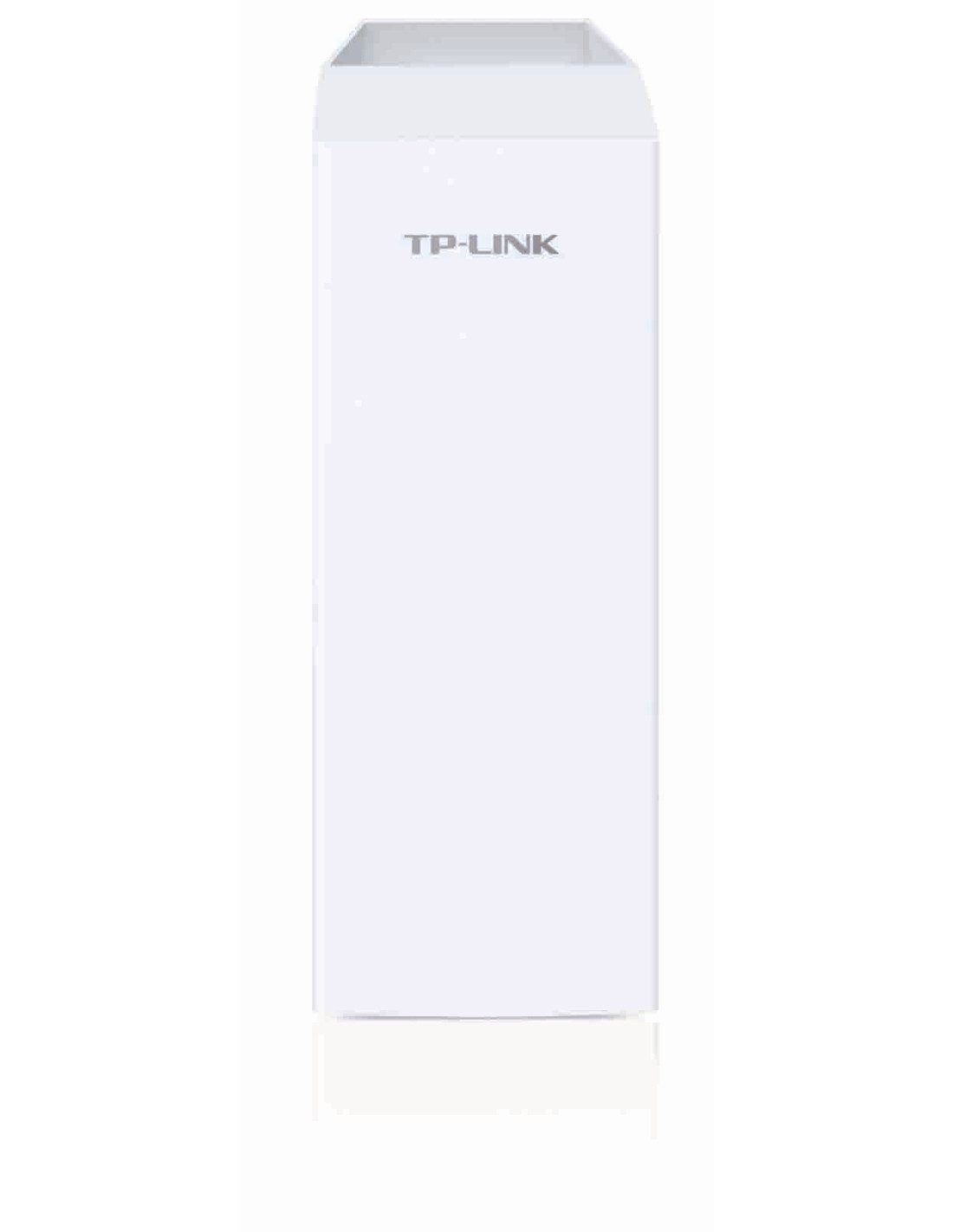

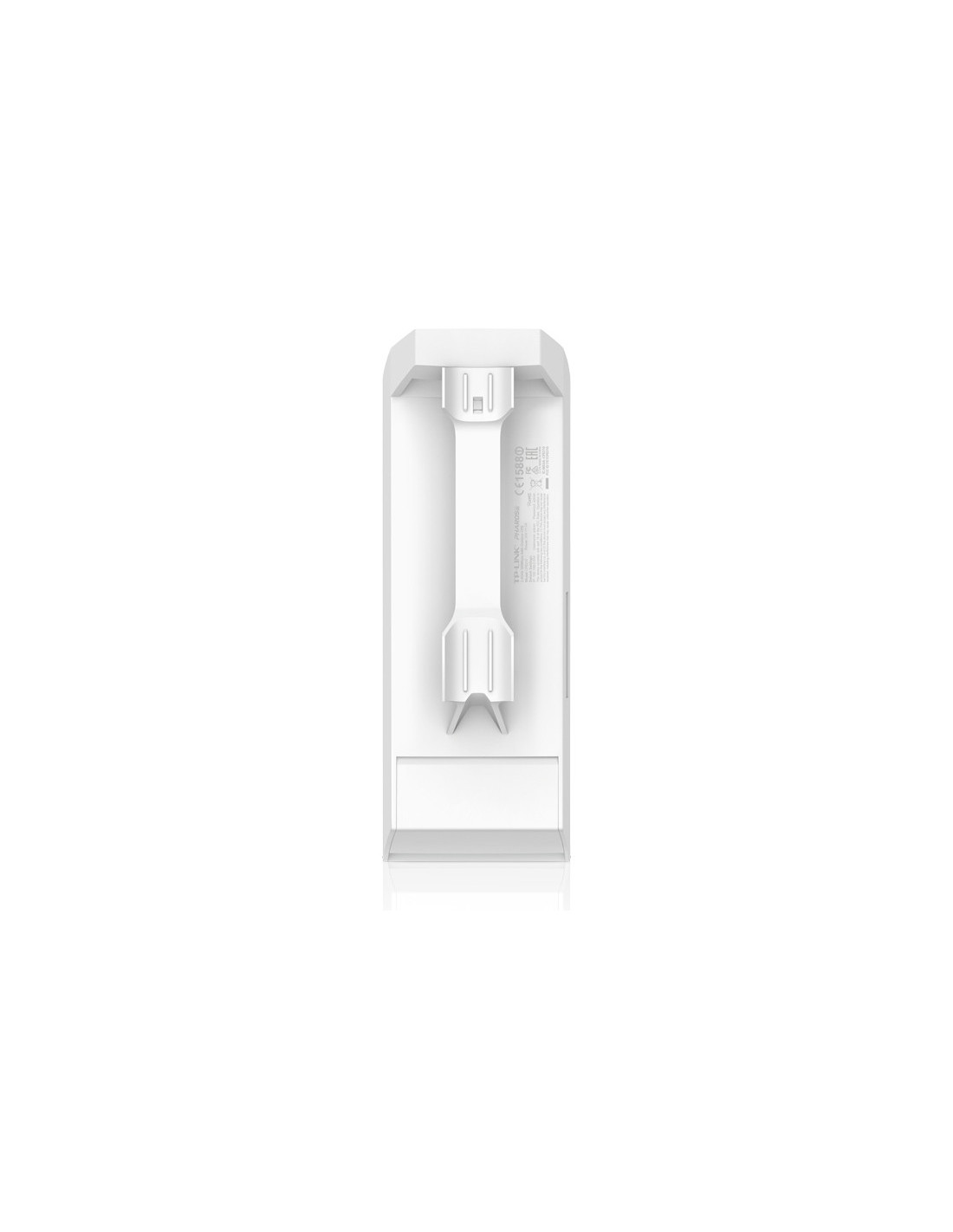

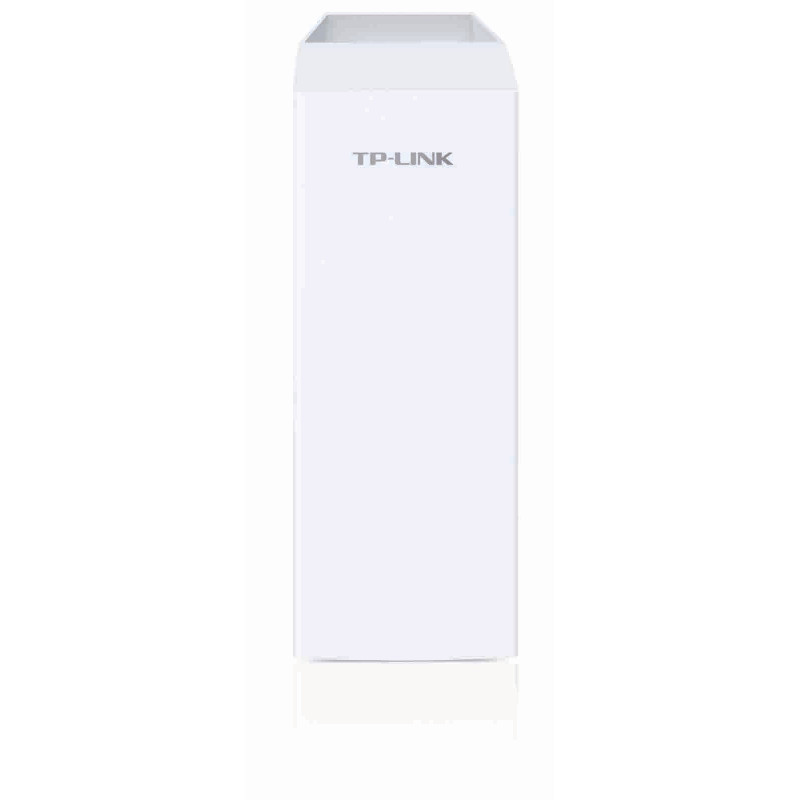

TP-Link CPE210 Outdoor 2,4GHz 300Mbps

TP-Link CPE210 Outdoor 2,4GHz 300Mbps

OVERVIEW

• Built-in 9dBi 2x2 dual-polarized directional MIMO antenna
• Adjustable transmission power from 0 to 27dBm/500mw
• System-level optimizations for more than 5km long range wireless transmission
• TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
• Centralized Management System - Pharos Control
• AP / Client / Repeater / AP Router / AP Client Router (WISP) operation modes
• Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely

SPECIFICATIONS

HARDWARE FEATURES

Processor

• Qualcomm Atheros 560MHz CPU, MIPS 74Kc

Memory

• 64MB DDR2 RAM, 8MB Flash

Interface

1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)

1 Grounding Terminal

1 Reset Button

Dimensions (W X D X H)

• 224 x 79 x 60 mm

Antenna Type

• Built-in 9dBi 2x2 Dual-polarized Directional Antenna
• Beam Width: 65° (H-Plane) / 35° (E-Plane)
• Note: For more details, please refer to datasheet

Protection

• 15KV ESD Protection
• 6000V Lightning Protection

Power Consumption

• 10.5 Watts Max
• Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.

Power Supply

• Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
• Voltage range: 16-27VDC

Enclosure

• Outdoor ASA stabilized plastic material
• IPX5 waterproof Certification

WIRELESS FEATURES

Wireless Standards

• IEEE 802.11b/g/n (with Pharos MAXtream disabled)

Proprietary Protocol

• TDMA Mode (with Pharos MAXtream enabled)

Wireless Speeds

• Up to 300Mbps (40MHz,Dynamic)
• Up to 144.4Mbps (20MHz,Dynamic)
• Up to 72.2Mbps (10MHz,Dynamic)
• Up to 36.1Mbps (5MHz,Dynamic)

Frequency

• 2.4~2.483GHz
• Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.

Reception Sensitivity

• 802.11b:

- 11M: -95dBm, 5.5M: -96dBm, 2M: -96dBm, 1M: -96dBm

• 802.11g:

- 54M: -79dBm, 48M: -80dBm, 36M: -84dBm, 6-24M: -88dBm

• 802.11n:

- MCS15: -76dBm, MCS14: -78dBm, MCS13: -80dBm,

- MCS12: -84dBm, MCS11: -87dBm, MCS10: -91dBm,

- MCS9: -93dBm, MCS8: -96dBm, MCS7: -76dBm,

- MCS6: -78dBm, MCS5: -80dBm, MCS4: -84dBm,

- MCS3: -87dBm, MCS2: -91dBm, MCS1: -93dBm, MCS0: -96dBm

Transmission Power

• 27dBm/500mw (Adjustable power by 1dBm)
• Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.

SOFTWARE FEATURES

Wireless Configurations

• Pharos MAXtream TDMA Technology
• 802.11b/g/n Modes
• Selectable Channel Width: 5/10/20/40MHz
• Automatic Channel Selection
• Transmission Power Control
• Dynamic Frequency Selection (DFS)
• WDS Enable/Disable
• Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
• SSID Broadcast Enable/Disable
• Multi-SSID with VLAN Tagging (AP mode only)
• Distance/ACK Timeout Setting
• Wireless MAC Address Filter
• Wireless Advanced:
• > Beacon Interval/RTS Threshold/Fragmentation
• >Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia

Management

• Discovery and Remote Management via Pharos Control application
• HTTP/HTTPS Web-based management
• System Log
• SNMP Agent(v2c)
• Ping Watch Dog
• Dynamic DDNS
• SSH Server

System Tools

• Wireless Signal Quality Indicators:
• Signal Strength/Noise/Transmit CCQ/CPU/Memory
• Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
• Spectrum Analyzer
• Speed Test
• Ping
• Traceroute

System-level Optimizations

• Optimized IGMP Snooping/Proxy for multicast applications
• Hardware watch dog

OTHERS

Certification

• CE, FCC, RoHS, IPX5

Package Contents

• Outdoor Wireless CPE
• 24V 0,25A Passive PoE Adapter
• Pole Mounting Straps
• AC Power Cord
• Installation Guide

System Requirements

• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
• Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.

Environment

• Operating Temperature: -30°C~70°C
• Storage Temperature: -40°C~70°C
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~95% non-condensing

POE ADAPTER FEATURES

Button

• Remote Reset Button

Certifications

• CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark

Dimensions(W x D x H)

• 110*57*33.5mm

Efficiency

• >80%

Input

• 100-240VAC, 50/60Hz

Input Current

• 0.8A Max @ 100VAC

Input Voltage

• 100VA~240VAC @ 50Hz~60Hz

Interfaces

• 1 AC Jack with Earth Ground
• 1 10/100Mbps Shielded Ethernet Port (Power + Data)
• 1 10/100Mbps Shielded Ethernet Port (Data)

Output

• 24VDC, 1.0A Max
• +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)

Output Voltage

• 24VDC(+4,5pins; -7,8pins)

Power Status LEDs

• 0~0.8A: Green
• 0.8A~1.0A: Red
