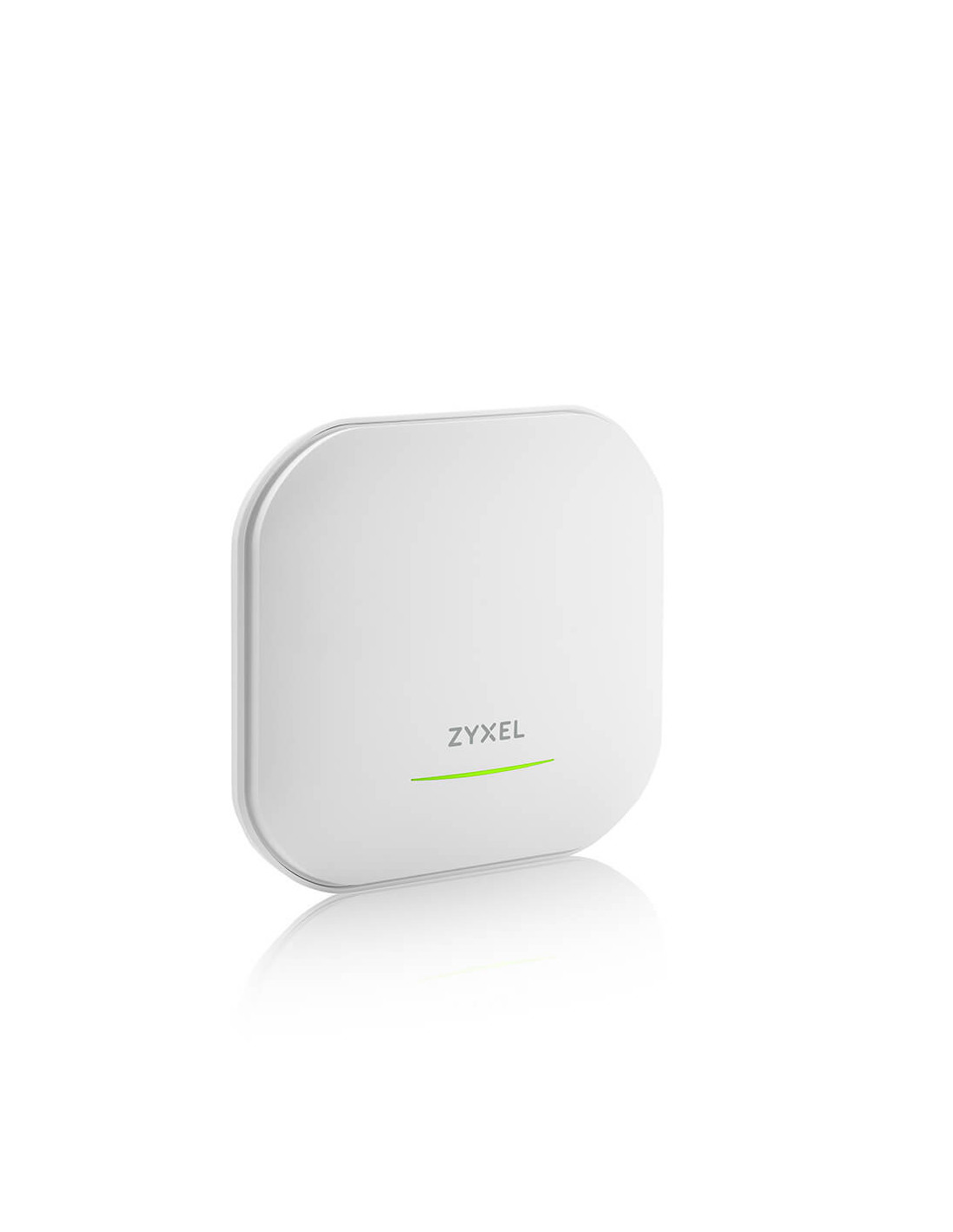

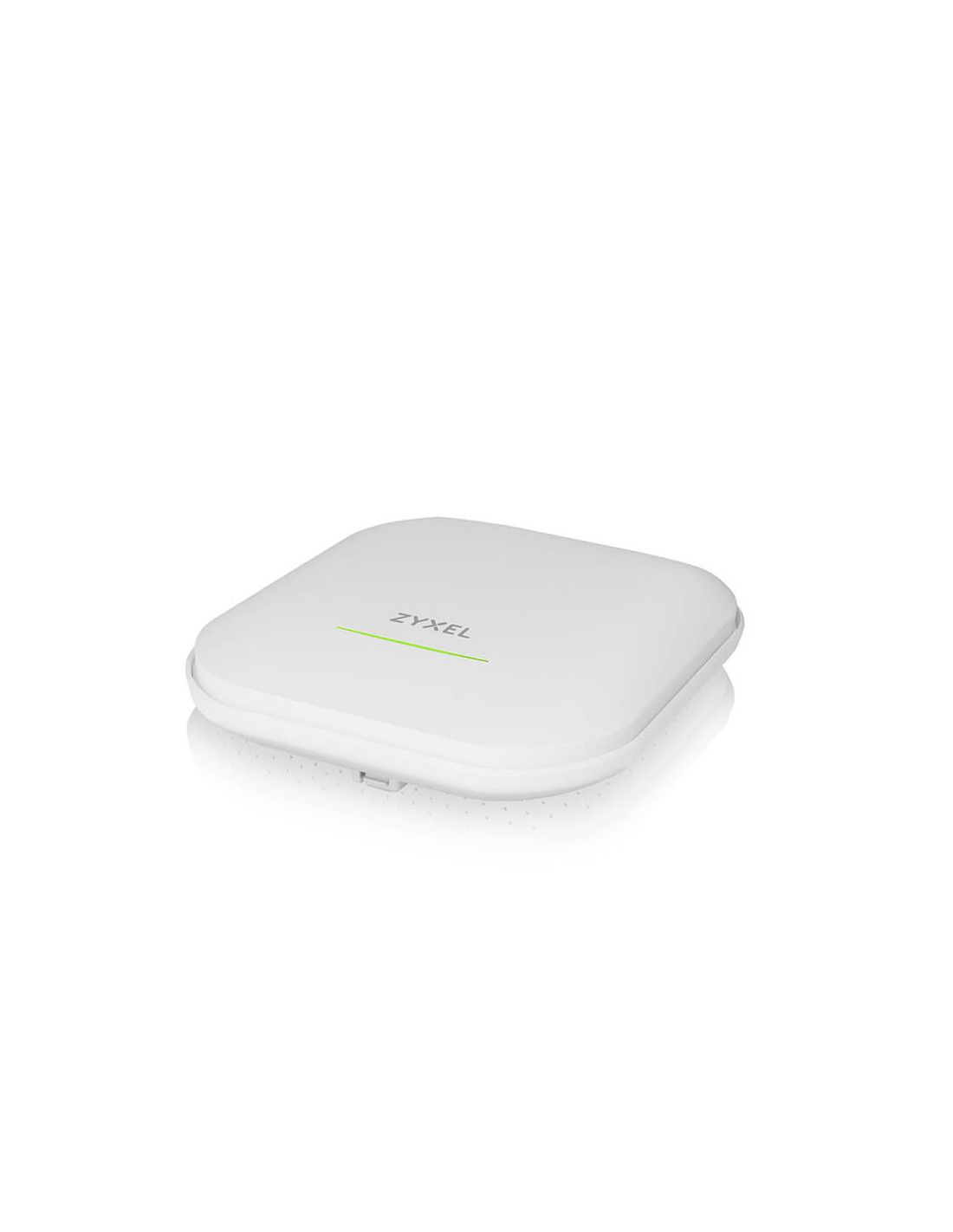

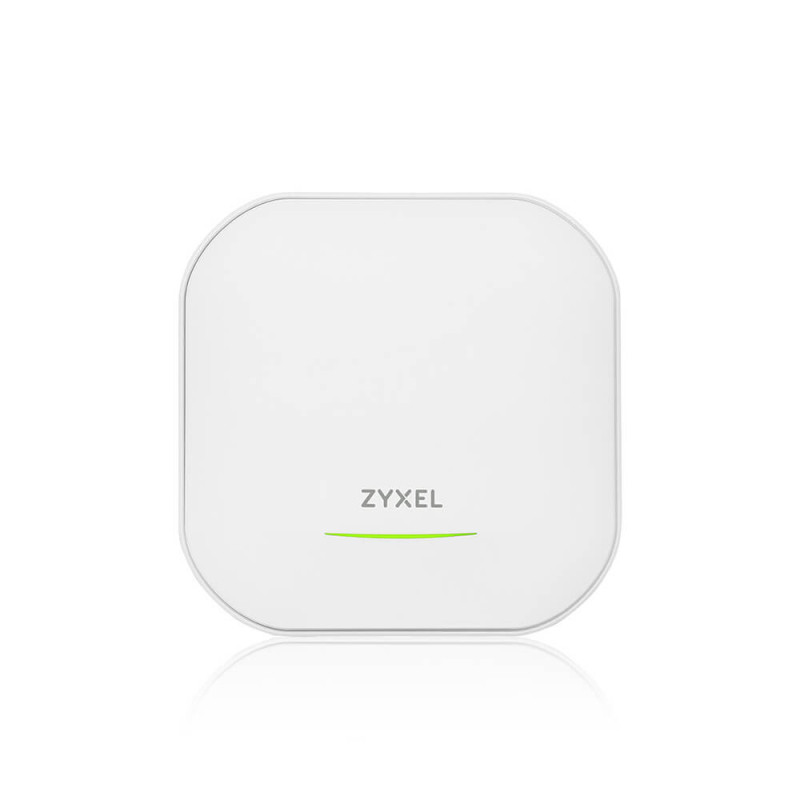

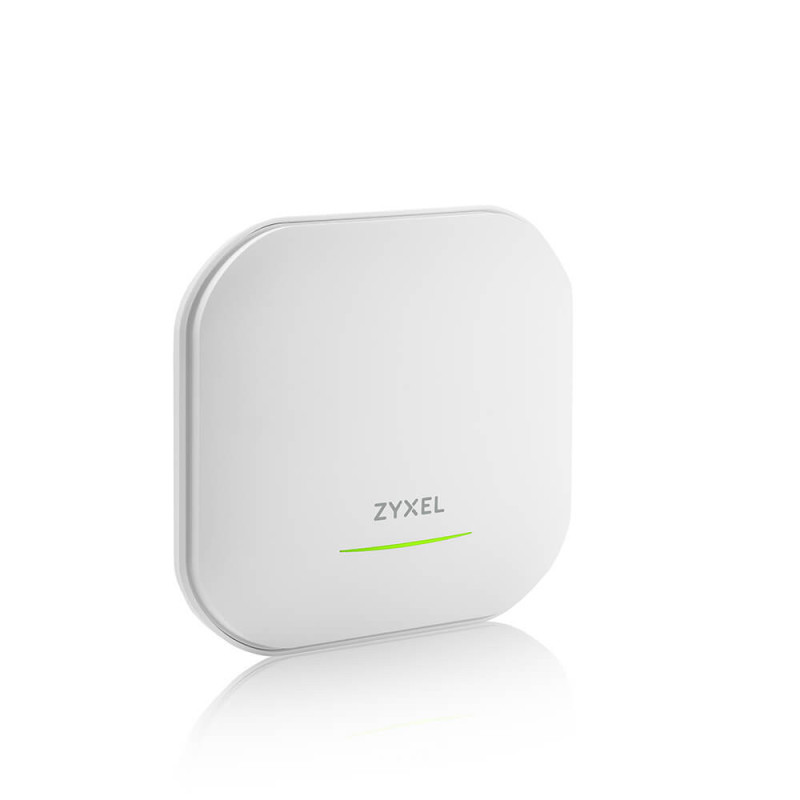

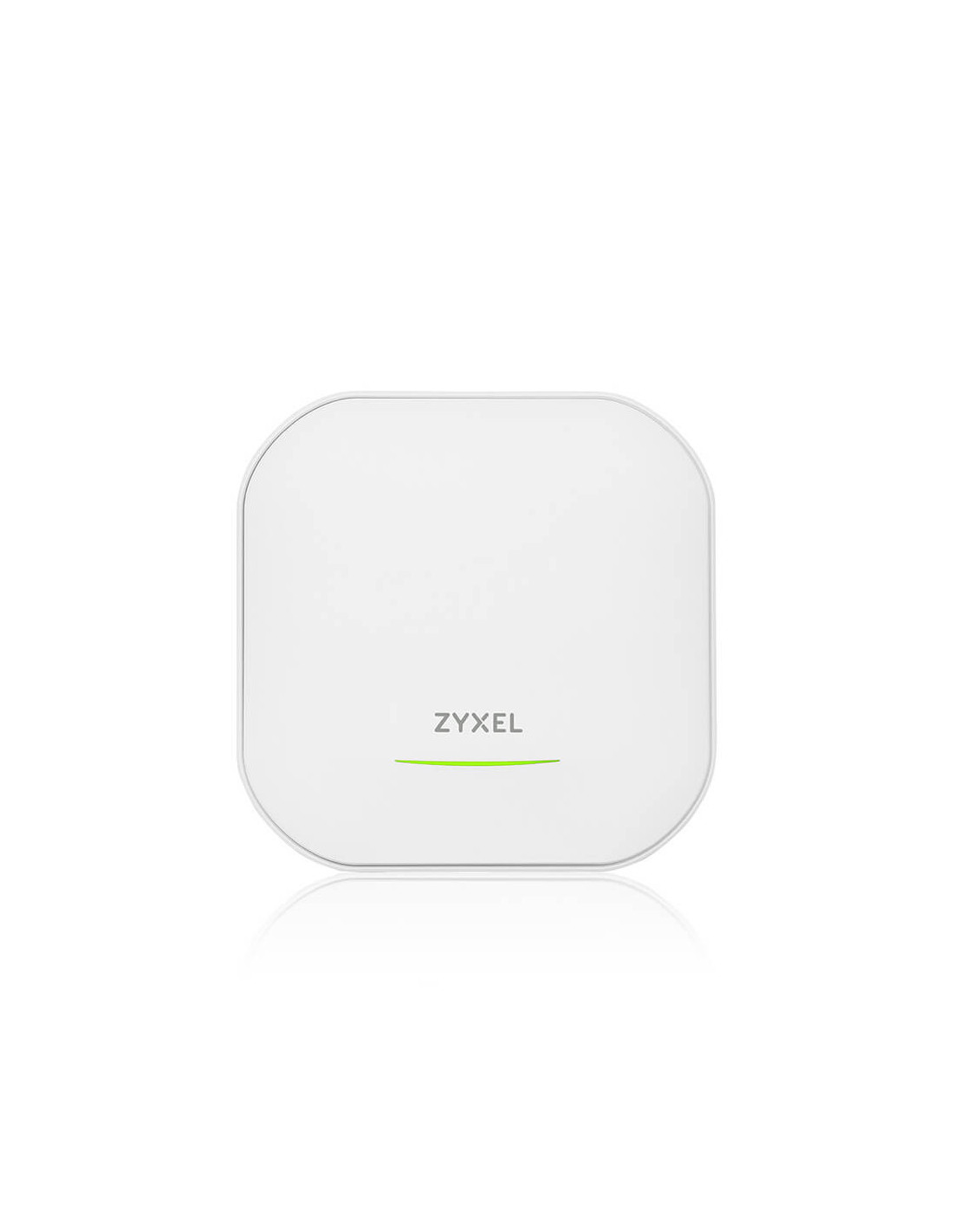

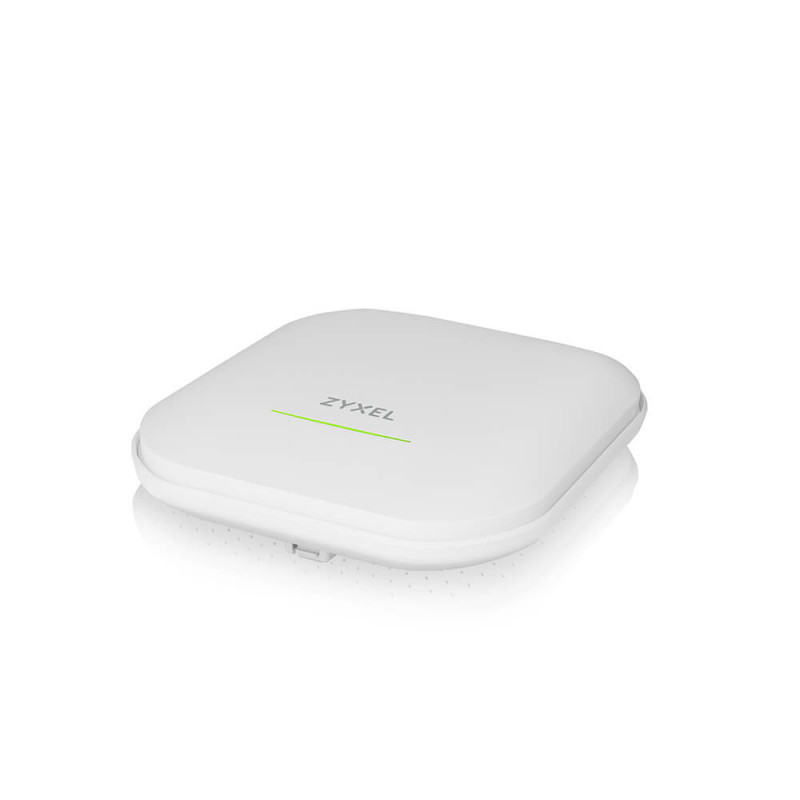

ZYXEL NWA220AX-6E,Standalone NebulaFlex Outdoor WIFI

Description: 802.11ax (WiFi 6E) Dual-Radio Unified Pro Access Point

Wireless

Standard: IEEE 802.11 ax/ac/n/g/b/a

MIMO: MU-MIMO

Wireless speed :

• 2.4GHz: 575 Mbps
• 5GHz: 4800 Mbps
• 6GHz: 4800 Mbps

Frequency band:

• 2.4 GHz
• USA (FCC): 2.412 to 2.462 GHz
• Europe (ETSI): 2.412 to 2.472 GHz
• 5 GHz
• USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz
• European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
• 6 GHz
• USA (FCC): 5.925 to 6.425 GHz; 6.525 to 7.125 GHz
• European (ETSI): 5.925 to 6.425 GHz

Bandwidth: 20-, 40-,80- and 160-MHz

Conducted typical transmit output power:

• US (2.4GHz/5GHz) or +/6GHz): 24/28/24dBm
• EU (2.4GHz/5GHz) or +/6GHz): 18/25/19dBm

RF Design

Antenna type: 4x4 + 2x2 Dual-optimized Antenna

Antenna gain:

• 2.4 GHz: Peak Gain 3dBi
• 5 GHz: Peak Gain 5dBi
• 6 GHz: Peak Gain 6dBi

Minimum Receive sensitivity: Min. Rx sensitivity up to -101 dBm

WLAN feature

Band Steering: Yes

WDS/Mesh: Yes

Fast roaming: Pre-authentication, PMK caching and 802.11r/k/v

DCS: Yes

Load balancing : Yes

Advanced Cellular Coexistence: Yes

Security

• Encryption
• WEP
• WPA
• WPA2-PSK
• WPA3

Authentication:

• WPA
• WPA2
• WPA3-Enterprise
• EAP
• IEEE 802.1X
• RADIUS authentication

Access management:

• L2-isolation
• MAC filtering
• Rogue AP detection

Networking

IPv6: Yes

VLANs: Yes

WMM: Yes

U-APSD: Yes

Management

Operating mode:

• Nebula Cloud managed
• Controller-managed
• Standalone

ZON Utility:

• Discovery of Zyxel switches, APs and gateways
• Centralized and batch configurations
• IP configuration
• IP renew
• Device reboot
• Device locating
• Web GUI access
• Firmware upgrade
• Password configuration

Zyxel Wireless Optimizer:

• WiFi AP planning
• WiFi coverage detection
• Wireless health management

Web UI/CLI: Yes

SNMP: Yes

Physical Specifications

Item

Dimensions (WxDxH)(mm/in.): 180 x 180 x 42 mm / 7.09 x 7.09 x 1.65

Weight (g/lb.): 650g/1.43lb

Packing

Dimensions (WxDxH)(mm/in.): 197 x 190 x 60 mm / 7.76 x 7.48 x 2.36

Weight (g/lb.): 780g/1.72lb

Included accessories:

• Mount plate
• Mounting screws

MTBF (hr): 711,333

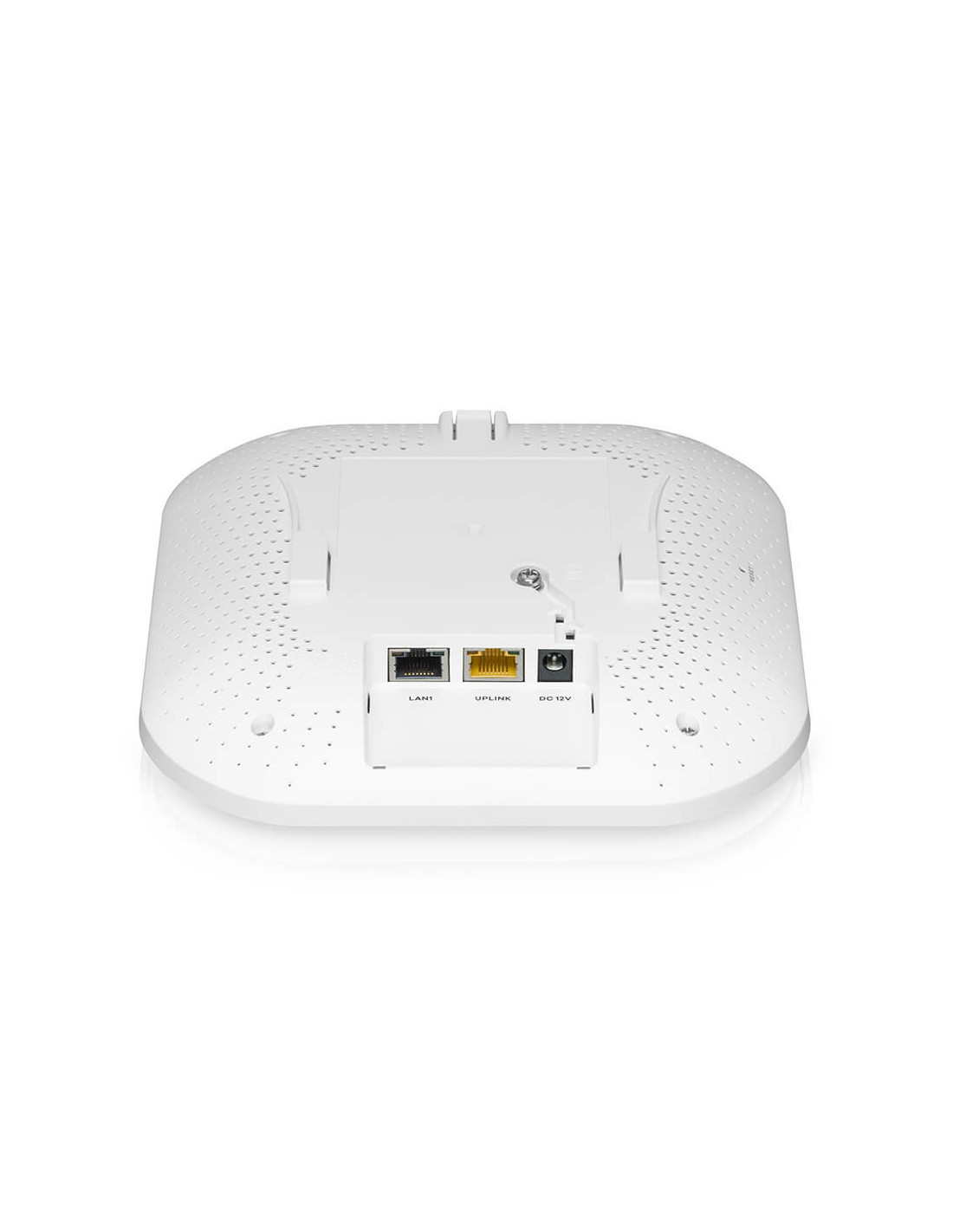

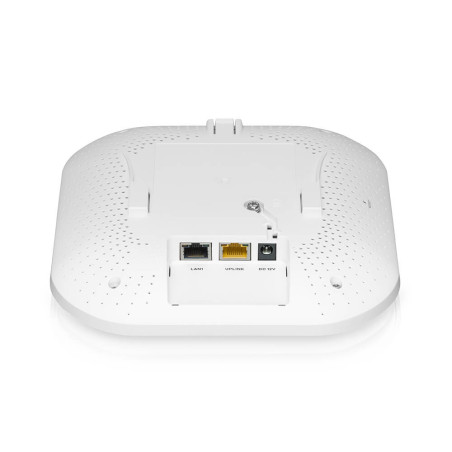

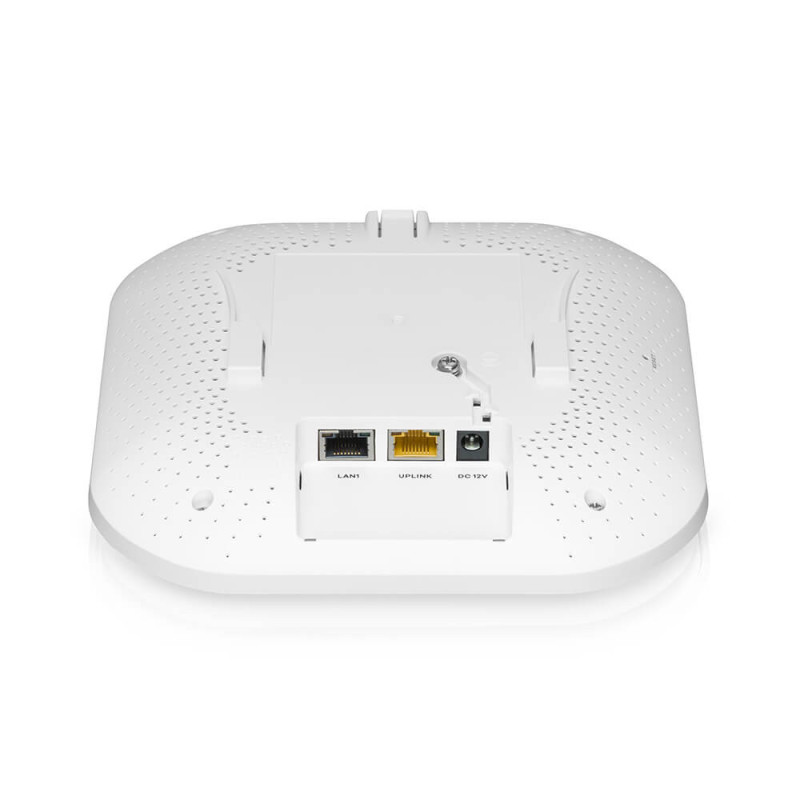

Physical Interfaces

Ethernet port:

• 1 x 1/2.5Gbps LAN
• 1 x 1Gbps LAN

Power:

• PoE (802.3)at: power draw 21 W
• DC input : 12 VDC 2A

PoE Modes:

• IEEE802.3af: No Wireless
• IEEE802.3at: Unrestricted
• IEEE802.3bt: Unrestricted
