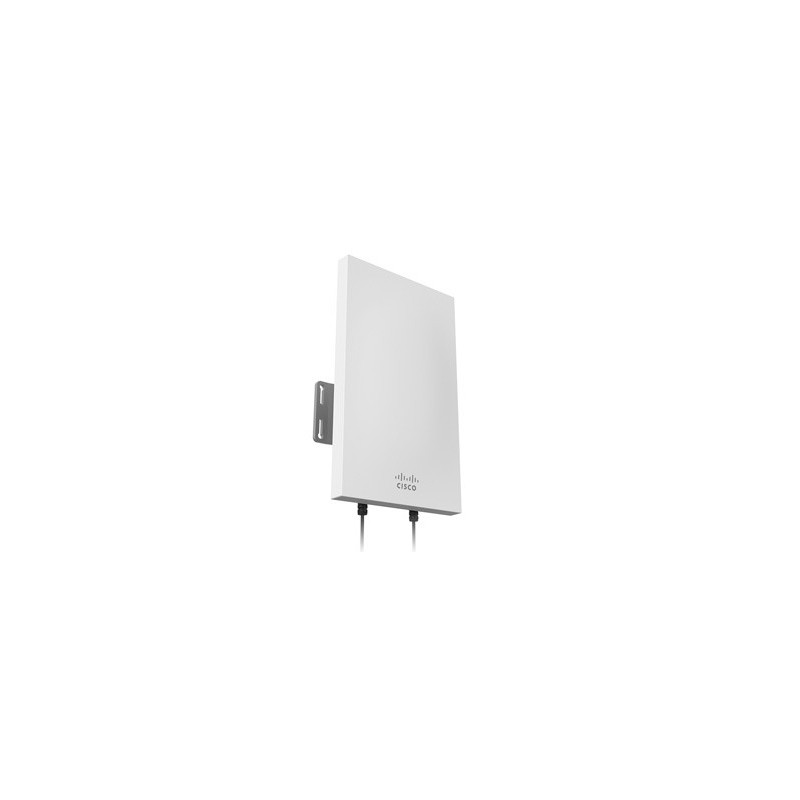

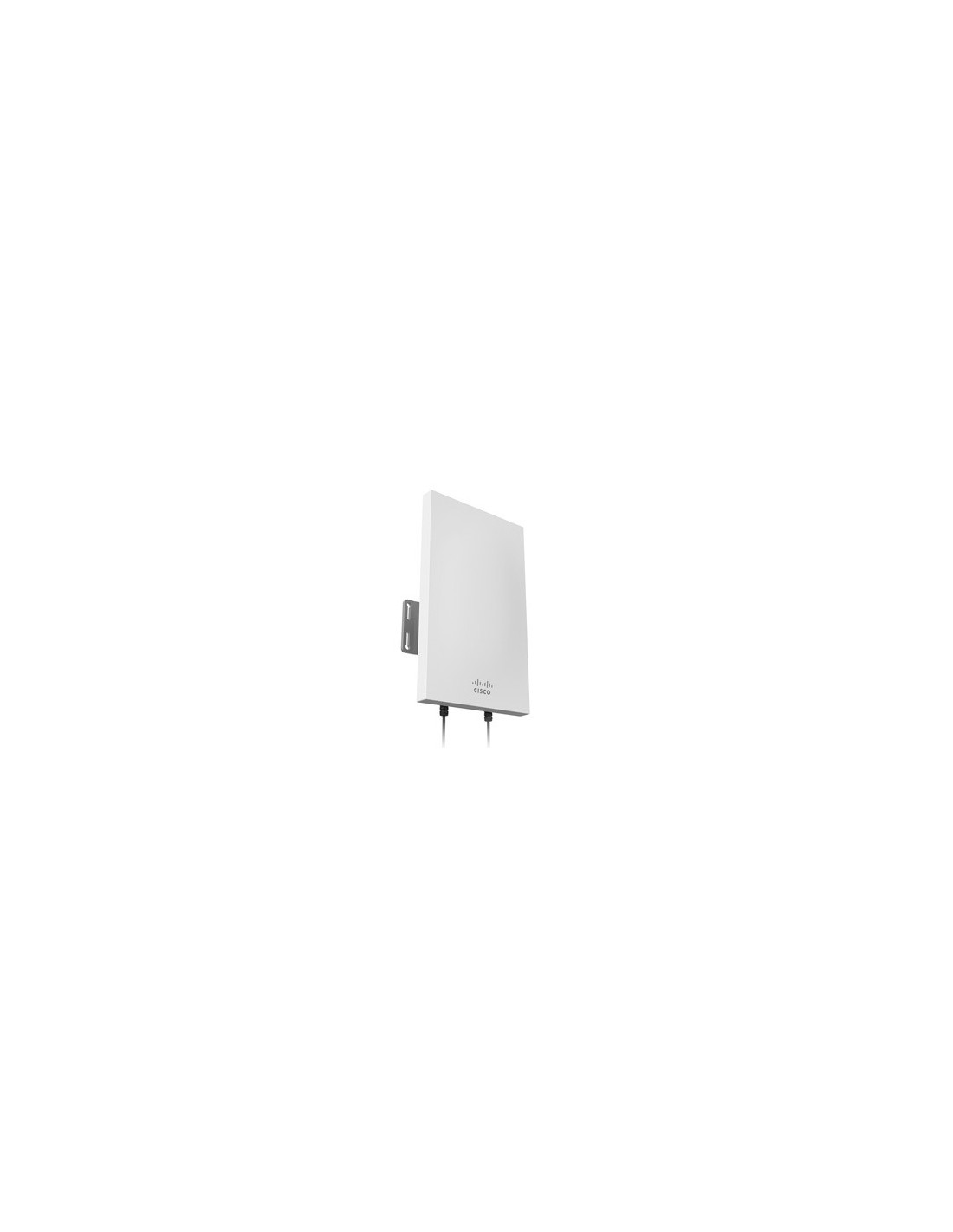

Cisco Meraki Dual Band Sector Antenna

Electrical

· Antenna type: panel

· Frequency range: 2.400 - 2.500 GHz, 5.150 - 5.875 GHz

· Gain: 9 / 12 dBi

· Polarization: linear, vertical / horizontal

· Half power beamwidth / horizontal: 86° / 65°

· Half power beamwidth / vertical: 34° / 18°

Physical & Environmental

· Dimensions: 9.1" x 5.5" x 1.9" (230 mm x 140 mm x 48 mm)

· Weight: 1.4 lbs (630 g)

· Material: UV resistant plastic

· Temperature: -40° F to 158° F (-40° C to 70° C)

· Humidity: 5 to 95% non-condensing

· Connector: 2 x N-type

Mounting

· Mounting hardware and cables included

· Mounts to walls, poles, or AP directly

Cables

· 12 inch cables with two N-type connectors included

Regulatory

· Certified for use with the MR84
