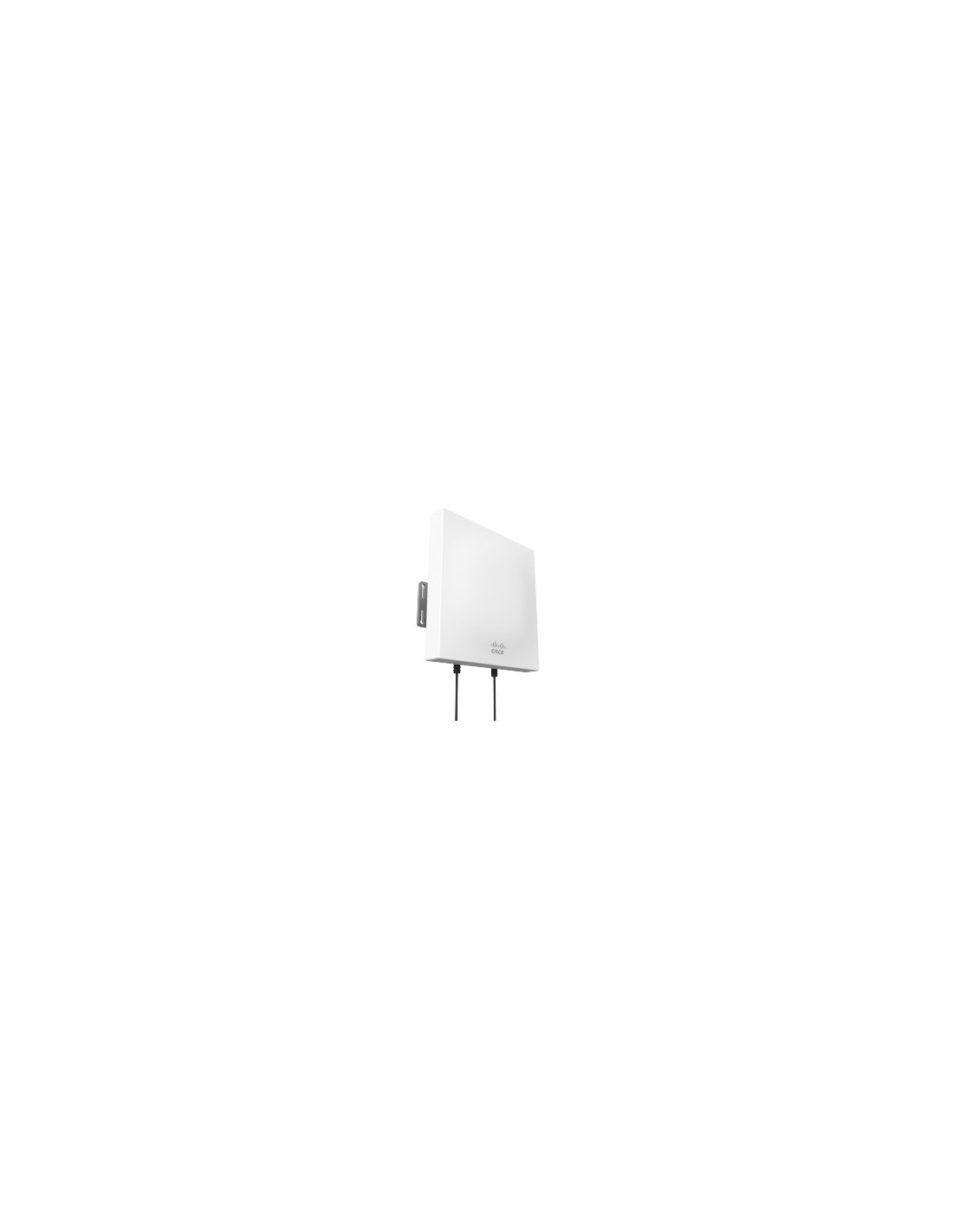

Cisco Meraki Dual Band Patch Antenna

Electrical

· Antenna type: panel

· Frequency range: 2.400 - 2.500 GHz, 5.150 - 5.850 GHz

· Gain: 8 / 6.5 dBi

· Polarization: vertical / horizontal

· Half power bandwidth / horizontal: 70

Physical & Environmental

· Dimensions: 7.1" x 7.1" x 1.6" (180 mm x 180 mm x 1.8 mm)

· Weight: 1.1 lbs (512 g)

· Material: UV resistant plastic

· Temperature: -40 F to 158 F (-40 C to 70 C)

· Connector: 2 x N-type

Mounting

· Mounting hardware included

· Mounts to walls or poles

Cables

· Cables with two N-type connectors included

Regulatory

· Certified for use with the MR66, MR72, and MR84
