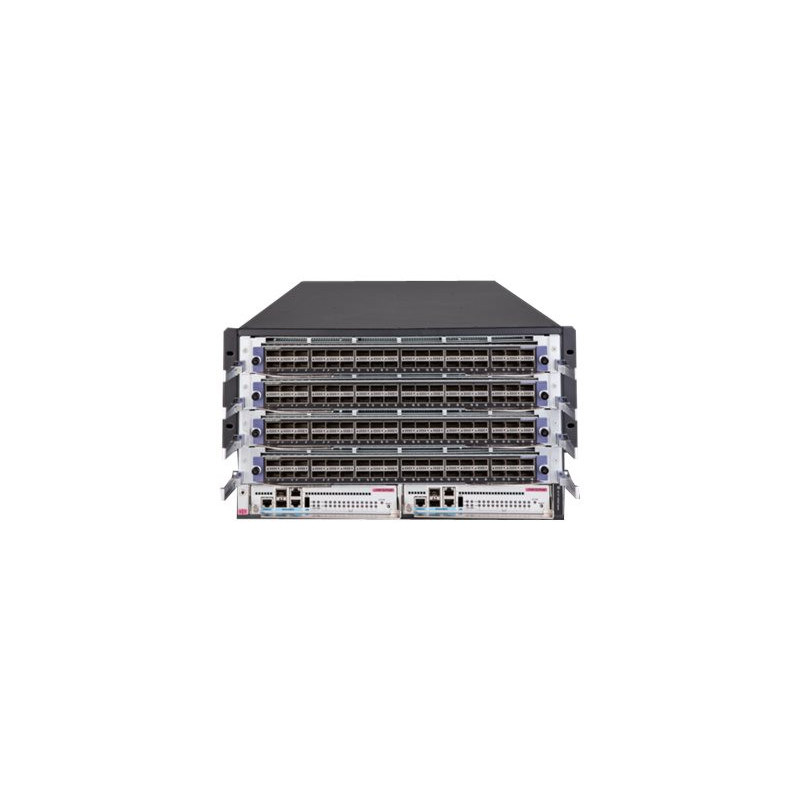

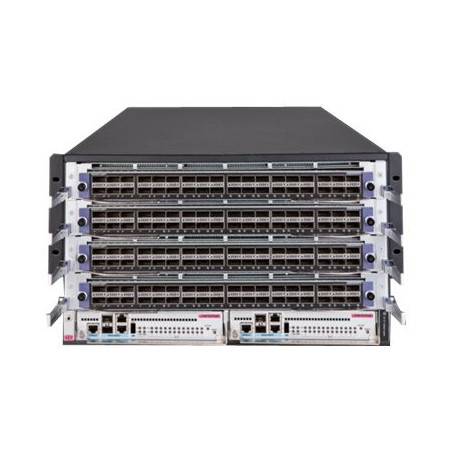

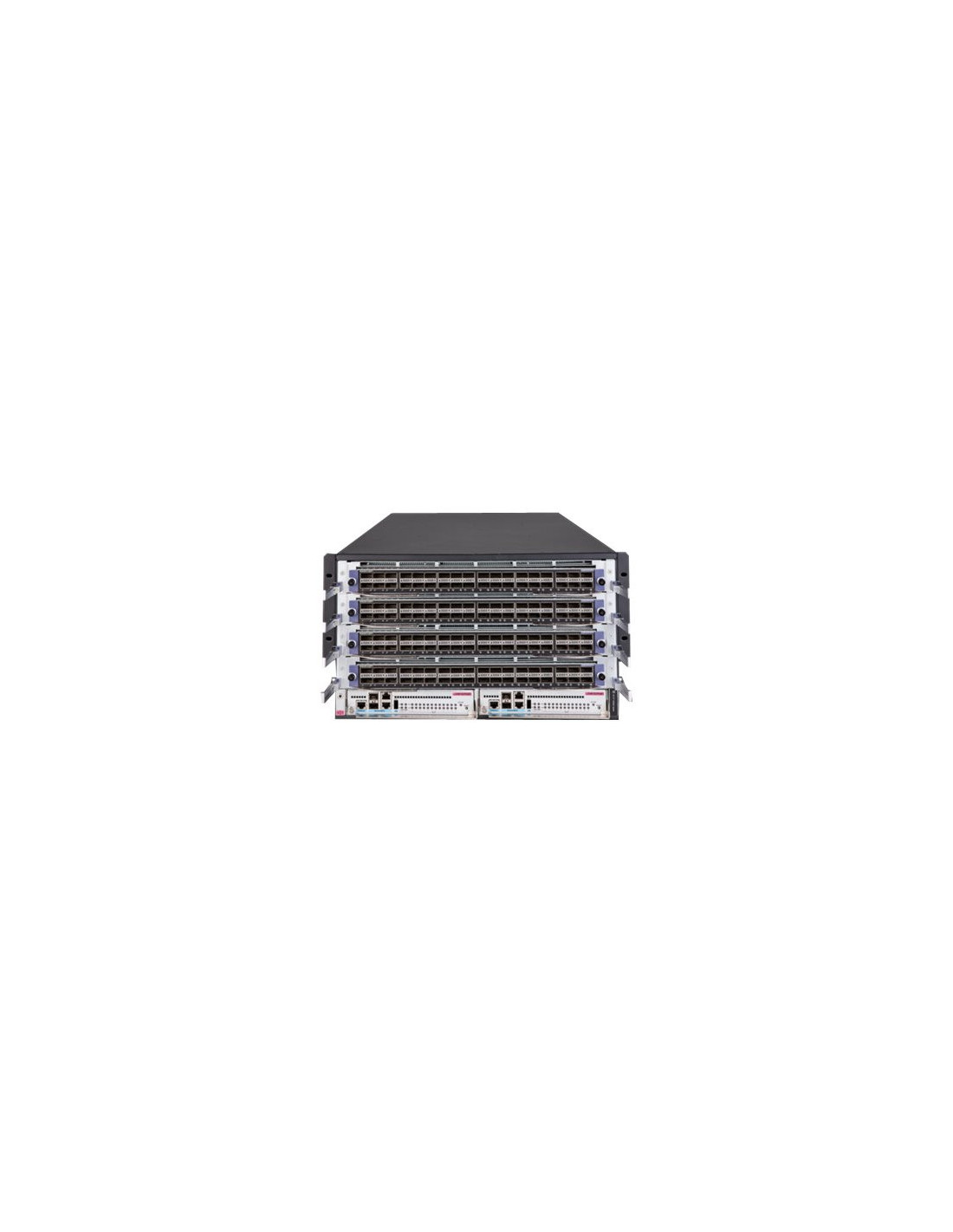

HPE 12904E Switch Chassis

HPE 12904E Switch Chassis

Device Type

• Switch - L3 - managed

Enclosure Type

• Rack-mountable 6U

Switching capacity

• 11.5 Tbps

Throughput

• 7.2 Bpps

Routing Protocol

• OSPF, EGP, RIP, BGP-4, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, GRE, OSPFv3, PIM-SSM, Bidirectional PIM, MSDP, static IPv4 routing, static IPv6 routing, ECMP, policy-based routing (PBR), RIPng, MLDv2, MLD, BGP-4+, MPLS, Bidirectional Forwarding Detection (BFD), CIDR, BGP for IPv6, BGP+

Remote Management Protocol

• SNMP 1, SNMP 2, RMON 1, RMON 2, SNMP, RMON 3, RMON 9, RMON, Telnet, SNMP 3, HTTP, TFTP, SSH, SSH-2

Compliant Standards

• IEEE 802.3, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.3ba, IEEE 802.1Qbb, IEEE 802.1Qaz

Power

• AC 120/230 V (50/60 Hz)

Dimensions (WxDxH)

• 17.3 in x 33.7 in x 10.4 in

Weight

• 79.37 lbs
