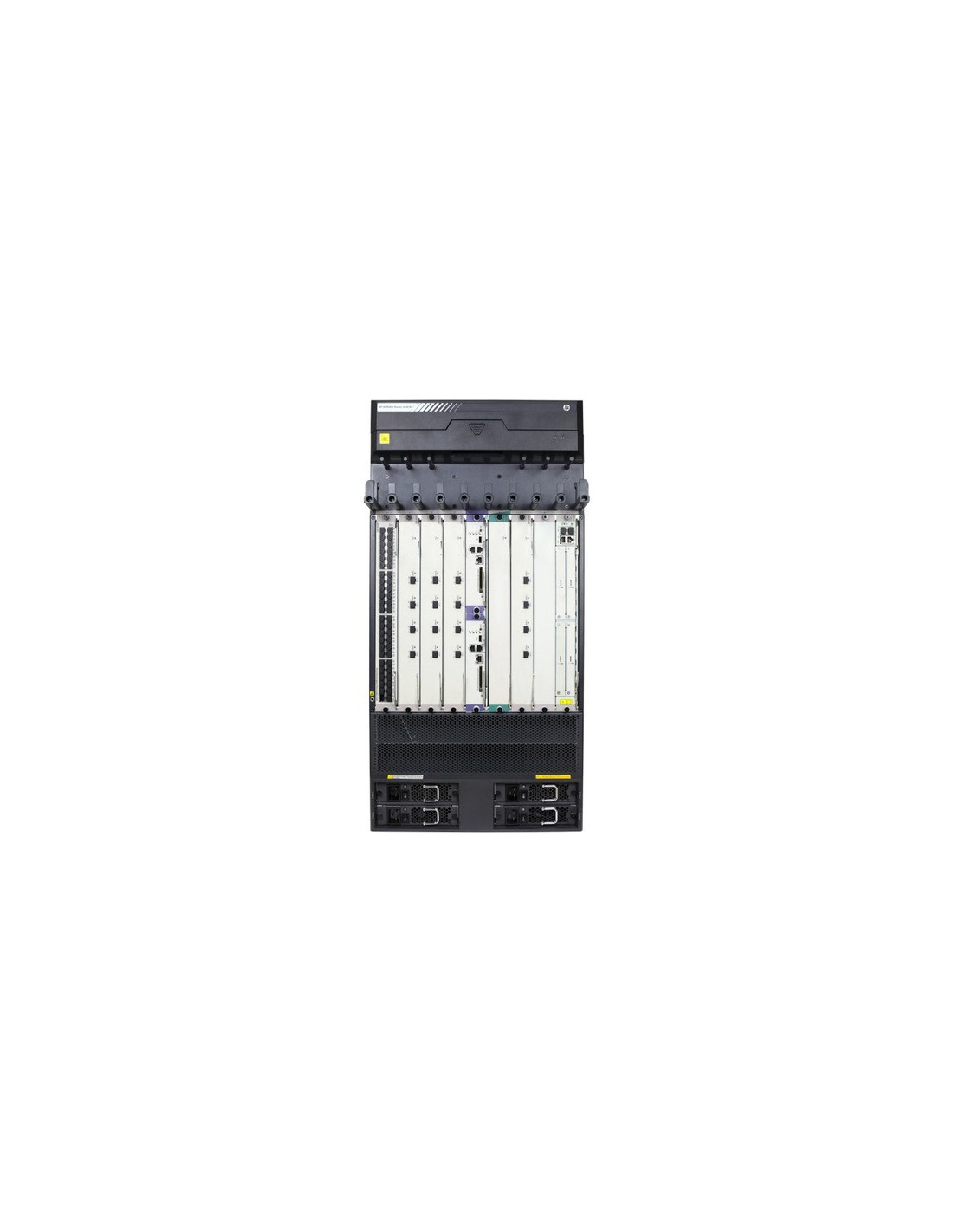

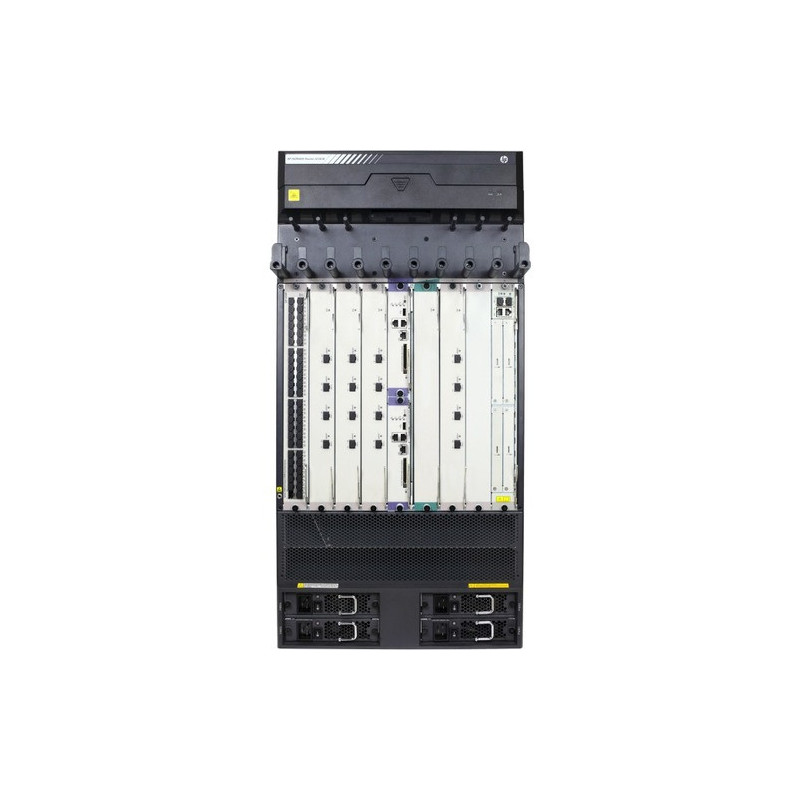

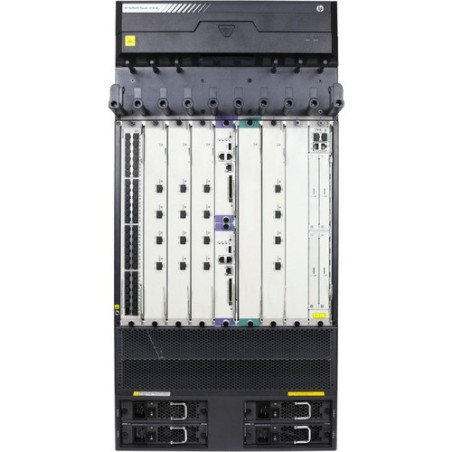

HPE HSR6808 Router Chassis

HPE HSR6808 Router Chassis

20RU high-performance distributed architecture router platform. Supports 2 MPUs in 1+1 redundancy and up to 8 service line cards. Delivers up to 2.048 Tbps backplane bandwidth and 420 Mpps throughput.

Ports

• (8) SAP slots or (16) HIM slots or (32) MIM slots, or a combination

Throughput

• up to 420 Mpps

Routing table size

• 4000000 entries (IPv4)
• 2000000 entries (IPv6)

Input voltage

• 100 - 240 VAC, rated
• -48 to -60 VDC, rated (depending on power supply chosen)

Power consumption

• 1816 W (maximum)

Product dimensions (H x W x D)

• 17.17 x 20.08 x 34.88 in

Weight

• 118.17 lb
