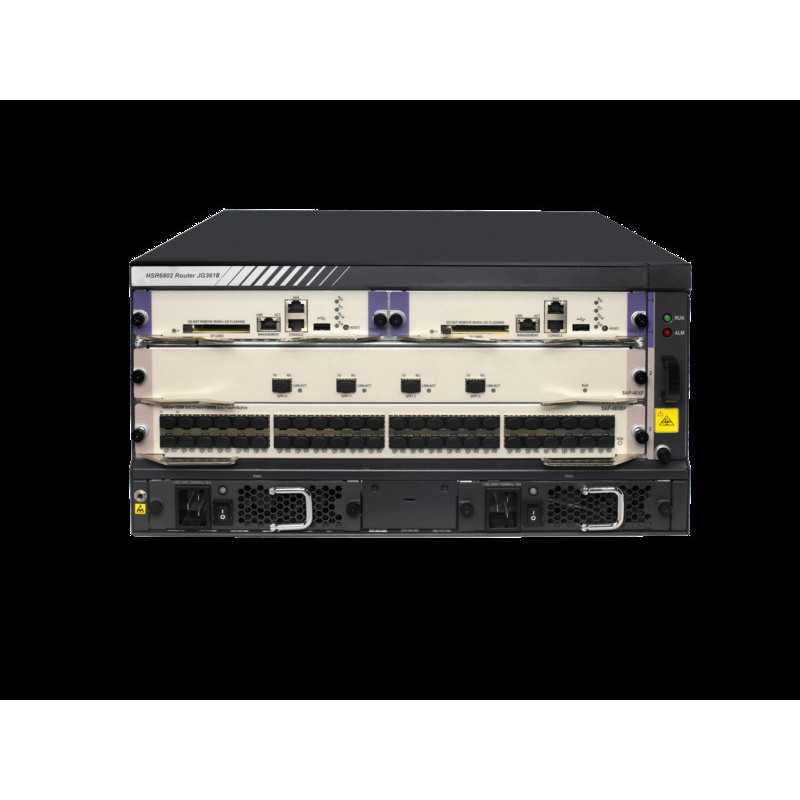

HPE HSR6802 Router Chassis

HPE HSR6802 Router Chassis

5RU high-performance distributed architecture router platform. Supports 2 MPUs in 1+1 redundancy and up to 2 service line cards. Delivers up to 1.024 Tbps backplane bandwidth and 120 Mpps throughput.

Ports

• (2) SAP slots or (4) HIM slots or (8) MIM slots, or a combination

Throughput

• up to 120 Mpps

Routing table size

• 4000000 entries (IPv4)
• 2000000 entries (IPv6)

Input voltage

• 100 - 240 VAC, rated
• -48 to -60 VDC, rated (depending on power supply chosen)

Power consumption

• 521 W (maximum)

Product dimensions (H x W x D)

• 17.17 x 18.98 x 8.66 in

Weight

• 50.15 lb
