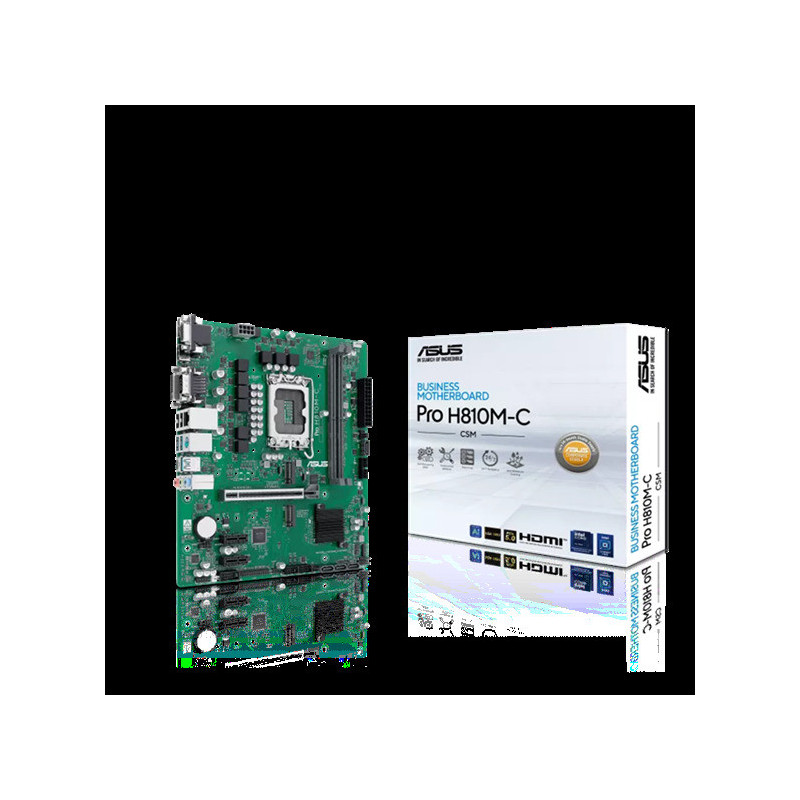

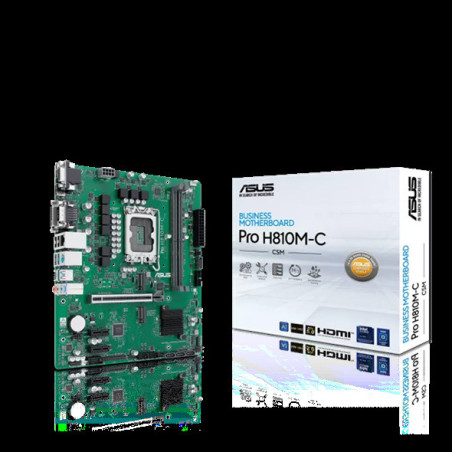

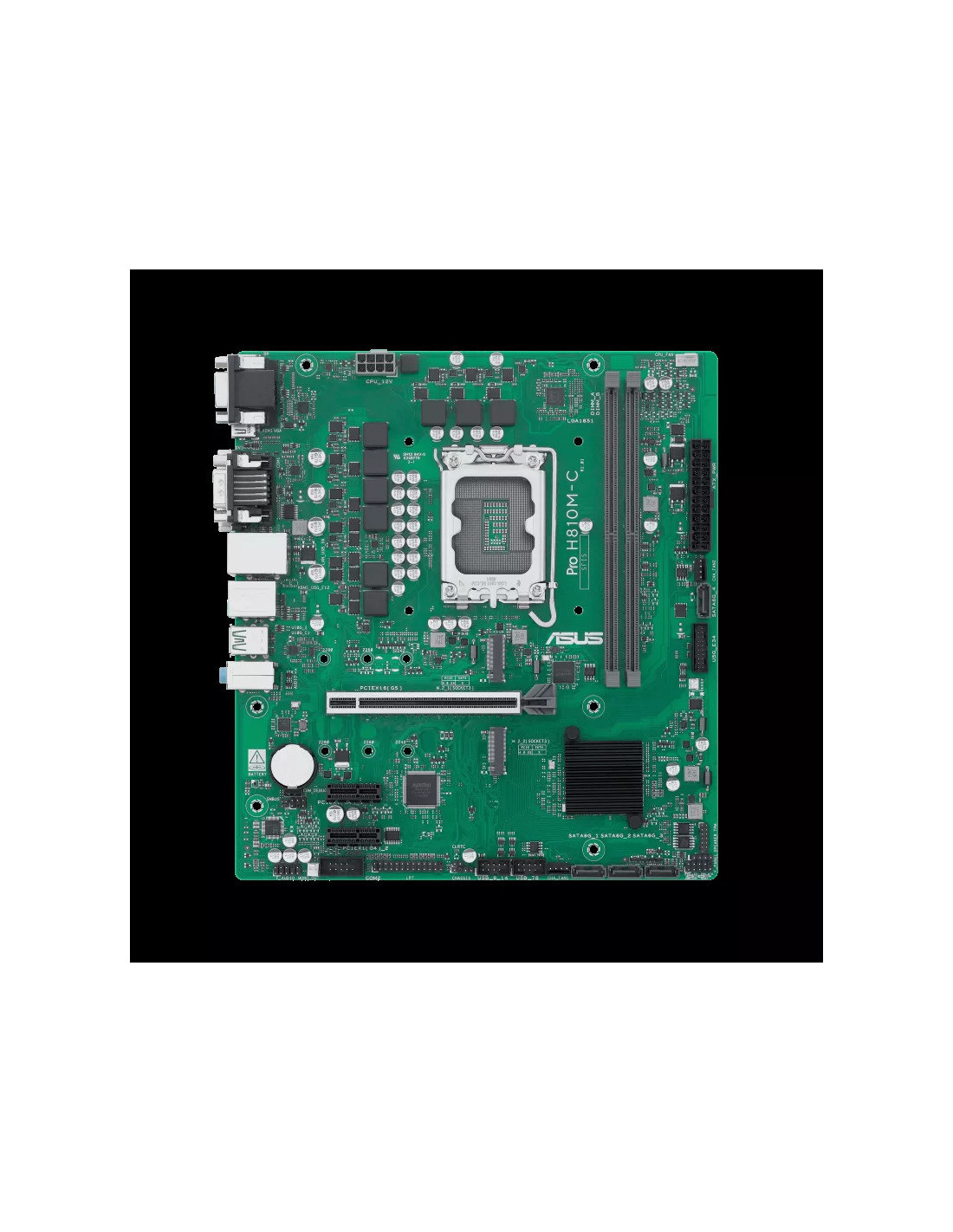

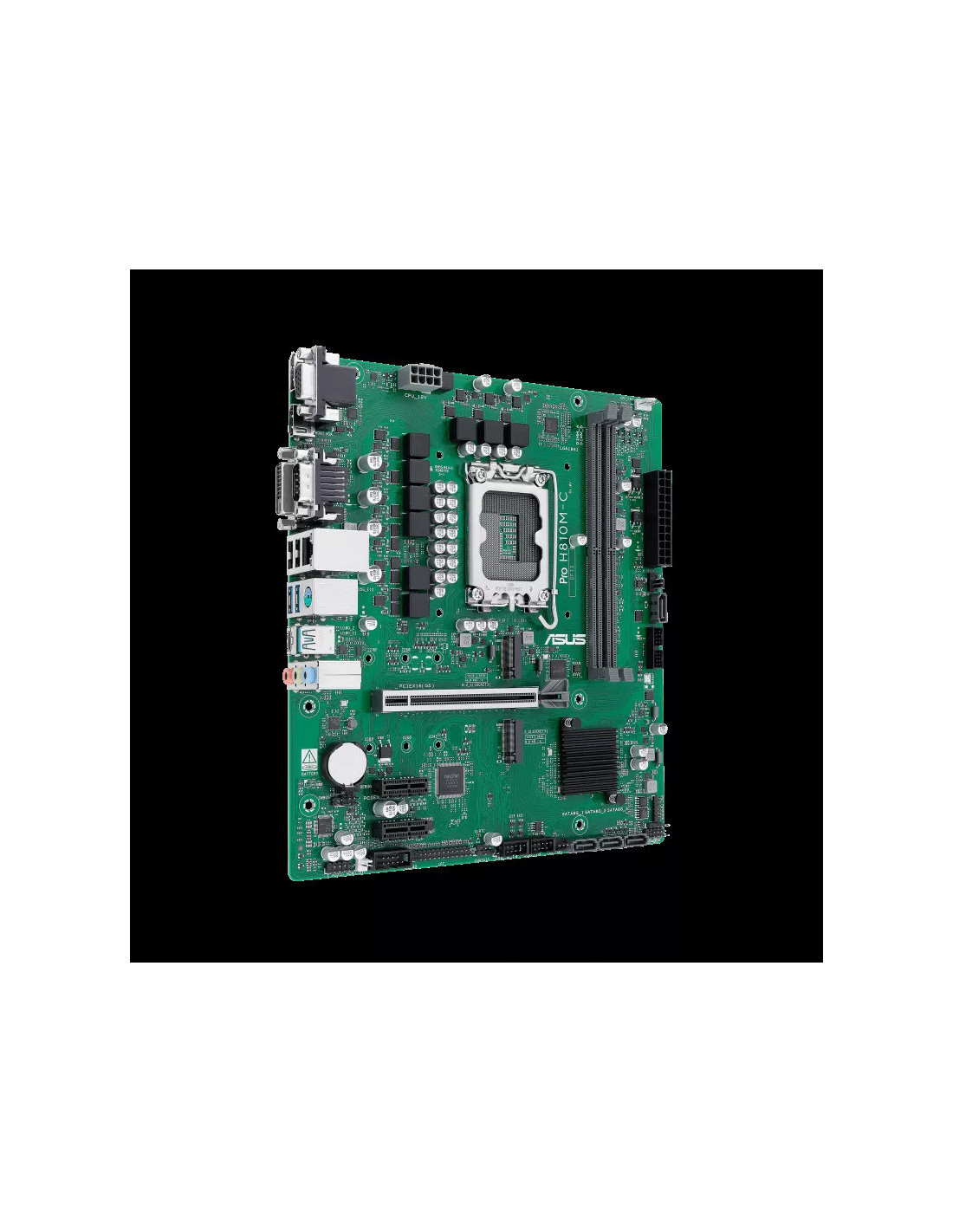

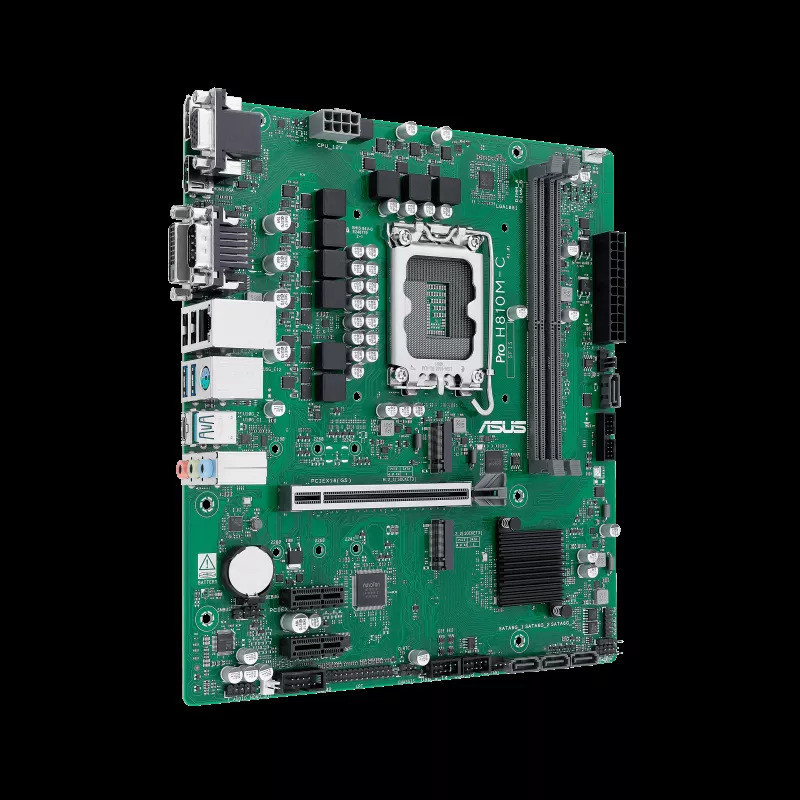

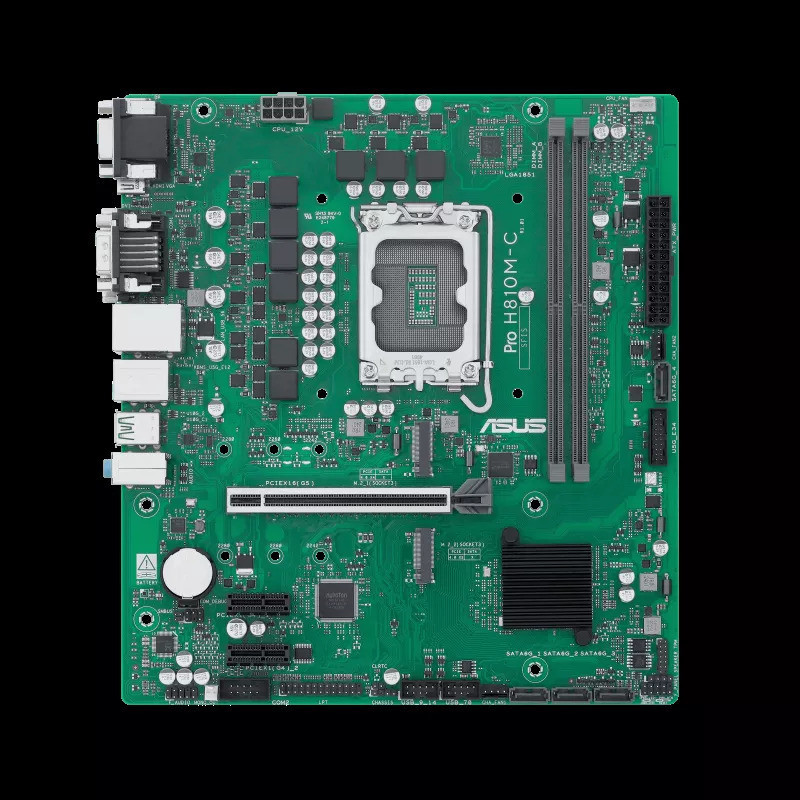

ASUS PRO H810M-C-CSM

ASUS PRO H810M-C-CSM

• mATX Form Factor

CPU: Supports Intel® Core™ Ultra Processors (Series 2), LGA1851 - Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset: Intel H810 Chipset

Paměť: 2 x DIMM slots, max. 128GB, DDR5

• Supports up to 6400MT/s, Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)
• Dual channel memory architecture
• DIMM Fit
• Supports Intel® Extreme Memory Profile (XMP) memory module
• ASUS Enhanced Memory Profile II (AEMP II)

Grafické porty:

• 1 x DisplayPort
• 1 x VGA port
• 1 x DVI-D port
• 1 x HDMI™ port

Rozšiřující sloty:

Intel® Core™ Ultra Processors (Series 2)

• 1 x PCIe 5.0 x16 slot

Intel® H810 Chipset

• 2 x PCIe 4.0 x1 slots

Úložný prostor:

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

Intel® H810 Chipset

• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
• 4 x SATA 6Gb/s ports

Ethernet:

• 1 x Intel® 1Gb Ethernet port
• ASUS LANGuard

USB:

Zadní USB (Total 7 ports)

• 2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C®)
• 2 x USB 5Gbps ports (2 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)

Přední USB (Total 7 ports)

• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio:

Realtek 7.1 Surround Sound High Definition Audio CODEC*

• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback

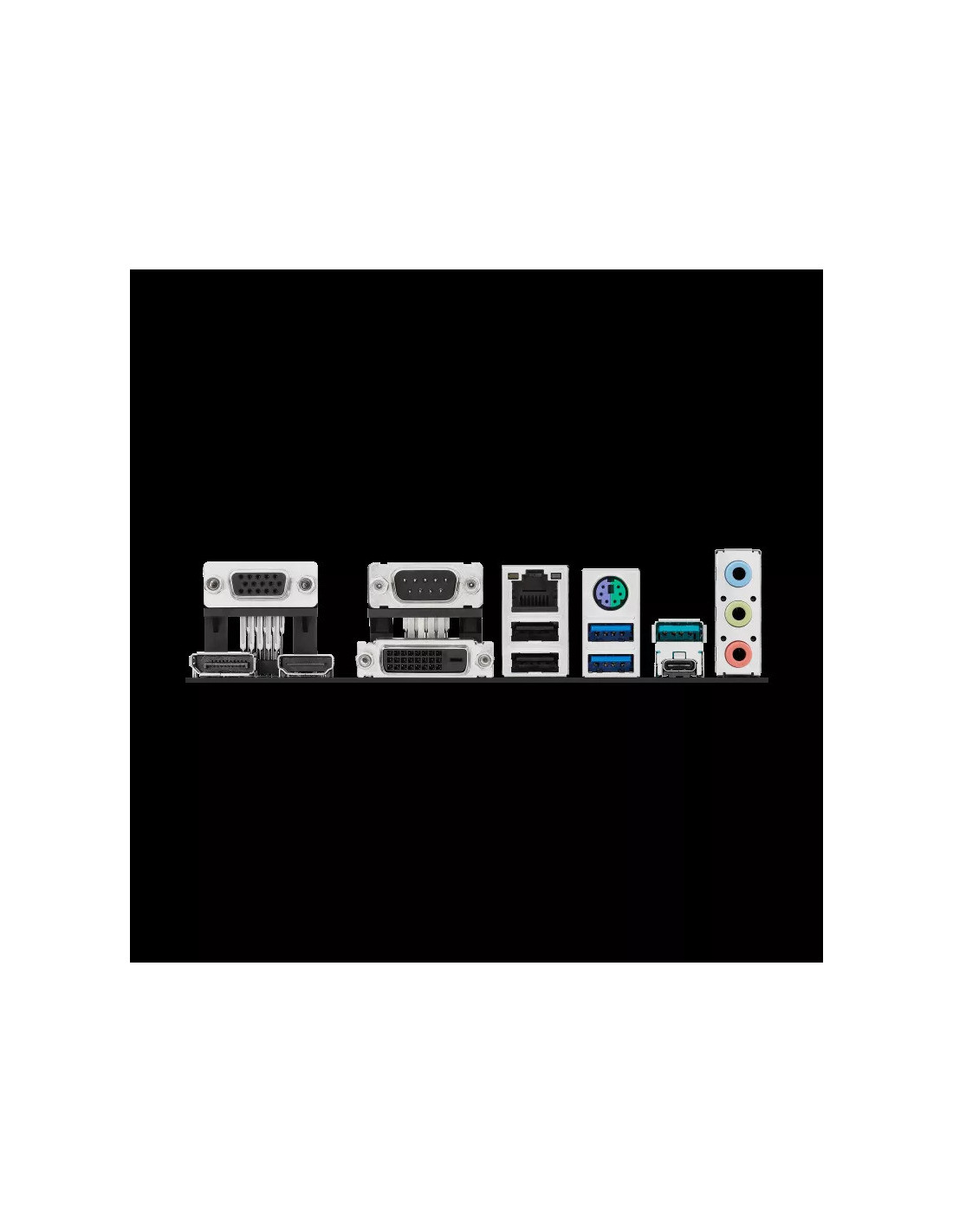

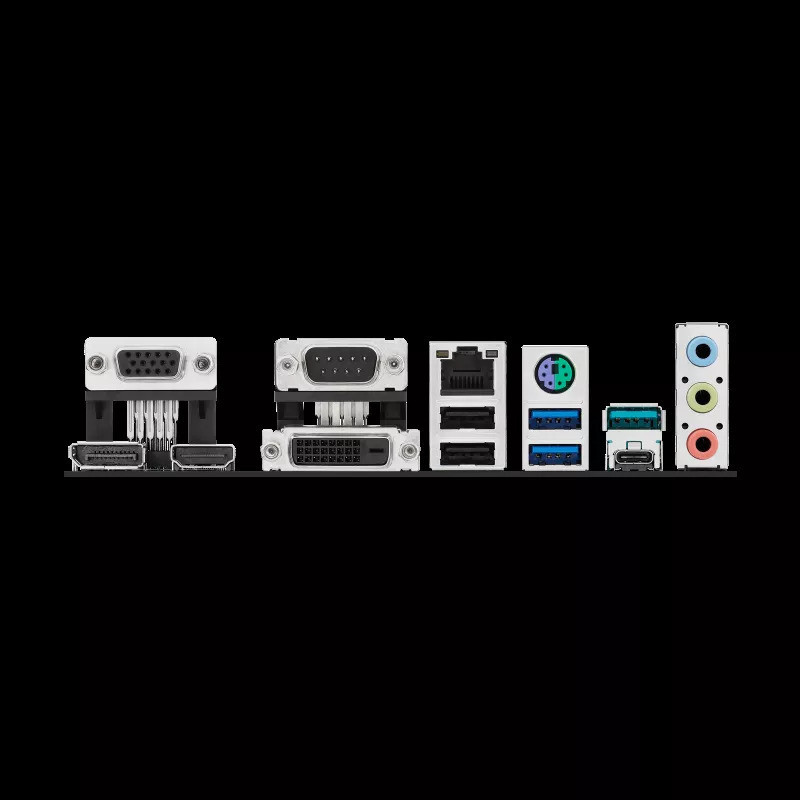

Vstupy/výstupy zadního panelu:

• 2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C®)
• 2 x USB 5Gbps ports (2 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x DisplayPort
• 1 x VGA port
• 1 x DVI-D port
• 1 x HDMI™ port
• 1 x Intel® 1Gb Ethernet port
• 3 x Audio jacks
• 1 x COM port
• 1 x PS/2 keyboard/mouse combo port

Interní vstupy/výstupy:

Ventilátory a chlazení:

• 1 x 4-pin CPU Fan header
• 2 x 4-pin Chassis Fan headers

Napájení:

• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V CPU Power connector

Úložiště:

• 2 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports

USB:

• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Různé:

• 1 x Clear CMOS header
• 1 x Chassis Intrusion header
• 1 x COM Port header
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x COM Debug header
• 1 x LPT header
• 1 x Mono-Out Audio header (with Amp IC)
• 1 x SMBUS header
• 1 x Speaker header
• 1 x SPI TPM header (14-1 pin)
• 1 x 10-1 pin Front Panel System header

Příslušenství:

Kabely:

• 2 x SATA 6Gb/s cables

Různé:

• 1 x I/O shield
• 1 x M.2 anchor package

Dokumenty:

• 1 x ACC Express activation key card
• 1 x Quick start guide
