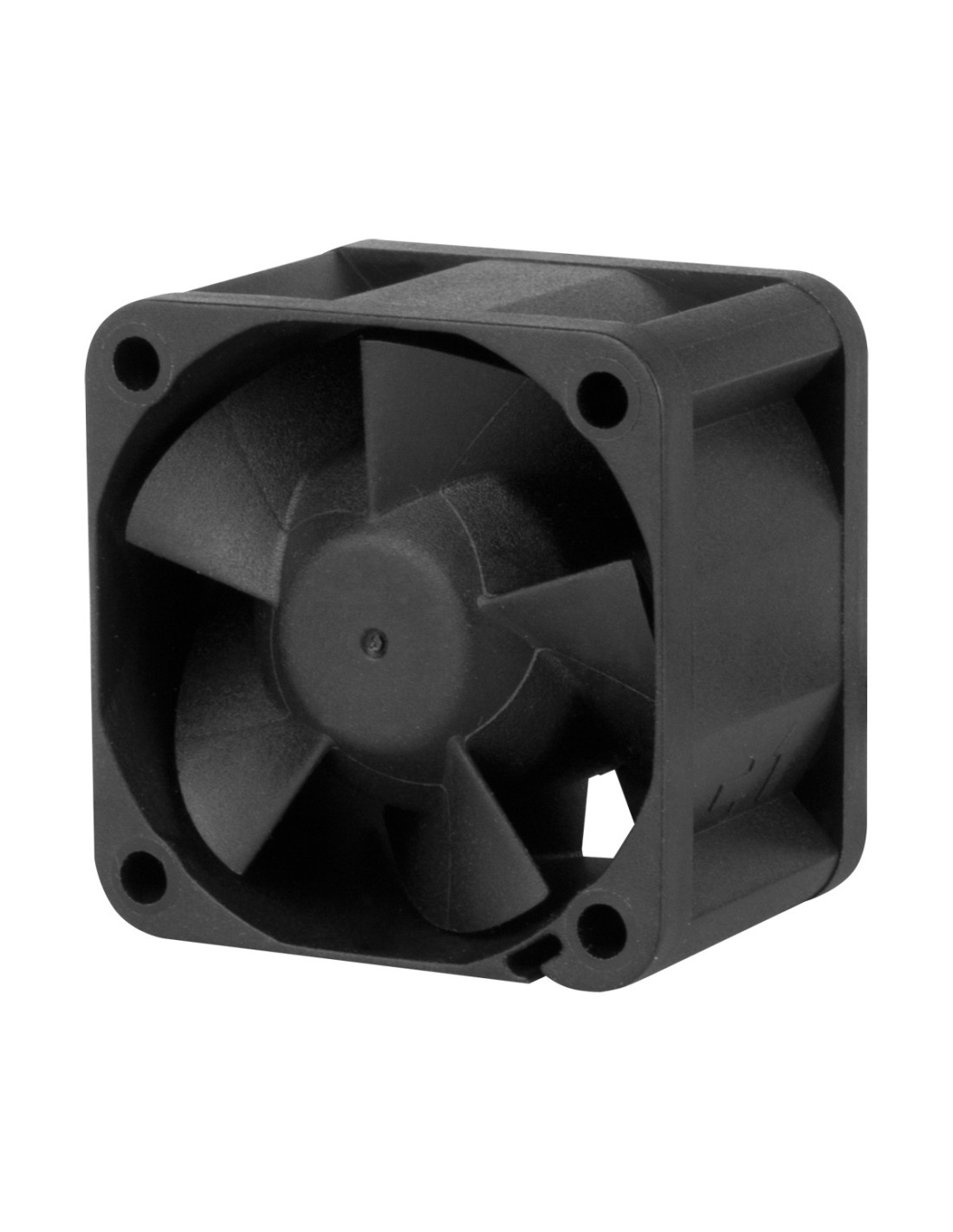

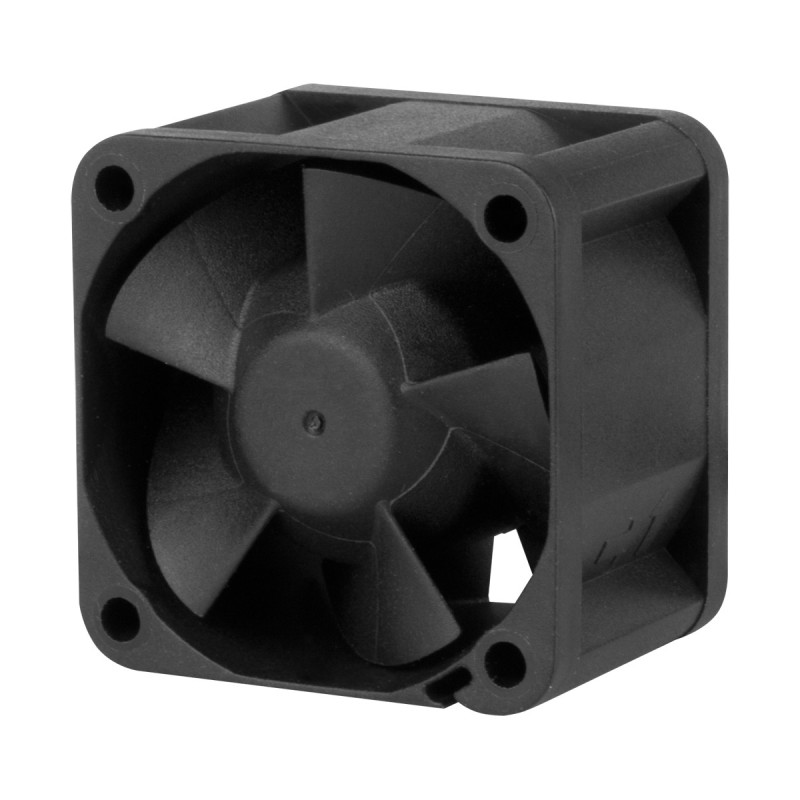

ARCTIC S4028-6K (DC Fan for server 40x28mm)

S4028-6K

40 mm Server Fan

DESIGNED FOR CONTINUOUS OPERATION

The impeller of the S4028-6K is held in place by two ball bearings and is therefore particularly durable and less sensitive to external influences such as heat and dust.

FULL CONTROL WITH A WIDE SPEED RANGE

The S4028-6K has a very wide speed range that can be regulated via PWM and voltage. With its 6000 rpm max, it offers a good balance between cooling power and noise.

HIGH AIRFLOW AND STATIC PRESSURE

With a static pressure of 4.2 mm/H2O and a maximum airflow of 12.06 m3/h, the S4028-6K is a true all-rounder and is suitable as both a radiator and case fan.

WIDE RANGE OF APPLICATIONS

The S4028-6K fits into 1U server cases and can serve as a replacement fan for routers, switches and NAS. It can also be used for other products such as DVRs, mini PCs, HTPCs, hard drive enclosures and 3D printers.

FLEXIBLE CONNECTION OPTIONS

The fan has a standard 4-pin fan connector and can also be connected to and controlled on 2-pin or 3-pin headers, while the 40cm cable allows a lot of flexibility in positioning.

General data

Performance

Fan Speed: 250 - 6000 rpm

Airflow: 7.1 CFM / 12.06 m3/h

Speed Control: Pulse Width Modulation – PWM

Static Pressure: 4.2 mm H2O

Fan

Fan Frame: Standard

Connector: 2510 4-Pin Fan-Connector

Fan Bearing: Dual Ball Bearing

Operating Ambient Temperature: 0 - 40 °C

Electric Characteristics:

¨

Starting Voltage: 4.5 V

Current/ Voltage: 0.1 A/ 12.0 V DC

Cable Lenght: 400 mm

Size & Weight

¨

Length: 40 mm

Width: 40 mm

Height: 28 mm

Weight: 40 g

Packaging

Width: 33 mm

Height: 57 mm

Length: 45 mm

Weight: 0.048 kg
