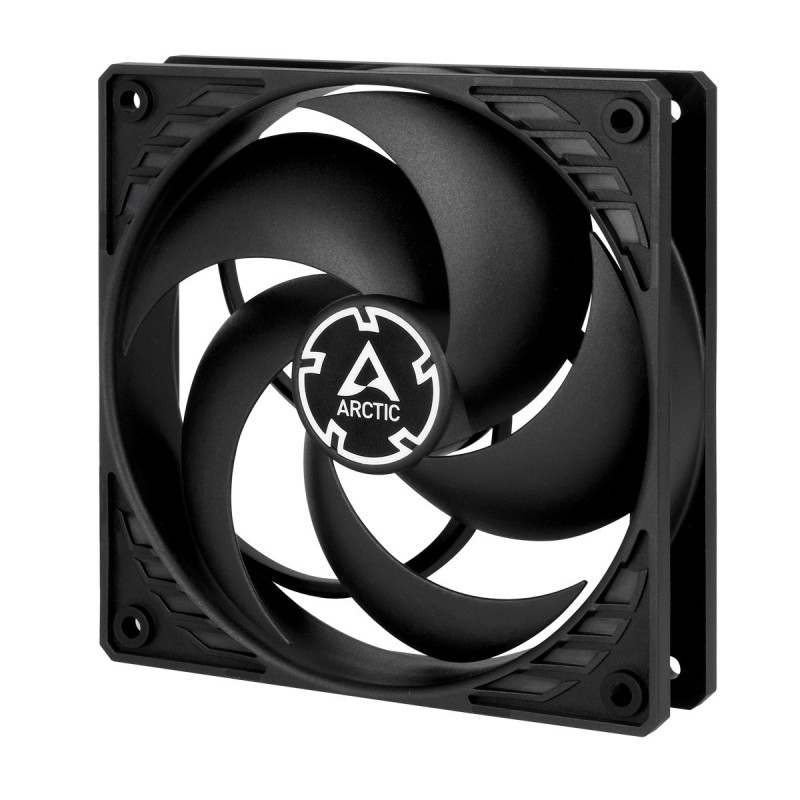

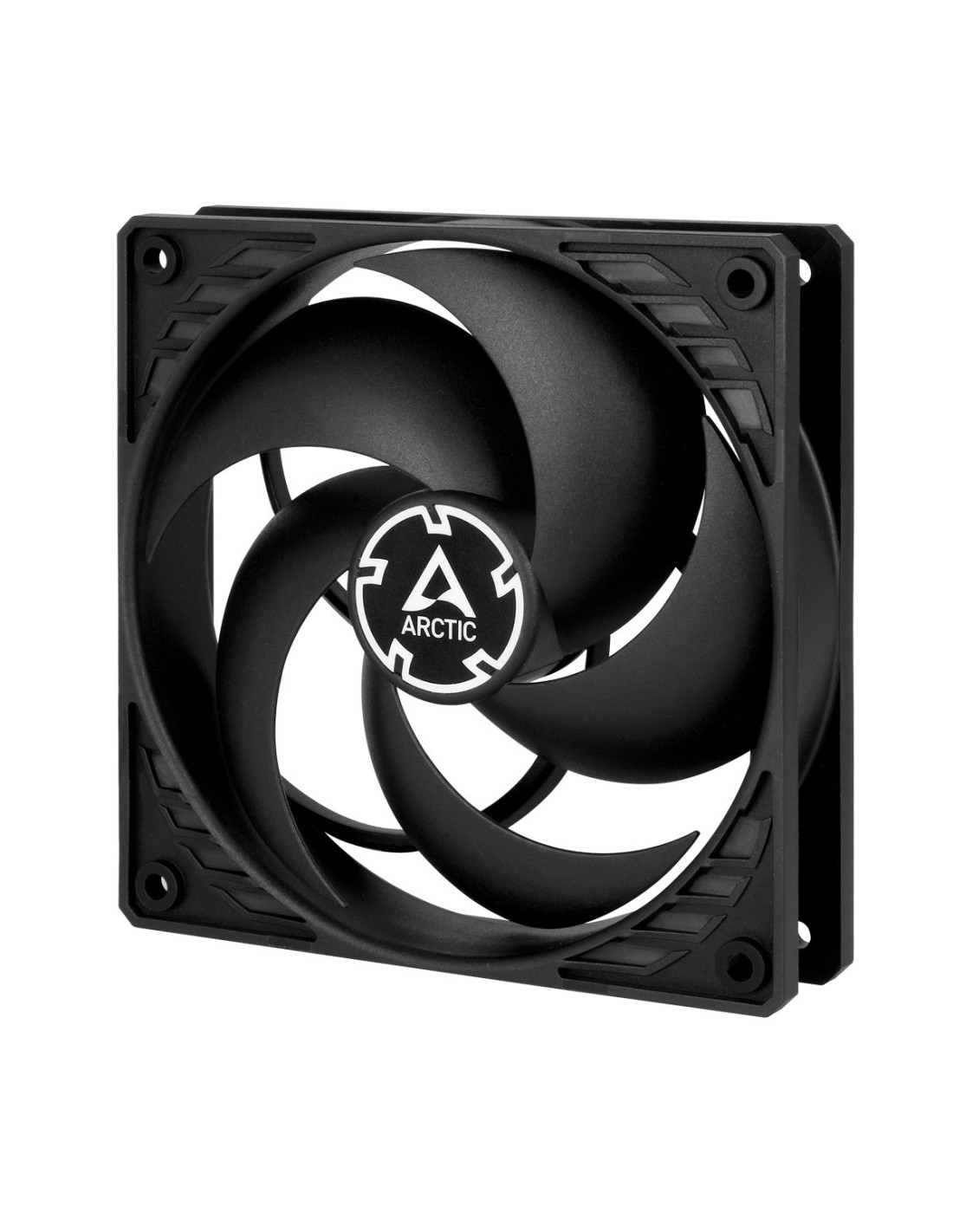

ARCTIC P12 (black black)

Nová generace ARCTIC větráčků s optimalizovaných pro maximální statický tlak. ARTIC P12 je větráček o rozměru 120x120x25mm, s 1 800 otáčkami při 12V a vzduchovým tranferem: 56.3 CFM (95.65 m3/h), Hlučnost: 0.3 Sone (@ 1 800 RPM)

Optimised for Static Pressure - During the development of the new P12, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 is particularly suitable for use on heatsinks and radiators.

High Quality Bearing - Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.

Performance

Fan: 120 mm, 1 800 RPM (@12 V DC)

Air Flow: 56.3 CFM (95.65 m3/h)

Noise Level: 0.3 Sone (@ 1 800 RPM)

Electrical Characteristics

Typical Voltage: + 12 V DC

Start-up Voltage: 2.8 V DC

Cable Length: 400 mm

Voltage Current

12 V DC (Norminal) 0.20 A

7 V DC 0.08 A

5V DC 0.06 A

Connection

Motherboard: + 12 V DC

3-pin Connector
