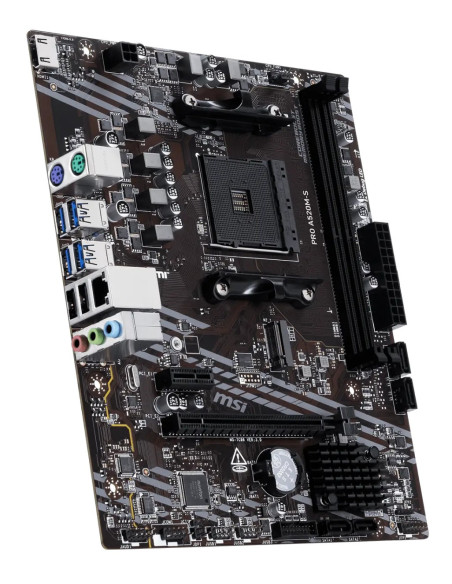

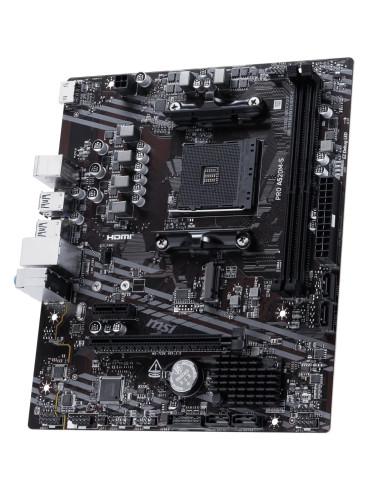

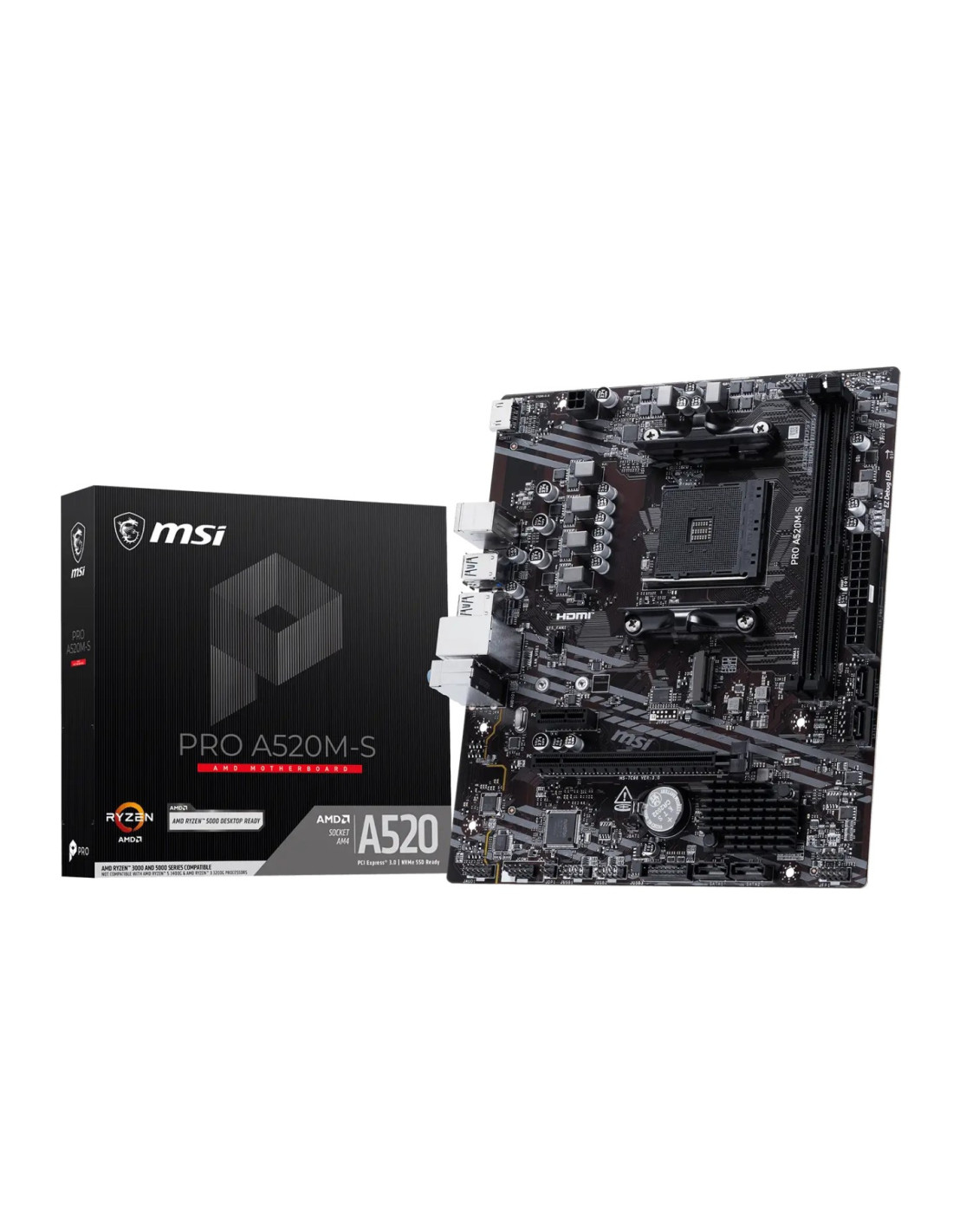

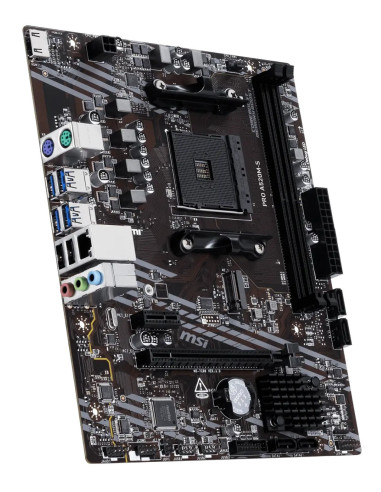

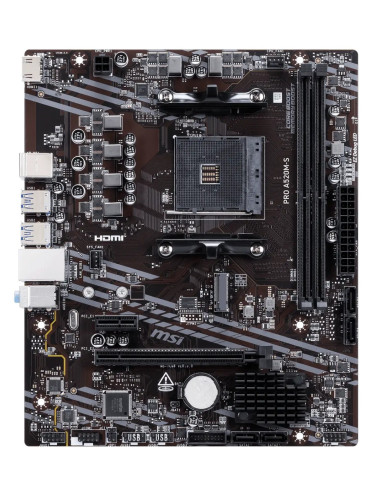

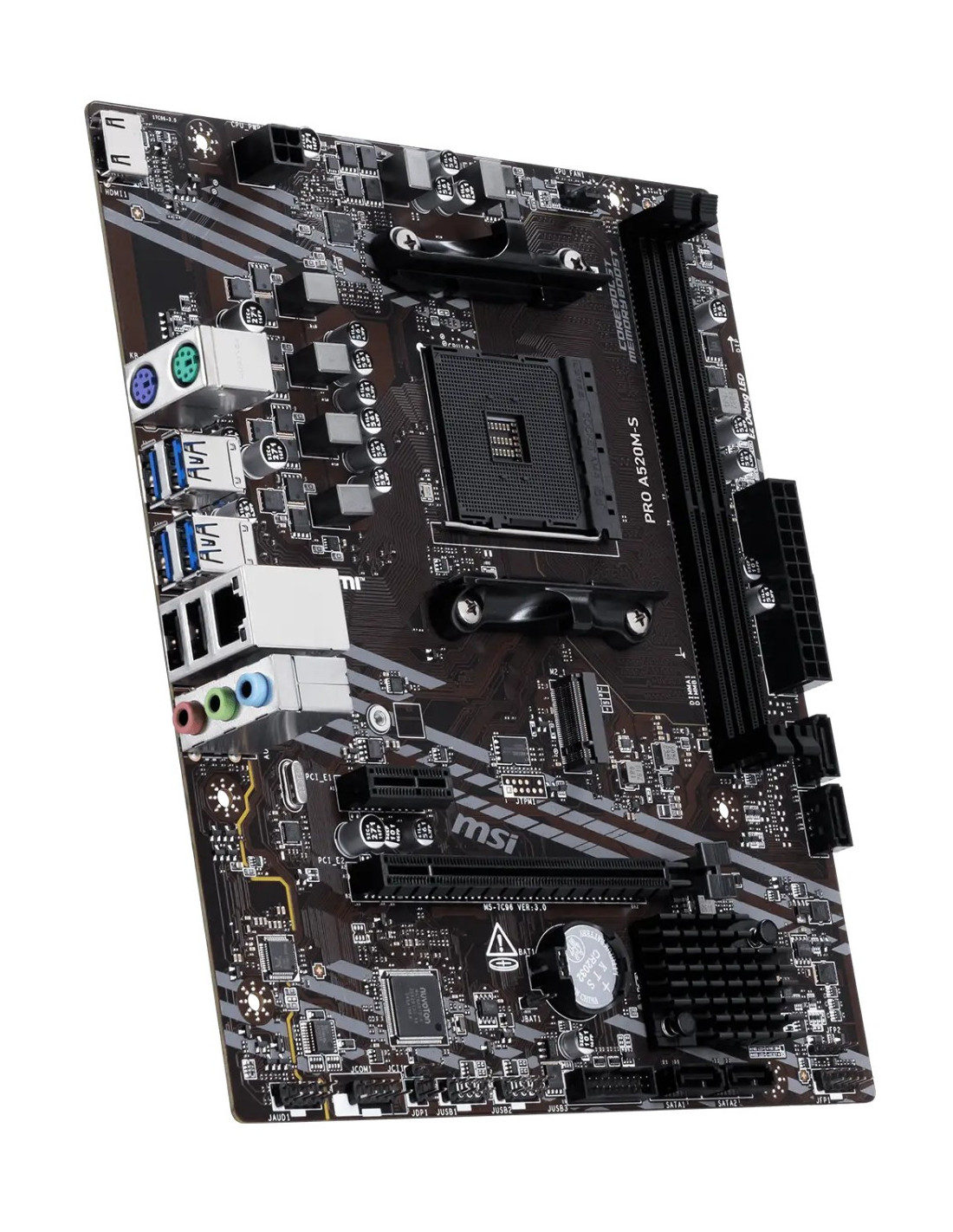

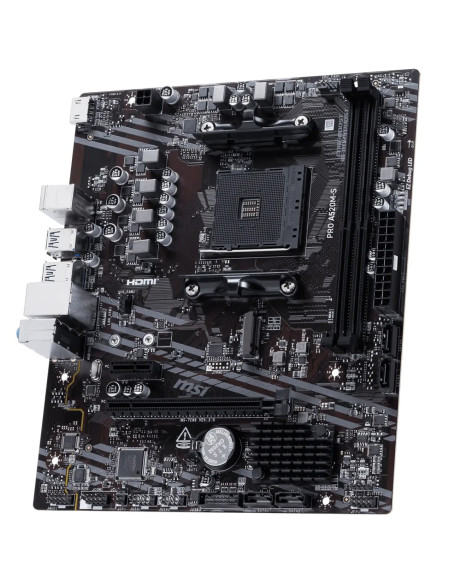

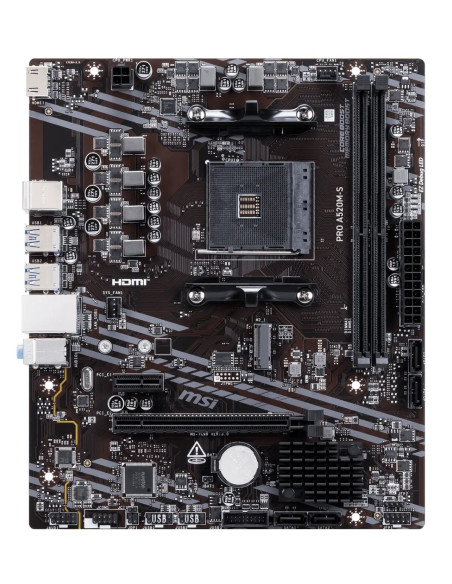

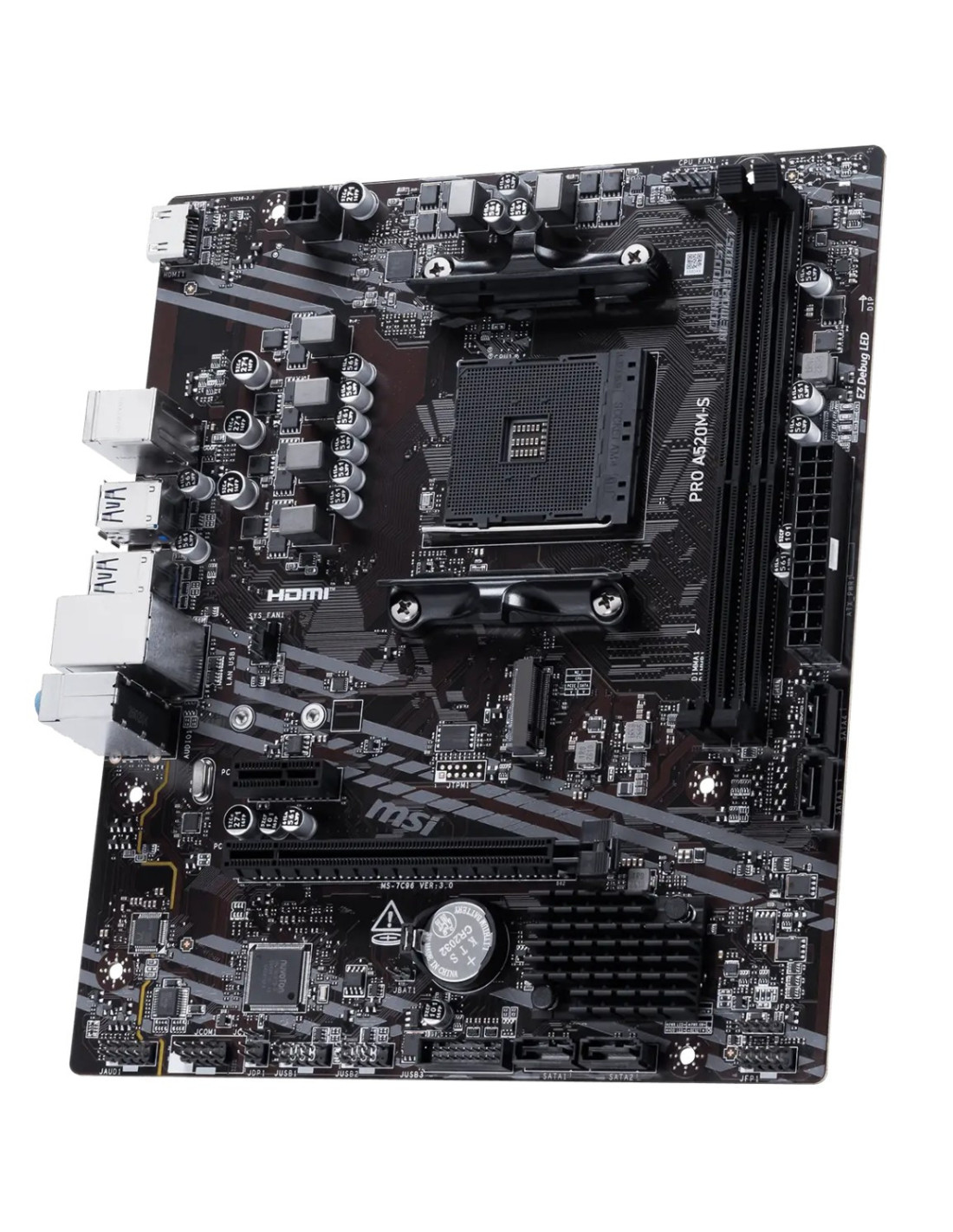

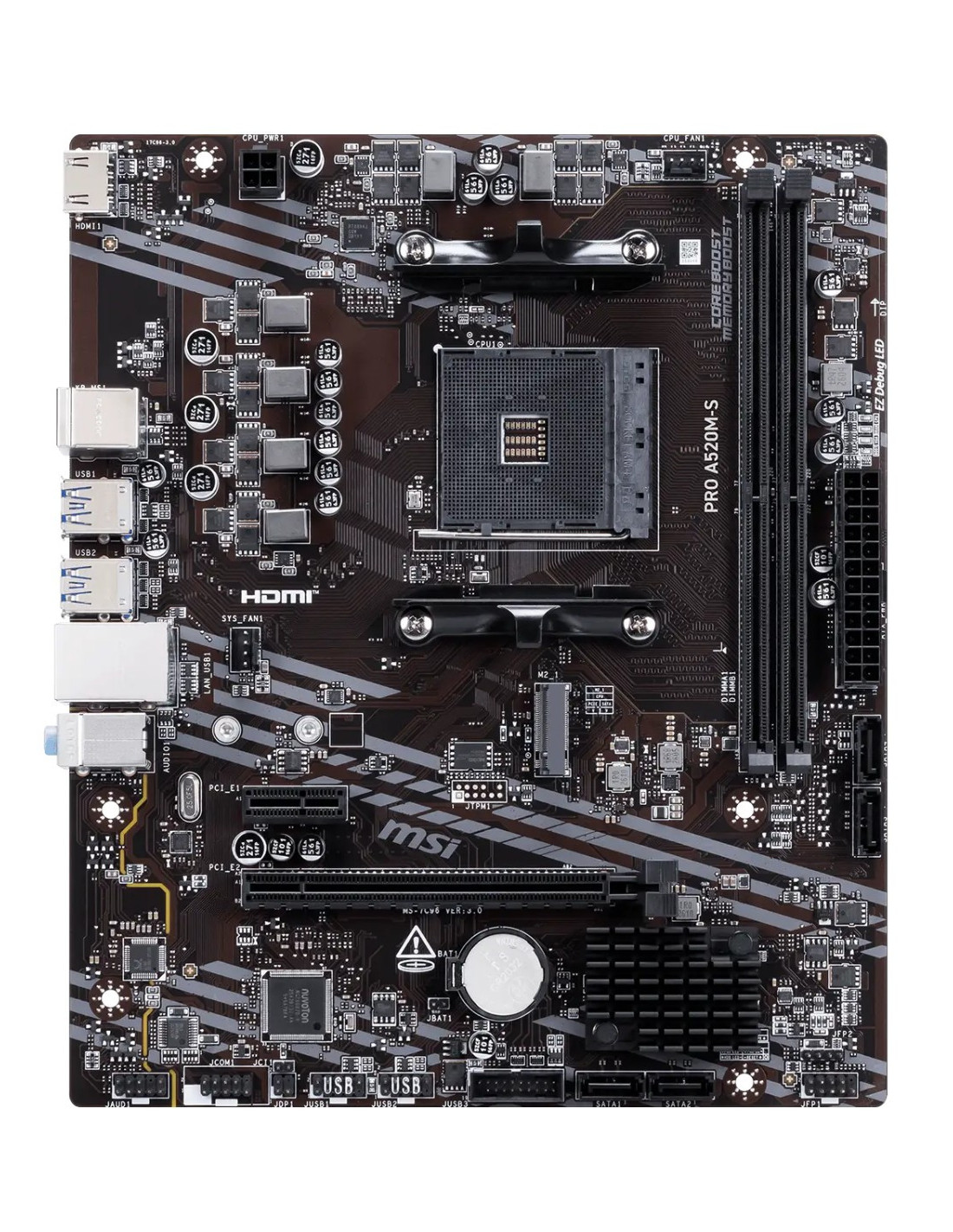

MSI PRO A520M-S AM4 mATX

MSI PRE A520M-S

Chipset:  AMD A520

Rozmerový formát: mATX 200mmx236mm

Podpora pre procesory: AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series a 3000 G-Series desktop processors

Pätica procesora: AM4

Pamäť:

• 2x DDR4, Maximum Memory Capacity 64GB
• Memory Support DDR4 2667/2800/2933/3000/3066/3200/3466/3600/3733/3866/4000/4133/4266/4400/4600+ MHz by A-XMP OC
• Ryzen™ 5000 Series Processors max. overclocking:
• 1DPC 1R Max speed up to 4600+ MT/s
• 1DPC 2R Max speed up to 3866+ MT/s
• Supports JEDEC Speed
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Memory Overclocking by A-XMP OC mode

Grafické porty:

1x HDMI

• Support HDMITM 1.4, maximum resolution of 4K 30Hz

Zvuková karta:

• Realtek® ALC897 Codec
• 7.1-Channel High Definition Audio

Ethernet: Realtek® RTL8111H 1Gbps LAN

Rozširujúce sloty:

1x PCI-E x16 slot

1x PCI-E x1 slot

• PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)
• PCI_E2 Gen PCIe 3.0 supports up to x16 (From CPU)

RAID radič: RAID 0, RAID 1, RAID 10

Úložný priestor:

1x M.2

• M.2_1 Source (From CPU) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260 devices

4x SATA 6G

USB:

Zadné USB

• 2x USB 2.0
• 4x USB 5Gbps Type A

Predné USB

• 4x USB 2.0
• 2x USB 5Gbps Type A

Interné porty:

Napájanie

• 1× Power Connector (ATX_PWR)
• 1× Power Connector (CPU_PWR)
• 1× CPU Fan
• 1× System Fan

USB

• 4× USB 2.0 ports
• 2× USB 5Gbps Type-A ports

Ostatné

• 2× Front Panel (JFP)
• 1× Chassis Intrusion (JCI)
• 1× Front Audio (JAUD)
• 1× COM Port (JCOM)

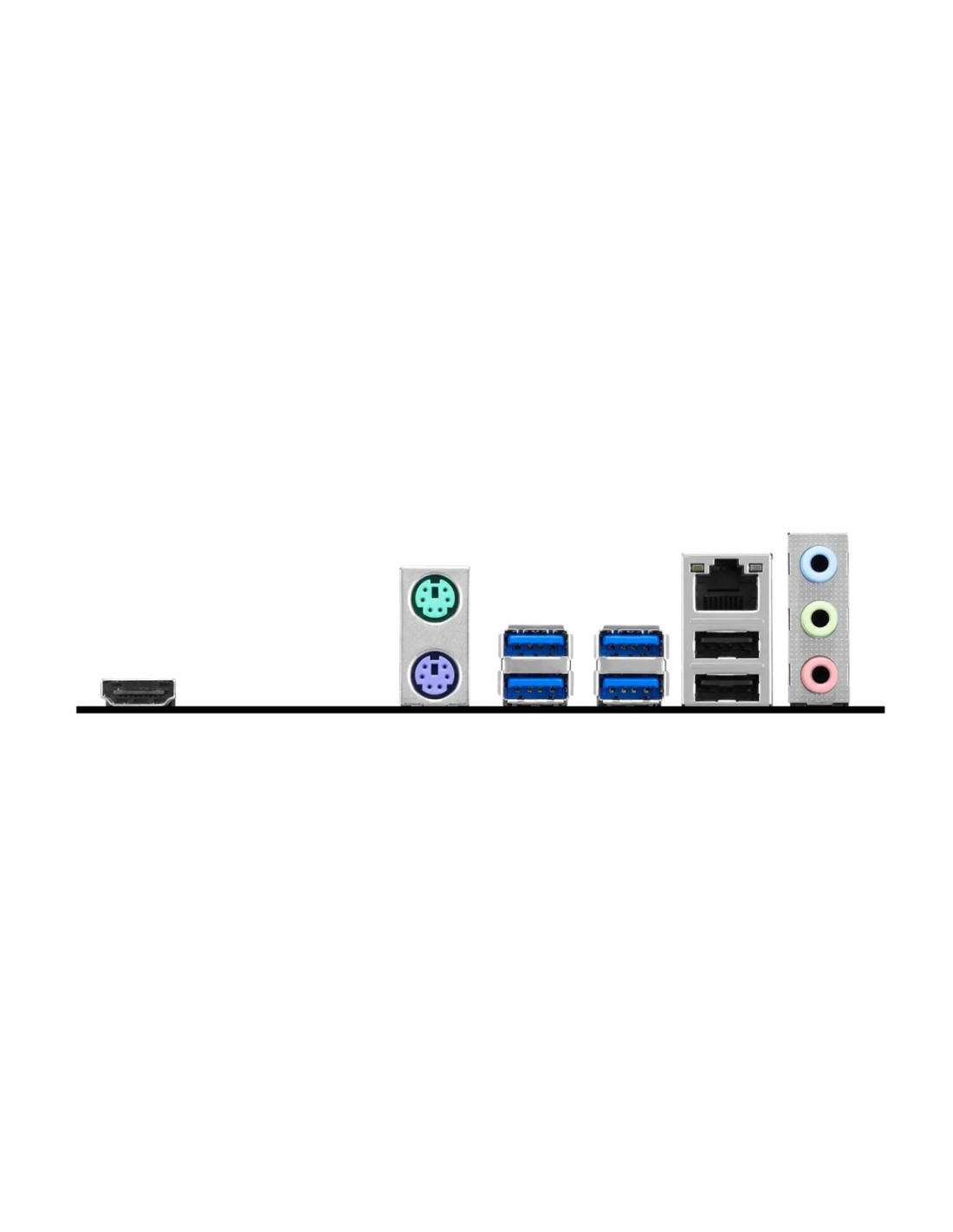

Porty na zadnom paneli:

• HDMI
• Keyboard / Mouse
• USB 5Gbps Type-A
• LAN Port
• Audio connectors
• USB 2.0

OS: Windows 11 64-bit
