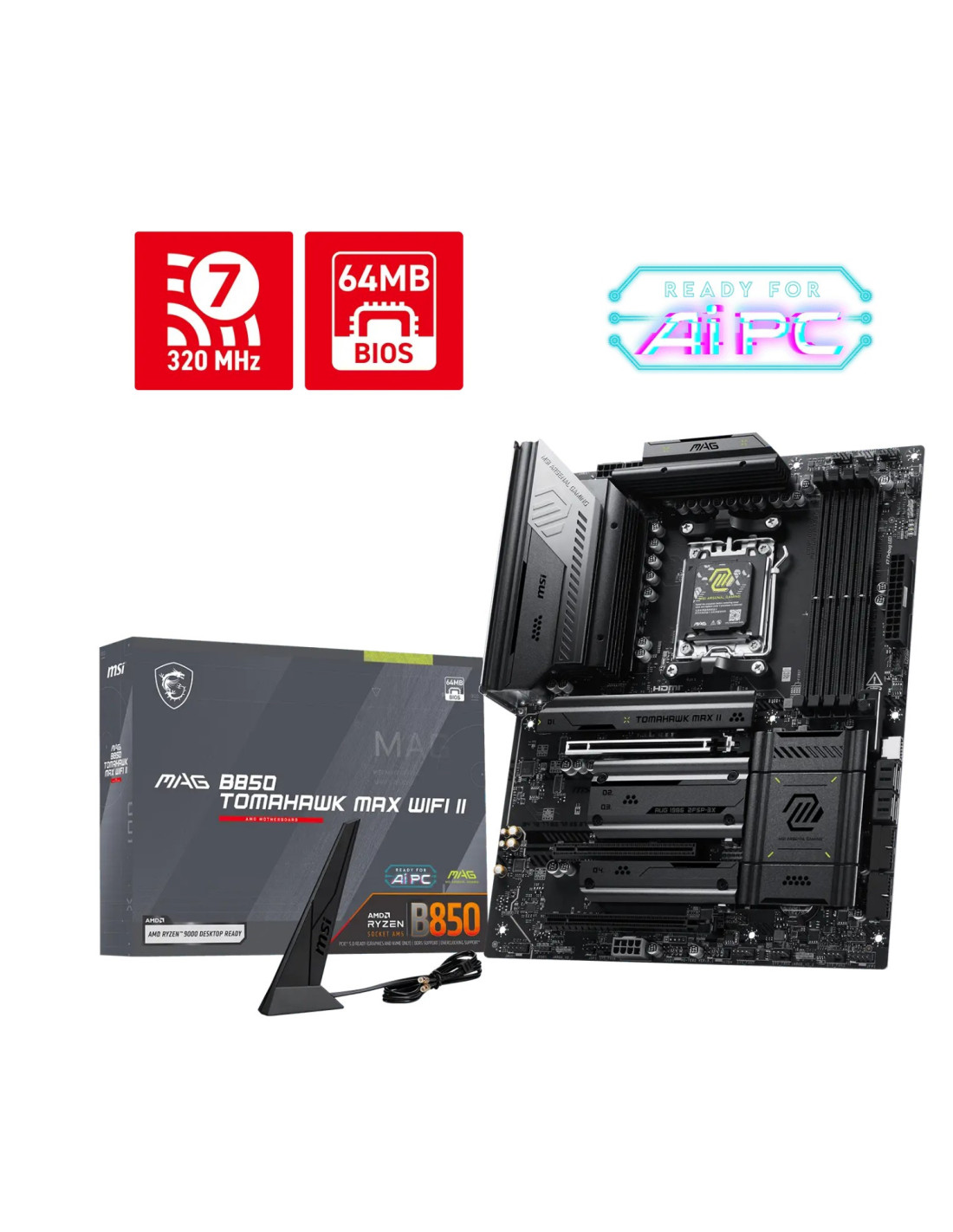

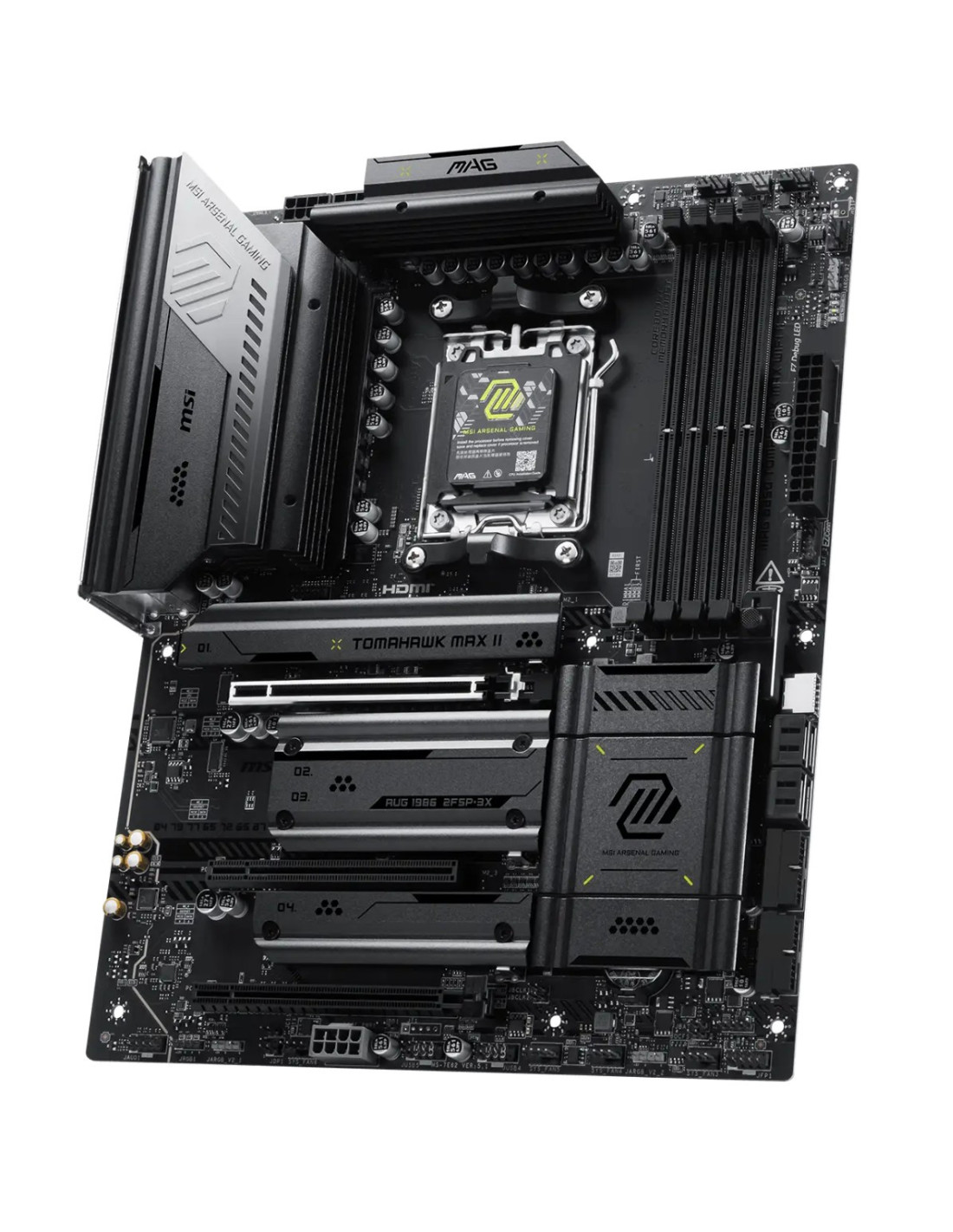

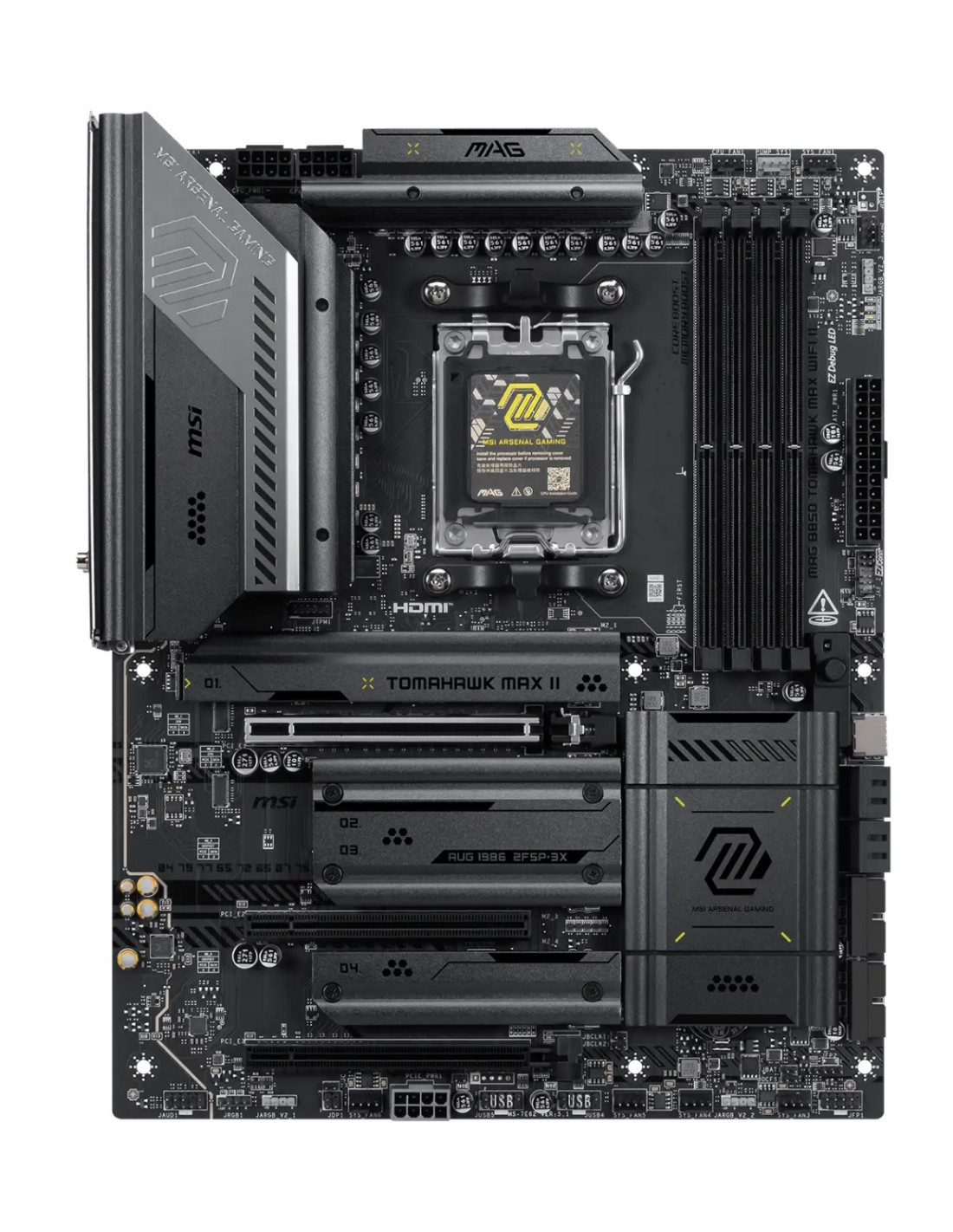

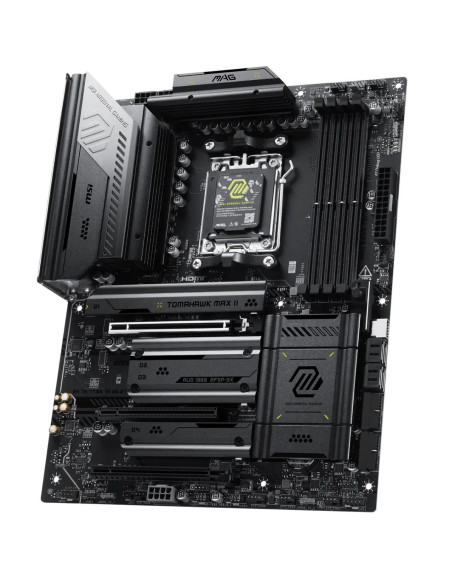

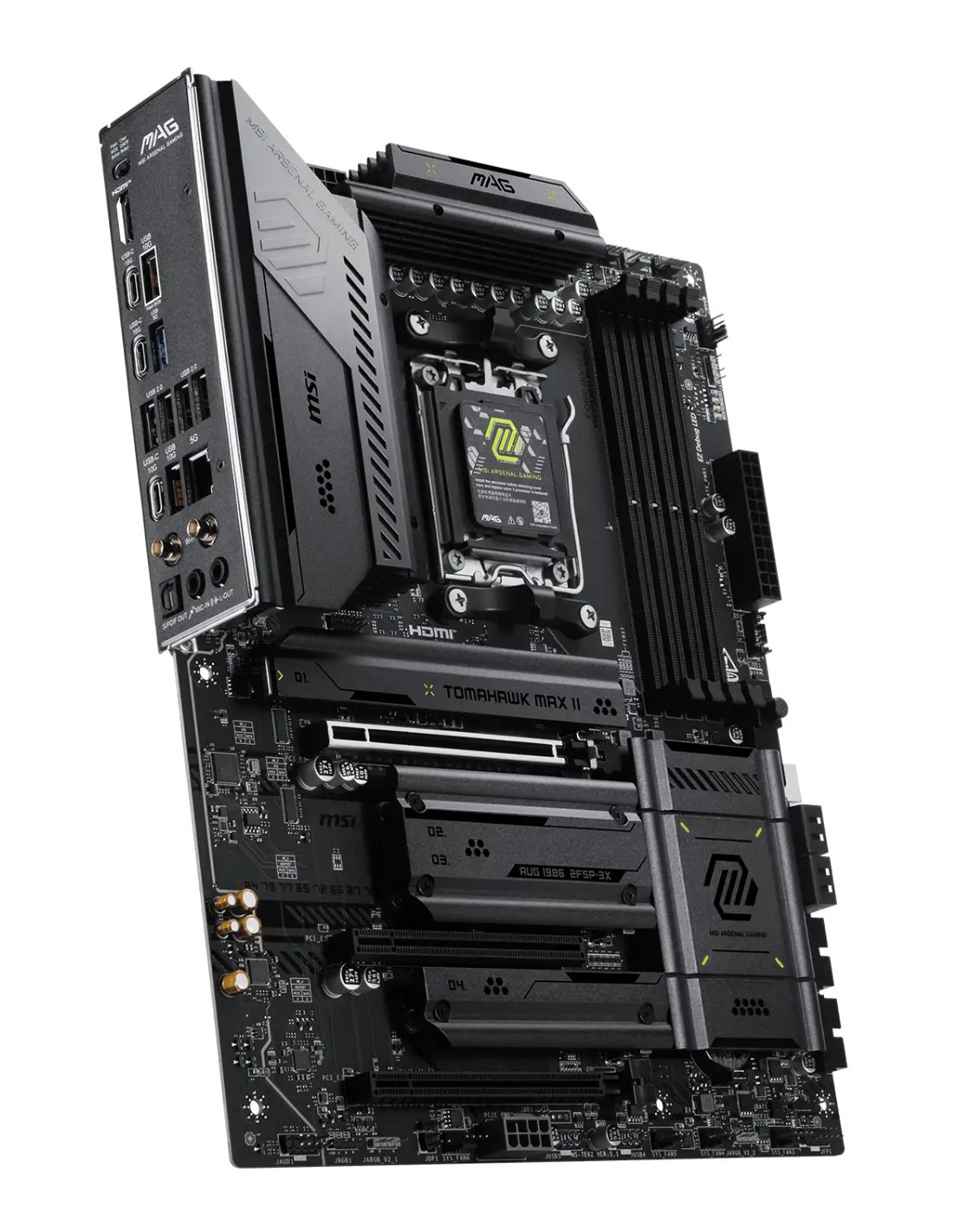

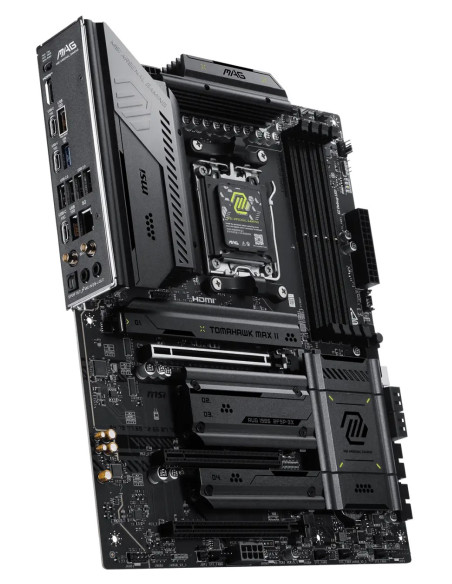

MSI MAG B850 TOMAHAWK MAX WIFI II AM5 ATX

MSI MAG B850 TOMAHAWK MAX WIFI II

Chipset:  AMD B850

Rozmerový formát: ATX 243.84mmx304.8mmPodpora pre procesory: AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors

Pätica procesora: AM5

Pamäť:

• 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
• Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
• Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8400+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 6400+ MT/s
• upports AMD POR Speed ??and JEDEC Speed
• Supports Memory Overclocking and AMD EXPO™
• Supports Dual-Channel mode
• Supports Non-ECC, Un-buffered memory

Grafické porty:

1x HDM

• Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz

Zvuková karta:

• Realtek® ALC4080 Codec
• 7.1-Channel USB High Performance Audio
• Supports up to 32-bit/384kHz playback on front panel
• Supports S/PDIF output

Ethernet: Realtek® 8126VB 5G LAN

WLAN + Bluetooth: Wi-Fi 7 Solution

• The Wireless module je preinštalovaný v M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz/5GHz/6GHz* (320MHz) až 5.8Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
• Supports Bluetooth® 5.4**, MLO, 4KQAM

Rozširujúce sloty: 3x PCI-E x16 slot

• PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
• PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
• PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

PCI_E1 slot

• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/8300 Series processor)

RAID radič: RAID 0, RAID 1, RAID 5, RAID 10

Úložný priestor: 4x M.2

• M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
• M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
• M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
• M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

4x SATA 6GM2_1 slot

• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)

M2_2 slot

• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/8600/8400 Series processors)
• Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/8300 Series processors)

USB:

Zadné USB

• 4x USB 2.0
• 1x USB 5Gbps Type A
• 2x USB 10Gbps Type A
• 3x USB 10Gbps Type C

Predné USB

• 4x USB 2.0
• 4x USB 5Gbps Type A
• 1x USB 20Gbps Type C

Interné porty:

Napájanie

• 1× Power Connector (ATX_PWR)
• 2× Power Connector (CPU_PWR)
• 1× Power Connector (PCIE_PWR 8pin)
• 1× CPU Fan
• 1× Combo Fan (Pump_Sys Fan)
• 6× System Fan

USB

• 4× USB 2.0 ports
• 4× USB 5Gbps Type-A ports
• 1× USB 20 Gbps Type-C port

Ostatné

• 1× EZ Conn-header (JAF_2)
• 2× Front Panel (JFP)
• 1× Chassis Intrusion (JCI)
• 1× Front Audio (JAUD)
• 3× Addressable V2 RGB LED konektory (JARGB_V2)
• 1× RGB LED connector (JRGB)
• 1× TPM pin header (TPM 2.0)
• 2× Direct OC Jumper (JBCLK)

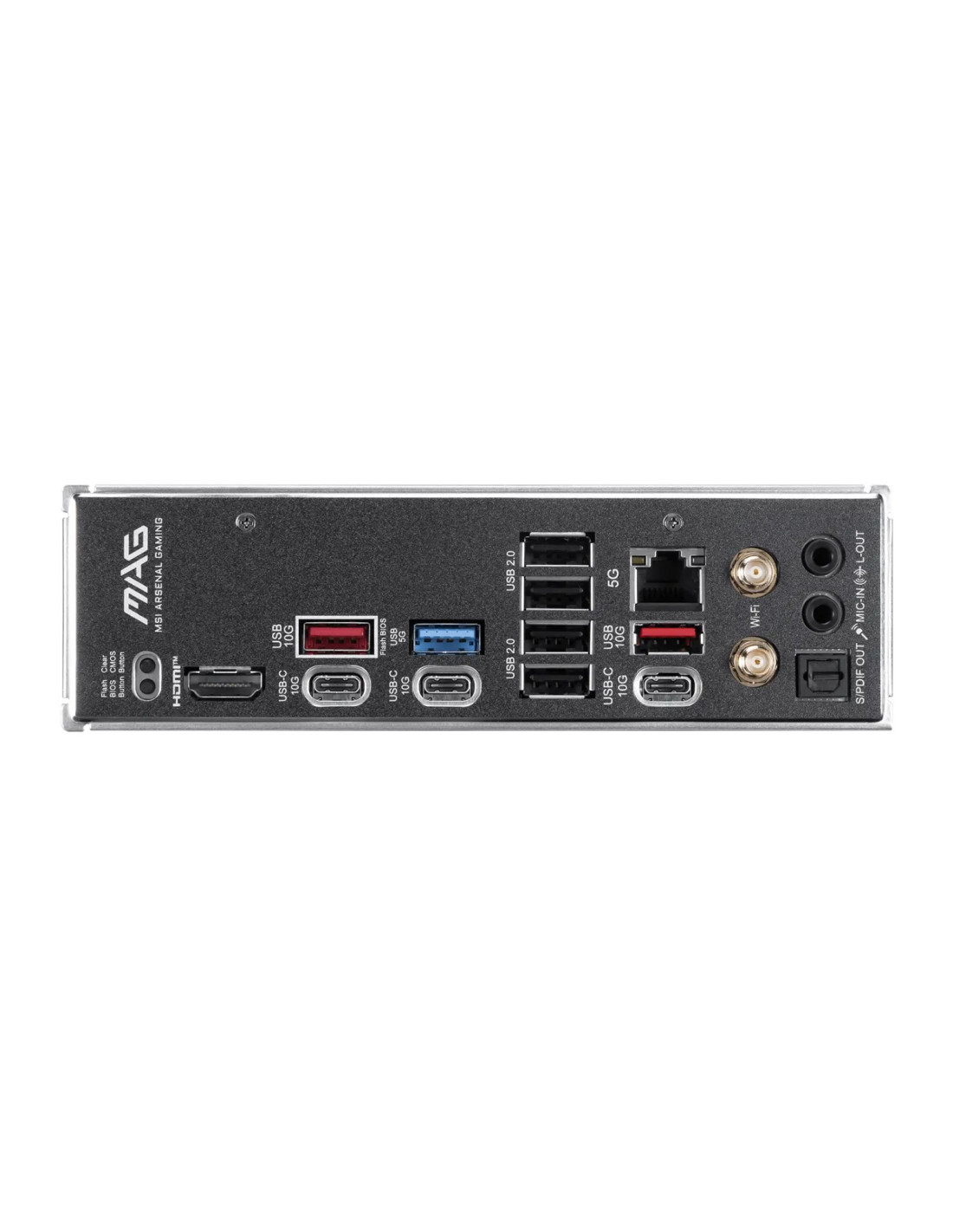

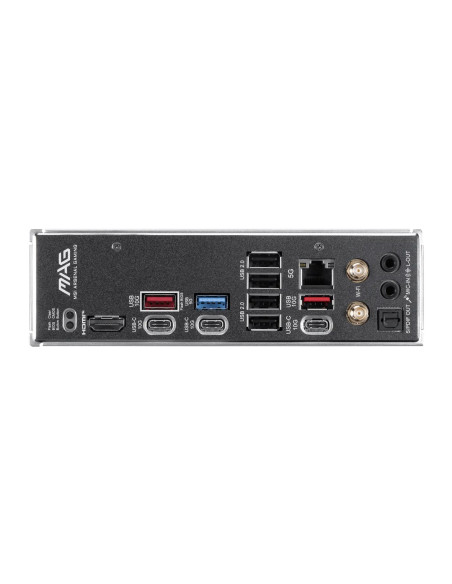

Porty na zadnom paneli:

• Clear CMOS Button
• USB 10Gbps Type-A
• USB 5Gbps Type-A
• USB 2.0
• 5G LAN
• Wi-Fi / Bluetooth
• Audio Connectors
• Flash BIOS Button
• HDMI™
• USB 10Gbps Type-C
• USB 10Gbps Type-C
• USB 10Gbps Type-A
• Optical S/PDIF-OUT

OS: Windows 11 64-bit
