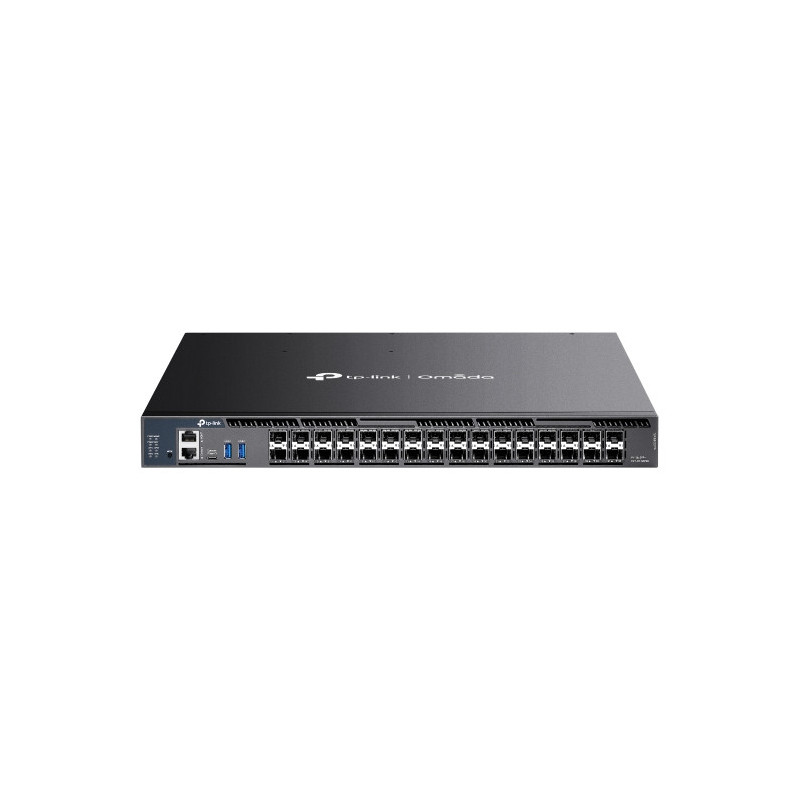

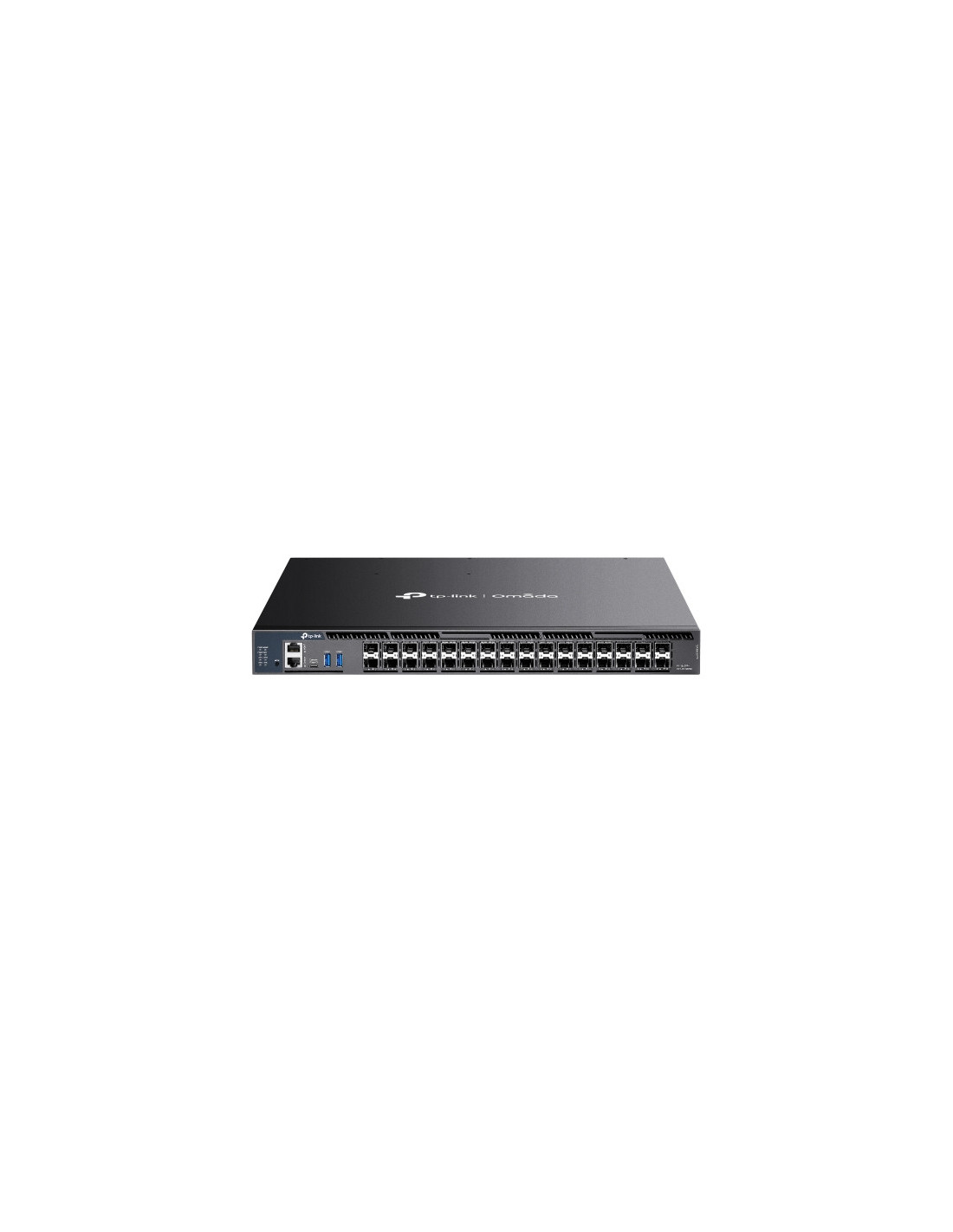

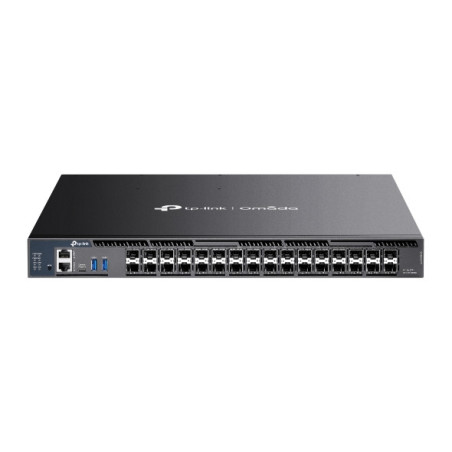

SX6632YF Omada 26x10G stack L3 switch 6x25G Slots

SX6632YF

Omada 26portový stohovatelný managovaný agregační switch L3 10G se 6 sloty 25G

Funkce

• 26× 10G slotů SFP+ a 6× 25G slotů SFP28
• Přepínací kapacita 820 Gb/s
• Fyzické stohování pro vestavěnou redundanci a výkonnost
• Funkce L3: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay
• Strategie zabezpečení: ACL, zabezpečení portů, DoS Defend, 802.1X
• Vysoká dostupnost díky dvěma napájecím zdrojům vyměnitelným za provozu*, VRRP a ERPS
• Centralizovaná správa cloudu prostřednictvím kontroléru Omada SDN
• Samostatná správa přes web, CLI, SNMP a RMON

Specifikace

Hardware

Interface

• 6× 10/25G SFP28 Slots
• 26× 1/10G SFP+ Slots
• 2× USB 3.0 Ports
• 1× RJ45 Console Port
• 1× USB Type C Console Port
• 1× RJ45 Management Port

Fan Quantity

• Four field-replaceable and hot-swappable fans (N+1 redundant)

Physical Security Lock

• Yes

Power Supply

• Two field-replaceable and hot-swappable redundant power supplies (100–240 VAC, 50/60 Hz)

Power Consumption

• 86.7 W (110 V/60 Hz)

Dimensions ( W x D x H )

• 440 × 380 × 44 mm

Mounting

• Rack Mountable

Max Heat Dissipation

• 295.85 BTU/hr (110 V/60 Hz)

Výkon

Switching Capacity

• 820 Gbps

Stacking

• Stacking Number: 8
• Stacking Port: 25G SFP28
• Stack Bandwidth: Up to 300 Gbps (6 stack ports)

Packet Forwarding Rate

• 610.1 Mpps

MAC Address Table

• 128 K

Packet Buffer Memory

• 8 MB

Jumbo Frame

• 9 KB

Software

Quality of Service

-Class of Service

• 8 Queues of Priority
• Port Priority
• IEEE 802.1p Priority
• DSCP Priority
• Queue Min-Bandwidth
• Schedule Mode (SP, WRR, SP+WRR)

-Bandwidth Control

• Rate Limit
• Strom Control

-User-Defined OUI

-Smoother Performance

-Action for Flows

• QoS remark (802.1P Remark, DSCP Remark)

L3 Features

-IP Interfaces:

• IPv4: Max 256, IPv6: Max 256

-Static Routing

• IPv4: Max 2,048, IPv6: Max 1,024

-Host Route Table: Max 15,300 entries

-RIP: Version v1/v2, Max 102,400

• RIPng: Max 51,200

-OSPF: Version v2/v3;

• v2: Max 102,400
• v3: Max 51,200

-VRRP: Version v2/v3, Max 64 groups

-ECMP: 256 entries, max 32 ECMP Nexhops per Destination

-Static ARP

• 1,024 static entries

-Dynamic ARP

• 24,576 dynamic entries

-Proxy ARP

-DHCP Server:

• Max 8K IP Pools
• Max 1,000 Manual Binding Entries

-DHCP Relay:

• Relayed Interface
• Relayed VLAN

L2 and L2+ Features

-Link Aggregation

• Static link aggregation
• 802.3ad LACP
• Up to 8 ports per group
• Up to 120 LAG Groups

-Spanning Tree Protocol

• 802.1d STP
• 802.1w RSTP
• 802.1s MSTP
• Up to 64 MSTI instances (4 at Omada controller mode)
• STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect

-Loopback Detection

• Port based
• VLAN based

-Flow Control

• 802.3x Flow Control

-Supports 4,093 IGMP groups

-ERPS: Up to 64 ERPS rings

-Mirroring

• Port Mirroring
• CPU Mirroring
• One-to-One
• Many-to-One
• Tx/Rx/Both

-RSPAN

-Mac Address

• MAC Address Table
• Static MAC: Max 128 entries
• Dynamic MAC Address: Max 128K entries
• Filtering MAC Address: Max 128 entries
• Virtual MAC (only supported in standalone mode)

Advanced Features

-Automatic Device Discovery

-Batch Configuration

-Batch Firmware Upgrading

-Intelligent Network Monitoring

-Abnormal Event Warnings

-Unified Configuration

-Reboot Schedule

ISP Features

-802.3ah Ethernet Link OAM

-L2PT (Layer 2 Protocol Tunneling)

-Device Link Detect Protocol (DLDP)

-DDM

-sFlow

-PPPoE ID Insertion

VLAN

-VLAN Group (802.1q VLAN)

• Max 4K VLAN Groups

-802.1Q Tagged VLAN

-MAC VLAN entries: 200

-Multicast VLAN

-Management VLAN

-VLAN VPN (QinQ): Max 256 entries

-GVRP

-Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries

-VLAN VPN

• VLAN Mapping
• VLAN Replace

-Voice VLAN

-Private VLAN

Security

-Port Isolation

-CPU-Deffend

-ARP Inspection (Dynamic ARP Inspection)

-DoS Defend

-IP-MAC-Port Binding

• 1,024 Entries
• DHCP Snooping
• ARP Inspection
• IPv4 Source Guard

-IPv6-MAC

• Port Binding
• 1,024 Entries
• DHCPv6 Snooping
• ND Detection
• ND Snooping
• IPv6 Source Guard

-DHCP Filter

-Static/Dynamic Port Security

• Up to 64 MAC addresses per port

-Broadcast/Multicast/Unknown-unicast Storm Control

• kbps/ratio control mode

-802.1X

• Port base authentication
• Mac base authentication
• VLAN Assignment
• MAB
• Guest VLAN
• Support RADIUS authentication and accountability
• AAA (including TACACS+)

-Secure web management through HTTPS with SSLv3/TLS 1.2

-Secure Command Line Interface (CLI) management with SSHv2

-IP/Port/MAC based access control

Management

Management Features

-Web-based GUI

-Command Line Interface (CLI) through console port, telnet

-SNMPv1/v2c/v3

• Trap/Inform
• RMON (1, 2, 3, 9 groups)

-SDM Template

-DHCP/BOOTP Client

-802.1ab LLDP/LLDP-MED

-DHCP Auto Install

-Dual Image, Dual Configuration

-CPU Monitoring

-Cable Diagnostics

-Password Recovery

-SNTP

-System Log
