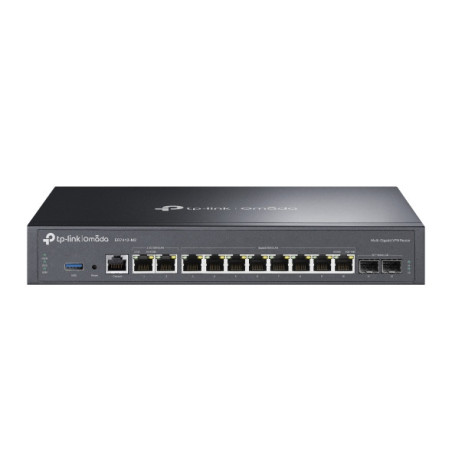

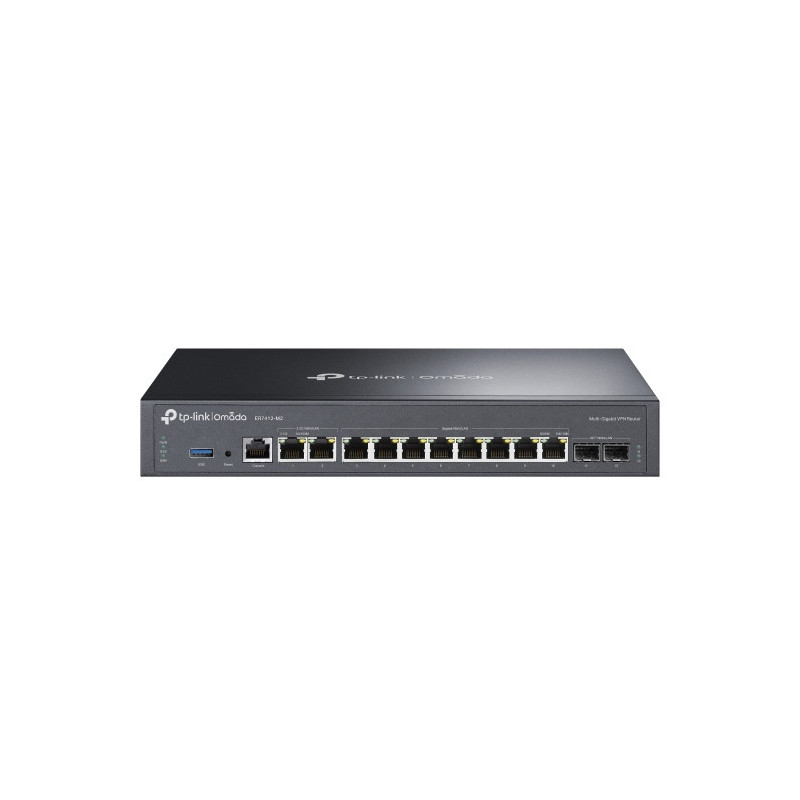

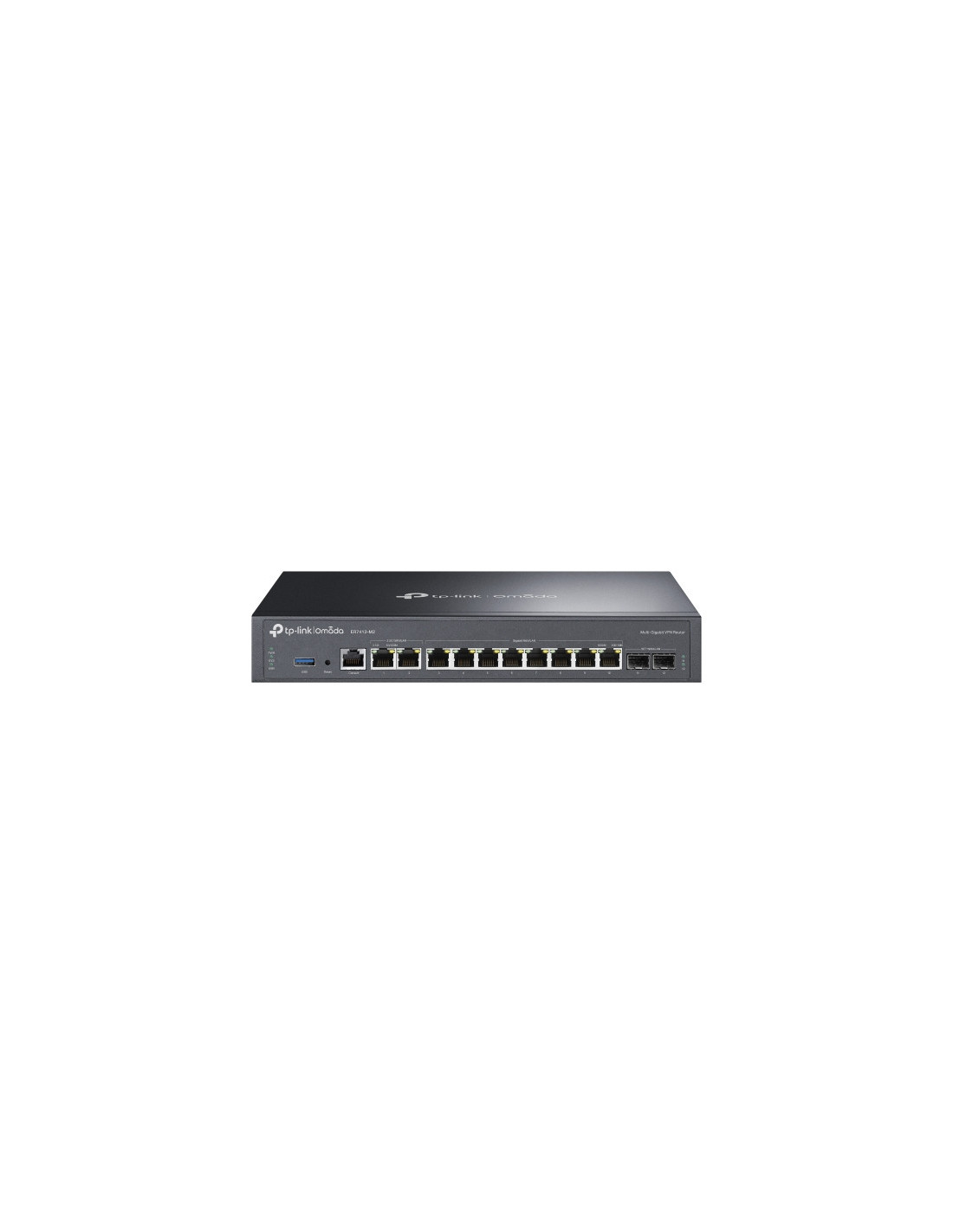

TP-Link ER7412-M2 Omada Multi-Gigabit VPN Router

ER7412-M2

Omada Multi-Gigabit VPN Router

• Čtyřjádrový procesor @2.0GHz
• 2× 2,5G RJ45 WAN/LAN porty
• 10× Gigabit WAN/LAN porty (2× SFP, 8× RJ45)
• 1× port USB 3.0 (podporuje úložiště USB a zálohování LTE pomocí LTE dongle)
• Až 11 WAN portů
• Multi-WAN Load Balancing zvyšuje míru využití vícelinkového širokopásmového připojení
• Vysoce zabezpečené SSL/ IPSec / GRE / WireGuard / PPTP / L2TP VPN & OpenVPN
• Centralizovaná správa cloudu přes web nebo aplikaci Omada
• Ochrana proti DoS, filtrování IP/MAC/URL, DPI a IPS/IDS pro lepší zabezpečení.

Specifikace

Bezpečnost

Access Control

• Source/Destination IP-Based ACL
• Stateful ACL
• IPv4/IPv6 ACL
• National Based ACL

Filtering

• WEB Group Filtering§
• URL Filtering
• Web Security

ARP Inspection

• Sending GARP Packets
• ARP Scanning
• IP-MAC Binding

Attack Defense

• TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN

Hardware

Standards and Protocols

• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP

Interface

• 1× 2.5G RJ45 WAN/LAN Port
• 1× 2.5G RJ45 WAN/LAN Port
• 2× Gigabit SFP WAN/LAN Ports
• 8× Gigabit RJ45 WAN/LAN Ports
• 1× RJ45 Console Port
• 1× USB 3.0 Port (Supports USB storage, and LTE backup with LTE dongle)

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
• 2500BASE-T: UTP category 5e, 6 cable (Max 100 m)

Button

• Reset Button

Power Supply

• 100–240 VAC, 50/60 Hz

Flash

• 128MB NAND

DRAM

• 1 GB DDR4

Dimensions ( W x D x H )

• 294×180×44 mm

Protection

• 4 kV surge protection

Enclosure

• Steel

Mounting

• Desktop
• Rackmountable

Max Power Consumption

• 18.5W (With USB 3.0 connected)

Základní funkce

WAN Connection Type

• Static IP/Dynamic IP
• PPPoE (supports MRU Configuration)
• PPTP
• L2TP
• Mobile Broadband: 4G/3G modem for backup via USB port

MAC Clone

• Modify WAN/LAN MAC Address

DHCP

• DHCP Server
• DHCPv6 PD Server (only in Standalone Mode)
• DHCP Options Customization
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP

IPv6

• StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode

VLAN

• 802.1Q VLAN

IPTV

• IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

Pokročilé funkce

Advanced Routing

• Static Routing
• Policy Routing
• RIP (available in Standalone Mode)
• OSPF (available in Standalone Mode)

Bandwidth Control

• IP/Port-based Bandwidth Control

Load Balance

• Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing, Failover)
• Online Detection

NAT

• One-to-One NAT
• Multi-Net NAT
• Virtual Server
• Port Triggering
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP

Session Limit

• IP-based Session Limit

VPN

GRE

• Only in Standalone Mode

SSL VPN

• 80 Tunnels

IPsec VPN

• 150 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IPsec Failover
• IKE v1/v2
• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)

PPTP VPN

• PPTP VPN Server
• PPTP VPN Client (15)
• 150 Tunnels
• PPTP with MPPE Encryption

L2TP VPN

• L2TP VPN Server
• L2TP VPN Client (15)
• 150 Tunnels
• L2TP over IPSec

OpenVPN

• OpenVPN Server
• OpenVPN Client (11)
• 121 OpenVPN Tunnels
• "Certificate + Account" Mode
• Full Mode
