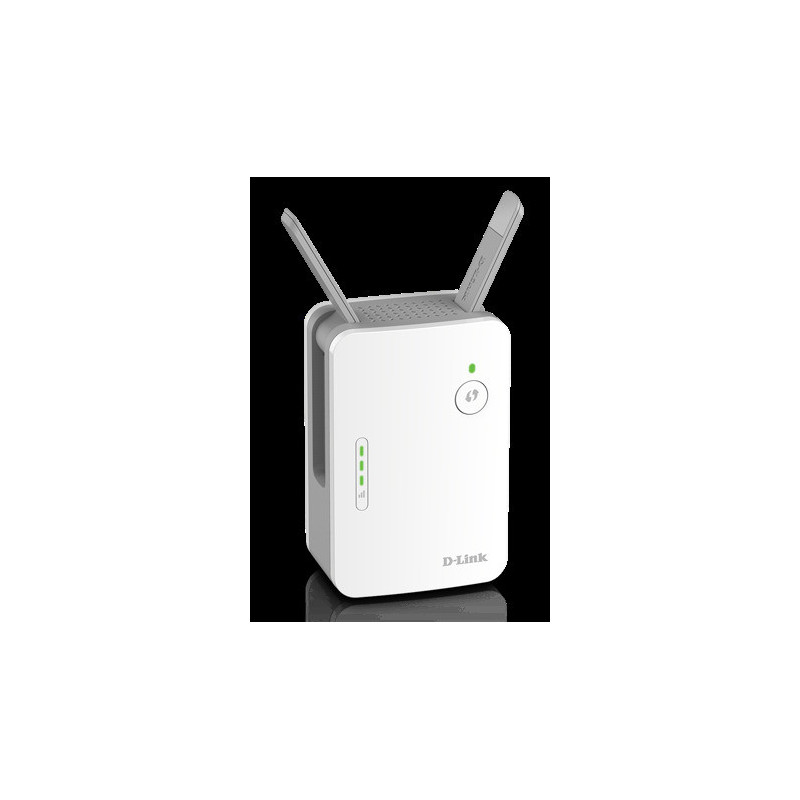

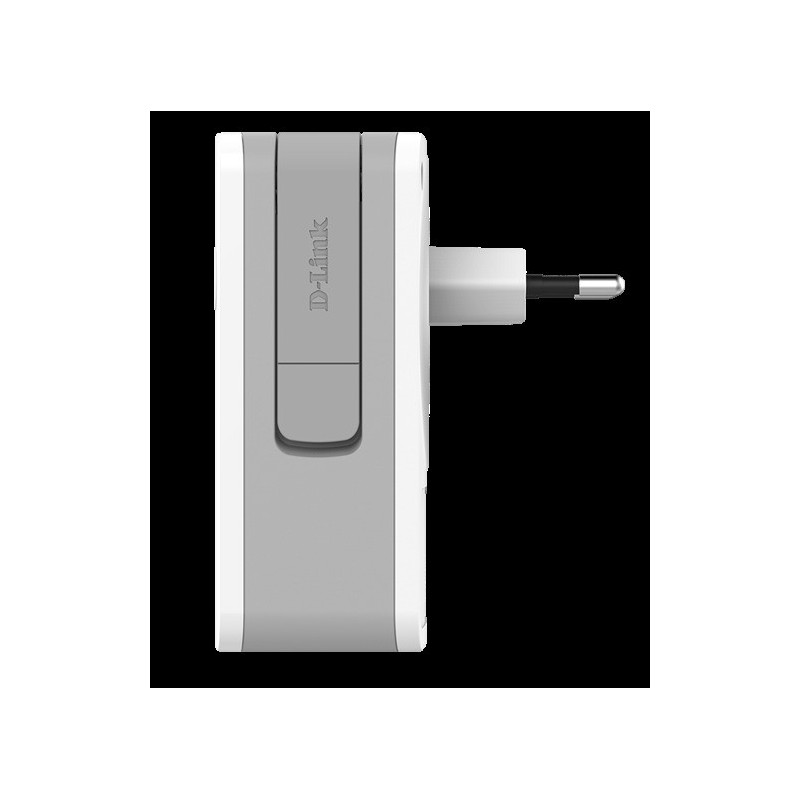

D-Link DAP-1620 Wireless AC1200 DB Range Extender

AC1200 Wi-Fi Range Extender/DAP-1620

Overview

The DAP-1620 AC1200 Wi-Fi Range Extender is a portable plug-in repeater that lets you extend an existing wireless network. You can place it anywhere in your home to increase the range of your wireless network. Tiny yet powerful, it supports Wireless AC speeds of up to 1200 Mbps, yet fits in the palm of your hand

Technical Specifications

Device Interfaces

• 802.11ac/n/g/b/a Wireless LAN

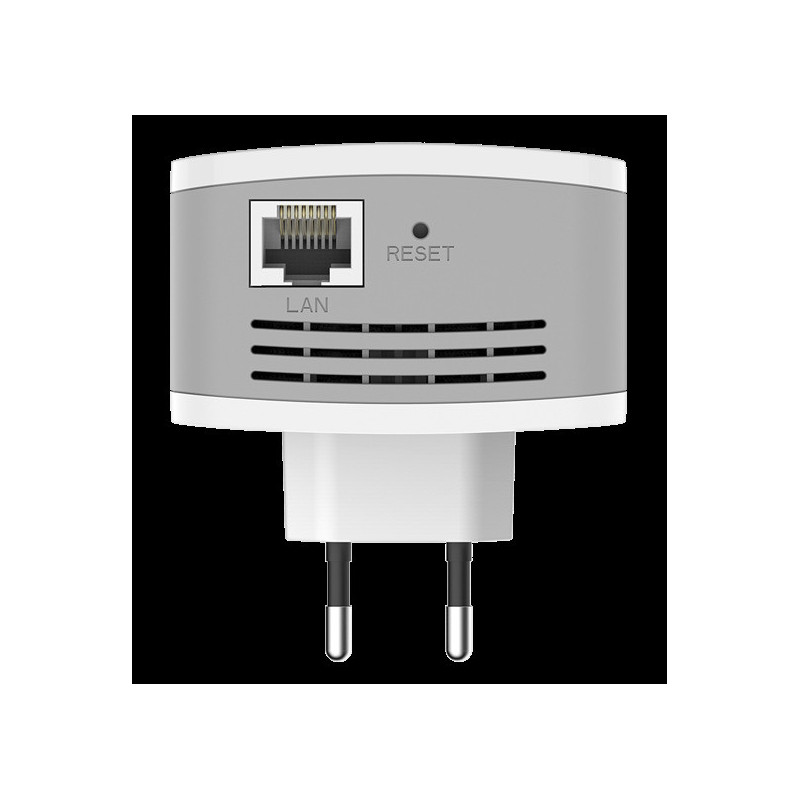

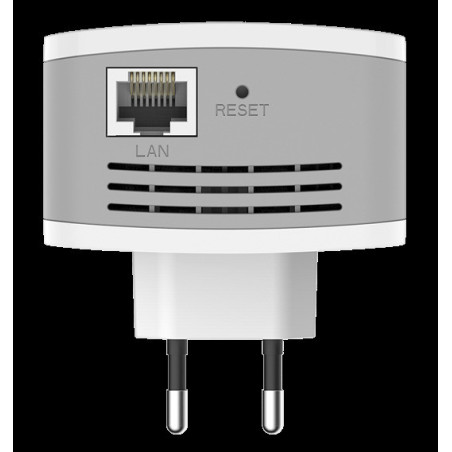

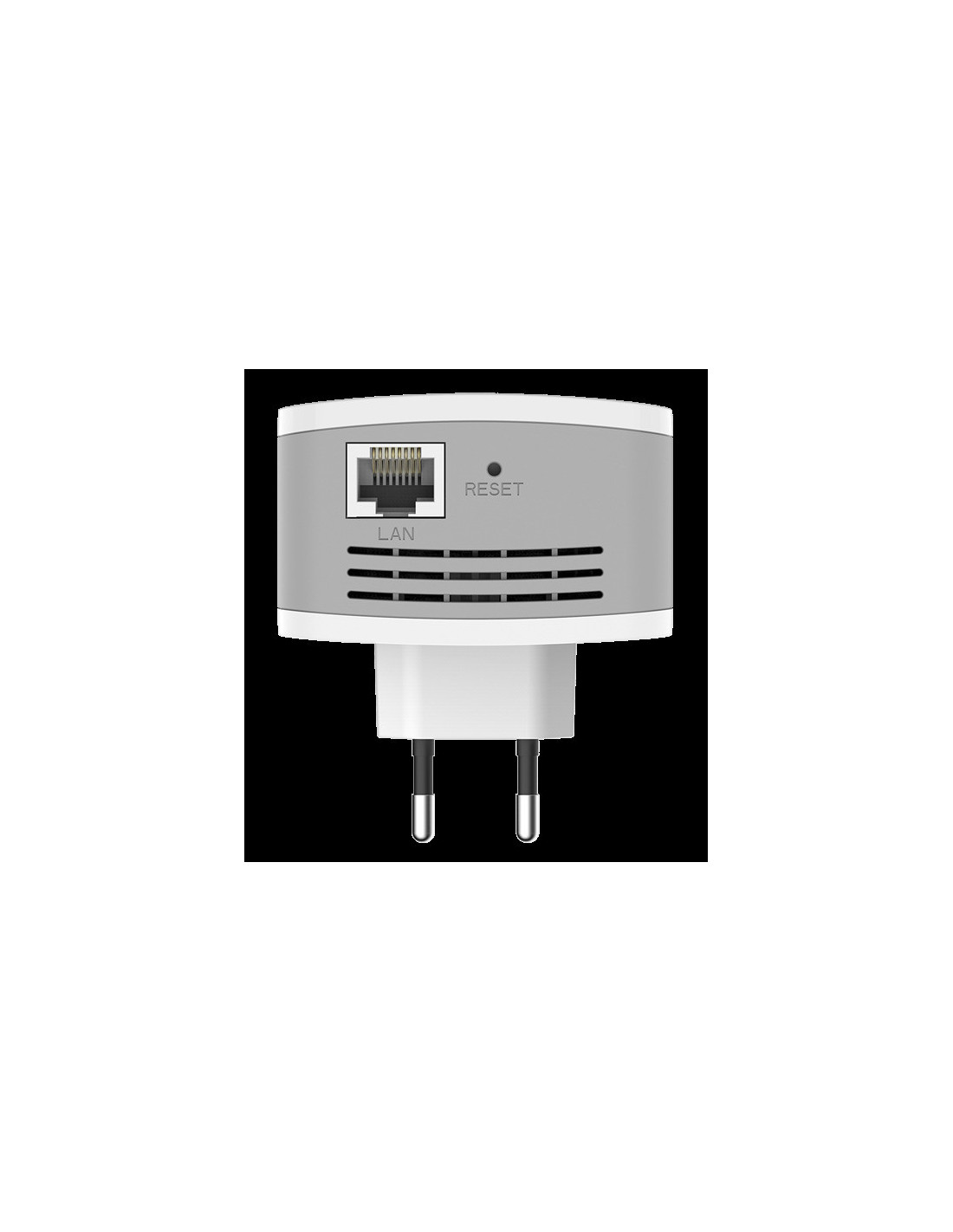

• 10/100/1000 Gigabit Ethernet Port
• Reset Button
• WPS Button

LEDs

• Status/WPS
• 3 Segment Wi-Fi Signal Strength Indicator

Standards

• IEEE 802.11ac
• IEEE 802.11n
• IEEE 802.11g
• IEEE 802.11b
• IEEE 802.11a
• IEEE 802.3ab

Antennas

• Two external antennas

Plug Type

• Region dependent

Functionality

Wireless Security

• Wi-Fi Protected Access (WPA/WPA2)
• WPS (PBC)

Advanced Features

• D-Link One-Touch Extender Setup

Device Management

• Supports QRS Mobile app for iPhone, iPad, iPod touch, and Android mobile devices
• Web UI

Physical

Dimensions

• 120 x 59 x 42 mm

Weight

• 139 grams (4.9 ounces)

Power

• Input: 110 to 240 V AC, 50/60 Hz

Temperature

• Operating: 0 to 40 °C
• Storage: -20 to 65 °C

Humidity

• Operating: 10% to 90% non-condensing
• Storage: 5% to 95% non-condensing

Certifications

• FCC
• IC
• CE
• C-Tick
• EMI/EMC
• UL
• Wi-Fi Certified
