MikroTik R11e-5HnD

OVERVIEW

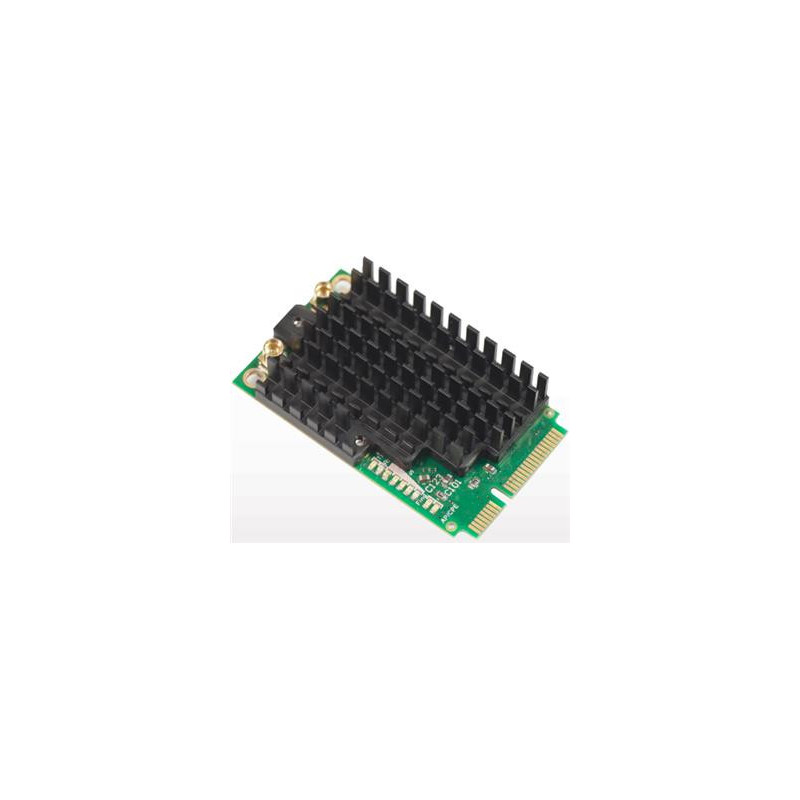

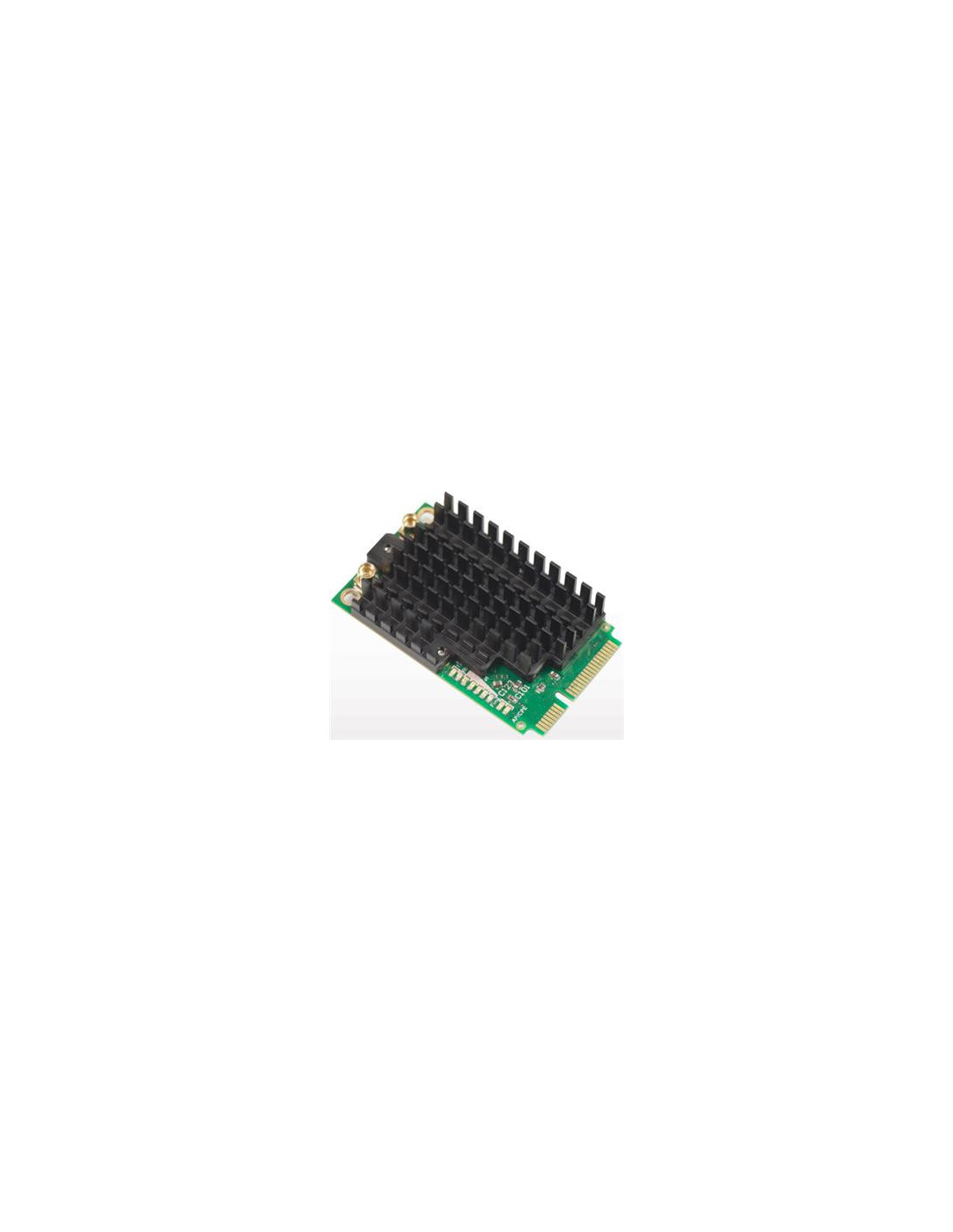

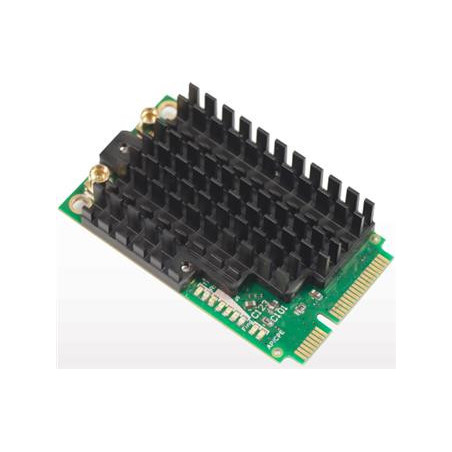

High power wireless cards in miniPCI-e format. Ideally suited for the new RB912 series, RB800 or our new miniPCIe adapter card - RB14e.

The card features built-in LED indicators for wireless mode, connection status (connected, searching, disabled), TX and RX activity and wireless signal strength - just looking at the card will help with installation and alignment.

SPECIFICATIONS

Chipset

• AR9580

Frequency range

• 4920-5920MHz

Standards

• 802.11a/n

Max output power

• 1000mW

Format

• miniPCIe

Dimensions

• 51x30x13mm

Connectors

• 2x MMCX

Features

• 9 LED indicators, ESD protection

Temperature

• Starting -5C to +65C;

• Operating -30C to +65C

MAX power consumption

• 5W

TX/RX at MCS0

• 30dBm / -96dBm

TX/RX at MCS7

• 24dBm / -76dBm

TX/RX at 6Mbit

• 30dBm / -96dBm

TX/RX at 54Mbit

• 24dBm / -76dBm
