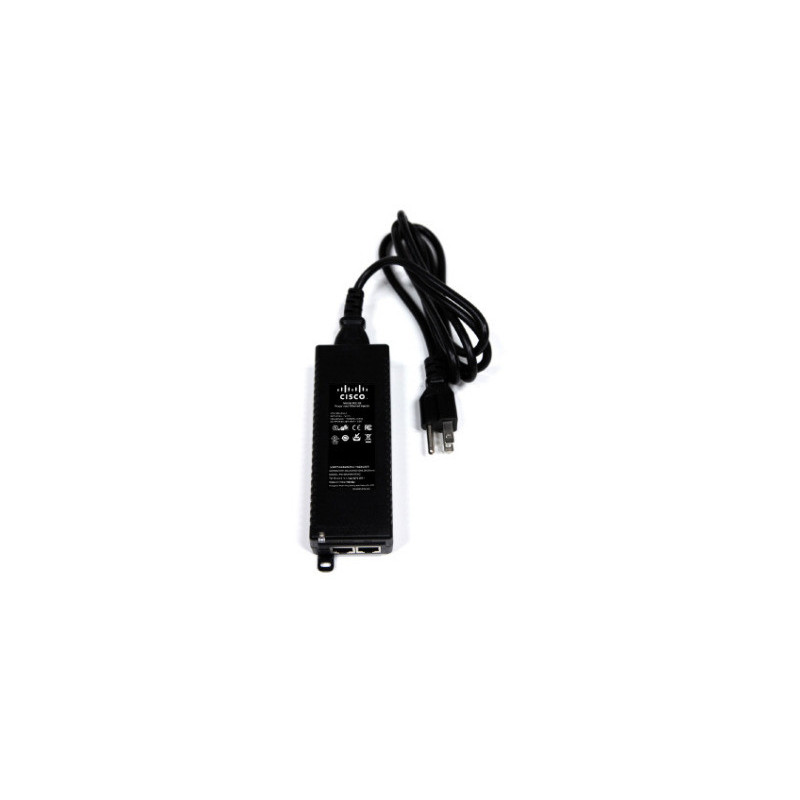

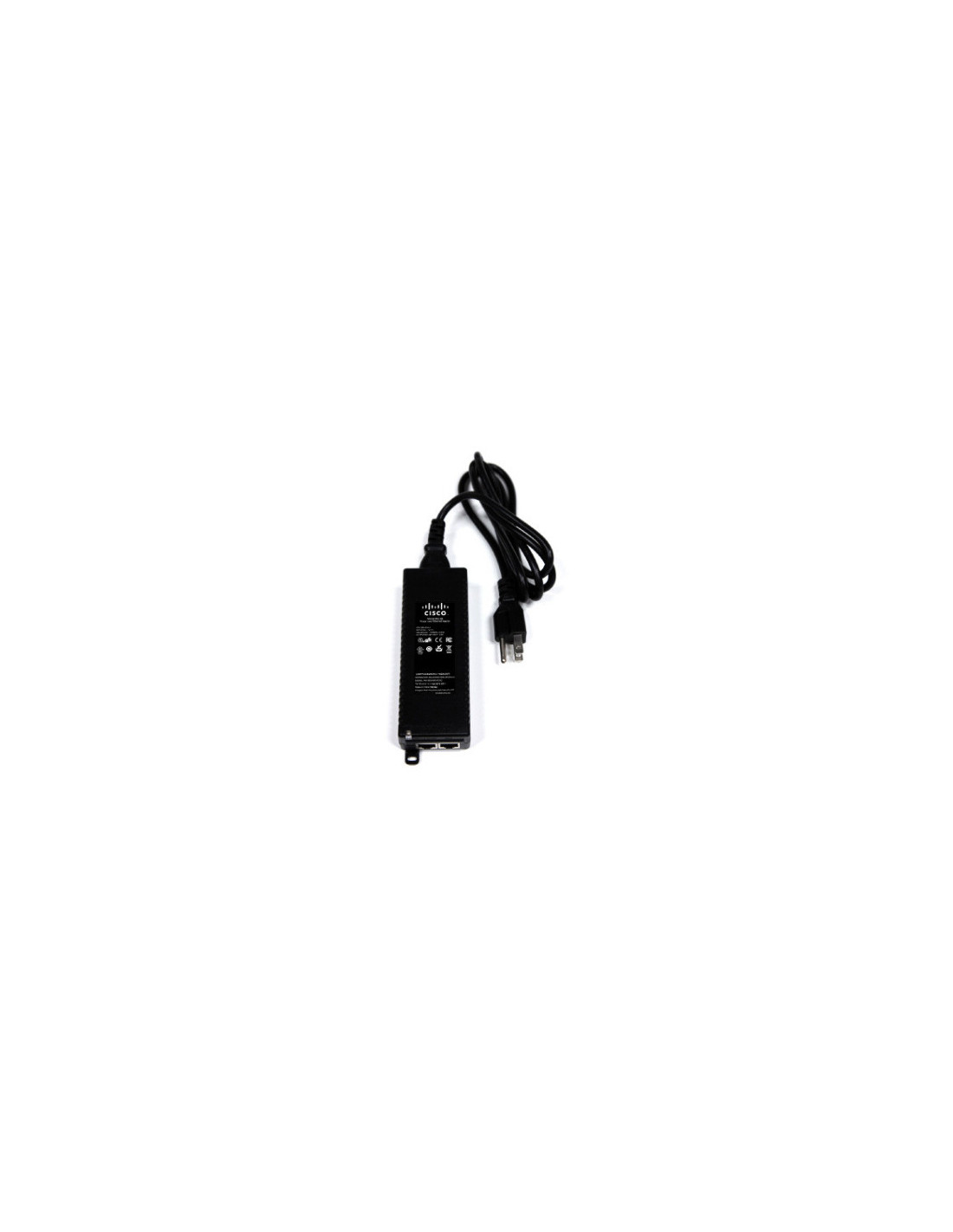

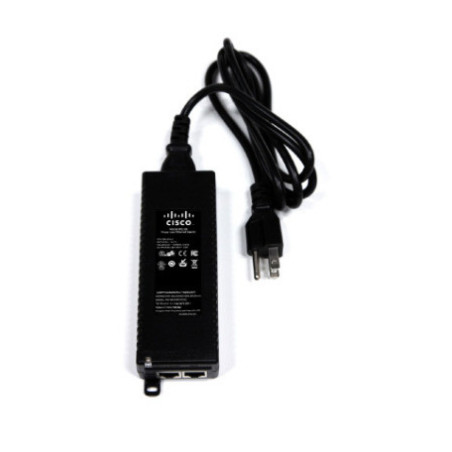

Cisco Meraki 802.3at PoE Injector

Power

· Input Voltage: 100 to 240 VAC

· Input Current: 0.8A maximum

· AC Input Frequency: 50-60 Hz

· Maximum Output Power: 30 W

· Powered device can be up to 100m away from power injector

Data

· Compatible with 10/100/1000 Mbit/s Ethernet, full duplex

Environmental

· Operating Temperature: (32 to 104°F (0 to 40°C)

· Storage Temperature: (-4 to 158°F (-20 to 70°C)

· Operating Humidity: 5 to 93%

Additional Features

· Short-circuit protection

Physical Dimensions

· 6.3” x 2.1” x 1.4” (160 mm x 52.5 mm x 35.5 mm)

· Weight: 0.46 lb (210 g)

Mounting

· Mounts to walls (anchors and screws not included)

Compatibility

· Complies with 802.3at standard

· Backward compatibility with 802.3af MR-series access points

LED Indicators

· Input Power

· Fault

· Detect/connected to valid 802.3at load
