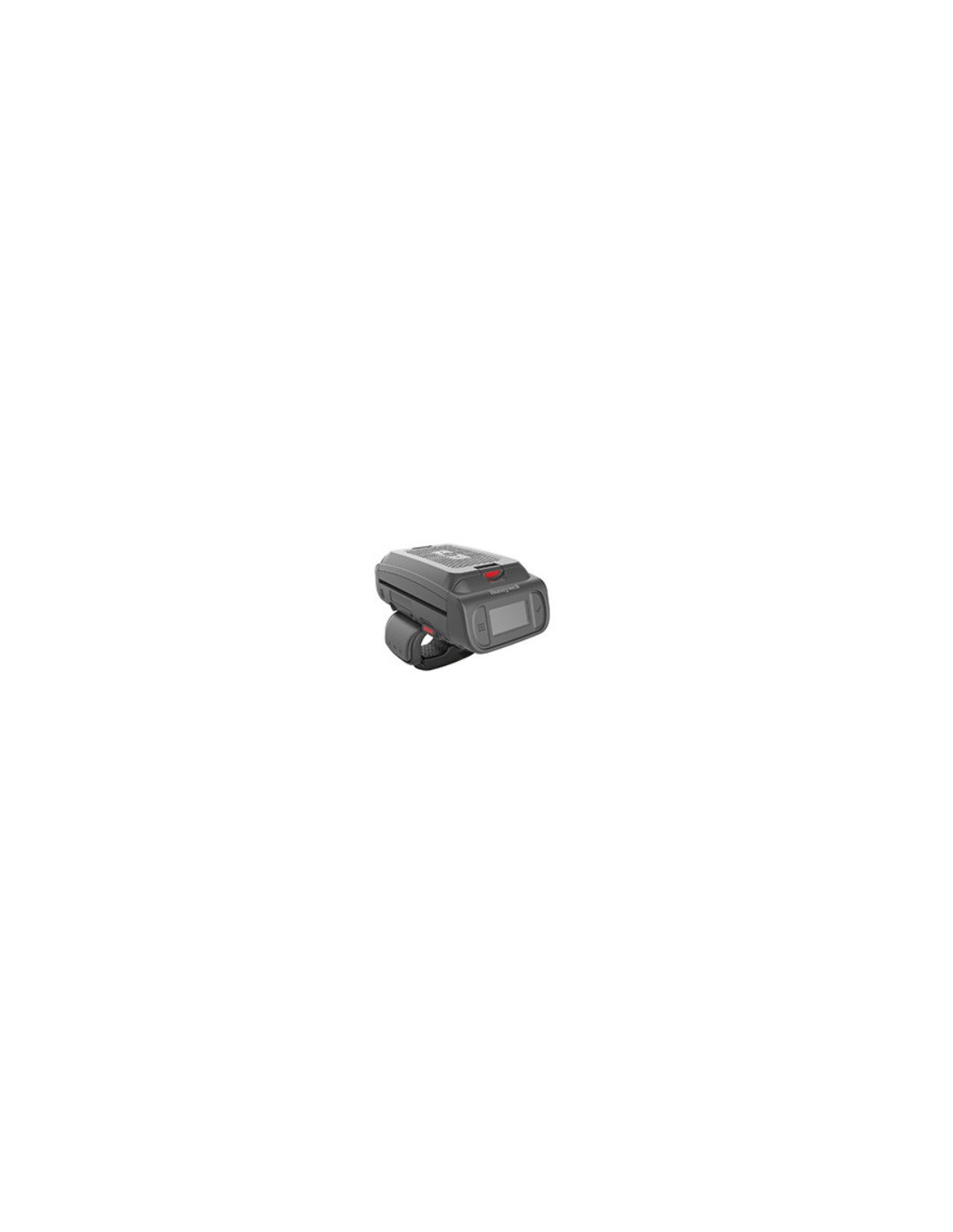

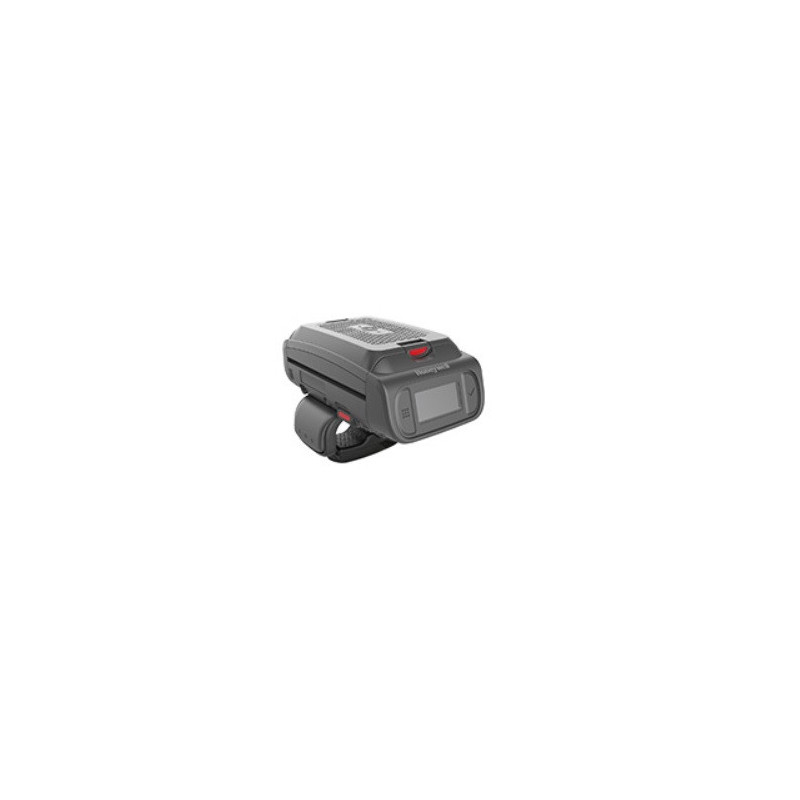

8690i Wearable Mini Mobile Computer - 2D, RFID, WiFi, battery, triggered ring, strap

RFID

Standards: EPC Global Class 1 Gen 2/ISO 18000-6C

Antenna:

Triggered ring:

• Field: Directed from top of device
• Polarization: Linear polarized

Glove:

• Field: Directed from inside of wrist
• Polarization: Linear polarized

Frequency Ranges:

• EU: 865-868 MHz
• US: 902-928 MHz

Nominal Read Range:

• Internal antenna: 0.6m (2 ft)
• Glove auxiliary antenna: 1m (3.3 ft)

Nominal Write Range:

• Internal antenna: 0.3m (1 ft)
• Glove auxiliary antenna: 0.5m (1.6 ft)

Output Power: Internal/external max 25dBm

MECHANICAL

Dimensions (L x W x H): 95.7 mm x 56 mm x 39.4 mm (3.8 in x 2.2 in x 1.6 in)

Weight (Triggered Ring): 211g (7.4 oz)

Scan Performance:

• Scan Pattern: Omni-directional area imager
• Motion Tolerance: Up to 584 cm (230 in)/second
• Symbol Contrast: 20% minimum reflectance
• Pitch: ±45°
• Skew: ±60°

Warranty: Two-year factory warranty (Note: Battery warranty is one year.)

ENVIRONMENTAL

Operating Temperature: -20°C to 50°C (-4°F to 122°F)

Storage Temperature: -20°C to 60°C (-4°F to 14 0 °F )

Humidity: 0% to 95% relative humidity (non- condensing)

Drop: 36 1.5 m (4.9 ft) drops to concrete

Tumble: 2,000 0.5 meter (1.6 ft) tumbles

Environmental Sealing: IP54

Light Levels: 0 to 100,000 lux

ESD: ±20 kV air discharge, ±10 kV contact discharge

WIRELESS

Radio Range:

• Bluetooth: 2.4 GHz to 2.5 GHz (ISM Band) Adaptive Frequency Hopping Bluetooth® v. 5.0: Class 1; 100 m (330ft) line of sight; NFC communications to simplify pairing with host device
• Advanced Model Wi-Fi: Bluetooth above plus Wi-Fi 802.11 a/b/g/n/ac, WiFi-r fast roaming, 2.4 and 5 GHz

Security Standards: WPA, WPA2, WEP, WPA2 E AP (TLS, T TLS, PE AP GTC and PEAP MSCHAPv2)

Connection: Connection, Auto-reconnect, Intra Profile connection (roaming), Hidden and Broadcast SSIDs

Soft Roaming: Simple and learned, across bands (all combinations of 2.4 GHz and 5 GHz), DFS Channels and 802.11 modes

Opportunistic Key Caching (OKC)

Battery: 3.6 V, 3400 mAh

Hours of operation: Minimum 6 hour active shift with continuous RFID reading and optical scanning every 4 seconds

Hot Swap Capability: Under typical conditions, device will remain operational for 100 seconds while replacing battery

Expected Charge Time:

• Battery charger: 3 hours

Device charger: 3.5 hours
