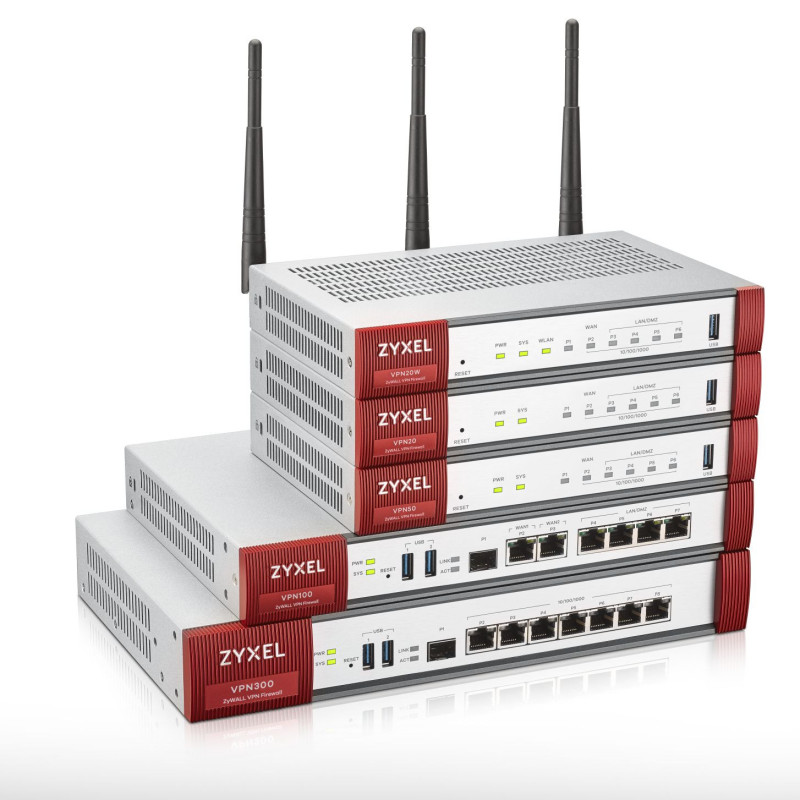

ZYXEL VPN Firewall VPN100

Zyxel VPN Firewall Appliance 6 GE Copper/1 SFP, 2000 Mbit/S Firewall Throughput, 100 Ipsec VPN Tunnels

Hardware Specifications

Interfaces 4 x LAN/DMZ, 2 x WAN, 1 x SFP

USB3.0 ports 2

Console port Yes (DB9)

Rack-mountable Yes

Ticket printer support*1 Yes (SP350E)

Support printer quantity (max.) 10

System Capacity & Performance*2

SPI firewall throughput (Mbps)*3 2,000

VPN throughput (Mbps)*4 500

Concurrent devices (default/max.)*5*6 200 / 300

Max. TCP concurrent sessions*7 800,000

Max. concurrent IPsec VPN tunnels *8 100

Concurrent SSL VPN users (default/max.)*6 10 / 100

VLAN interface 16

WLAN Management

AP controller (APC) support YES

Managed AP number (default/max.) *6 4 / 68

Key Features

SSL (HTTPS) inspection Yes

Content filtering (CF 2.0) *9 Yes

EZ Mode -

Device HA Pro Yes

Amazon VPC Yes

Facebook Wi-Fi Yes

Hotspot Management *6 Yes

SecuDeployer (Client / Server*6) Yes / Yes

Power Requirements

Power input 12V DC, 2.5A max.

Max. power consumption (watt) 13.3

Physical Specifications

Item dimensions (WxDxH) (mm/in.) 272 x 187 x 36/10.7 x 7.36 x 1.42

Item weight (kg/lb.) 1.4/3.09

Packing dimensions (WxDxH) (mm/in.) 427 x 247x 73/16.81 x9.72 x 2.87

Packing weight (kg/lb.) 2.23 (W/O breacket) 2.42 (W/ breacket)

Included accessories * Power adapter * Rack mounting kit (optional, by regions)

Environmental Specifications

Operating Temperature 0O C to 40O C / 32OF to 104OF

Operating Humidity 10% to 90% (non-condensing)

Storage Temperature - 30O C to 70O C / - 22OF to 158OF

Storage Humidity 10% to 90% (non-condensing)

MTBF (hr) 529688.2

Certifications

EMC FCC Part 15 (Class A), CE EMC (Class A), C-Tick (Class A), BSMI

Safety LVD (EN60950-1), BSMI
