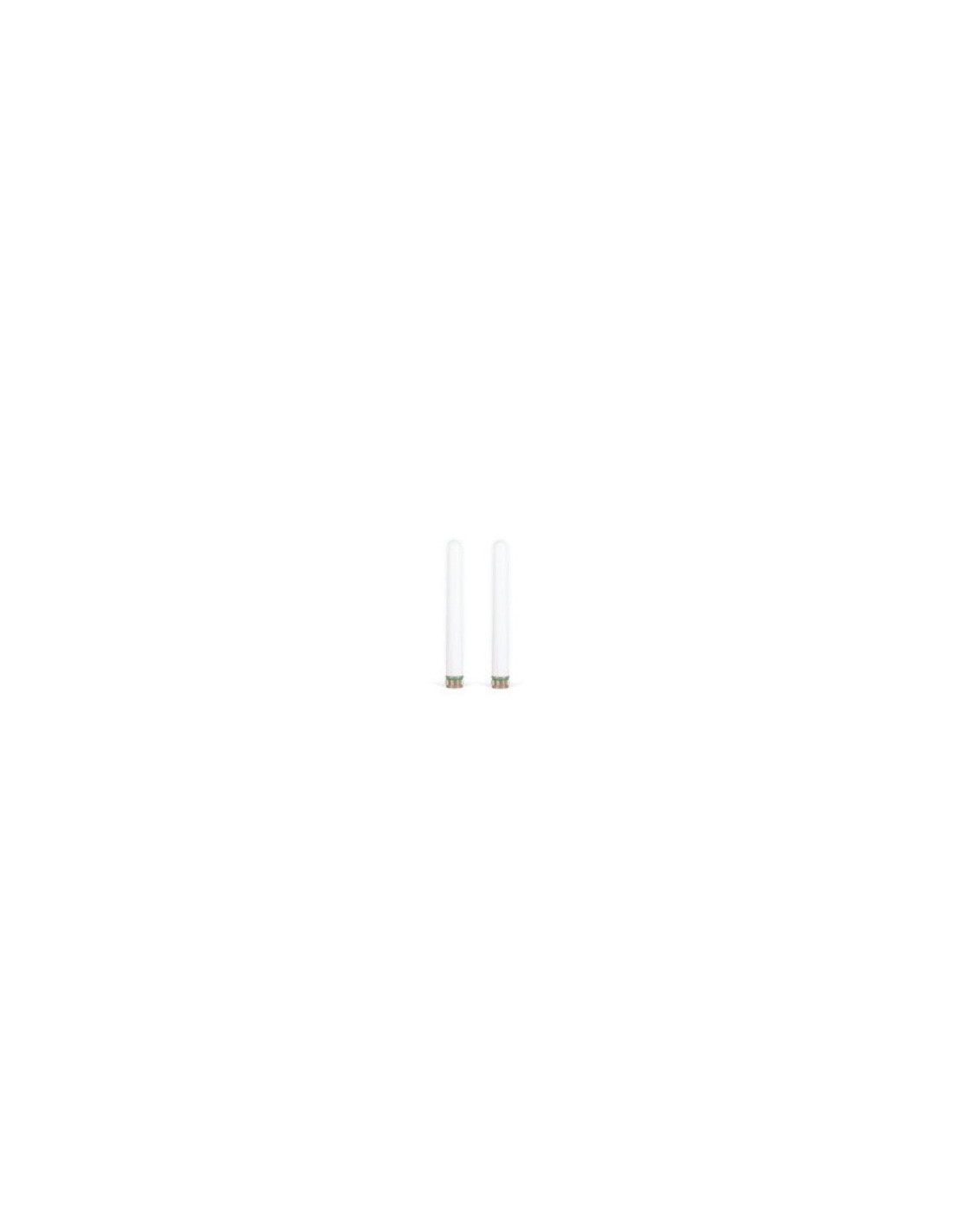

Cisco Meraki Dual-band Omni Antennas

Electrical

• Antenna type: omni-directional

• Frequency range: (2 GHz): 2.400 - 2.500 ghz

• Frequency range: (5 GHz): 5.150 - 5.875 ghz

• Gain: 4 dbi

• Gain: 7 dbi

• Polarization: vertical (linear)

• Half power bandwidth / horizontal: 360°

• Half power bandwidth / vertical: 45°

Physical & Environmental

• Dimensions: 1.0" x 7.1" (25 mm x 180 mm)

• Weight: 0.17 lbs (79 g)

• Material: ABS plastic

• Temperature: -40° F to 158° F (-40° C to 70° C)

• Connector: N-type

Mounting

• Directly to unit (no cable required)

Box Contents

• Two Cisco Meraki MA-ANT-20 antennas

Regulatory

• Certified for use with the MR58, MR62, MR66, and MR72
