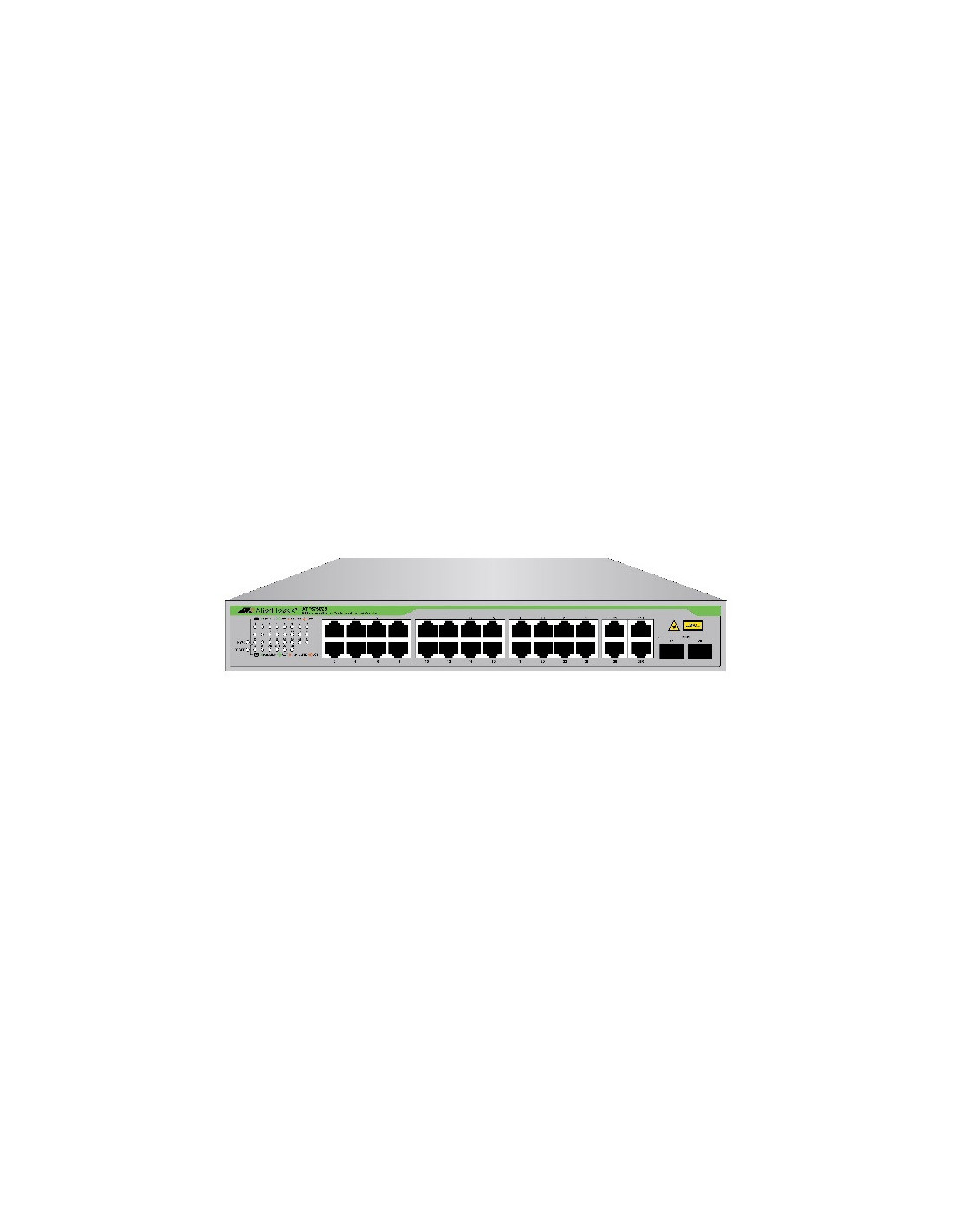

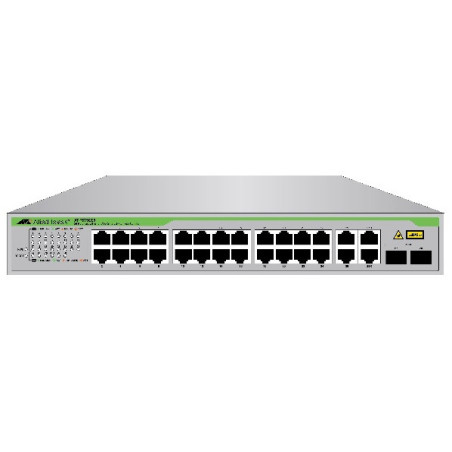

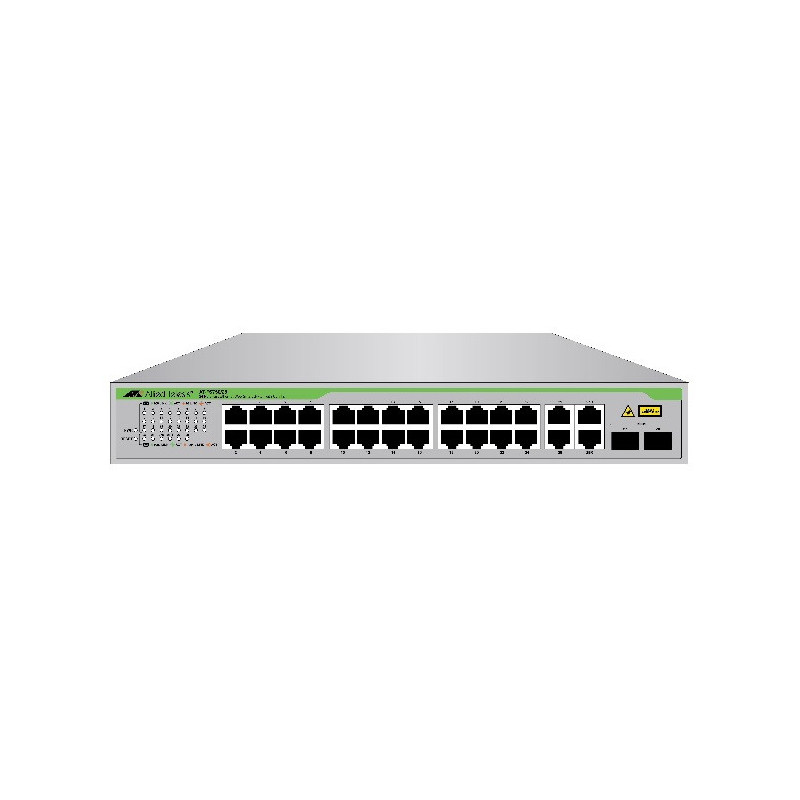

Allied Telesis 24xFE smart+2xGb+2SFP AT-FS750 28

AT-FS750/28: 24-port 10/100TX + 2 10/100/1000T + 2 SFP/1000T Combo Ports

OVERVIEW

These advanced Allied Telesis WebSmart switches integrate the simplicity of unmanaged switches with the performance and reliability of managed switches to provide a cost-effective, yet secure and reliable, solution for users to integrate management at the edge of their networks. With user-friendly web-based management, the FS750 Series is an ideal option for integrating simple management and security into a network solution.

TECHNICAL SPECS

VLAN

• IEEE 802.1Q tagged
• Port-based
• Up to 256 groups

Quality of Service Classification

• IEEE 802.1p tagging
• Port-based priority
• Four priority queues per port

IP Multicast Support (IPv4)

• IGMP snooping (v1/v2)
• Static multicast group (up to 256)
• Spanning-Tree, IEEE 802.1d/w/s

IEEE 802.3ad Link Aggregation

IEEE 802.1x Port-based and MAC-based

• Network Access Control
• Local authentication server (MD5 only)
• Remote authentication through RADIUS
• Dynamic VLAN assignment

RADIUS Client

DHCP Client

DHCP Snooping

Statistics Charts in Web

Jumbo Frames - up to 10K

Others

• IEEE 802.3x flow control or HOL (†) blocking prevention († when flow control is off)
• Port mirroring
• Destination MAC filtering
• Ingress/egress rate limiting
• Broadcast storming control
• 100/1000 SFP supported

Management Features

• Web-based configuration
• Discovery support
• SNMP trap view
• LLDP
• Firmware upgrade by FTP and HTTP
• Configuration backup/restore by FTP and HTTP
• Factory reset
• Password access control and restricted IP access
• List
• SNMPv1/v2c/v3
• Management IP: DHCP client for Web
• Management and static IP setting
• Syslog support
• System time configuration (SNTP, manual)

MIBs

• RFC 1213 MIB-II
• RFC 1643 Ethernet MIB
• RFC 1493 Bridge MIB
• RFC 2131 DHCP client
• Private Enterprise MIB (Allied Telesis provides the spec)

RMON Groups (1, 2, 3, 9)

• Stats
• History
• Alarms
• Events

ACL

• 200 entries (shared)
