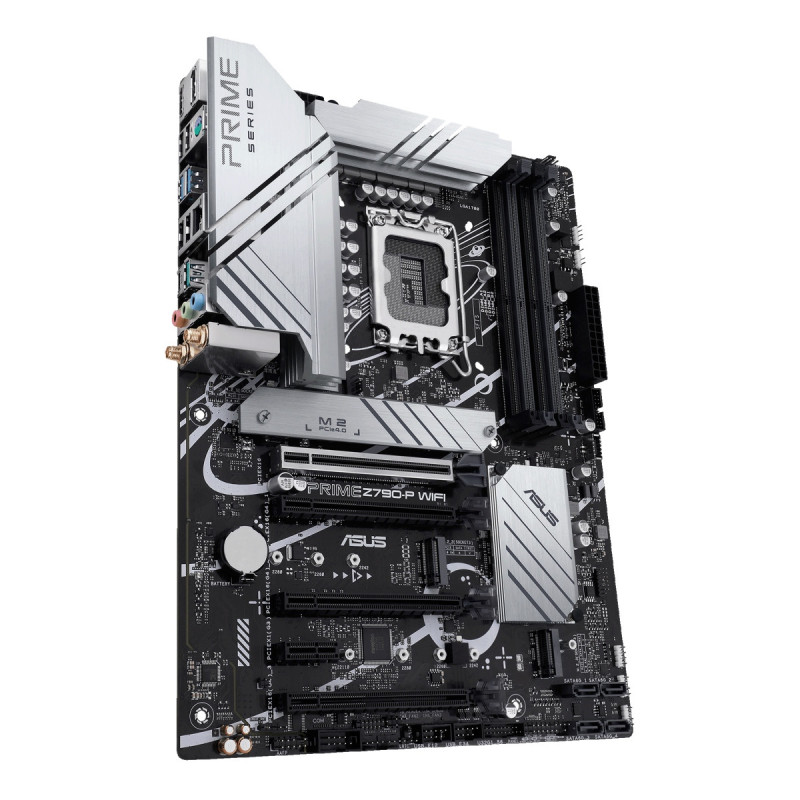

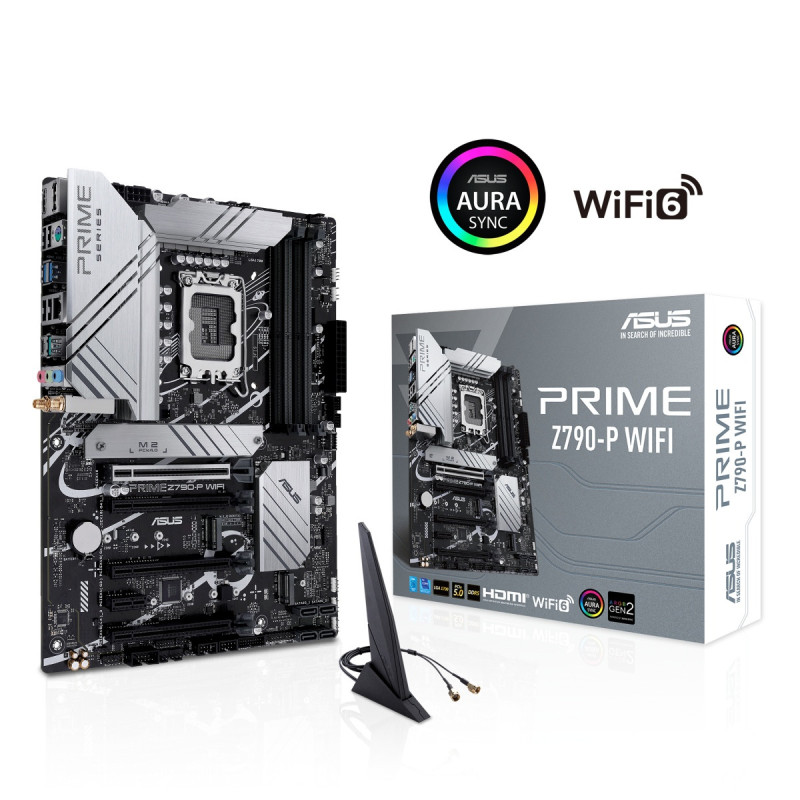

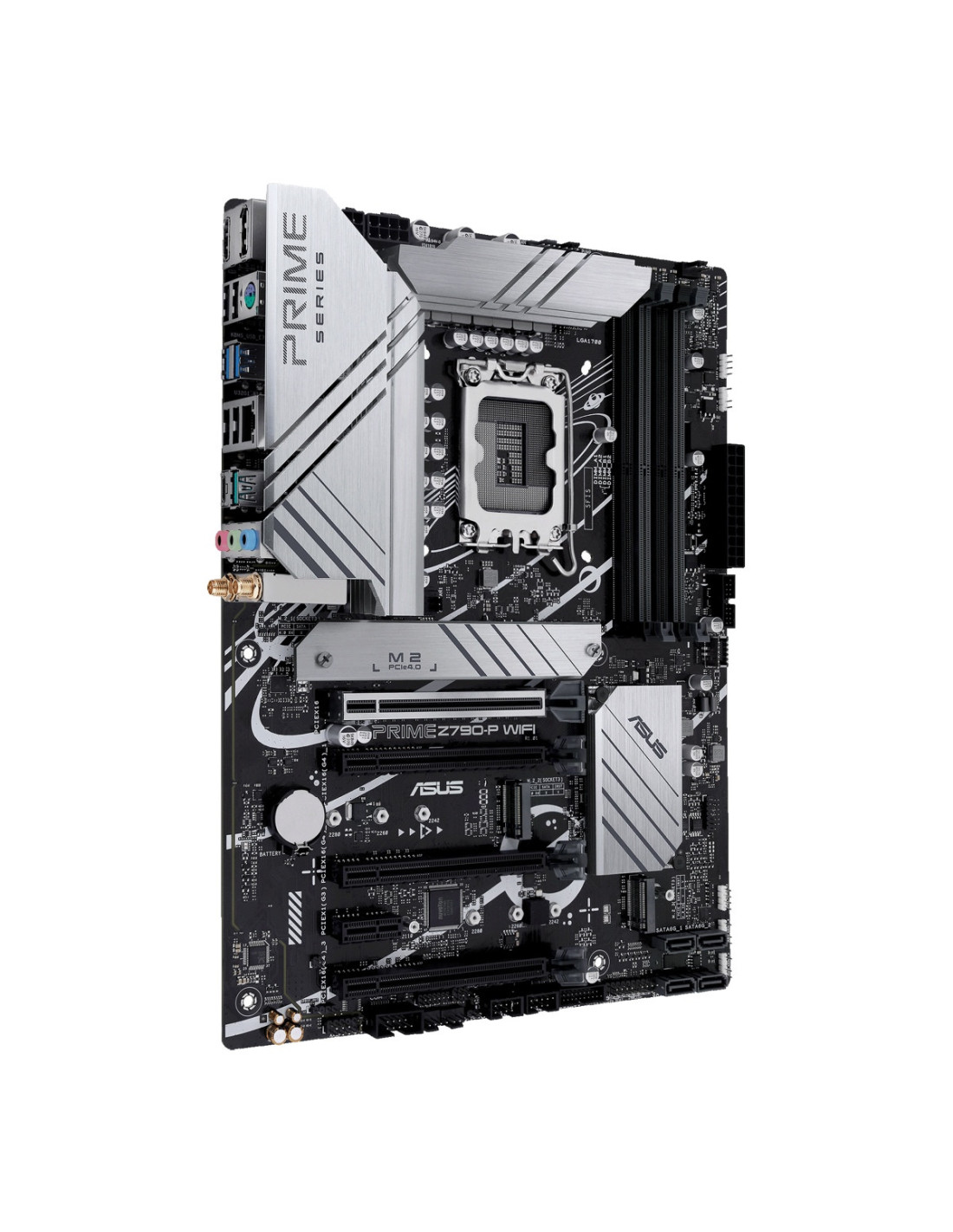

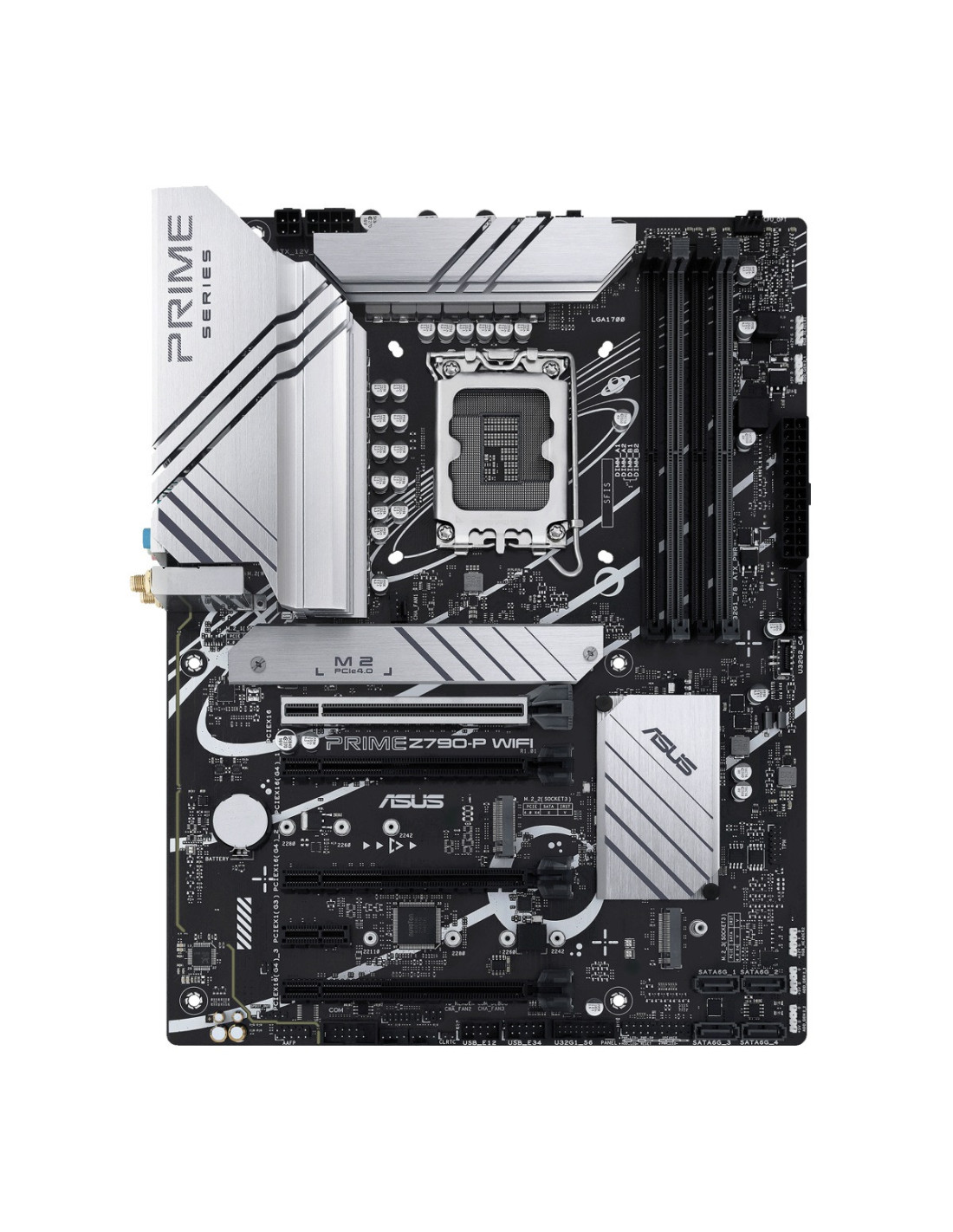

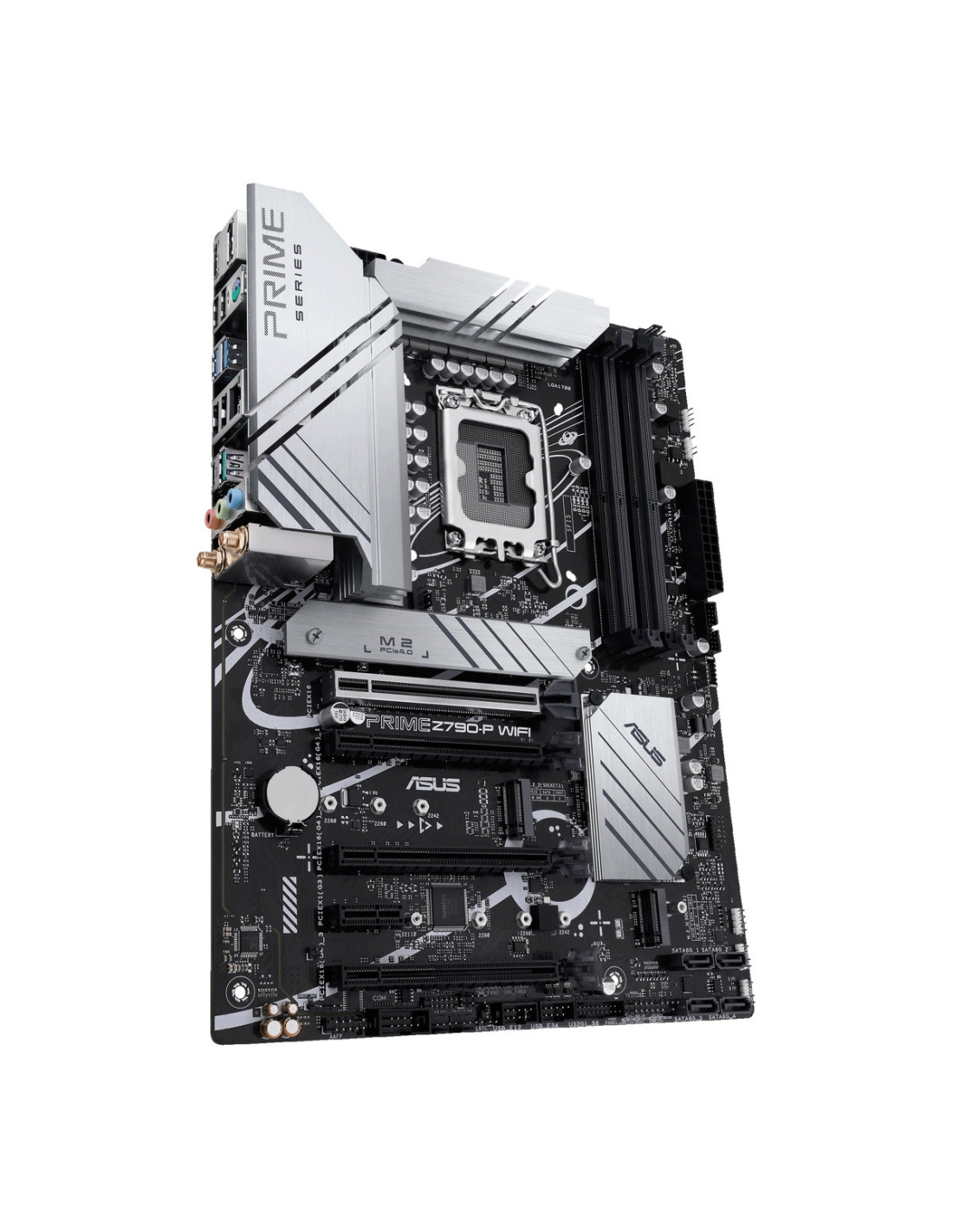

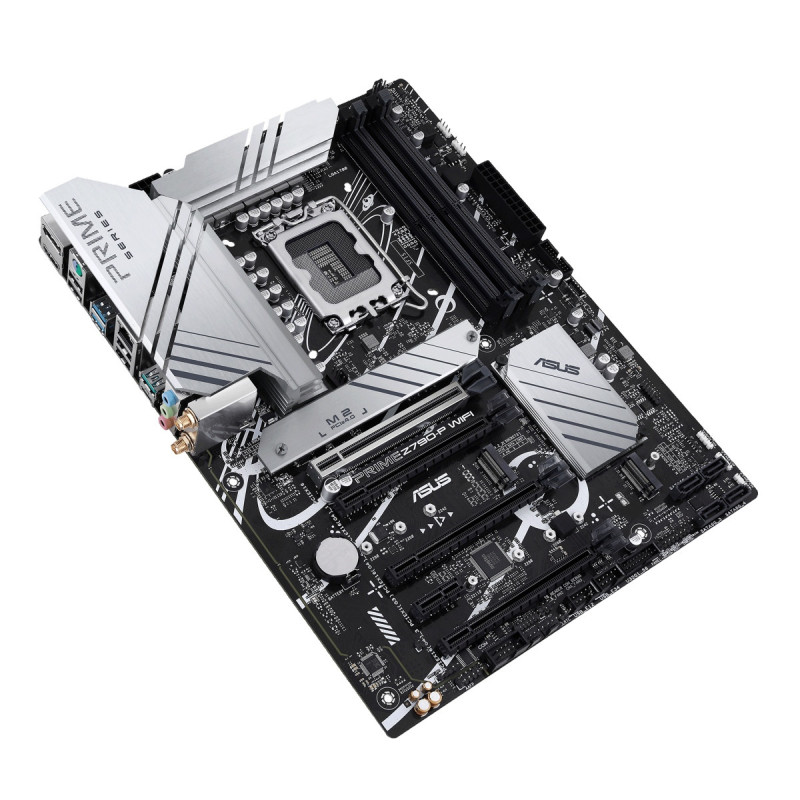

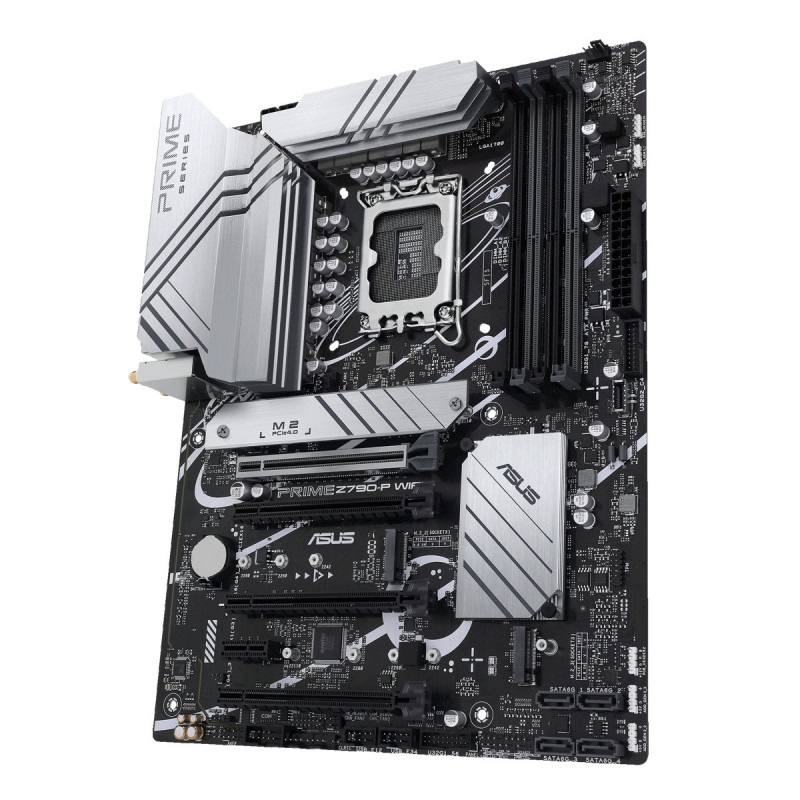

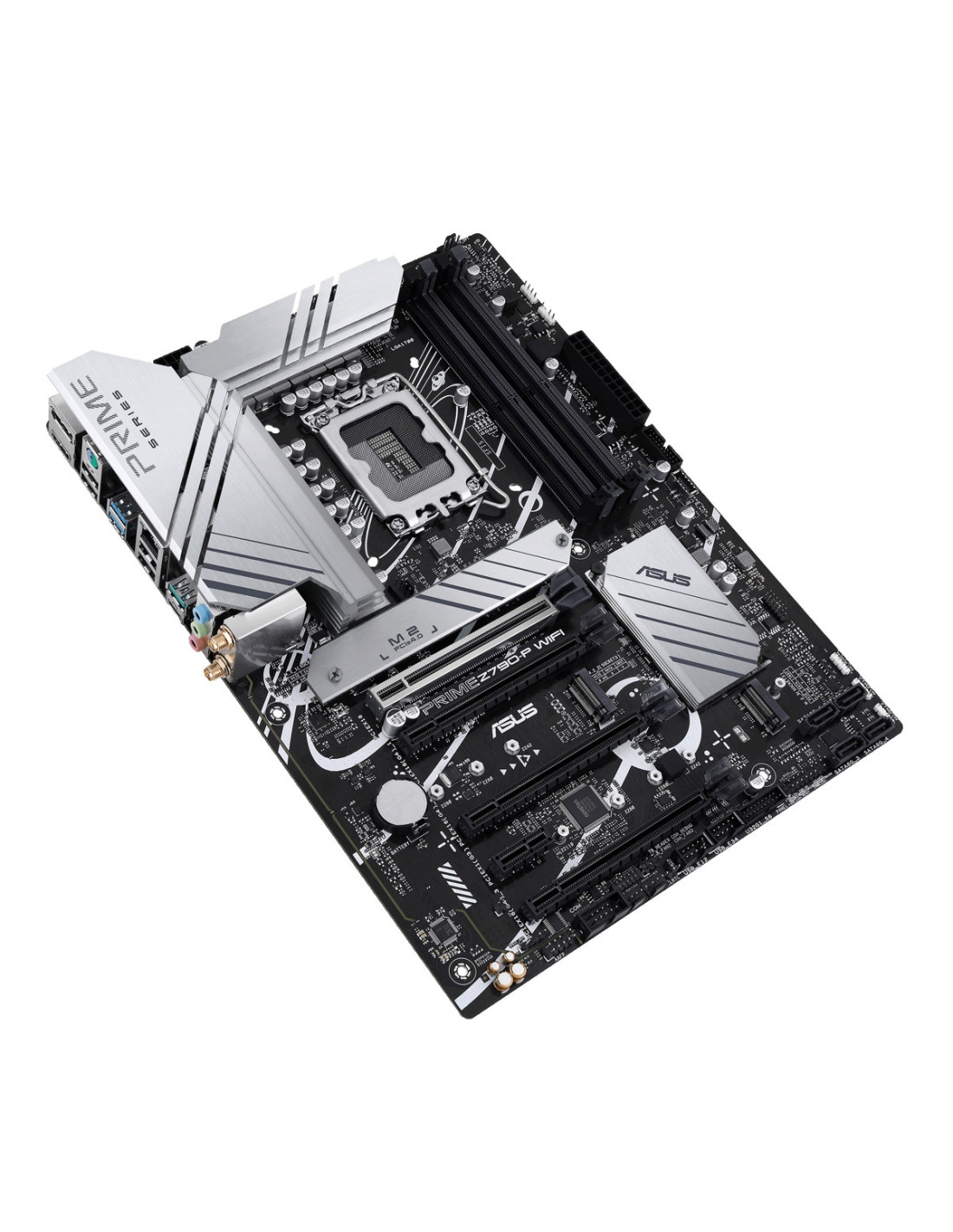

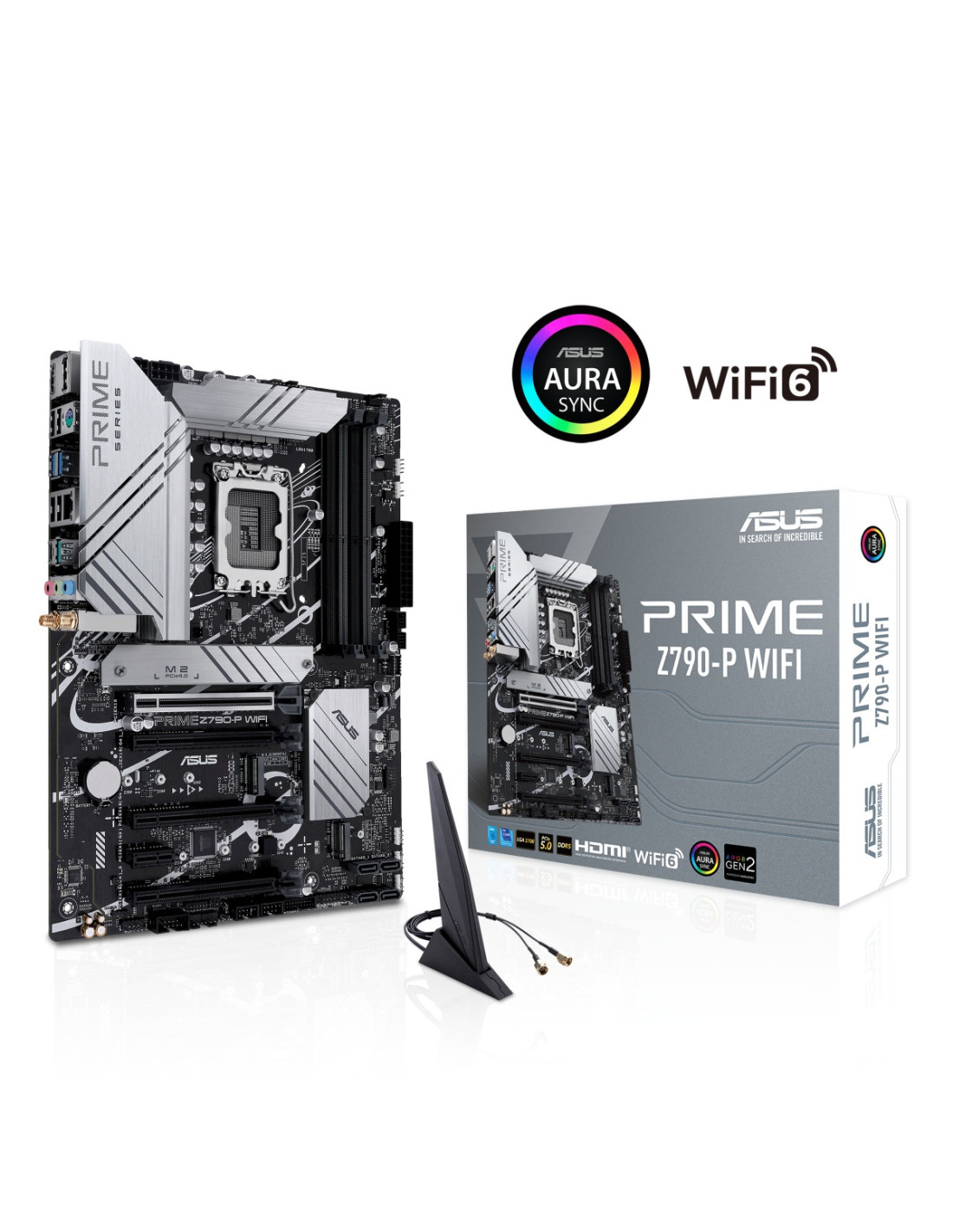

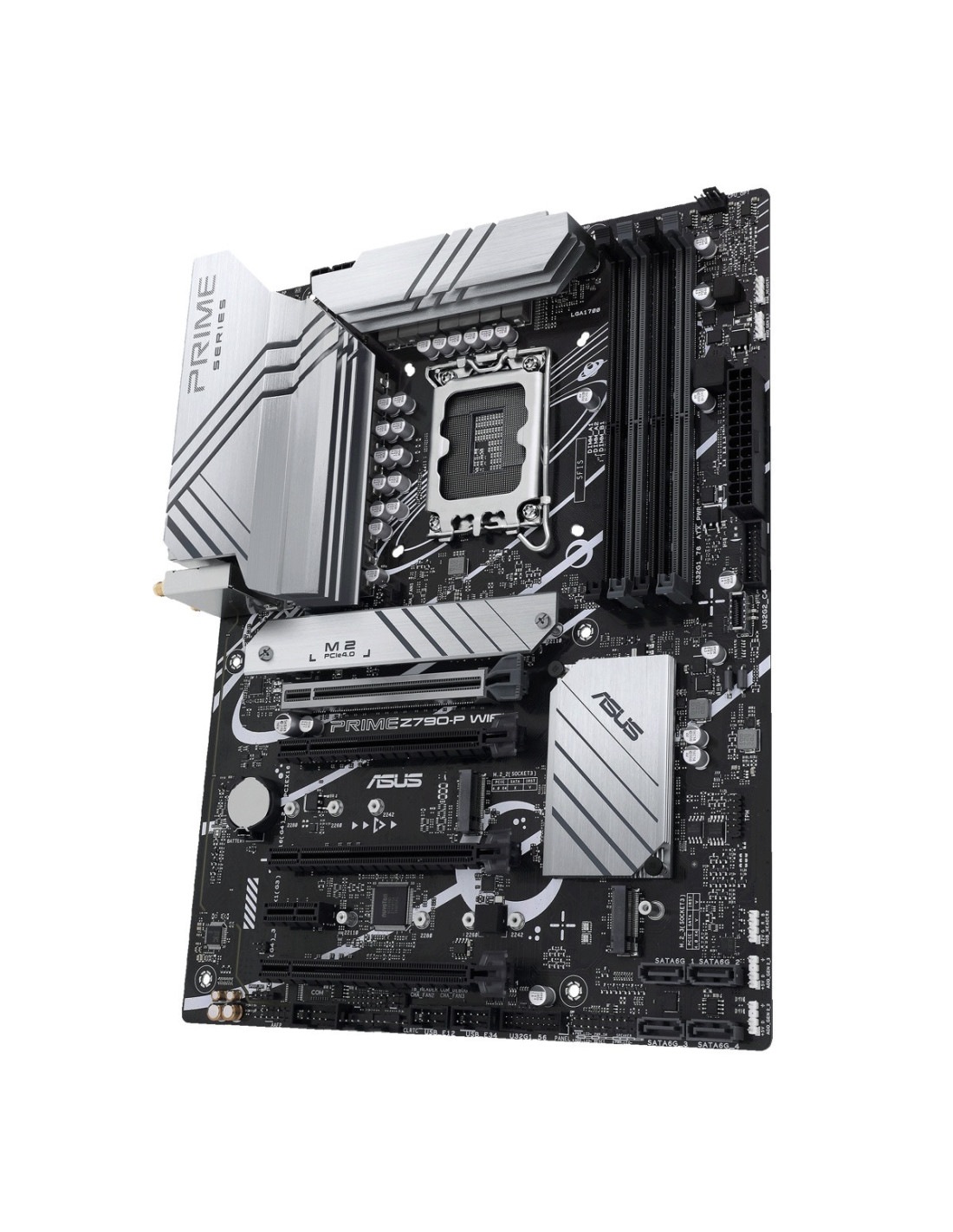

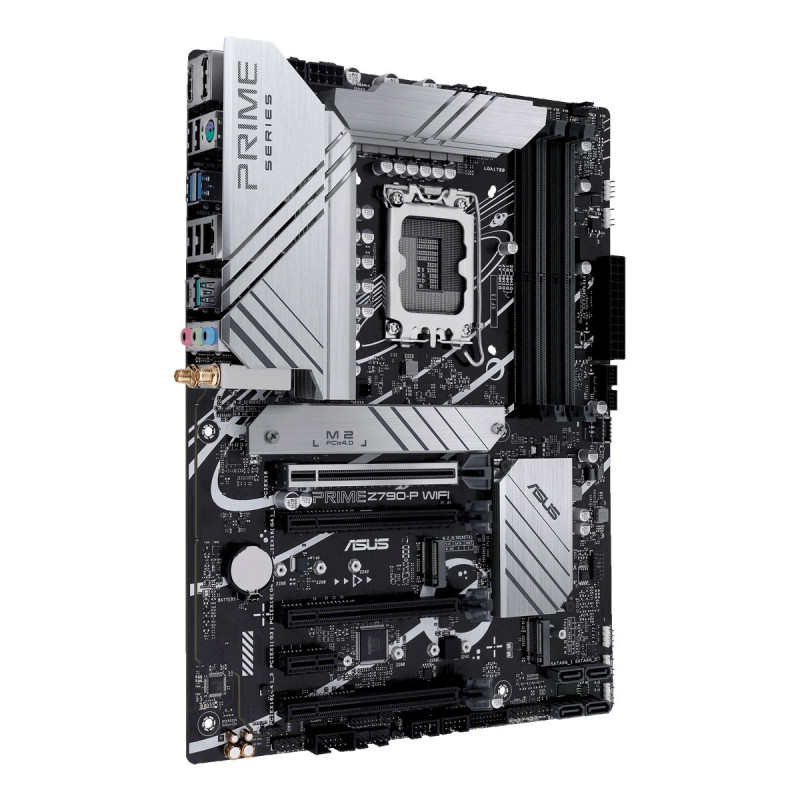

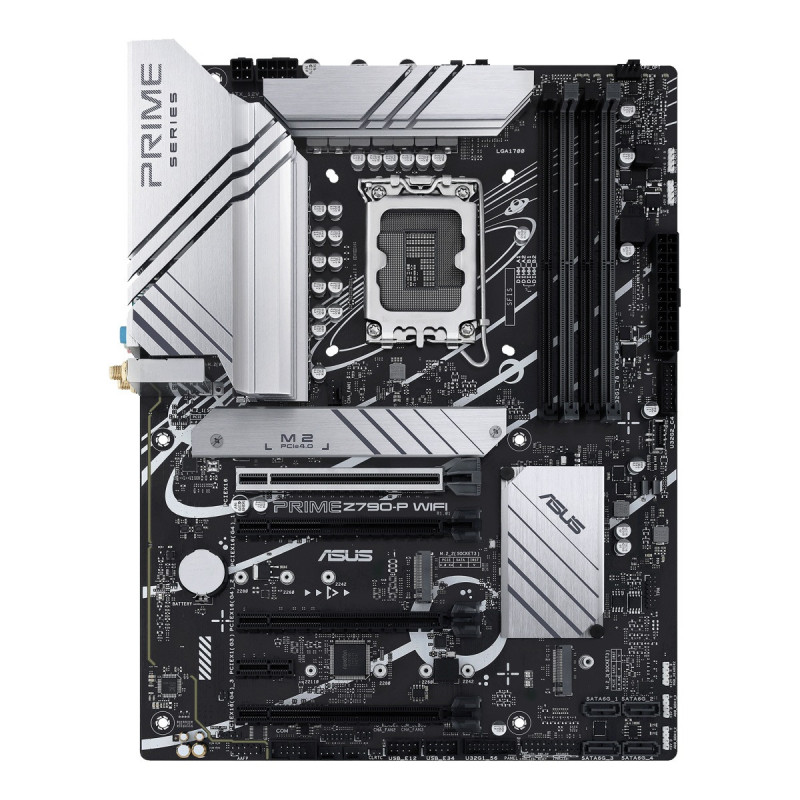

ASUS PRIME Z790-P WIFI LGA 1700 ATX

Chipset: Intel Z790

Rozměrový formát: ATX

Podpora pro procesory: 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors

Pozice na paměti: 4 x DIMM

Podpora pro paměti:

• 4 x DIMM
• Max. 128GB
• DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800

/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory

• Dual Channel Memory Architecture
• Supports Intel Extreme Memory Profile (XMP)
• OptiMem II

Max. velikost operační paměti: 128 GB

Grafické výstupy: ne (1x DisplayPort + 1x HDMI port)

Zvuková karta:

• Realtek 7.1 Surround Sound High Definition Audio CODEC

Síťová karta:

• 1 x Realtek 2.5Gb Ethernet
• Wi-Fi 6
• 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5GHz frequency band
• Bluetooth v5.2

Rozšiřujicí sloty:

Intel 13th & 12th Gen Processors

• 1 x PCIe 5.0 x16 slot

Intel Z790 Chipset

• 3 x PCIe 4.0 x16 slots (support x4 mode)
• 1 x PCIe 3.0 x1 slot

RAID řadič: PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10

SATA:

• 4 x SATA 6Gb/s ports

M.2:

Intel 13th & 12th Gen Processors

• M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

Intel Z790 Chipset

• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

USB: zadní USB - celkem 8, přední USB - celkem 9

ZADNÍ

• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
• 1 x USB 3.2 Gen 2 port (1 x Type-A)
• 2 x USB 3.2 Gen 1 ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)

PŘEDNÍ

• 1 x USB 3.2 Gen 2 connector (supports USB Type-C)
• 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Interní porty:

Fan and Cooling related

• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 3 x 4-pin Chassis Fan headers

Power related

• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• 1 x 4-pin +12V Power connector

Storage related

• 3 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports

USB

• 1 x USB 3.2 Gen 2 connector (supports USB Type-C)
• 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

• 3 x Addressable Gen 2 headers
• 2 x Aura RGB headers
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x S/PDIF Out header
• 1 x SPI TPM header (14-1pin)
• 1 x 20-5pin System Panel header
• 1 x Thunderbolt (USB4) Header

Externí porty:

• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
• 1 x USB 3.2 Gen 2 port (1 x Type-A)
• 2 x USB 3.2 Gen 1 ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x DisplayPort
• 1 x HDMI port
• 1 x Wi-Fi Module
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks
• 1 x PS/2 Keyboard/Mouse combo port

BIOS: 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
