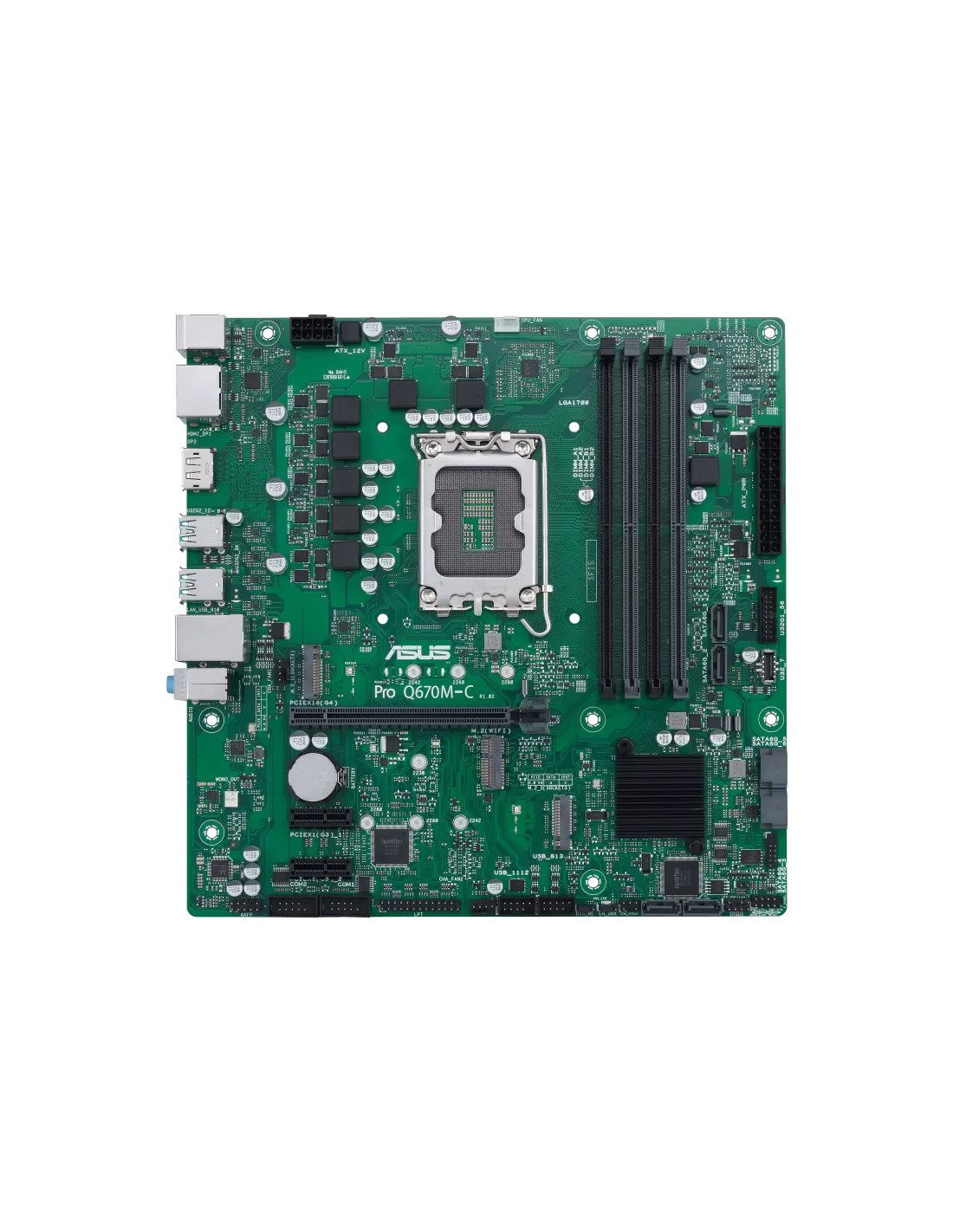

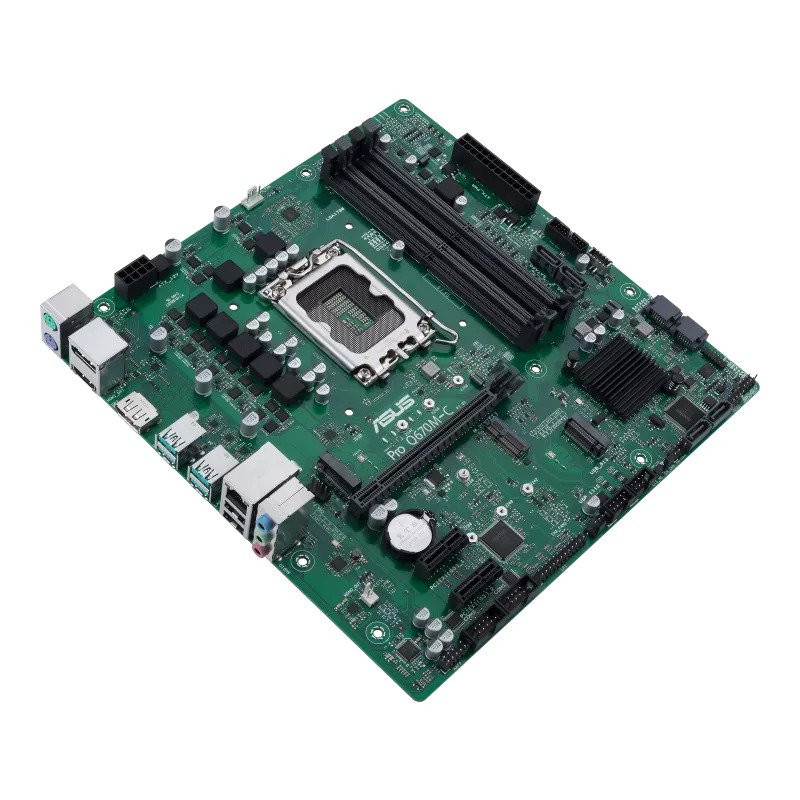

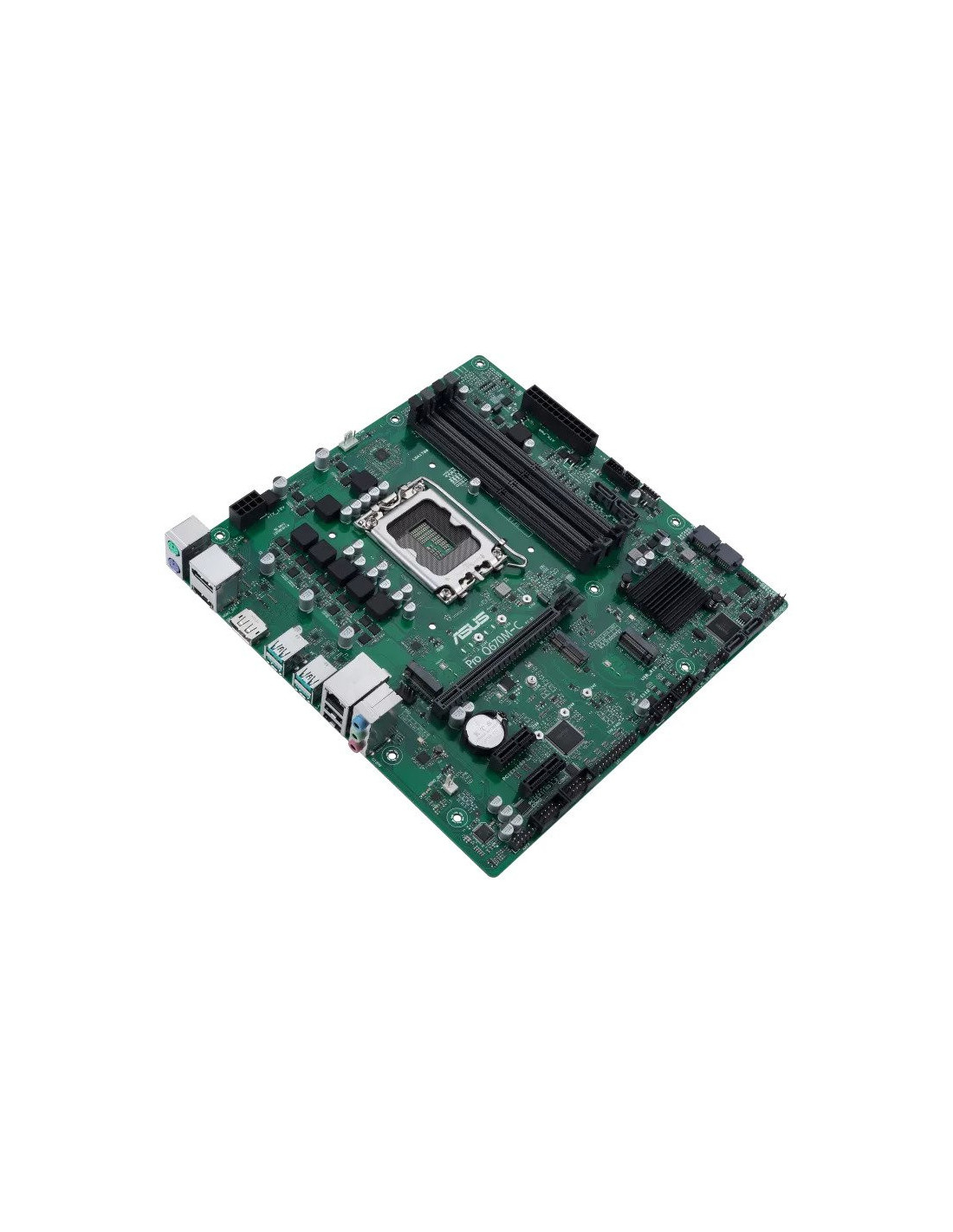

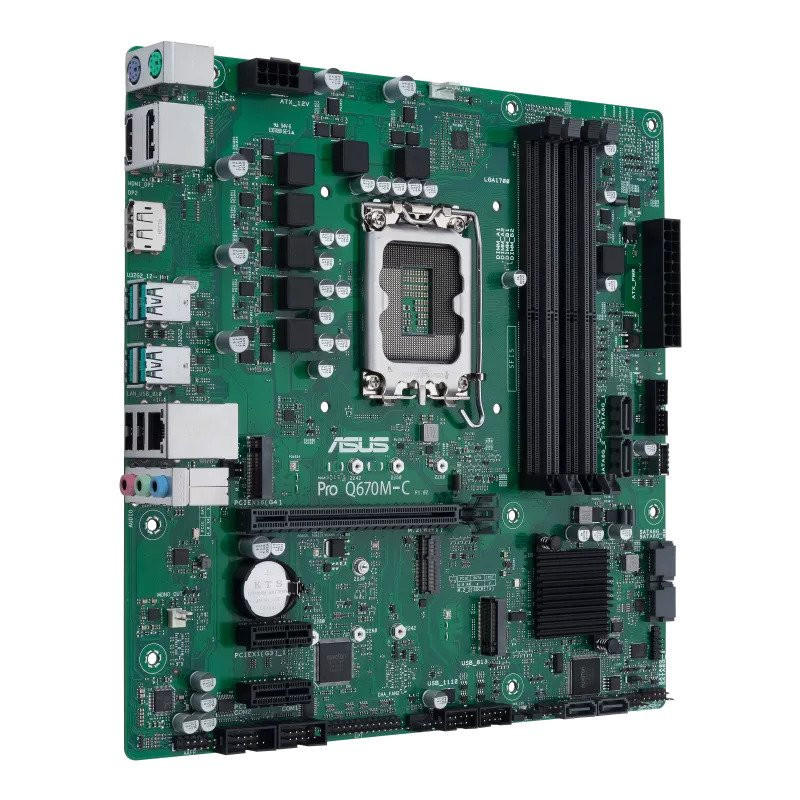

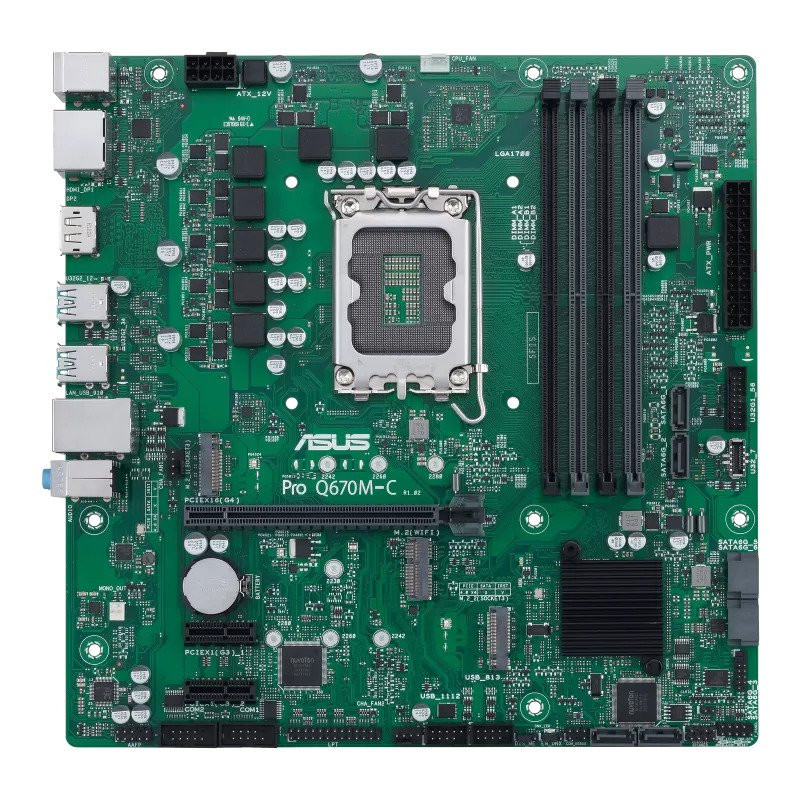

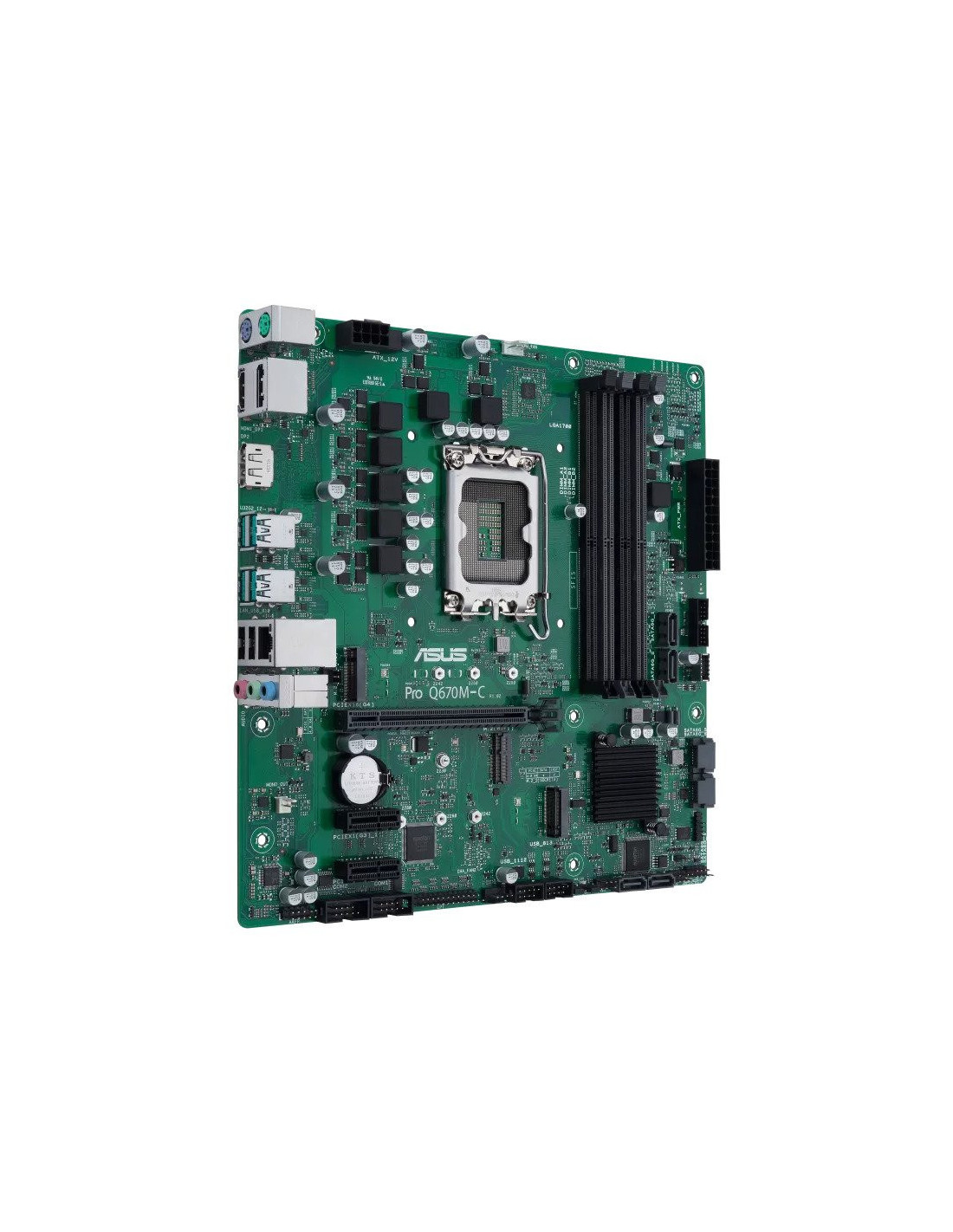

ASUS PRO Q670M-C-CSM LGA 1700 mATX

Chipset: Intel Q670 Chipset

Rozměrový formát: mATX Form Factor (24.4 cm x 24.4 cm)

Podpora pro procesory: 12th Gen Intel Core, Pentium Gold and Celeron Processors

Patice procesoru: LGA 1700

Pozice na paměti: 4 x DIMM, Dual Channel Memory Architecture

Podpora pro paměti: DDR5 4800 MHz

Max.velikost operační paměti: 128 GB

Podpora pro paměti typu: XMP

Grafické výstupy: (na základě procesoru)

• 2 x DisplayPort 1.4
• 1 x HDMI port 2.1

Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC

Síťová karta: 1 x Intel I219LM 1Gb Ethernet

Rozšiřující sloty:

• 1 x PCIe 4.0 x16 slot
• 2 x PCIe 3.0 x1 slots

RAID řadič:

• NVMe RAID 0/1/5
• SATA RAID 0/1/5/10.

SATA: 6 x SATA 6Gb/s ports

M.2: 2 x M.2 slots (Key M)

USB:

• Interní:
• 1 x USB 3.2 Gen 1 Front Panel connector (suppports USB Type-C)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Externí :
• 4 x USB 3.2 Gen 2 ports (4 x Type-A)
• 2x USB 2.0 ports (2 x Type-A)

Interní porty:

• Fan and cooling related
• 1 x 4-pin CPU Fan header
• 2 x 4-pin Chassis Fan headers
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• Storage related
• 2 x M.2 slots (Key M)
• 6 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 1 Front Panel connector (suppports USB Type-C®)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Miscellaneous
• 1 x Clear CMOS header
• 1 x Chassis Intrude header
• 2 x COM Port headers
• 1 x Front Panel Audio header (AAFP)
• 1 x COM debug header
• 1 x DIS ME jumper
• 1 x LPT header
• 1 x Mono-out header(with Amp IC)
• 1 x M.2 slot (Key E)
• 1 x Speaker header
• 1 x 10-1 System Panel header

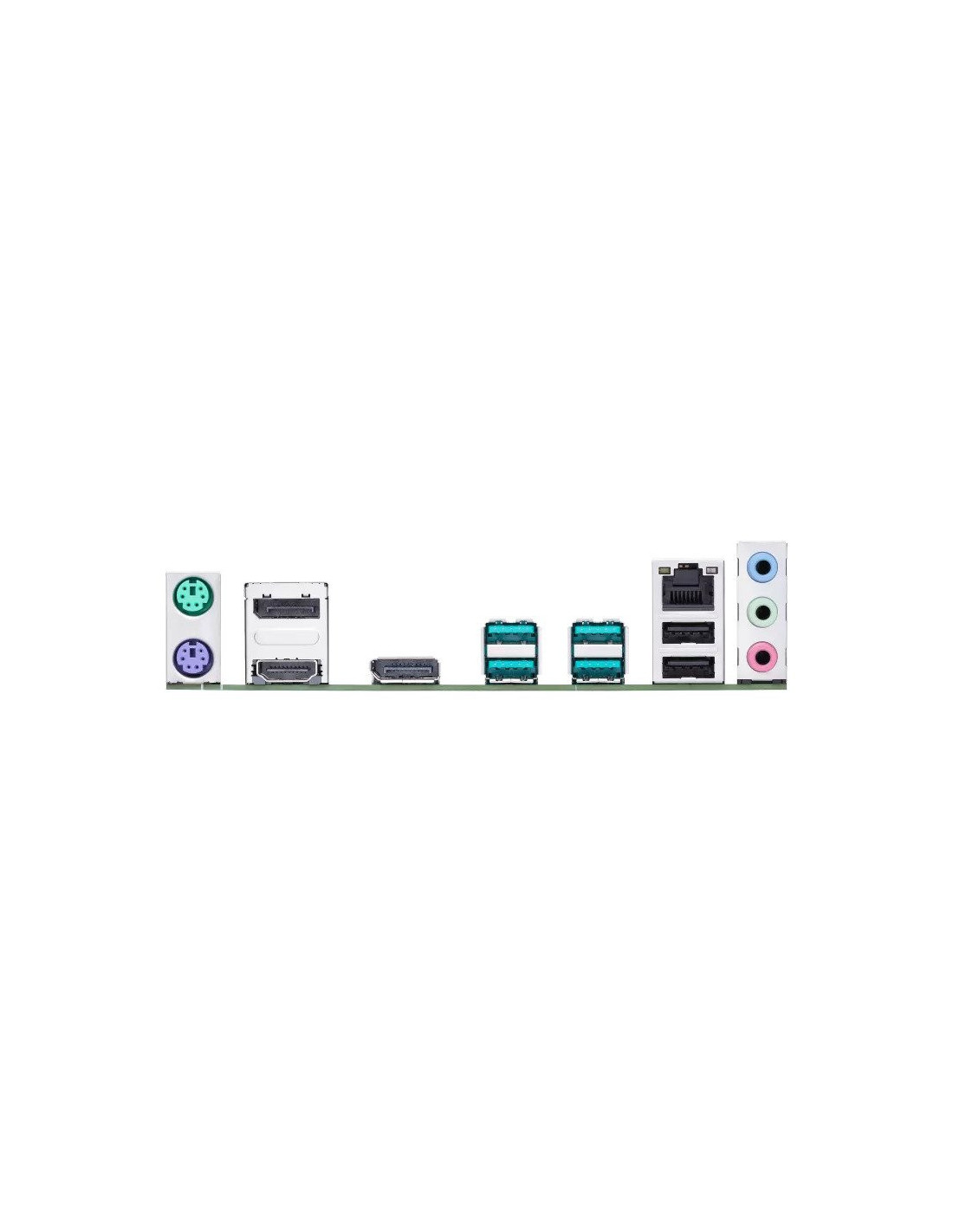

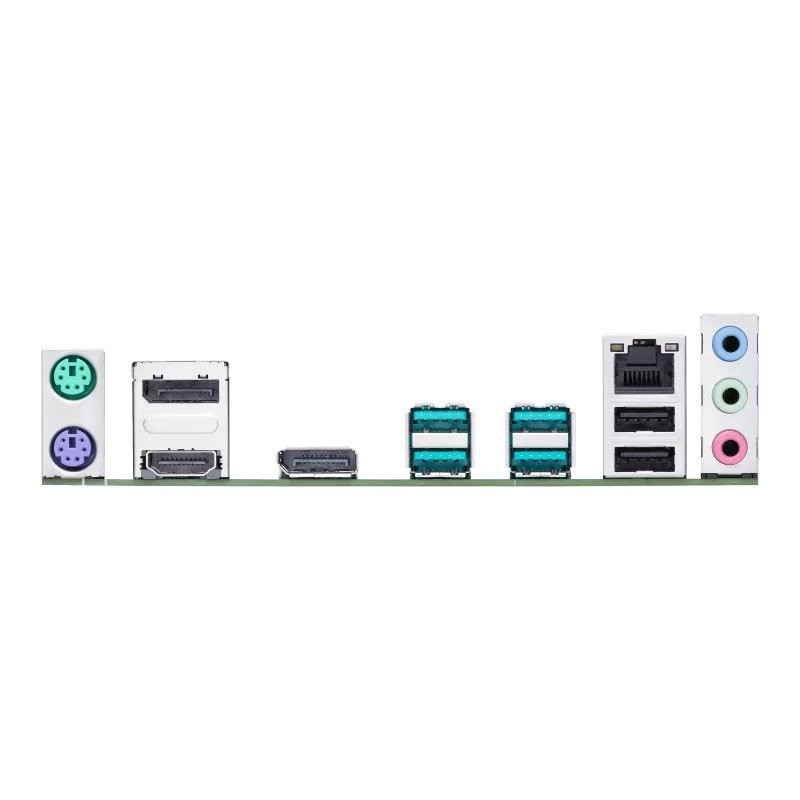

Externí porty:

• 4 x USB 3.2 Gen 2 ports (4 x Type-A)
• 2x USB 2.0 ports (2 x Type-A)
• 2 x DisplayPort
• 1 x HDMI port
• 3 x Audio jacks
• 1 x Intel 1Gb Ethernet
• 1 x PS/2 keyboard (purple) port
• 1 x PS/2 mouse (green) port

BIOS: 256 Mb Flash ROM
