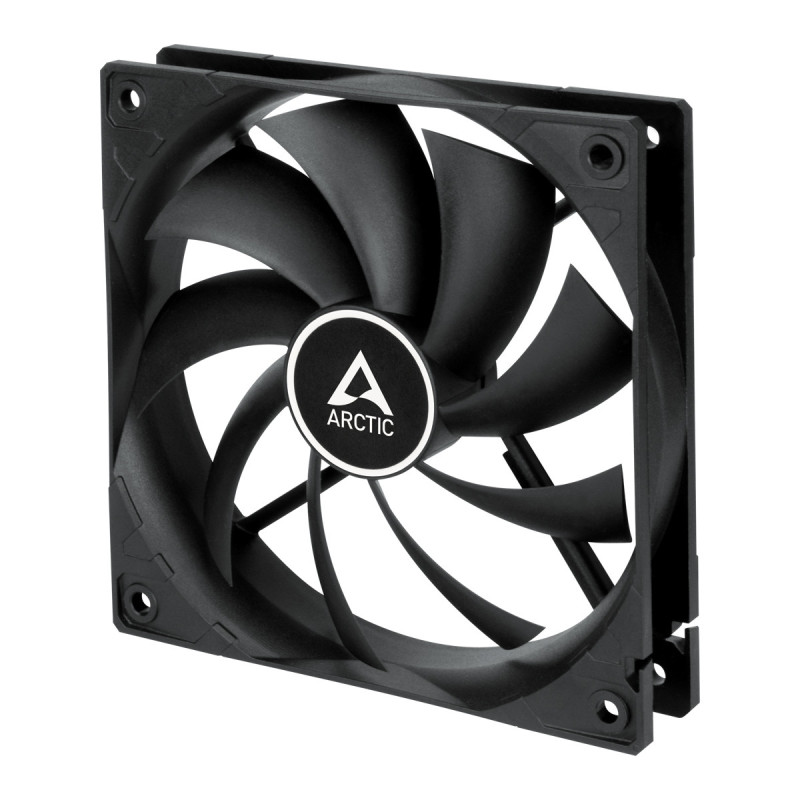

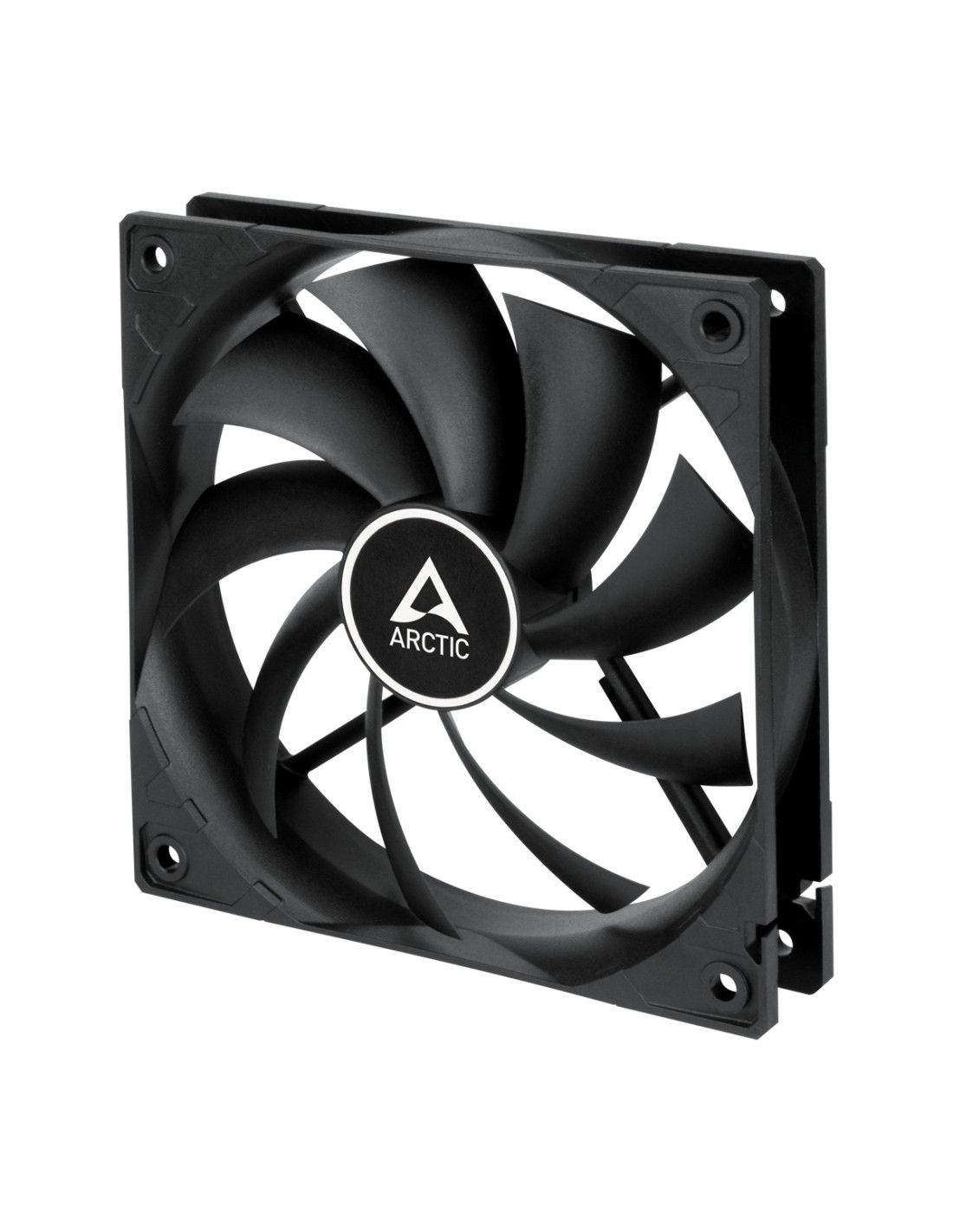

ARCTIC F12 PWM PST (Black)

F12 PWM PST

120 mm PWM Case Fan

LONG SERVICE LIFE

The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life

PERFECT CASE FAN REGULATION WITH PWM

The PWM function allows the motherboard to run the fan precisely at its necessary speed. This guarantees the required cooling and minimizes the noise level.

PWM SHARING TECHNOLOGY (PST) LOWERS NOISE

If you want to improve the cooling efficiency of your computer you get several case fans working in parallel (since it takes 10 fans to double the noise level). But what does it help if they don't work together? The PST assures that all of your fans listen to one control signal. E.g. you share the CPU Cooler's PWM signal and assure that your case fans stand down at low load and spin up whenever necessary.

INNOVATIVE DESIGN ENABLES QUIET AND EFFICIENT VENTILATION

The innovative design of the fan blades improves the air flow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimzing the noise level yet delivering the desired airflow and pressure.

TWO WAY INSTALLATION

Blow warm air out of the case

Draw cool air into your case

General data

Performance

Fan Speed: 230 - 1350 rpm

Airflow: 53 CFM/ 90.1 m3/h

Static Pressure: 1 mm H2O

Noise Level: 0.3 Sone

Operating Ambient Temperature: 0 - 40 °C

Fan

Fan Frame: Standard

Control Type: PWM PST

Connector: 4-Pin-Connector + 4-Pin-Socket

Fan Bearing: Fluid Dynamic Bearing

Electric Characteristics:

Typical Voltage: 12 V DC

Starting Voltage: 6 V

Current/ Voltage: 0.12 A / 12 V

Cable Lenght: 400 mm

Size & Weight

Lenght: 120 mm

Width: 120 mm

Height: 25 mm

Weight: 109 g

Packaging

Width: 123 mm

Height: 27 mm

Length: 123 mm

Weight: 0.146 kg
