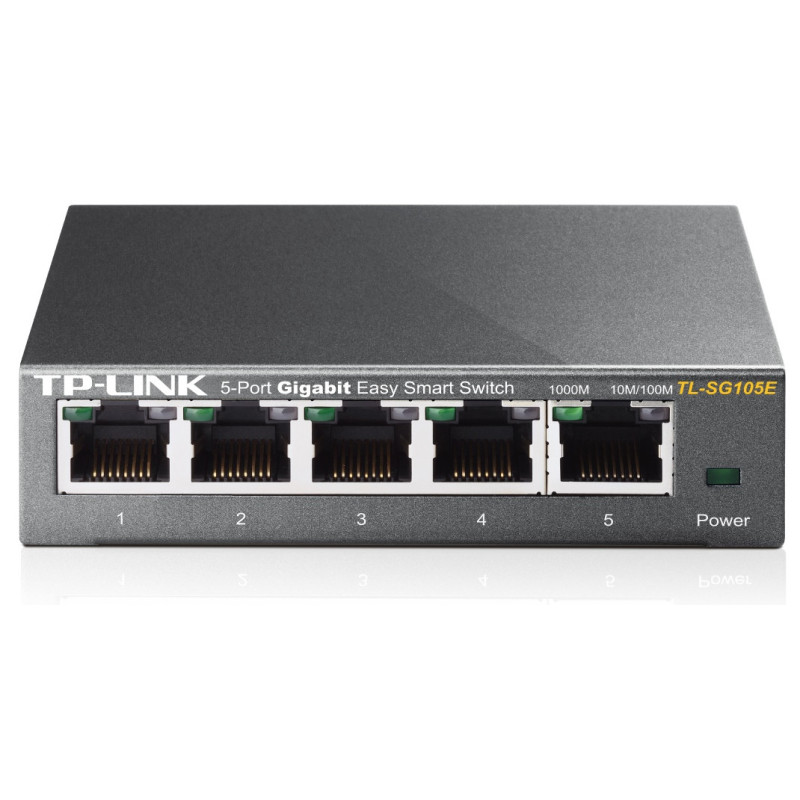

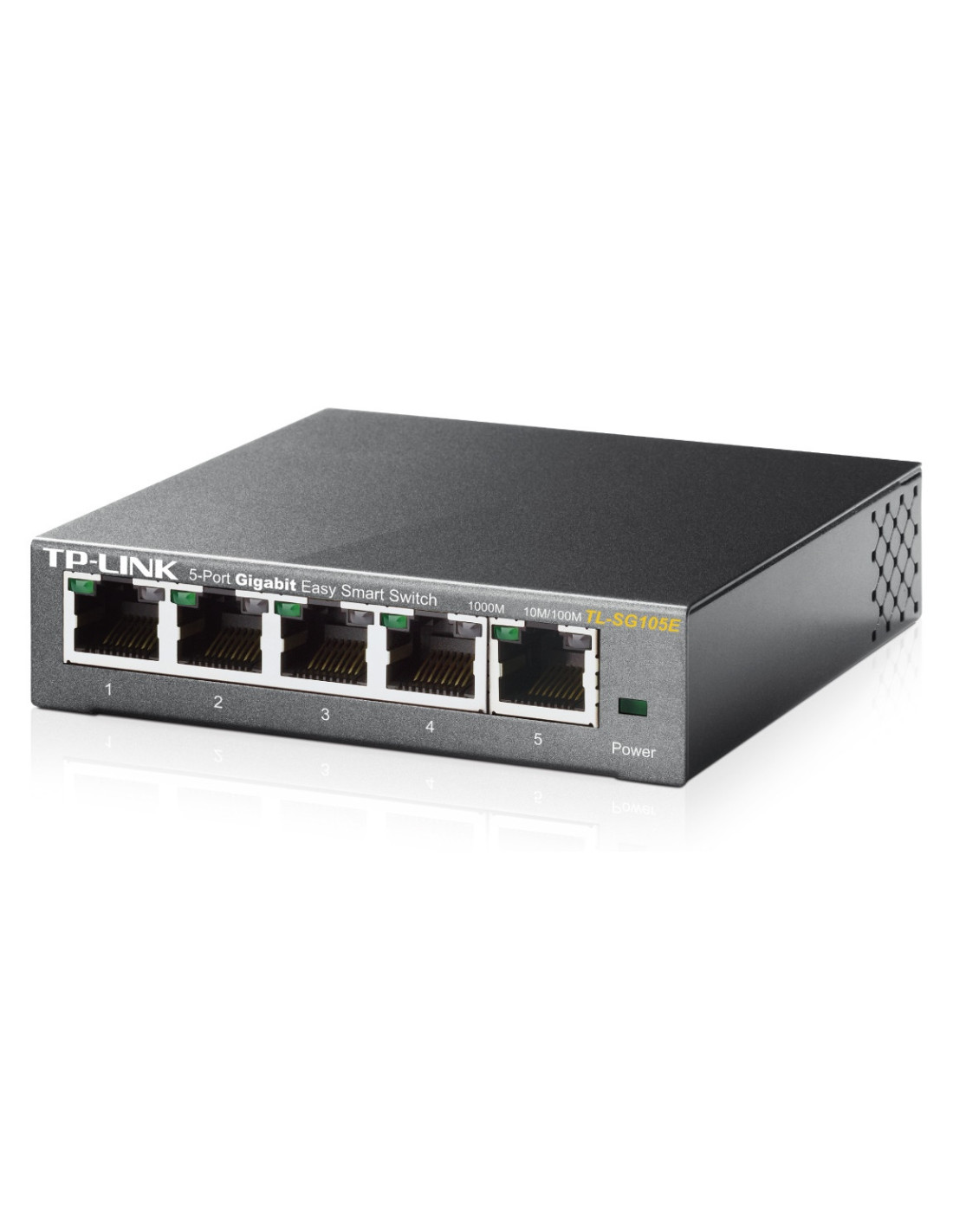

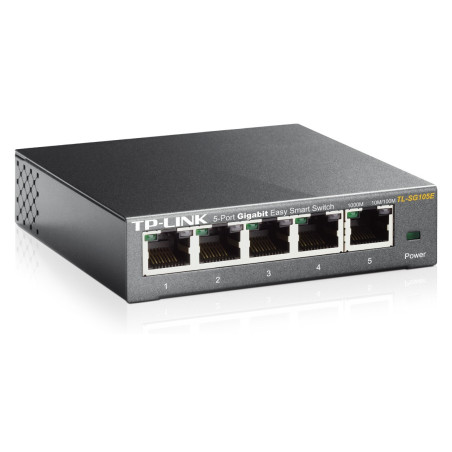

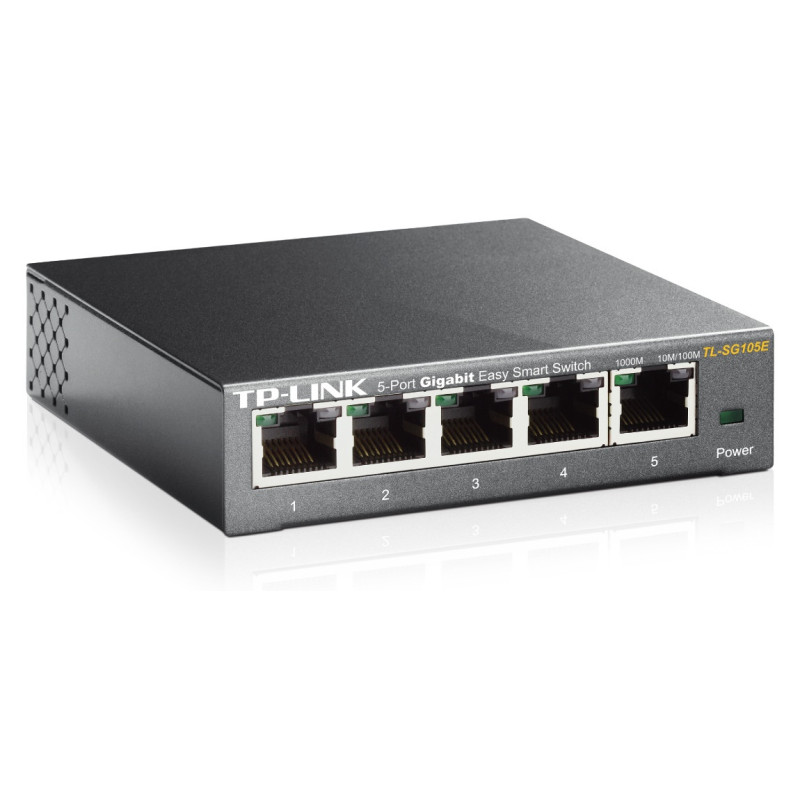

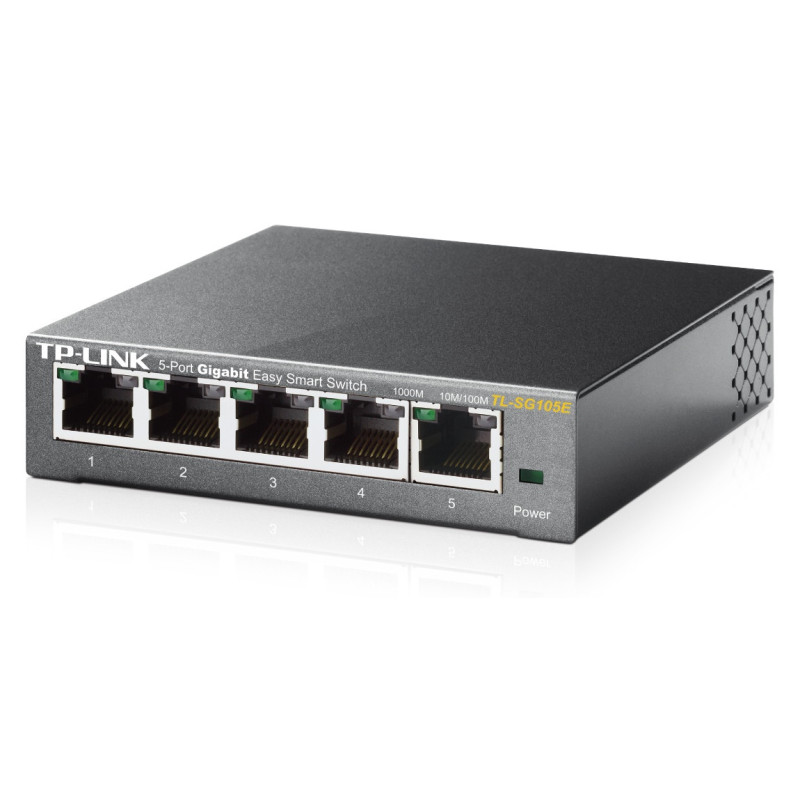

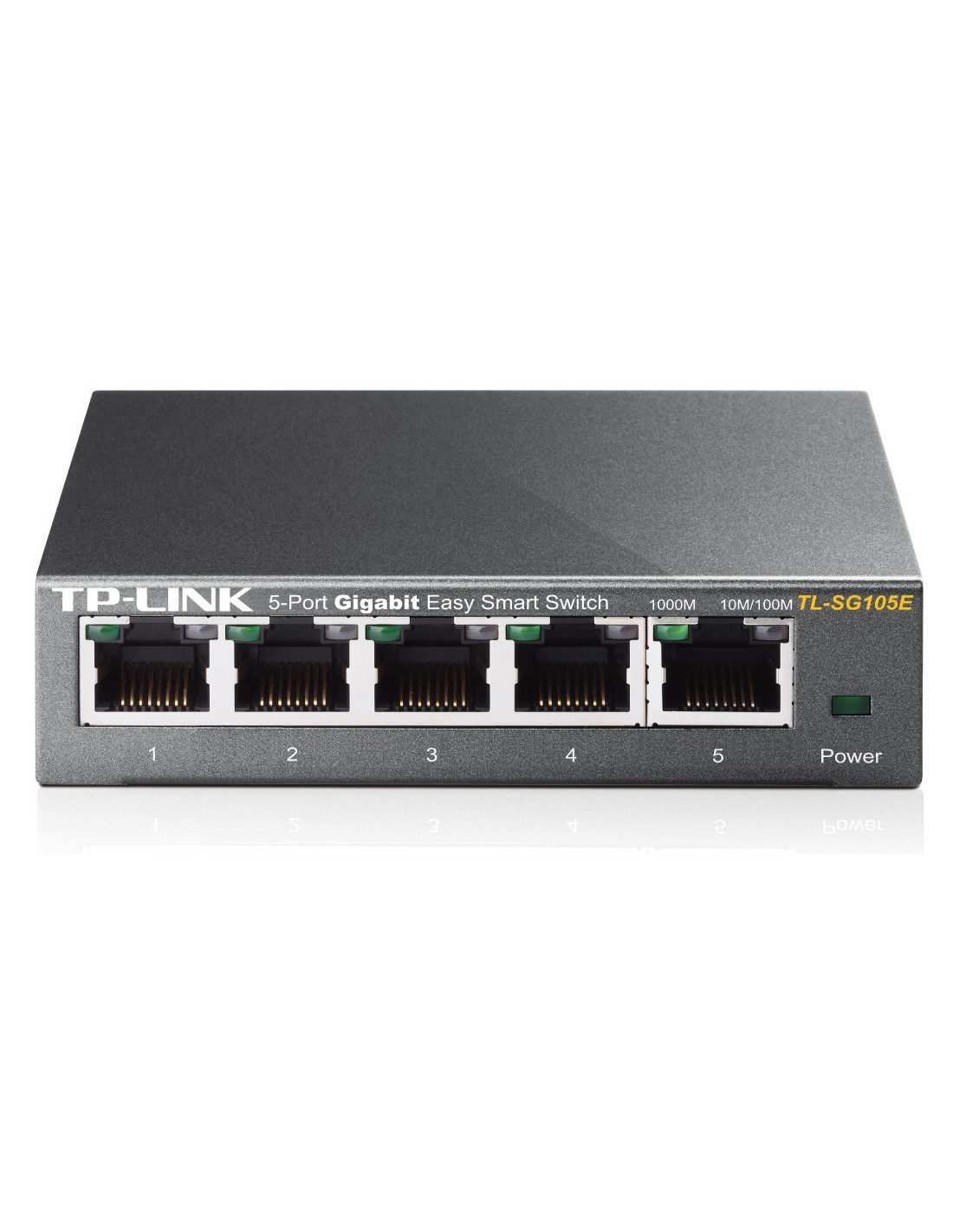

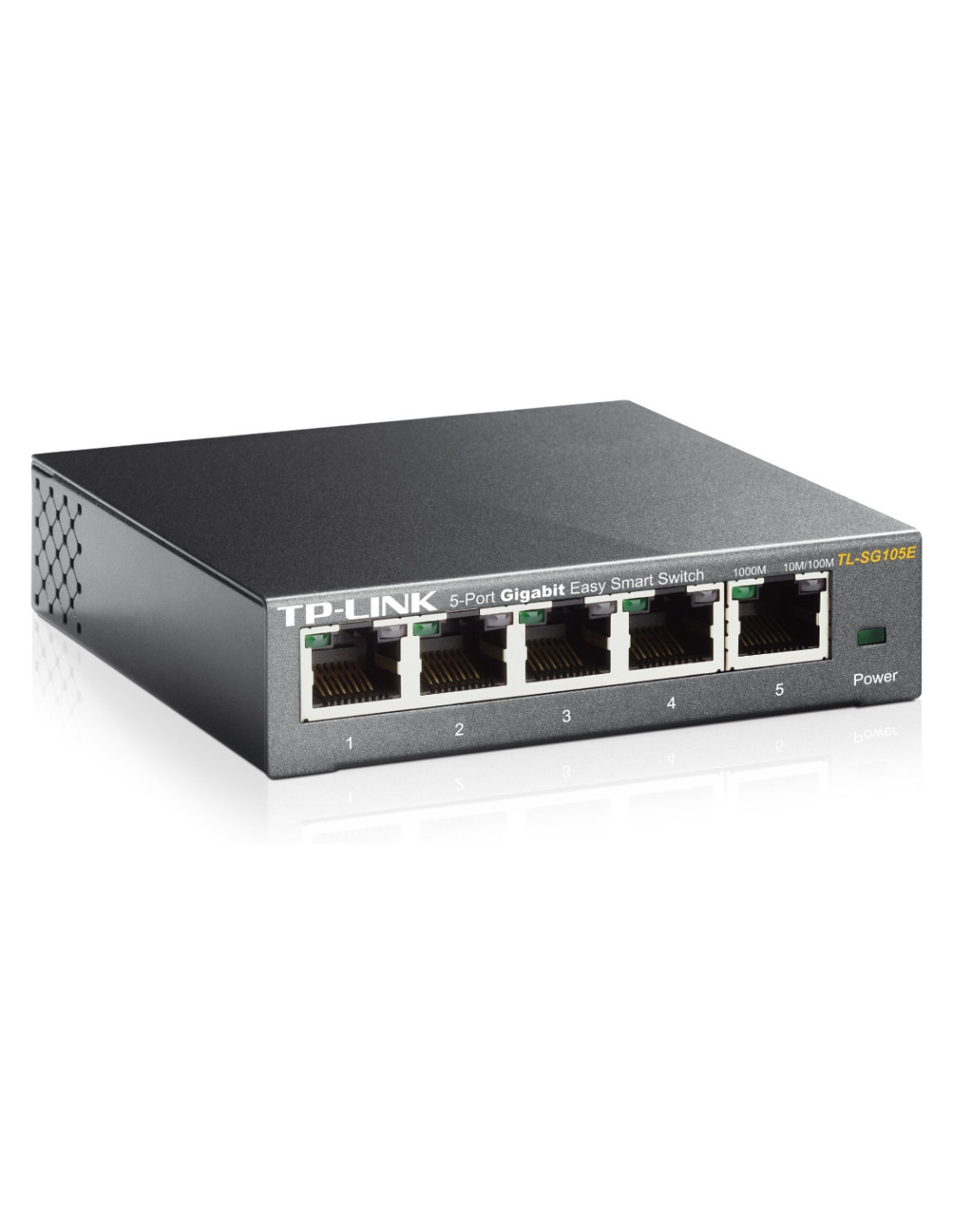

TP-Link TL-SG105E 5-port Gigabit Easy Smart Switch

TP-Link TL-SG105E 5-Port Gigabit Easy Smart Switch

OVERVIEW

• 5 10/100/1000Mbps RJ45 ports
• Provides network monitoring, traffic prioritization and VLAN features
• Innovative energy-efficient technology reduces power output by up to 75%
• Simple network set-up on top of plug-and-play connectivity
• Centrally manage all Easy Smart Switches with Easy Smart Configuration Utility

SPECIFICATIONS

HARDWARE FEATURES

Standards and Protocols

• IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

Interface

• 5 10/100/1000Mbps RJ45 Ports
• AUTO Negotiation/AUTO MDI/MDIX

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100? STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100? STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100? STP (maximum 100m)

Dimensions (W X D X H)

• 100 * 98 *25 mm

Fan Quantity

• Fanless

Power Supply

• 100-240VAC, 50/60Hz
• PERFORMANCE

MAC Address Table

• 8K

Packet Buffer Memory

• 2Mb

Packet Forwarding Rate

• 7.4Mpps

Jumbo Frame

• 16KB

SOFTWARE FEATURES

Quality of Service

• Support Port Based/802.1p Based priority
• Support 4 priority queues
• Rate Limit
• Storm Control

L2 Features

• IGMP Snooping
• Link Aggregation
• Port Mirroring
• Cable Diagnostics
• Loop Prevention

VLAN

• Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
• MTU/Port/Tag VLAN

Transmission Method

• Store-And-Forward

OTHERS

Certification

• FCC, CE, RoHS

Package Contents

• TL-SG105E
• Power Cord
• Installation Guide
• Resource CD
• Rubber Feet

System Requirements

• Microsoft® Windows® XP, Vista™ Windows 7 or Windows 8, MAC® OS, NetWare®, UNIX® or Linux.

Environment

• Operating Temperature: 0°C~40°C
• Storage Temperature: -40°C~70°C
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
