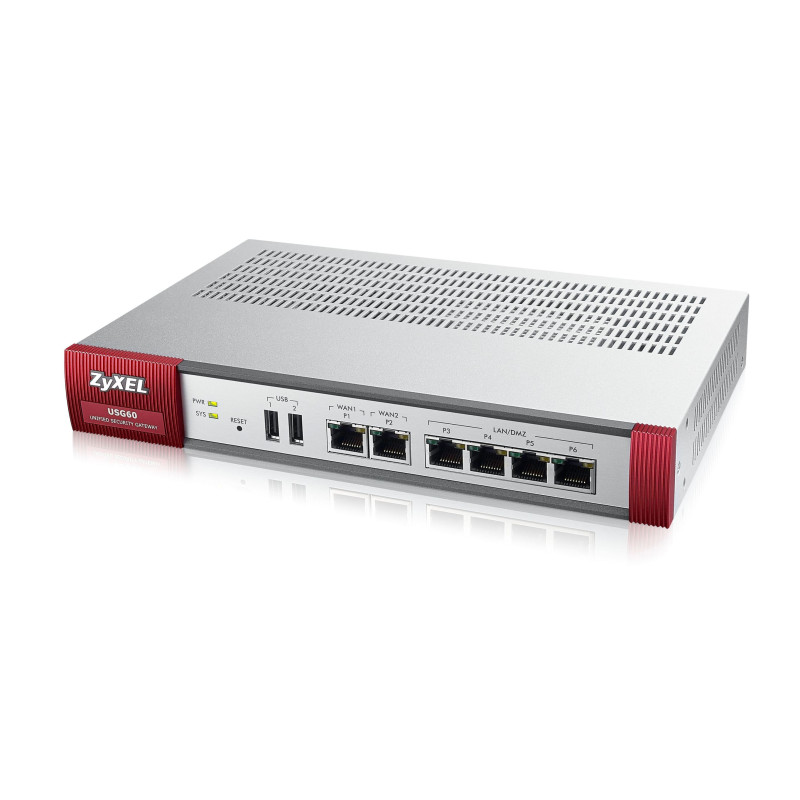

ZyXEL USG60 UTM BUNDLE

ZyXEL USG60 UTM BUNDLE

OVERVIEW

Security UTM solution: Firewall, VPN: 20x IPSec/ 20x SSL (5 default), 6x 1Gbps (4x LAN/DMZ, 2x WAN), 2x USB, Fanless, Wireless Controller for up to 18 (default 2) WAC6xxx/NWA3000-N/5000-N series of APs, included 1-year licenses of IDP, Antivir (Kaspersky), Antispam (Cyren), Content Filtering (Cyren), rack mounted

SPECIFICATIONS

HARDWARE SPECIFICATIONS

10/100/1000 Mbps RJ-45 ports

• 4 x LAN/DMZ, 2 x WAN

USB ports

• 2

Console port

• Yes (DB9)

Rack-mountable

• Yes

SYSTEM CAPACITY & PERFORMANCE

SPI firewall throughput (Mbps)

• 1,000

VPN throughput (Mbps)

• 180

IDP throughput (Mbps)

• 120

AV throughput (Mbps)

• 90

UTM throughput (AV and IDP)

• 90

Unlimited user licenses

• Yes

Max. TCP concurrent sessions

• 40,000

New TCP session rate

• 3,000

Max. UTM (AV & IDP) concurrent sessions

• 40,000

Max. concurrent IPsec VPN tunnels

• 20

Max. concurrent SSL VPN users

• 12

Included SSL VPN user no

• 2

Customizable zones

• Yes

IPv6 support

• Yes

VLAN interface

• 16

WLAN MANAGEMENT

AP Controller (APC) ver

• 1.0

Managed AP number (default/max.)

• 2/10

KEY SOFTWARE FEATURES

Virtual Private Network (VPN)

• Yes (IPSec, SSL, L2TP over IPSec)

Firewall

• Yes

Anti-Virus (AV)

• Yes

Anti-spam

• Yes

Content Filtering (CF)

• Yes

Application intelligence and optimization

• Yes

Intrusion Detection and Prevention (IDP)

• Yes

Single Sign-On (SSO)

• Yes

POWER REQUIREMENTS

Power input

• 12 V DC, 3.0 A max.

Max. power consumption (watt)

• 19.0

OTHERS

MTBF (hr)

• 815,463.9

PHYSICAL SPECIFICATIONS

Item dimensions (WxDxH)

• 242 x 175 x 36 mm

Item weight

• 1.25 kg
