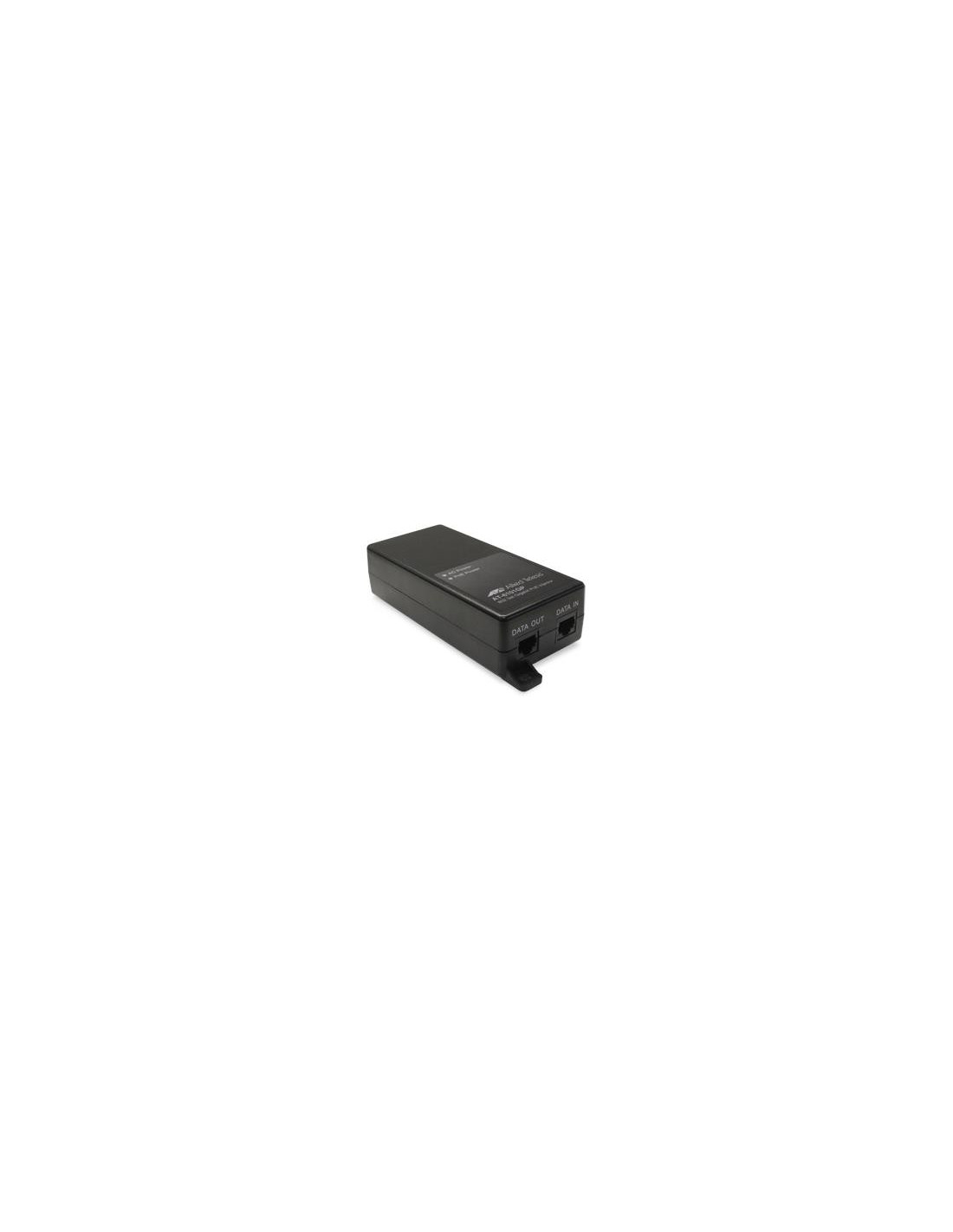

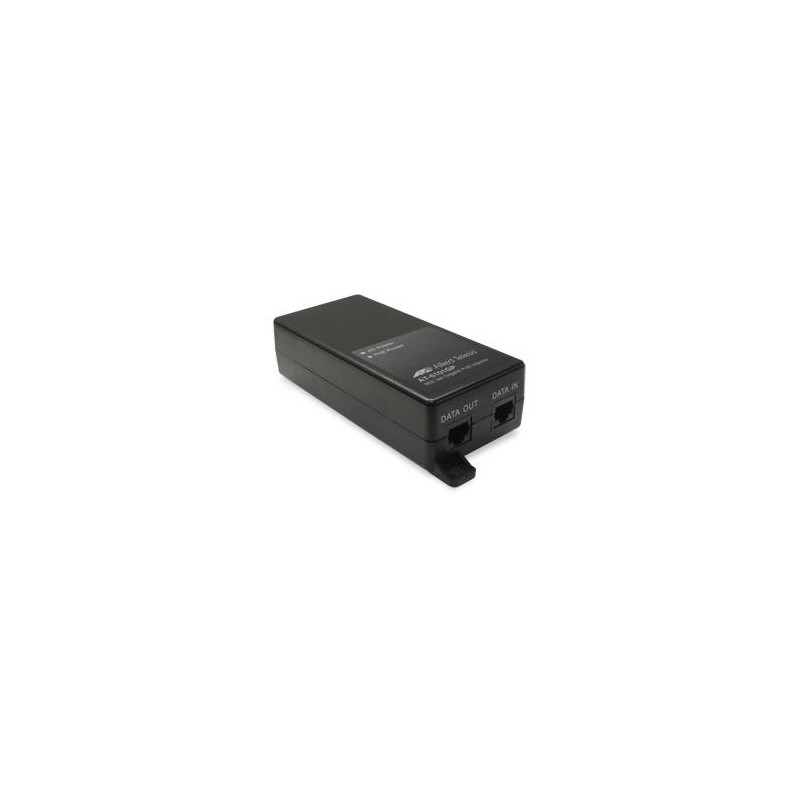

Allied Telesis PoE Injector, 802.3at AT-6101GP

Allied Telesis AT-6101GP

Gigabit PoE+ Injector

OVERVIEW

The Allied Telesis AT-6101GP Power over Ethernet Plus Injector provides data and power through the Ethernet cable to PoE-equipped devices such as access points, IP cameras, VoIP phones and any other equipment supporting the IEEE 802.3at standard.

FEATURES

• Feeds power to Gigabit Ethernet devices

• Remote power feeding application

• Overload and short circuit protection

• Mix Ethernet and power into a single LAN

• Deliver power up to 100 meters

• Full IEEE 802.3at compliance

• Plug-and-Play

• CE, FCC, GOST, C-Tick approved

• Lightweight and compact size

• RoHS and WEEE compliant

• UL listed

SPECIFICATIONS

Standards

• IEEE 802.3 10T Ethernet

• IEEE 802.3u 100TX

• IEEE 802.3ab 1000T

• IEEE 802.3at

• IEEE 802.3af

Interface

• RJ-45 Connector for 10/100/1000T Gigabit Cooper Ports

Connector

• Data in: RJ45

• Data Pin Out: 1,2,3,4,5,6,7,8

• Data and Power Out: RJ45

• Data Pin Out: 1,2,3,4,5,6,7,8

• Power Pin Out: 1,2,3,6

Switching Scheme

• Store-and-Forward

Security

Network Cable:

• 10T: 2-pair UTP/STP Cat 3,4,5 cable EIA/TIA-568 100-? (100m)

• 100TX: 2-pair UTP/STP Cat.5 cable EIA/TIA-568 100-? (100m) Recommend Cat.5e cable above

• 1000T: 4-pair UTP/STP Cat.5E cable

LED Indicators

• AC Power x 1 (Green light on: Active, off: No Power)

• Feeding Power x 1 (Green light on: Powering Remote Device, off: No Power Supplied)

Power Supply

• Rated input voltage: 100VAC~240VAC

• Rated input frequency: 50~60Hz

• Rated input current: 0.72A

• Output voltage: 55VDC POE Output voltage

• Output current: 600mA POE Output current

• Output watt: 33W max. POE Output watt

• Over current protection: Yes

Environmental Specifications

• Operating temperature: 0°C to 40°C

• Storage temperature: -20°C to 80°C

• Humidity Operating: 10 to 90% (non-condensing)

• Humidity Storage: 10 to 90% (non-condensing)

Physical Specifications

• Dimensions (W x D x H): 65 x 36 x 140 mm

• Weight: 300g

• Case: Plastic Enclosure

• Flammability: UL94-V0 (PCB)

Power Characteristics

• Power Consumption: 36W
