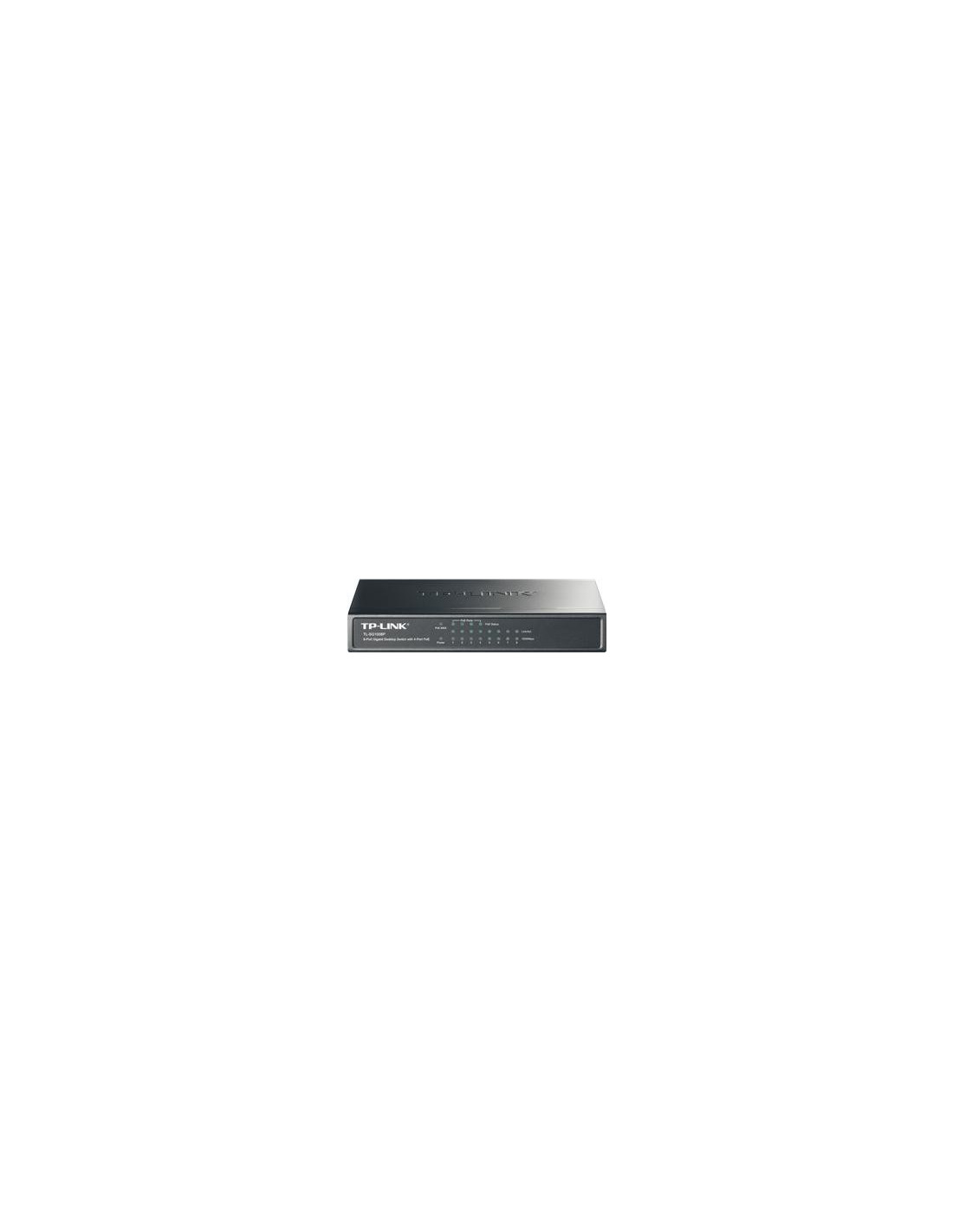

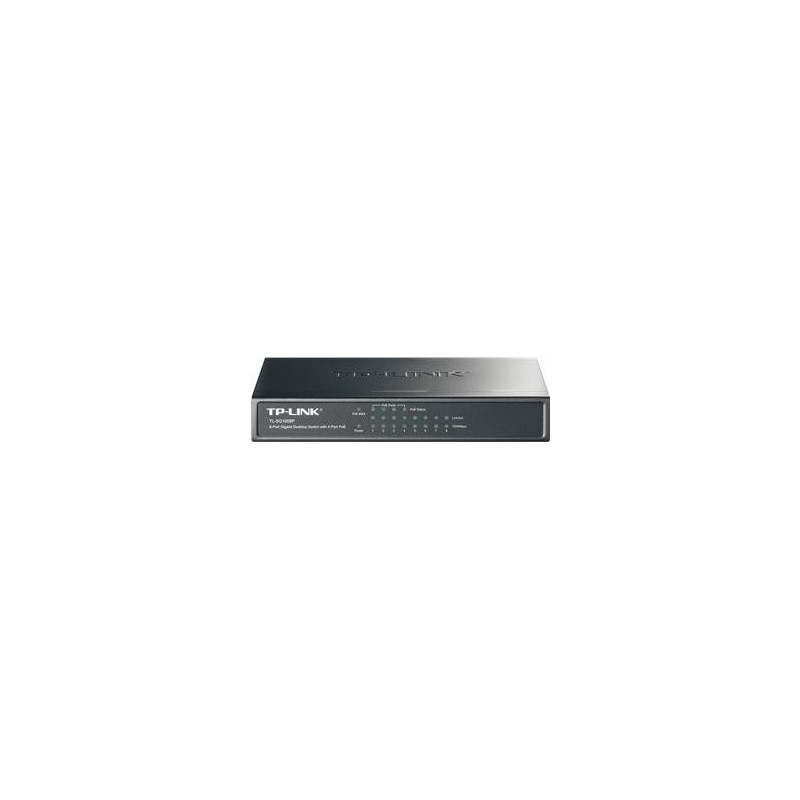

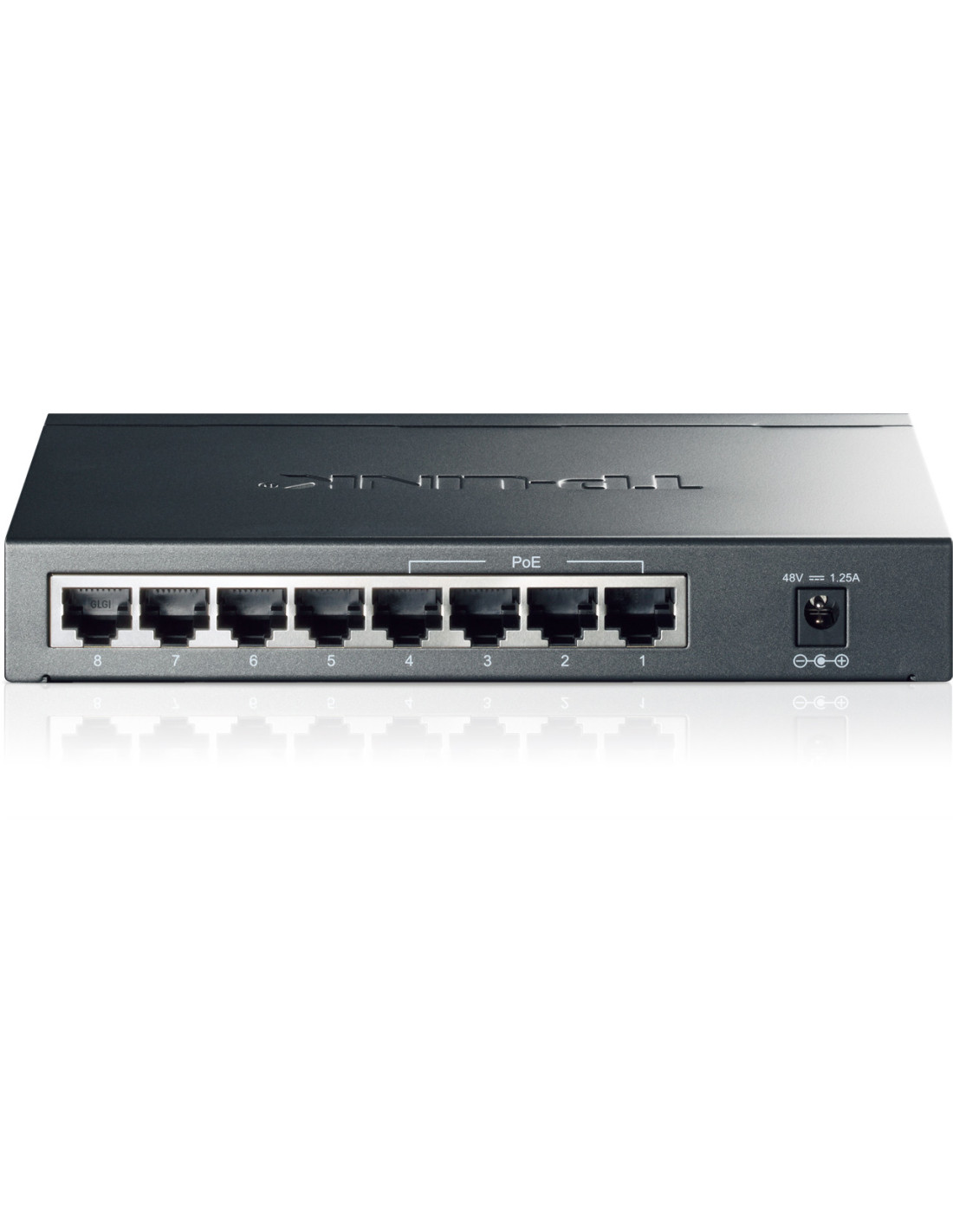

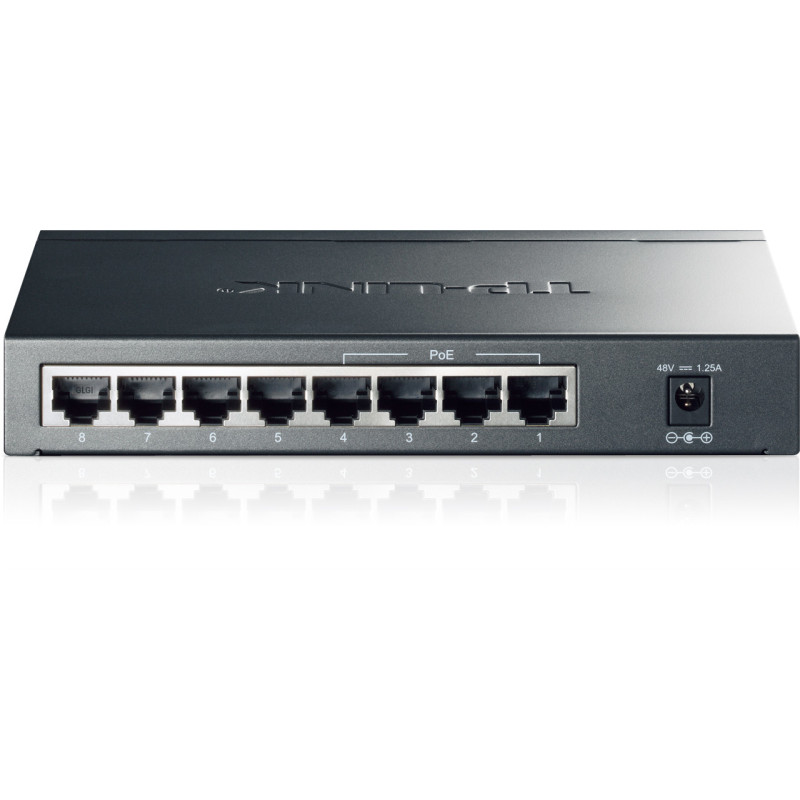

TP-Link TL-SG1008P 8xGB (4xPOE) 64W Desktop fanless Switch

TP-Link TL-SG1008P 8-Port Gigabit Desktop Switch with 4-Port PoE

OVERVIEW

8-Port Gigabit Desktop Switch with 4-Port PoE provides the seamless network connection. It integrates 1000Mbps Gigabit Ethernet and 10/100Mbps Fast Ethernet network capabilities.

FEATURES

• 8 10/100/1000Mbps RJ45 ports

• With four PoE ports, transfers data and power on one single cable

• Working with IEEE 802.3af compliant PDs, expands home and office network

• Requires no configuration and installation

HARDWARE FEATURES

Interface

• 8 10/100/1000Mbps RJ45 Ports

• AUTO Negotiation/AUTO MDI/MDIX

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

• EIA/TIA-568 100? STP (maximum 100m)

• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)

• EIA/TIA-568 100? STP (maximum 100m)

• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

• EIA/TIA-568 100? STP (maximum 100m)

PoE Ports (RJ45)

• Standard: 802.3 af compliant

• PoE Ports: Port1- Port4

• Power Supply: 55W

Backbound Bandwidth

• 16Gbps

Mac Address Table

• 8K

External Power Supply

• External Power Adapter(Output: 48VDC / 1.25A)

Dimensions (W X D X H)

• 171*98*27 mm

Fan Quantity

• Fanless

SOFTWARE FEATURES

Transmission Method

• Store-And-Forward

Advanced Functions

• Compatible With IEEE 802.3af Compliant PDs

• Priority Function

• Mac Address Auto-Learning And Auto-Aging

• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode

OTHERS

Certification

• FCC, CE

Package Contents

• TL-SG1008P, Power Adapter, User Guide

Consumption

• 5.8 watts (max. no PD connected)

• 58.8 watts (max. with 53w PD connected)

Environment

• Operating Temperature: 0?~40? (32?~104?)

• Storage Temperature: -40?~70? (-40?~158?)

• Operating Humidity: 10%~90% non-condensing

• Storage Humidity: 5%~90% non-condensing
