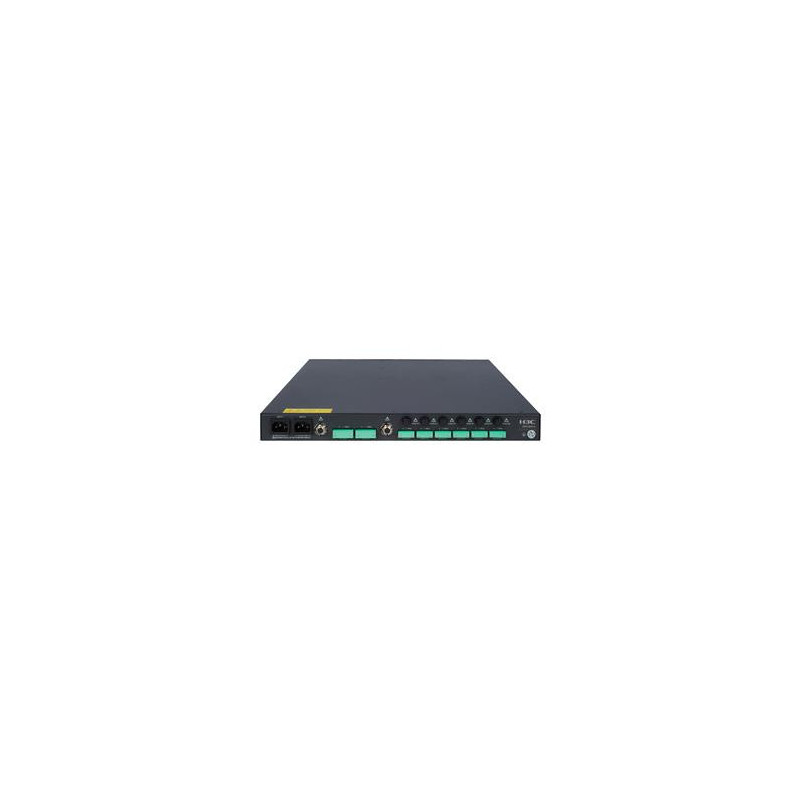

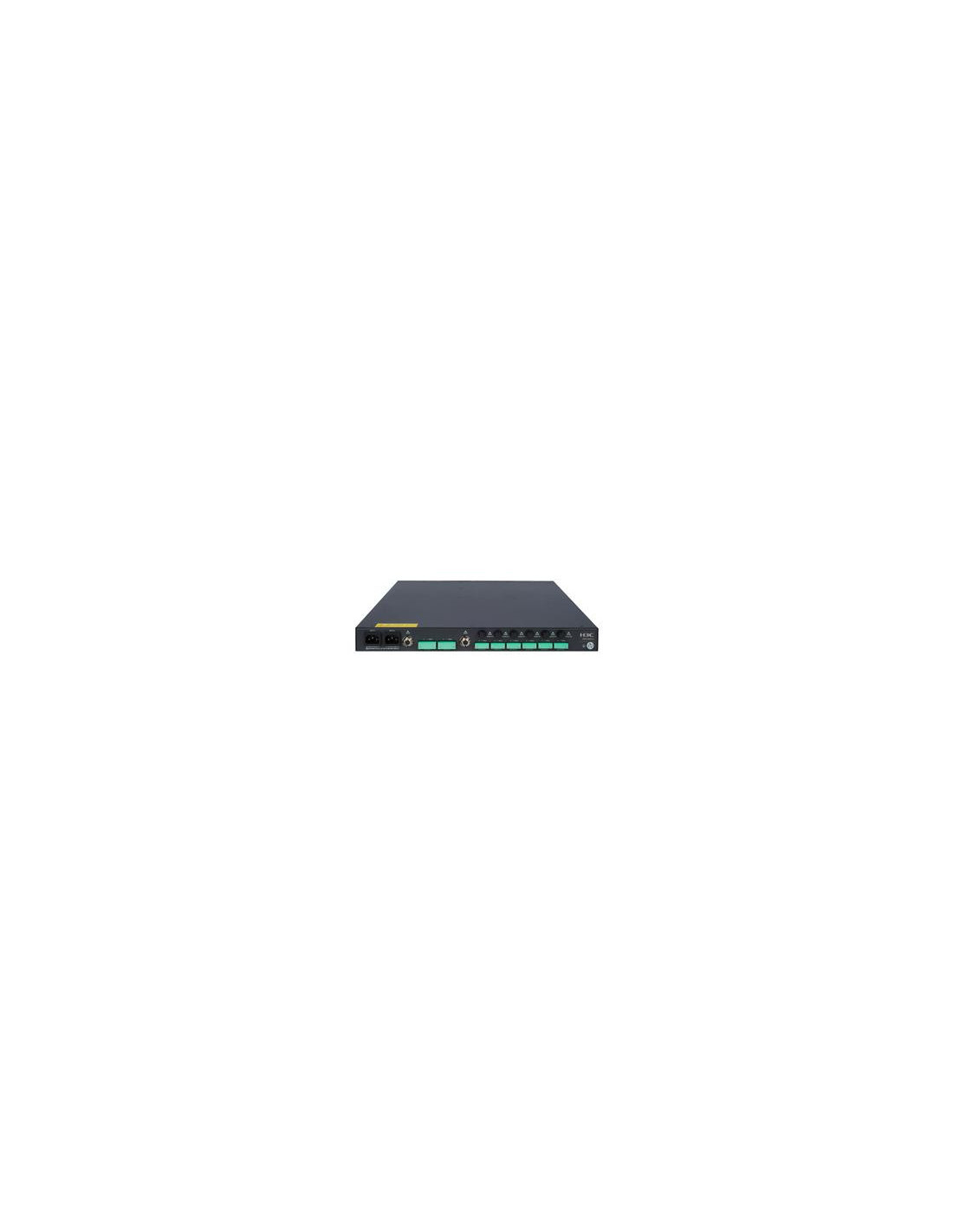

HPE RPS1600 Redundant Power System

HP RPS1600 Redundant Power System (JG136A)

A-RPS1600 is a cost effective power redundancy solution which can support up to 8 active devices and up to 3200W power per system, 1400W power per port to fixed port switches

Ports:

8 redundant power supply ports

Restrictions: two -56V/25A DC(PoE); six -56V/8A DC(non-PoE)

Physical characteristics:

Dimensions: 15.63(d) x 17.32(w) x 1.74(h) in. (39.7 x 44 x 4.42 cm)

Weight: 14.11 lb. (6.4 kg)

Full configuration weight: 16.75 lb. (7.6 kg)

Electrical characteristics:

Voltage: 100-120/200-240 VAC

Current: 30/60 A

Idle power: 38 W

Maximum power rating: 3550 W

RPS power: 3200 W

PoE power: 2800 W

RPS: -55 V

PoE: -55 V

Frequency: 50/60 Hz

Notes: Idle power is the actual power consumption of the device with no ports connected.

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

With one RPS1600 Power Supply, the PRS1600 Redundant Power System can provide 1600W power output; With two PRS1600 Power Supplies, the output power is 3200W.

Safety

• CE Labeled

• UL 60950-1

• IEC 60950-1

• ICES-003

• FCC Part 15, Subpart B

• EU RoHS Compliant

• EN 60950-1/A11

• C-Tick

• VCCI Class A

• ROHS Compliance

• EN 300386

Compatible products

• HP 5120 EI Switch Series

• HP 5500 SI Switch Series

• HP 5500 EI Switch Series

• HP 3610 Switch Series

• HP 3600 EI Switch Series

• HP 3600 SI Switch Series

• HP 3100 EI Switch Series

• HP 5120 SI Switch Series

• HP 5800 Switch Series

• HP 5820 Switch Series
