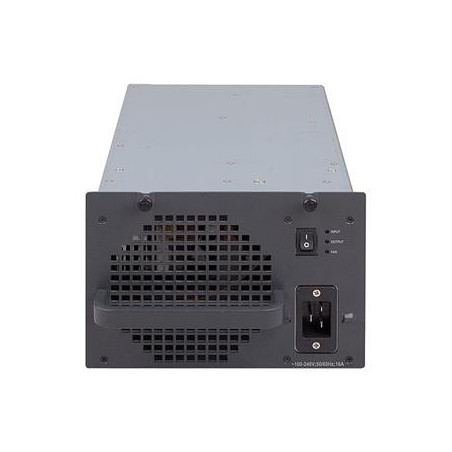

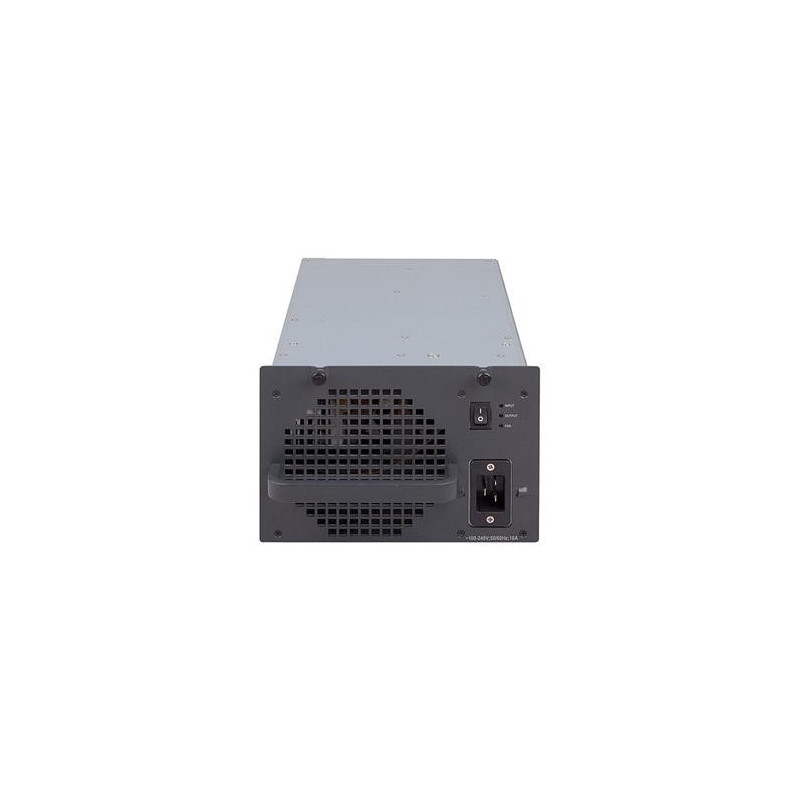

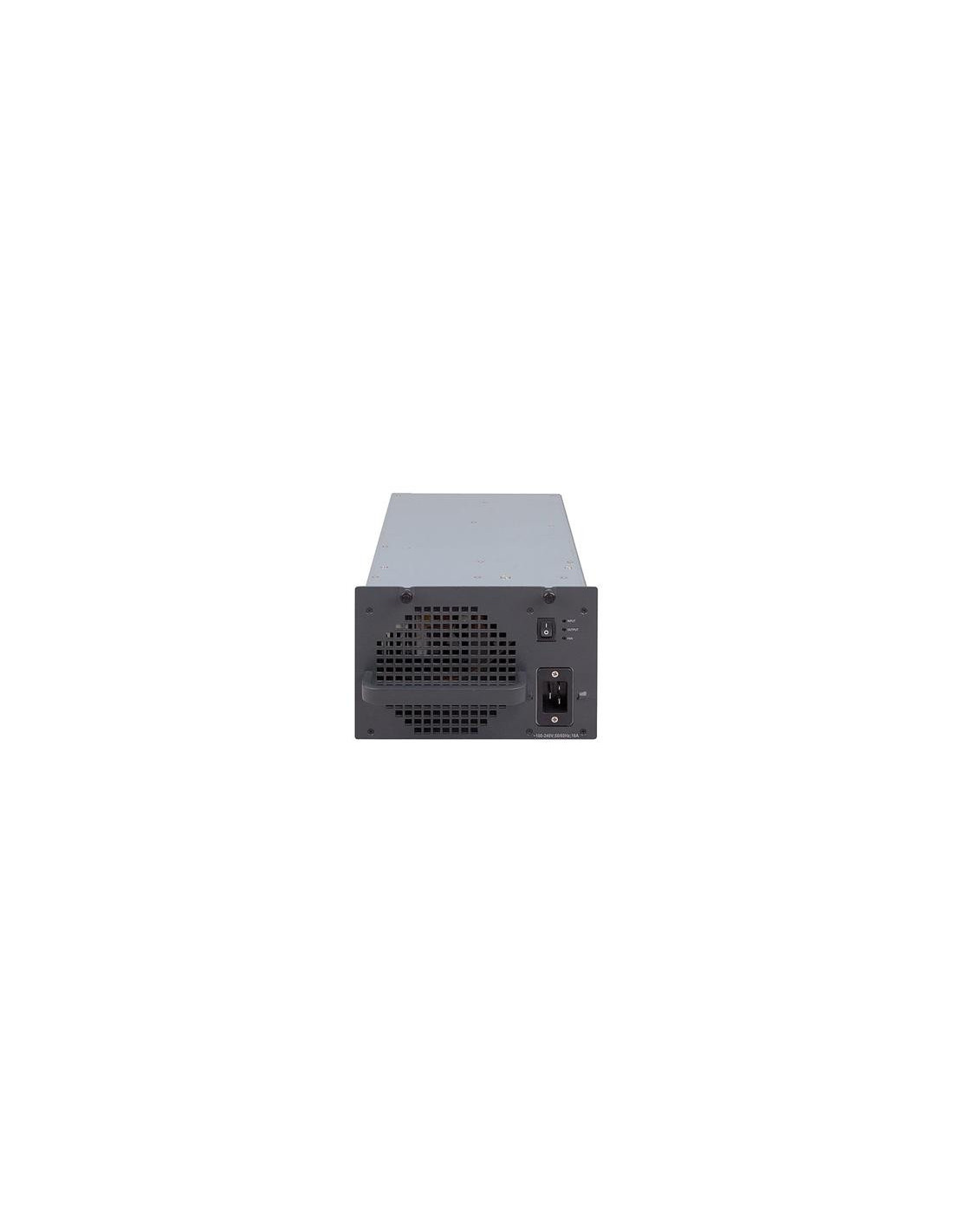

HPE 7500 1400W AC Power Supply

HP 7500 1400W AC Power Supply (JD218A)

Physical characteristics:

Dimensions: 14.06(d) x 7.72(w) x 5.04(h) in. (35.7 x 19.6 x 12.8 cm) (3U height)

Weight: 14 lb. (6.35 kg)

Electrical characteristics:

Voltage: 100-120/200-240 VAC

Current: 0/16 A

Idle power: 196 W

Maximum power rating: 1400 W

PoE power: 0 W

Frequency: 50/60 Hz

Notes: Idle power is the actual power consumption of the device with no ports connected.

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

1400W AC Power Supply uses a 16-A AC power cable

Notes:

US order needs to indicate either #ABA option (for 110V) or #B2E (for 220V). This will determine which power cord the distribution centres include with the product.
