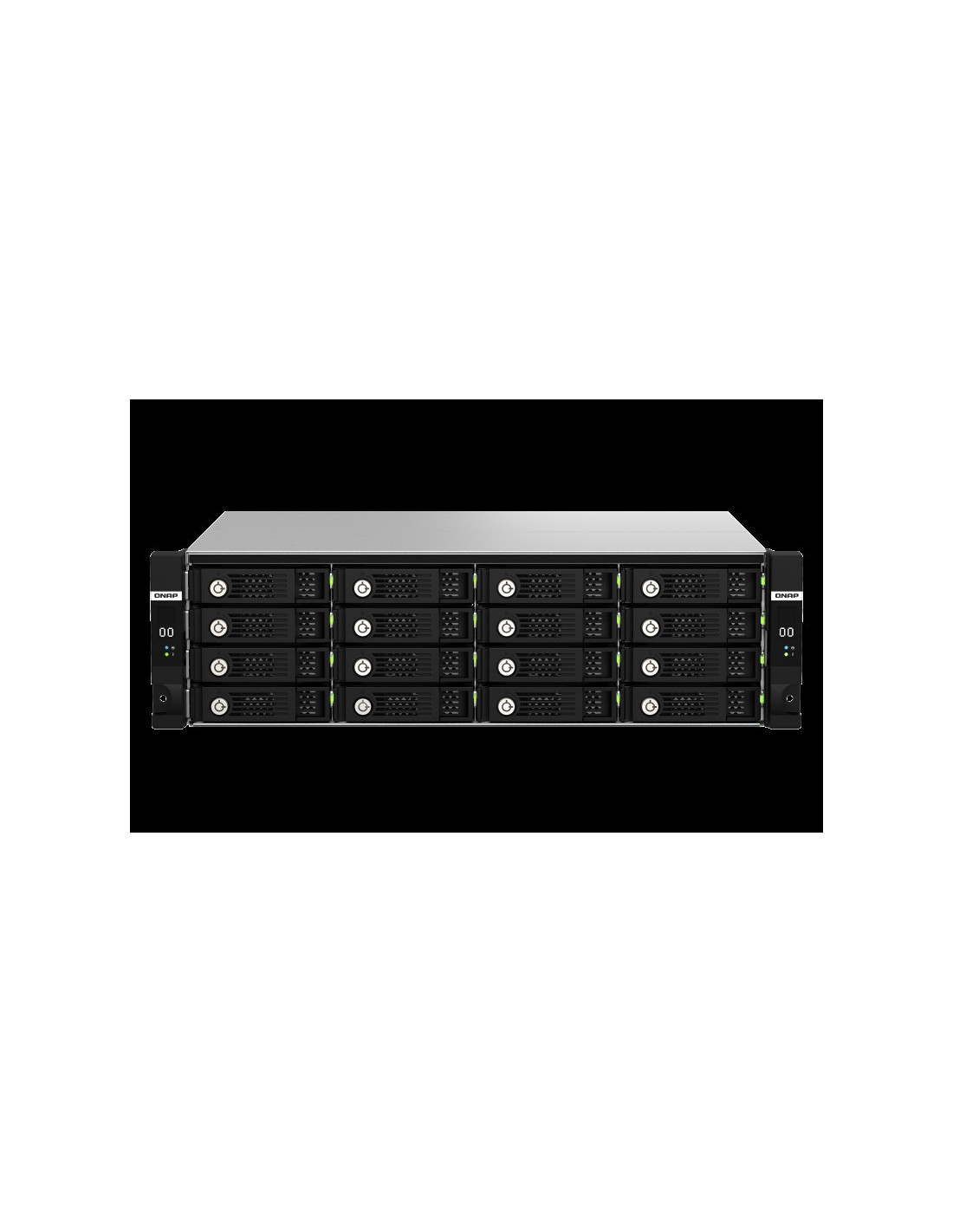

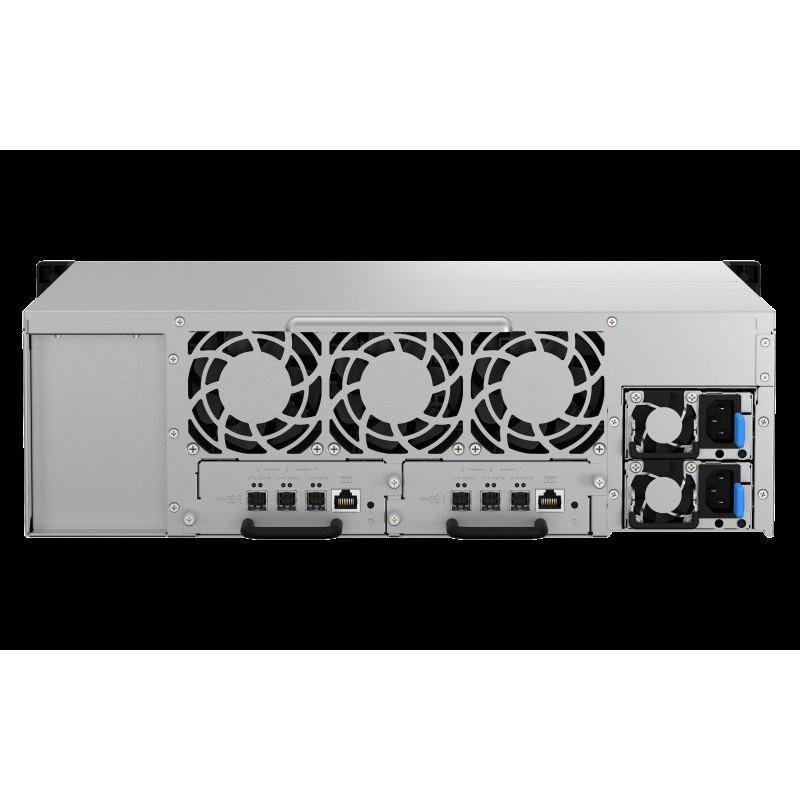

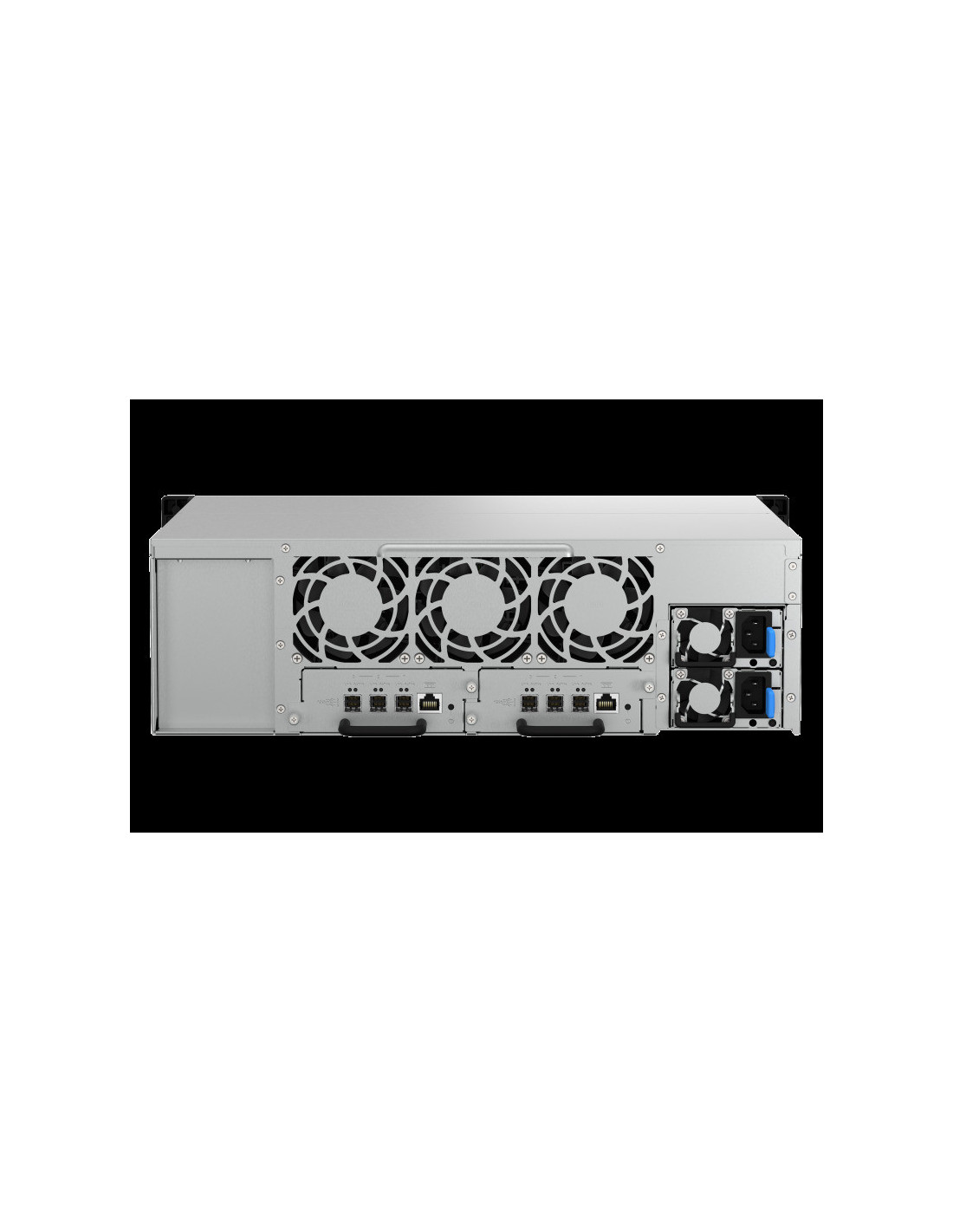

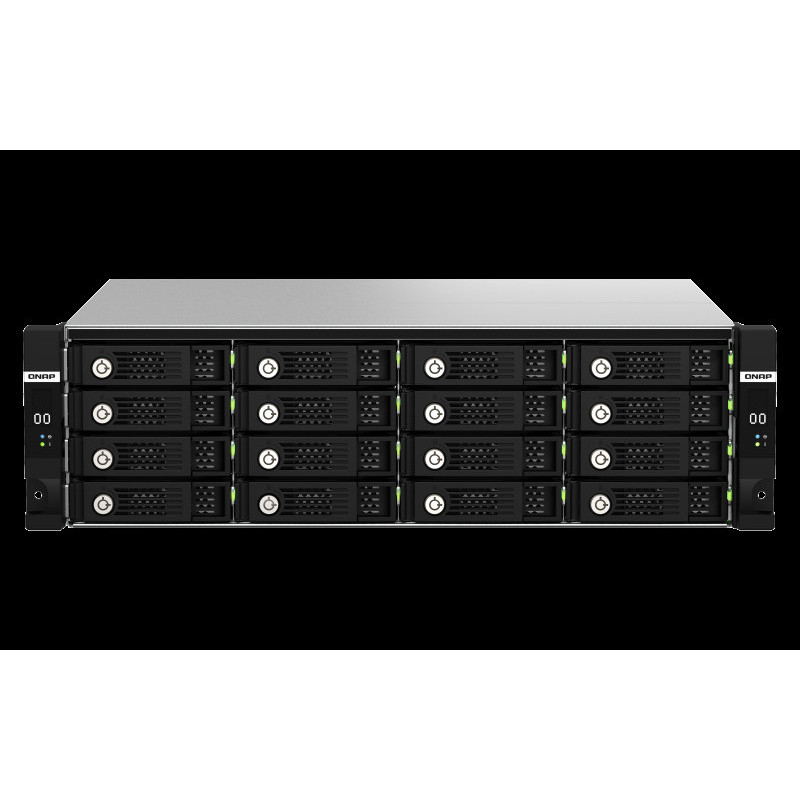

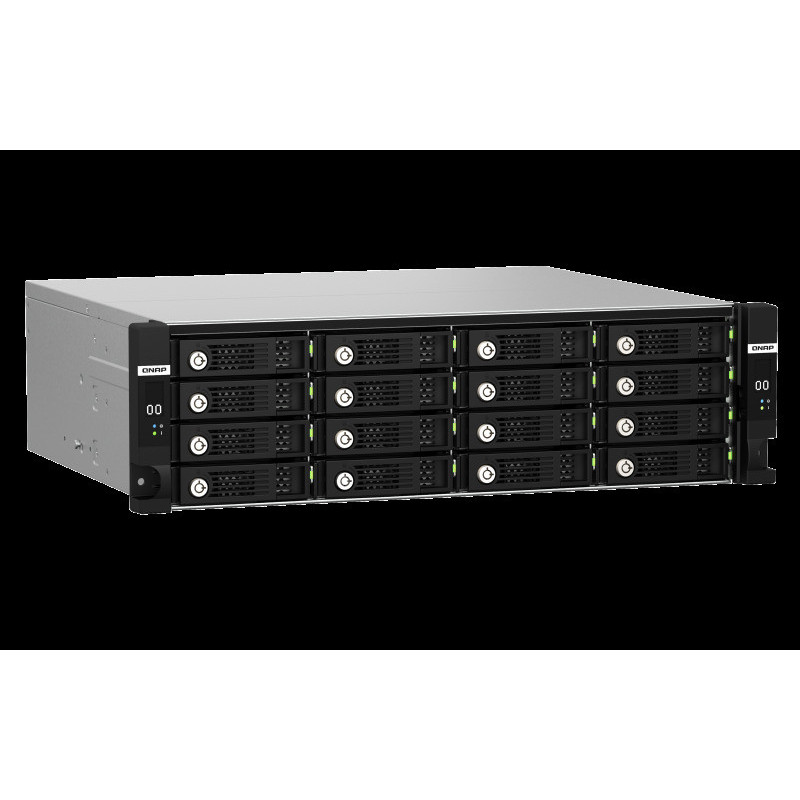

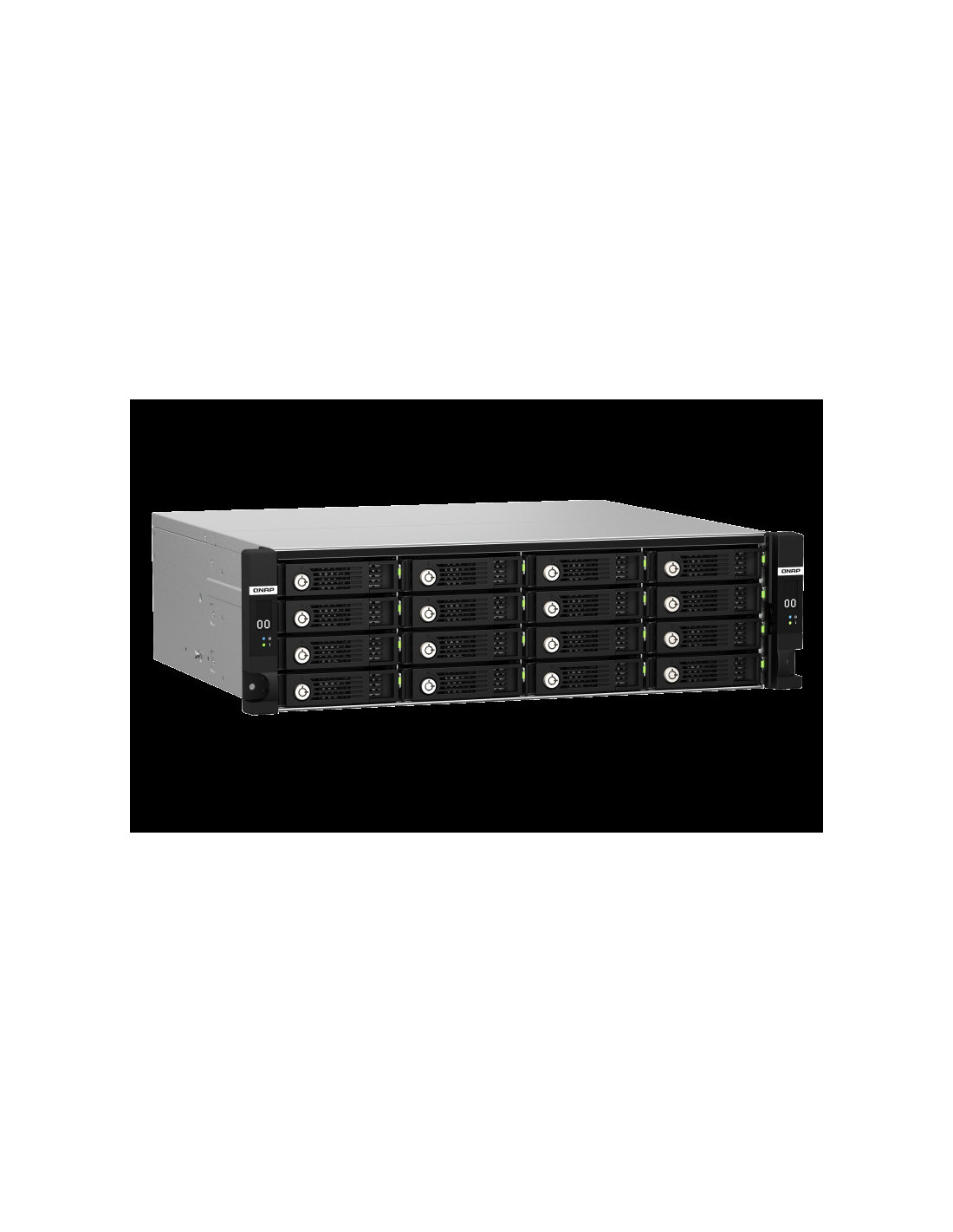

QNAP TL-R1620Sdc - 16 pozičný 3U SAS 12Gbps JBOD dual controller rozširovacia jednotka

16 x 3.5-inch SAS 12Gb/s, SAS/SATA 6Gb/s

Drive Compatibility 3.5-inch bays

• 3.5-inch SAS hard disk drives
• 2.5-inch SAS hard disk drives
• 2.5-inch SAS solid state drives

Hot-swappable: Yes

Gigabit Ethernet Port (RJ45): 1

Form Factor: 3U Rackmount

Host Interface: 3 x 12Gb/s SAS 3.0 wide ports (4-wide port) Mini-SAS HD (SFF-8644) for each controller

LED Indicators: HDD 1-16, Status, Power, Fan, Temperature, SAS connector status

Button: Power, OLED

Dimensions (HxWxD): 131.3 × 482.2 × 425.3 mm

Max. number of HDDs/SSDs supported: 16

Hard Drive Type: 3.5" or 2.5" SAS12Gb/s 6Gb/s drives

Operating temperature: 0 - 40 °C (32°F - 104°F)

Storage Temperature: -20 - 70°C (-4°F - 158°F)

Relative Humidity: 5-95% RH non-condensing, wet bulb: 27°C (80.6°F)

Power Supply Unit: 550W(x2), 100-240V

Fan: 3 x 80mm, 12VDC

System Warning: Buzzer

Management: Managed via NAS QES OS and JBOD Manager for Windows
